| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-400/500/600T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |
| Product Name: | Automatic High Speed 400 TON Plastic Injection Moulding Machine For Bucket ,Fruit Box | Plastic Processed:: | PP, PC,PVC |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |
| Highlight: | PP 400 ton injection molding machine,65mm 400 ton injection molding machine,80kN high speed injection molding |
||

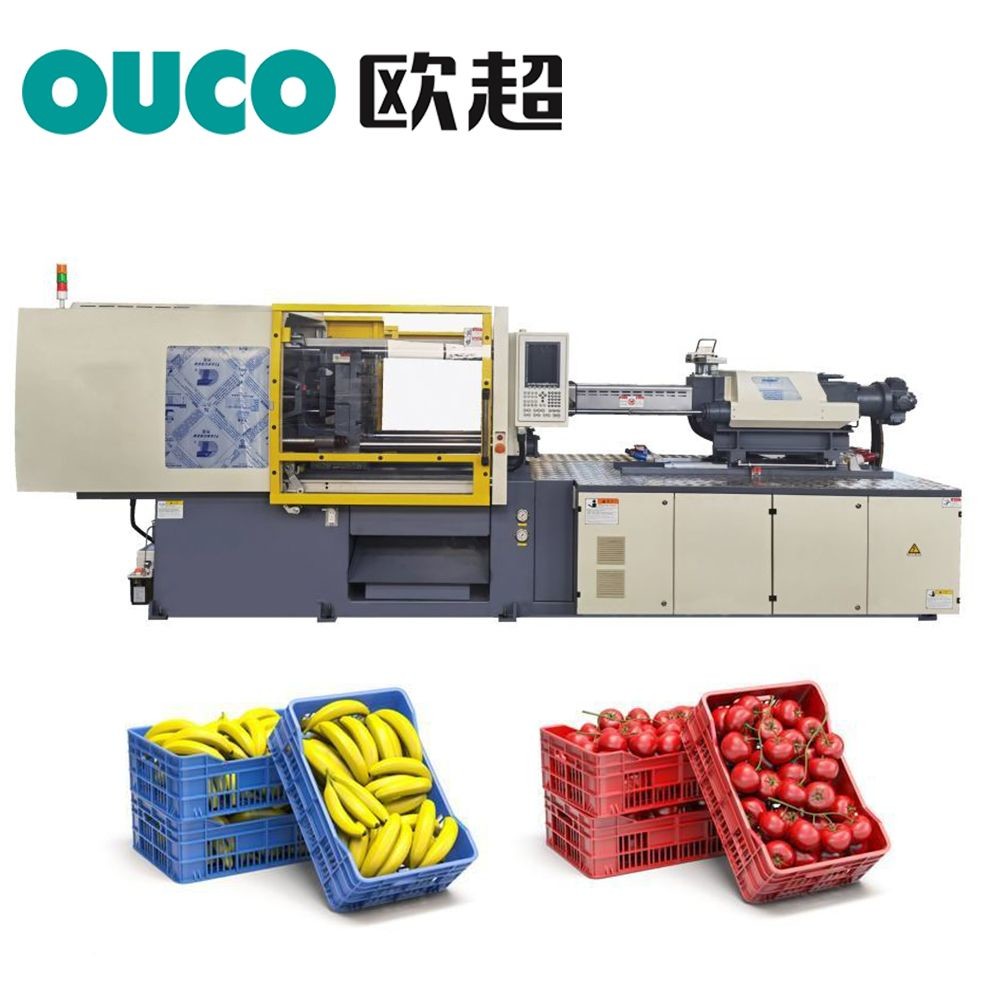

OUCO's special injection molding machine developed for fruit crates and other products. It makes our plastic crate injection molding machines perfectly match with crate molds to ensure higher production capacity and stable product quality.
Suitable for Fruit Basket Production Line
As its efficiency and high repeatability, injection molding machine has many advantages.
1. Faster mass production (efficiency), product a fruit basket with 21S.
2. Enviromental, the plastic can be recycled, so the raw material cost of the plastic basket is low.
3. Flexibility to change material, color, and finishes
4. Cheaper parts: If a part on your machine needs to be replaced, replacement parts are less expensive and easier to find.
Product Paraments
| Model | 400T | 500T | 600T | |||||||
| Screw Specifications | A | B | C | A | B | C | A | B | C | |
| Screwdi ameter | mm | 65 | 75 | 80 | 70 | 75 | 85 | 75 | 85 | 90 |
| Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| Theoretical injection volume | cm3 | 1C75 | 1431 | 1628 | 1481 | 1700 | 2184 | 1788 | 2297 | 2575 |
| Shot weight (PS) | g | 1C11 | 1345 | 1530 | 1377 | 1581 | 2031 | 1645 | 2113 | 2369 |
| injection rate(Ps) | g/S | 426 | 568 | 646 | G03 | 693 | 890 | G13 | 788 | 884 |
| Injection pressure | MPa | 242 | 182 | 160 | 209 | 182 | 142 | 204 | 159 | 142 |
| Inject on stroke | mm | 360 | 385 | 405 | ||||||
| Max. injection speed | mm/s | 156 | 166 | 157 | ||||||
| Screw speed | r/min | 0-200 | 0-200 | 0-200 | ||||||
| Sys. Pressure | MPa | 16 | 16 | 16 | ||||||
| Pump Motor(Min-Max) | kW | 75 | 94 | 101 | ||||||
| Displacement | ml/r | 100+100 | 125+125 | 160+125 | ||||||
| number of Motors | PC | 2 | 2 | 2 | ||||||
| Heater power | kW | 35 | 41 | 47 | ||||||
| Number oftemp. control zones | 5+1 | 5+1 | 5+1 | |||||||
| Clamping force | kN | 4000 | 5000 | 6000 | ||||||
| Opening stroke | mm | 900 | 1000 | 1150 | ||||||
| Tie bar distance W×L | mm*mm | 760x660 | 860x760 | 960x860 | ||||||
| Min. mold thickness | mm | 300 | 300 | 350 | ||||||
| Max. mold thickness | mm | 730 | 800 | 920 | ||||||
| Ejector stroke | mm | 190 | 210 | 210 | ||||||
| Ejector force forward | kN | 80 | 110 | 113 | ||||||
| Number of ejector bar | PC | 1+12 | 1+12 | 1+12 | ||||||
| Oil tank capacity | L | 680 | 850 | 940 | ||||||
| Machine dimensions(LxWxH) | m*m*m | 8.2x1.9x1.9 | 87x2.0x2.1 | 9.3x2.1x2.3 | ||||||
| Machine weight | Ton | 15 | 19 | 23 | ||||||

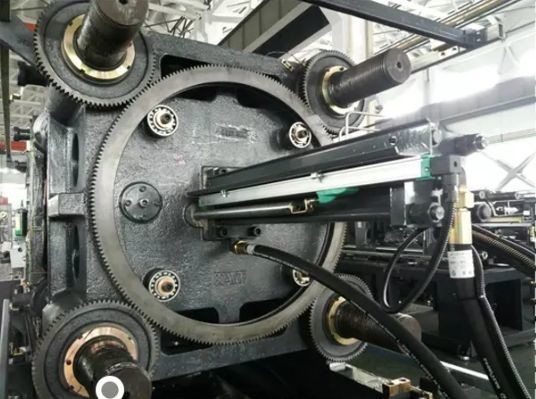

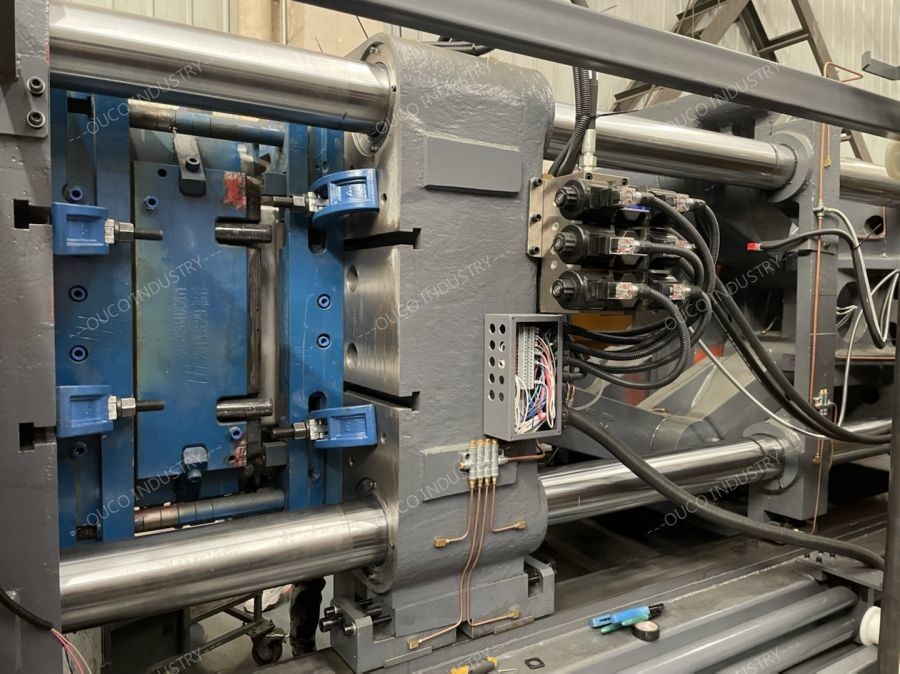

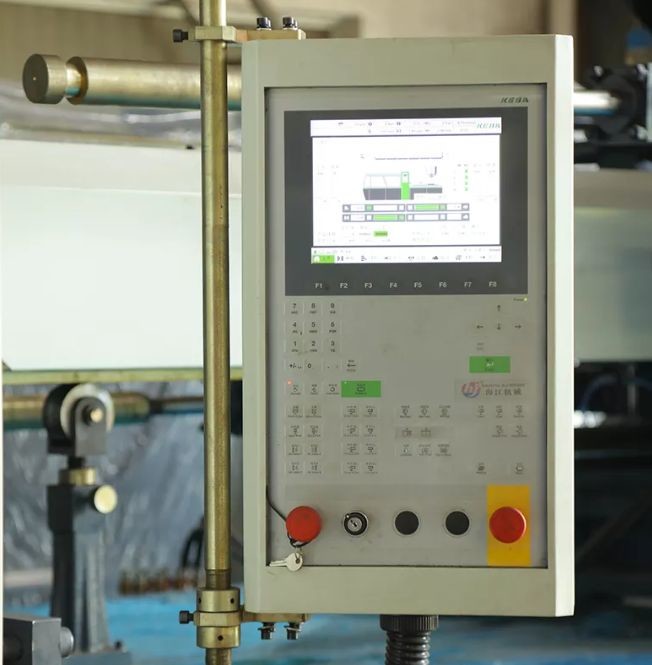

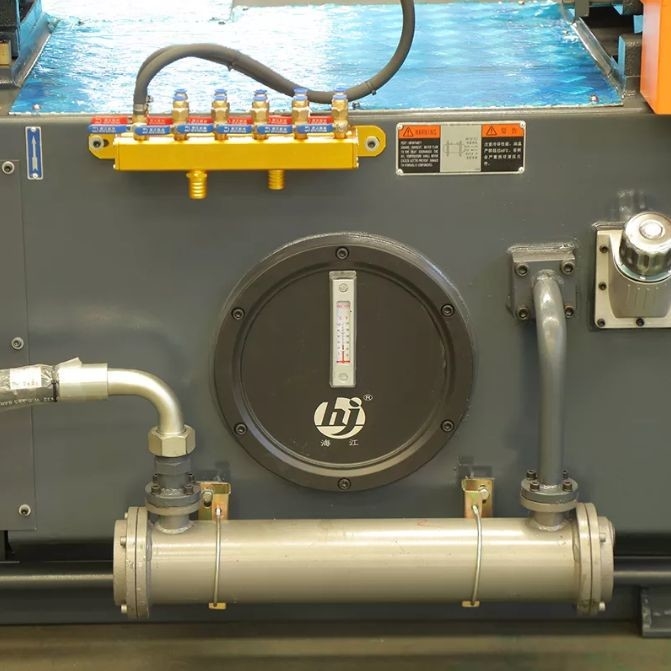

Detailed Pictures
