| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-500/600T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |
| Product Name: | High-quality Automatic 500 TON Plastic Injection Moulding Machine Best Price For Fruit Basket Production Line | Plastic Processed:: | PP, PC,PVC |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |
| Highlight: | 160mm 500 ton injection molding machine,35kW 500 ton injection molding machine,360mm Fruit Basket automatic molding machine |
||

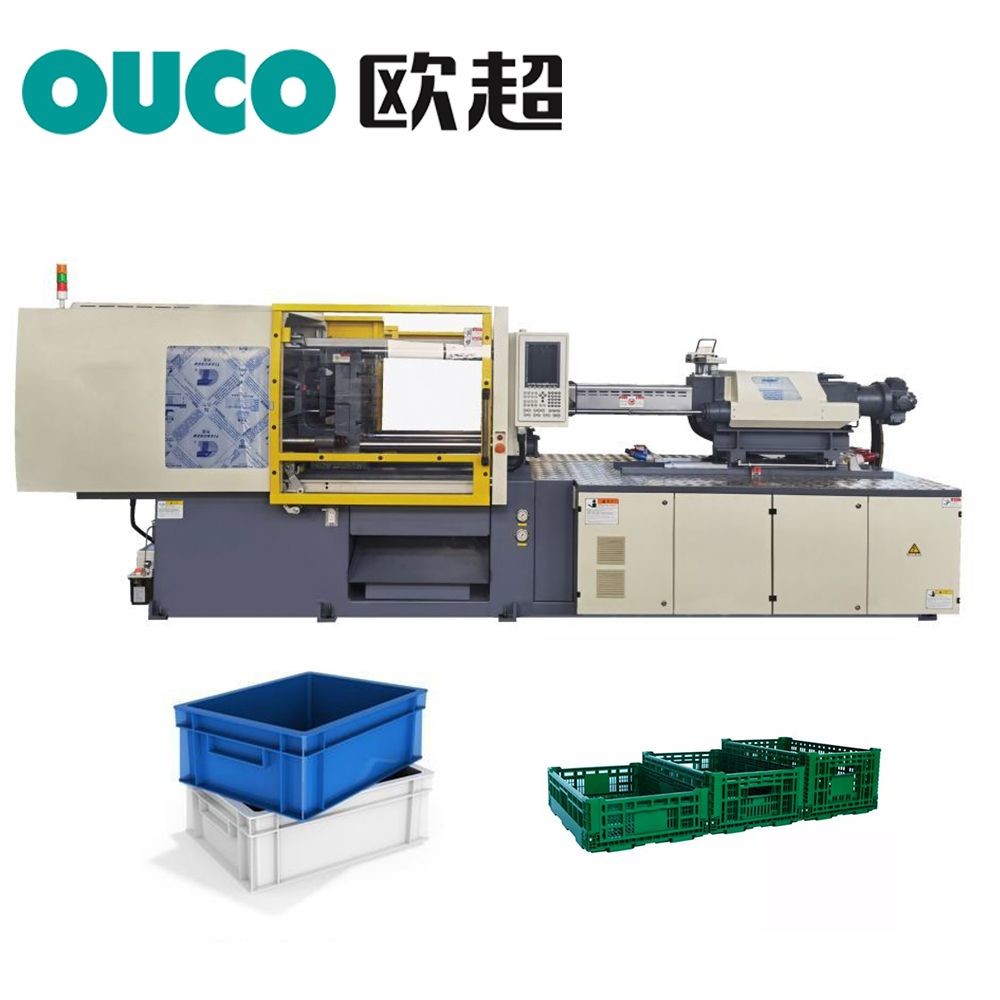

OUCO's special injection molding machine developed for fruit crates and other products. It makes our plastic crate injection molding machines perfectly match with crate molds to ensure higher production capacity and stable product quality.
Suitable for Fruit Basket Production Line
As its efficiency and high repeatability, injection molding machine has many advantages.
1. High efficient production , product a fruit basket with 21S.
2. Cost low , the plastic can be recycled, so the raw material cost of the plastic basket is low.
3. Injection molding machine technology is very mature now, so the product quality of injection molding products is very guaranteed
4. Cheaper parts: If a part on your machine needs to be replaced , replacement parts are less expensive and easier to find.
5. Stronger components: The machine's hydraulic components are more resistant to wear - built to last.
Product Paraments
| Model | 400T | 500T | 600T | |||||||
| Screw Specifications | A | B | C | A | B | C | A | B | C | |
| Screwdi ameter | mm | 65 | 75 | 80 | 70 | 75 | 85 | 75 | 85 | 90 |
| Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| Theoretical injection volume | cm3 | 1C75 | 1431 | 1628 | 1481 | 1700 | 2184 | 1788 | 2297 | 2575 |
| Shot weight (PS) | g | 1C11 | 1345 | 1530 | 1377 | 1581 | 2031 | 1645 | 2113 | 2369 |
| injection rate(Ps) | g/S | 426 | 568 | 646 | G03 | 693 | 890 | G13 | 788 | 884 |
| Injection pressure | MPa | 242 | 182 | 160 | 209 | 182 | 142 | 204 | 159 | 142 |
| Inject on stroke | mm | 360 | 385 | 405 | ||||||
| Max. injection speed | mm/s | 156 | 166 | 157 | ||||||
| Screw speed | r/min | 0-200 | 0-200 | 0-200 | ||||||
| Sys. Pressure | MPa | 16 | 16 | 16 | ||||||
| Pump Motor(Min-Max) | kW | 75 | 94 | 101 | ||||||
| Displacement | ml/r | 100+100 | 125+125 | 160+125 | ||||||
| number of Motors | PC | 2 | 2 | 2 | ||||||
| Heater power | kW | 35 | 41 | 47 | ||||||
| Number oftemp. control zones | 5+1 | 5+1 | 5+1 | |||||||
| Clamping force | kN | 4000 | 5000 | 6000 | ||||||
| Opening stroke | mm | 900 | 1000 | 1150 | ||||||
| Tie bar distance W×L | mm*mm | 760x660 | 860x760 | 960x860 | ||||||
| Min. mold thickness | mm | 300 | 300 | 350 | ||||||
| Max. mold thickness | mm | 730 | 800 | 920 | ||||||
| Ejector stroke | mm | 190 | 210 | 210 | ||||||
| Ejector force forward | kN | 80 | 110 | 113 | ||||||
| Number of ejector bar | PC | 1+12 | 1+12 | 1+12 | ||||||
| Oil tank capacity | L | 680 | 850 | 940 | ||||||
| Machine dimensions(LxWxH) | m*m*m | 8.2x1.9x1.9 | 87x2.0x2.1 | 9.3x2.1x2.3 | ||||||
| Machine weight | Ton | 15 | 19 | 23 | ||||||

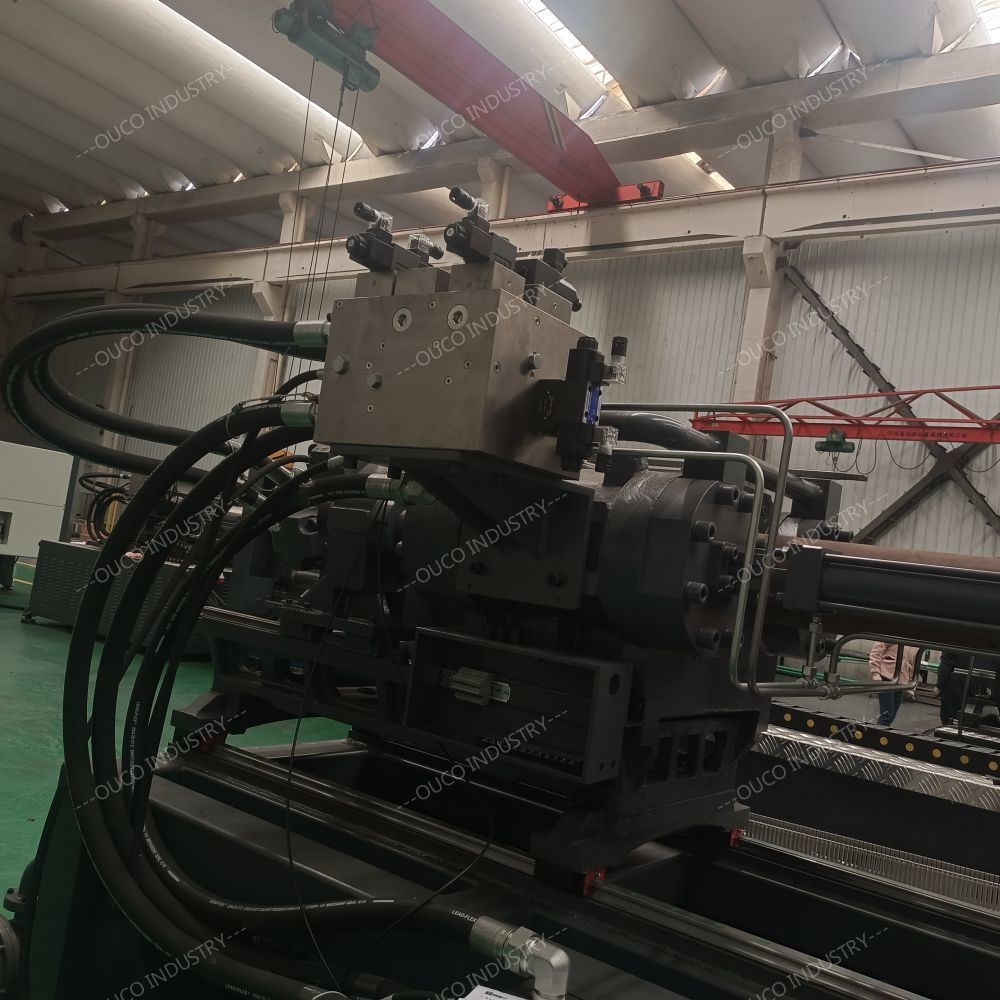

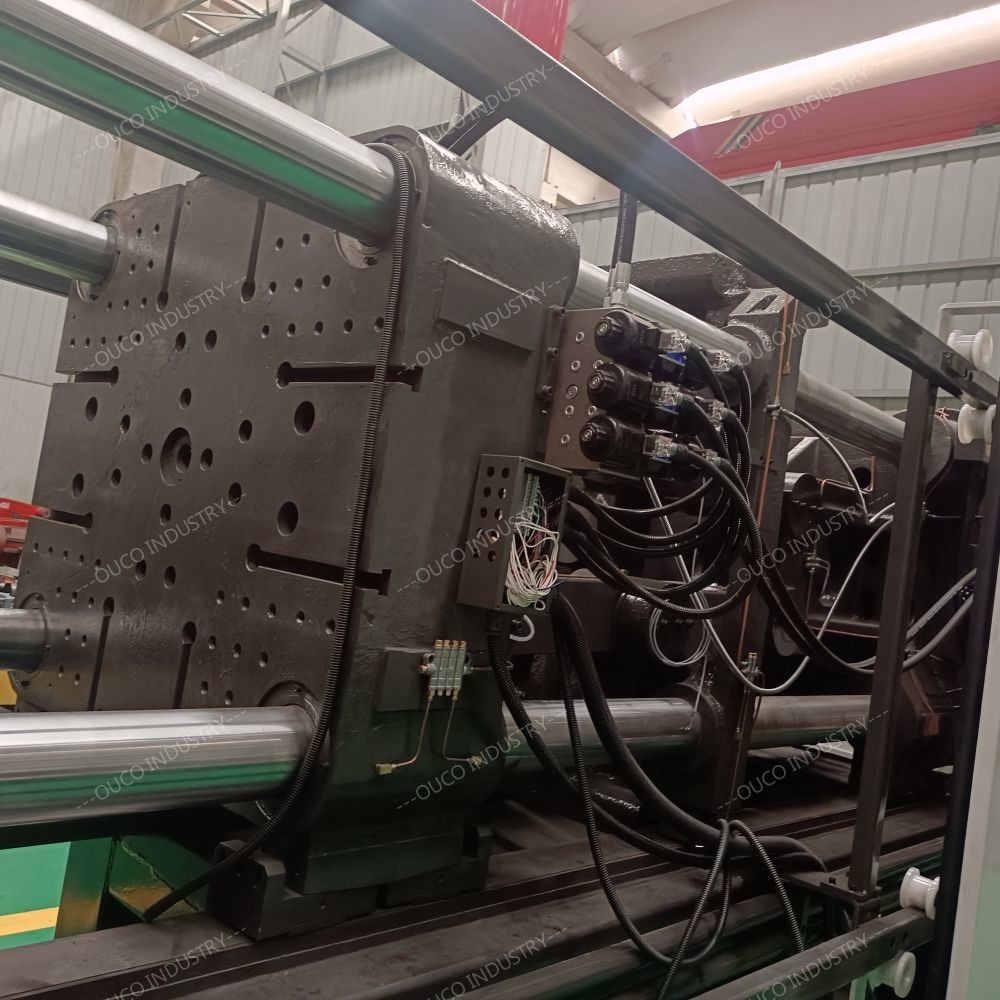

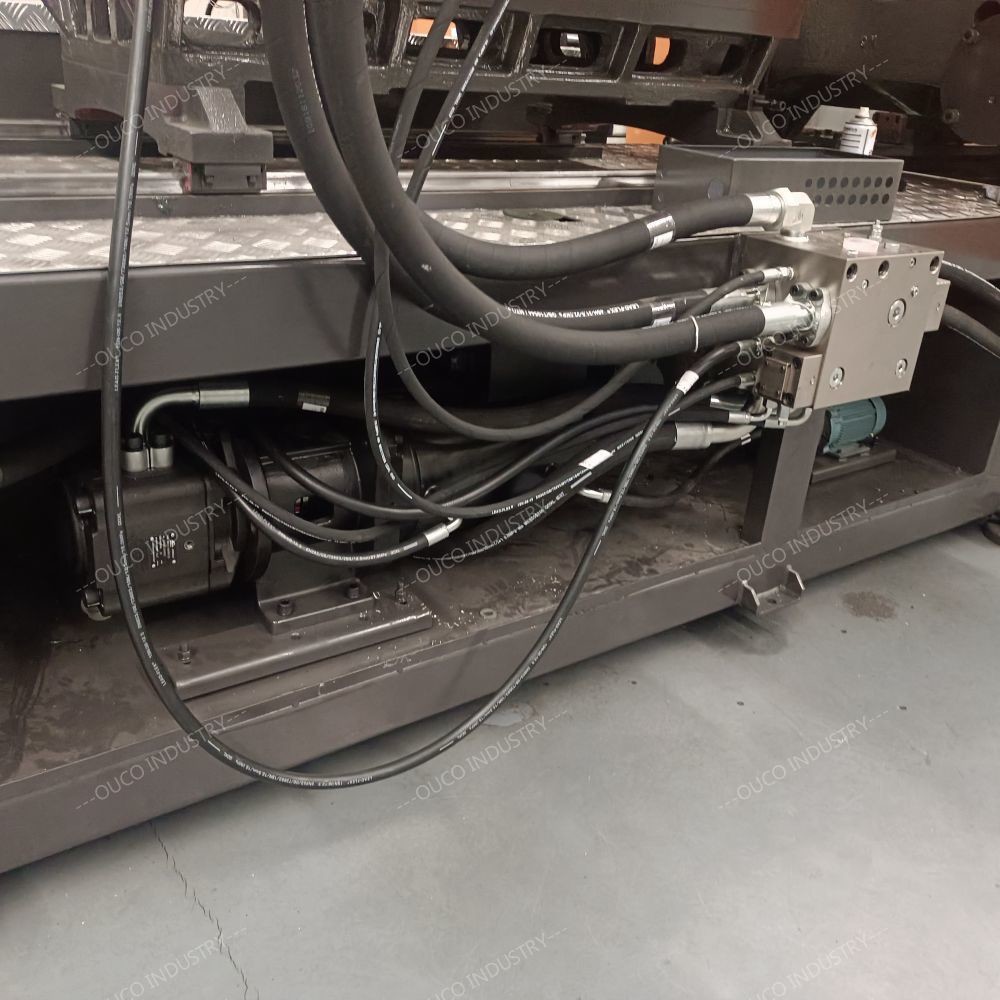

Detailed Pictures
