| Place of Origin: | china |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE |
| Model Number: | OUCO-Bucket |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 90 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |

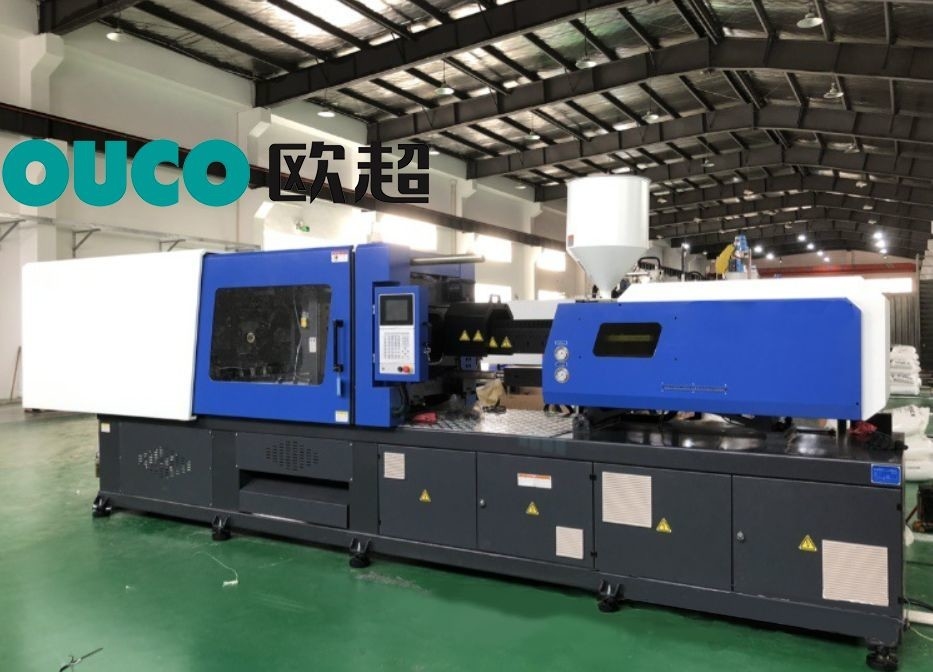

| Name: | 2250T Paint Bucket Injection Moulding Machine Used For Big Bucket | Motor: | Servo Energy Saving |
|---|---|---|---|
| Function: | Plastic Parts Production | Type: | Automation |
| Color: | Support Customization | Clamping Way: | Hydraulic |
| High Light: | 850Ton automated injection molding machine,85MM automated injection molding machine,2250T Injection Molding Machine |
||
Which type injection molding machine will be used for bucket?
350Ton -850Ton types injection molding machine will be used for small bucket, 1150Ton-2250Ton types injection molding machine will be used for big buckets.
When we choose a suitable Bucket Injection Molding Machine, we need to know 4 points first:
1. What is the volume of the sanitation trash can?
2. What is the required weight?
3. How many products can be produced in one mold?
4. What is the size of the mold?
After clarifying the above 4 points, you can choose a more suitable injection molding machine.
The Deep Cavity series High-speed injection molding machine launched by OUCO can be used to efficiently and stably produce various sorting bucket trash cans.
Ouco two-platen injection molding machine (900T - 2200T) is suitable for producing large trash cans and large trash can lids. Baojie two-platen injection molding machine (300T - 700T) is suitable for producing small trash cans and small trash can lids.

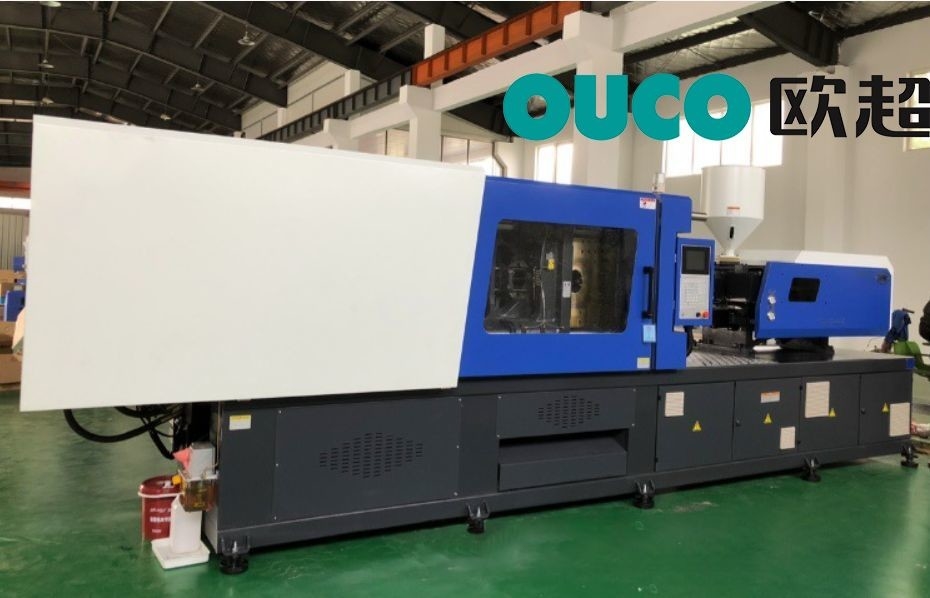

Bucket Injection molding Machine is developed OUCO with longer Clamping stroke
Technical Parameter( 300T - 700T)
| 机型 | 300T | 400T | 500T | 600T | 700T | ||||||||||||
| 螺杆规格 | A | B | C | A | B | C | A | B | C | A | B | C | A | B | C | ||
| 螺杆直径 | Screw diameter | mm | 50 | 60 | 65 | 65 | 75 | 80 | 70 | 75 | 85 | 75 | 85 | 90 | 85 | 90 | 100 |
| 螺杆长径比 | Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| 理论注射容积 | Theoretical injection volume | cm3 | 638 | 918 | 1078 | 1C75 | 1431 | 1628 | 1481 | 1700 | 2184 | 1788 | 2297 | 2575 | 2552 | 2861 | 3533 |
| 注射重量(PS) | Shot weight (PS) | g | 593 | 853 | 1002 | 1C11 | 1345 | 1530 | 1377 | 1581 | 2031 | 1645 | 2113 | 2369 | 2348 | 2632 | 3250 |
| 注射速率 | injection rate(Ps) | g/S | 330 | 475 | 558 | 426 | 568 | 646 | G03 | 693 | 890 | G13 | 788 | 884 | 788 | 883 | 1091 |
| 注射压力 | Injection pressure | MPa | 286 | 198 | 169 | 242 | 182 | 160 | 209 | 182 | 142 | 204 | 159 | 142 | 209 | 187 | 151 |
| 注射行程 | Inject on stroke | mm | 325 | 360 | 385 | 405 | 450 | ||||||||||
| 最大注射速度 | Max. injection speed | mm/s | 178 | 156 | 166 | 157 | 147 | ||||||||||
| 最大摞杆转速 | Screw speed | r/min | 0-200 | 0-200 | 0-200 | 0-200 | 0-180 | ||||||||||
| 系统压力 | Sys. Pressure | MPa | 16 | 16 | 16 | 16 | 16 | ||||||||||
| 电机总功率 | Pump Motor(Min-Max) | kW | 63 | 75 | 94 | 101 | 114 | ||||||||||
| 油泵排量 | Displacement | ml/r | 163 | 100+100 | 125+125 | 160+125 | 160+160 | ||||||||||
| 电机数员 | number of Motors | PC | 1 | 2 | 2 | 2 | 2 | ||||||||||
| 电热功率 | Heater power | kW | 27 | 35 | 41 | 47 | 52 | ||||||||||
| 温控区数 | Number of temp. control zones | 5+1 | 5+1 | 5+1 | 5+1 | 5+1 | |||||||||||
| 锁模力 | Clamping force | kN | 3000 | 4000 | 5000 | 6000 | 7000 | ||||||||||
| 开模行程 | Opening stroke | mm | 800 | 900 | 1000 | 1150 | 1300 | ||||||||||
| 拉杆内间距 | Tie bar distance W×L | mmxmm | 680x680 | 760x660 | 860x760 | 960x860 | 1020x920 | ||||||||||
| 最小模具厚度 | Min. mold thickness | mm | 210 | 300 | 300 | 350 | 450 | ||||||||||
| 最大模具厚度 | Max. mold thickness | mm | 680 | 730 | 800 | 920 | 1050 | ||||||||||
| 顶出行程 | Ejector stroke | mm | 190 | 190 | 210 | 210 | 210 | ||||||||||
| 顶出力 | Ejector force forward | kN | 62 | 80 | 110 | 113 | 113 | ||||||||||
| 顶出杆数 | Number of ejector bar | PC | 1+12 | 1+12 | 1+12 | 1+12 | 1+12 | ||||||||||
| 油箱容量 | Oil tank capacity | L | 510 | 680 | 850 | 940 | 1020 | ||||||||||
| 机械外形尺寸(约) | Machine dimensions(LxWxH) | mxmxm | 7.7x1.8x1.8 | 8.2x1.9x1.9 | 87x2.0x2.1 | 9.3x2.1x2.3 | 9.7x2.2x2.4 | ||||||||||
| 机器重量(约) | Machine weight | Ton | 10.5 | 15 | 19 | 23 | 25 | ||||||||||
Technical Parameter( 900T - 2200T)
| 机型 | 900T | 1000T | 1400T | 1850T | 2200T | ||||||||||||
| 螺杆规格 | A | B | C | A | B | C | A | B | C | A | B | C | A | B | C | ||
| 螺杆直径 | Screw di ameter | mm | 90 | 100 | 110 | 100 | 100 | 120 | 110 | 120 | 130 | 125 | 135 | 145 | 135 | 145 | 155 |
| 螺杆长径比 | Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| 理论注射容积 | Theoretical injection capacity | cm3 | 3147 | 3886 | 4702 | 4329 | 4329 | 6104 | 5177 | 6161 | 7230 | 8034 | 9371 | 10811 | 10015 | 11553 | 13202 |
| 注射量(Ps) | Shot weight (PS) | g | 2896 | 3575 | 4326 | 3900 | 3900 | 5616 | 4763 | 5668 | 6652 | 7391 | 8621 | 9946 | 9213 | 10629 | 12146 |
| 注射速率 | injection rate(Ps) | g/S | 975 | 1204 | 1457 | 920 | 920 | 1325 | 1651 | 1384 | 1628 | 1275 | 1488 | 1717 | 1647 | 1932 | 2208 |
| 注射压力 | Injection pressure | MPa | 214 | 173 | 143 | 204 | 204 | 142 | 197 | 165 | 141 | 197 | 169 | 146 | 187 | 162 | 142 |
| 注射行程 | Injection stroke | mm | 495 | 540 | 545 | 655 | 700 | ||||||||||
| 最大注射速度 | Max. injection speed | mm/s | 146 | 137 | 130 | 130 | 124 | ||||||||||
| 最大螺杆转速 | Screw speed | r/min | 0-180 | 0-180 | 0-180 | 0-160 | 0-150 | ||||||||||
| 系统压力 | Sys. Pressure | MPa | 16 | 16 | 16 | 16 | 16 | ||||||||||
| 电机总功率 | Pump Motor(Min-Max) | kW | 141 | 151 | 178 | 210 | 235 | ||||||||||
| 油泵排量 | Displacement | ml/r | 125+125+125 | 160+125+125 | 160+160+160 | 160+160+125 + 125 | 125+125+125+125+125 | ||||||||||
| 电机数量 | number of Motors | PC | 3 | 3 | 3 | 4 | 5 | ||||||||||
| 电热功率 | Heater power | kW | 59 | 61 | 68 | 89 | 115 | ||||||||||
| 温控区数 | Number of temp, control zones | 5+1 | 6+1 | 7+1 | 8+1 | ||||||||||||
| 锁模力 | Clamping force | kN | 9000 | 10000 | 14000 | 18500 | 22000 | ||||||||||
| 开模行程 | Opening stroke | mm | 1500 | 1700 | 1900 | 2300 | 2500 | ||||||||||
| 拉杆内间距 | Space between tie bar | mmxmm | 1120x1030 | 1210x1060 | 1460x1320 | 1620x1460 | 1760x1560 | ||||||||||
| 最小模具厚度 | Min. mold thickness | mm | 450 | 500 | 700 | 750 | 750 | ||||||||||
| 最大模具厚度 | Max. mold thickness | mm | 1150 | 1200 | 1400 | 1600 | 1750 | ||||||||||
| 顶出行程 | Ejector stroke | mm | 270 | 300 | 350 | 400 | 450 | ||||||||||
| 顶岀力 | Ejector force forward | kN | 152 | 196 | 251 | 332 | 425 | ||||||||||
| 顶岀杆数 | Number of ejector bar | PC | 1+16 | 1+16 | 1+28 | 1+28 | 1+28 | ||||||||||
| 油箱容量 | Oil tank capacity | L | 1190 | 1300 | 1530 | 2210 | 2550 | ||||||||||
| 机械外形尺寸(约) | Machine dimensions(LxWxH) | mxmxm | 10.2x2.2x2.5 | 10.7x2.4x2.8 | 14.8x3.6x33 | 15x3.2x3.5 | 18.5x3.6x3.7 | ||||||||||
| 机器重量(约) | Machine weight | Ton | 39 | 44 | 70 | 100 | 140 | ||||||||||
Why choose OUCO?
We are a professional high-tech injection molding machine enterprise with rich experience in manufacturing and selling injection molding machines. Bucket Injection molding Machine is our flagship product .We will customize injection molding solutions for you.
What we can do for you?
- Professional pre-sales and after-sales service
- Detailed production schedule updated regularly
- Delivery on time and short production time
- Customize the machine according to your requirements
- Well-trained engineers will offer you any technical support.
