| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-188T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

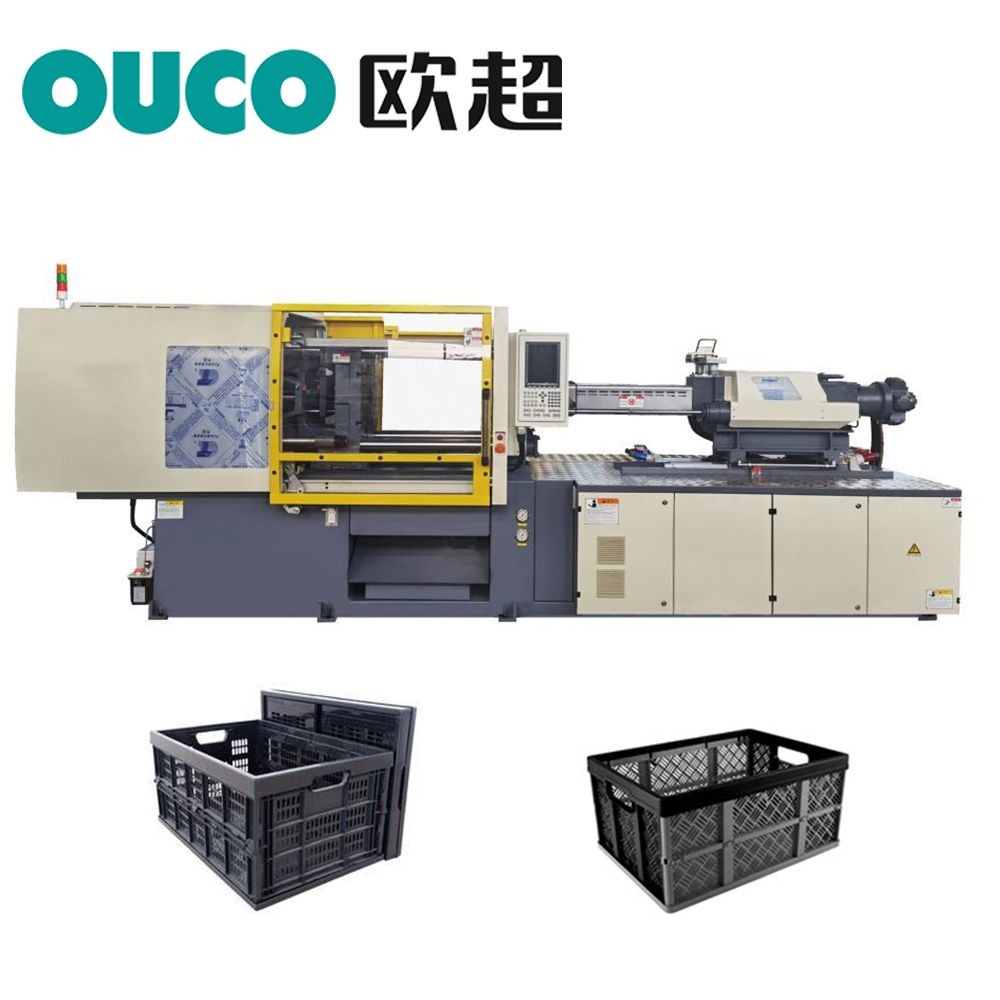

| Product Name: | 188 Ton Efficiency Two-Color Injection Molding Machine With High Quality Features | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 188 Ton Servo Motor Injection Molding Machine,530mm Servo Motor Injection Molding Machine,SGS two color injection molding machine |
||
Product Details
1. It is equipped with two injection parts, large and small, and the two screws are controlled by professional computer to inject synchronously or alternately to make plastic products with beautiful colors.
2. It can also make sandwich plastic products to reduce the cost;
3. It can be widely used for two-color molding with PP, PE, PS and other raw materials.
High quality features
The "new breakthrough" in hydraulic injection molding machine, "pressure valve ring control" and "energy supply and demand matching", professional shape the future!
Pressure valve loop control: The actual pressure is compared with the set pressure in real time and corrected until the actual pressure equals the set pressure.
Energy supply and demand matching: how much energy the injection molding machine makes, how much energy the power system provides, with little energy loss.
| Technical Parameter Table | A/A | A/B | A/C | B/A | B/B | B/C | ||
| Injection Unit | Screw diameter | mm | 40 | 45 | 48 | 32 | 35 | 38 |
| Screw L/D ratio | L/D | 24.7 | 22 | 20.6 | 24 | 22 | 20.2 | |
| Injection capacity in theory | cm3 | 282 | 358 | 407 | 128 | 154 | 181 | |
| Injection weight(ps) | g | 262 | 330 | 378 | 116 | 140 | 164 | |
| oz | 9.24 | 11.6 | 13.3 | 4 | 4.9 | 5.7 | ||
| Injection pressure | MPa | 224 | 176 | 155 | 262 | 219 | 185 | |
| Injection rate | g/s | 118 | 150 | 170 | 71 | 85 | 101 | |
| Plasticizing capacity | g/s | 18 | 22 | 25 | 10 | 11 | 13 | |
| Screw speed | rpm | 220 | 380 | |||||
| Clamping Unit | Clamping force | KN | 1880 | |||||
| Moving mould-plate stroke | mm | 450 | ||||||
| Max.Mould height | mm | 530 | ||||||
| Min.Mould height | mm | 180 | ||||||
| Space between tie-bars(W×H) | mm | 510×460 | ||||||
| Hydraulic ejector force | KN | 53 | ||||||
| Hydraulic ejector stroke | mm | 130 | ||||||
| Ejector number | n | 5 | ||||||
| Wheel diameter | mm | |||||||
| Other | Pump pressure | MPa | 16 | |||||
| Motor/Driving power | KW | 15/18.5 | ||||||
| Heating capacity | KW | 26.7 | ||||||
| Machine dimension | m | 5.4×1.73×2.03 | ||||||
| Machine weight | t | 248 | ||||||
| Oil tank capacity | L | 510 | ||||||

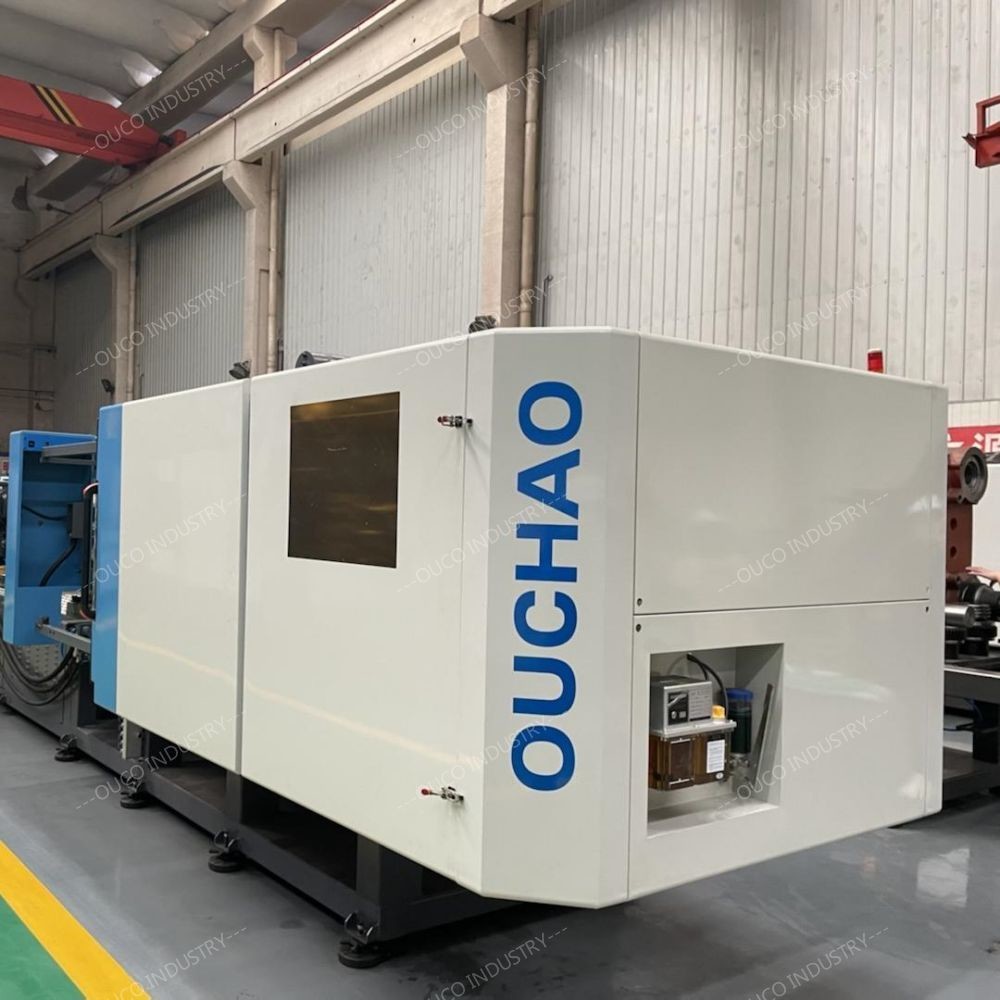

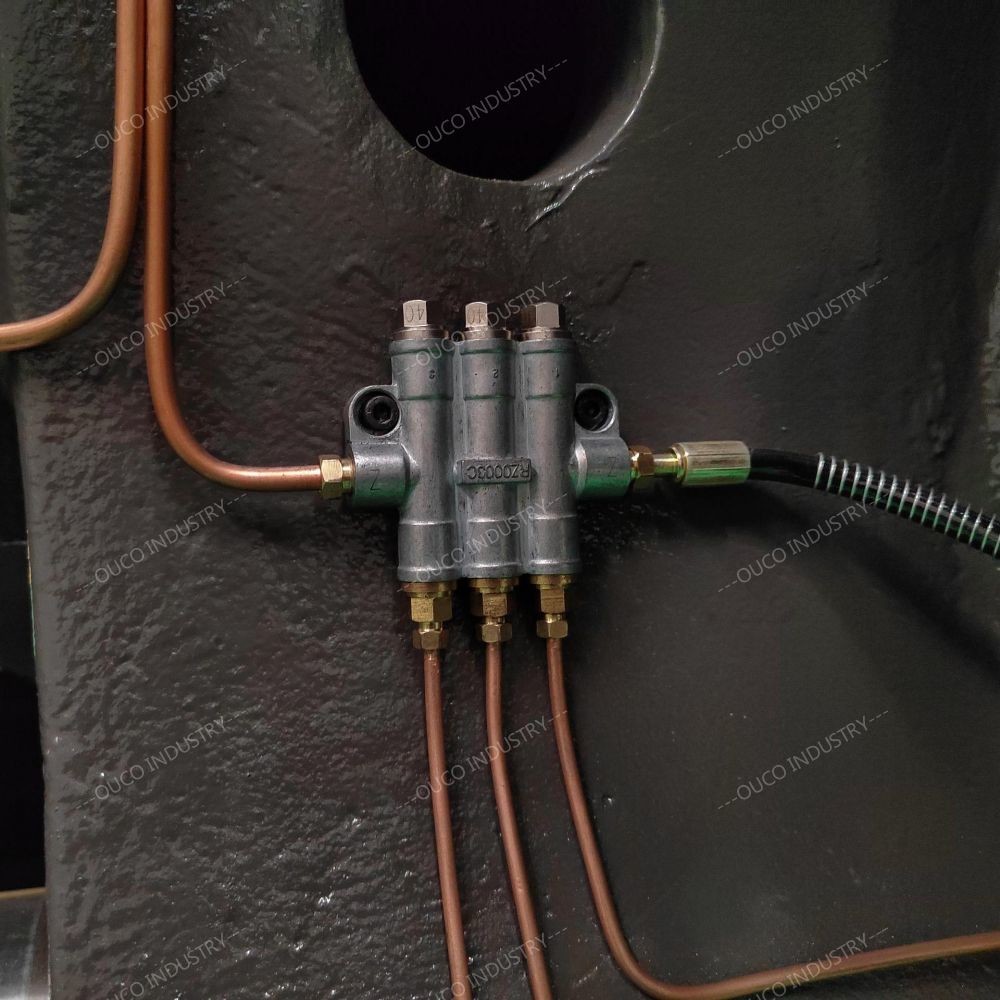

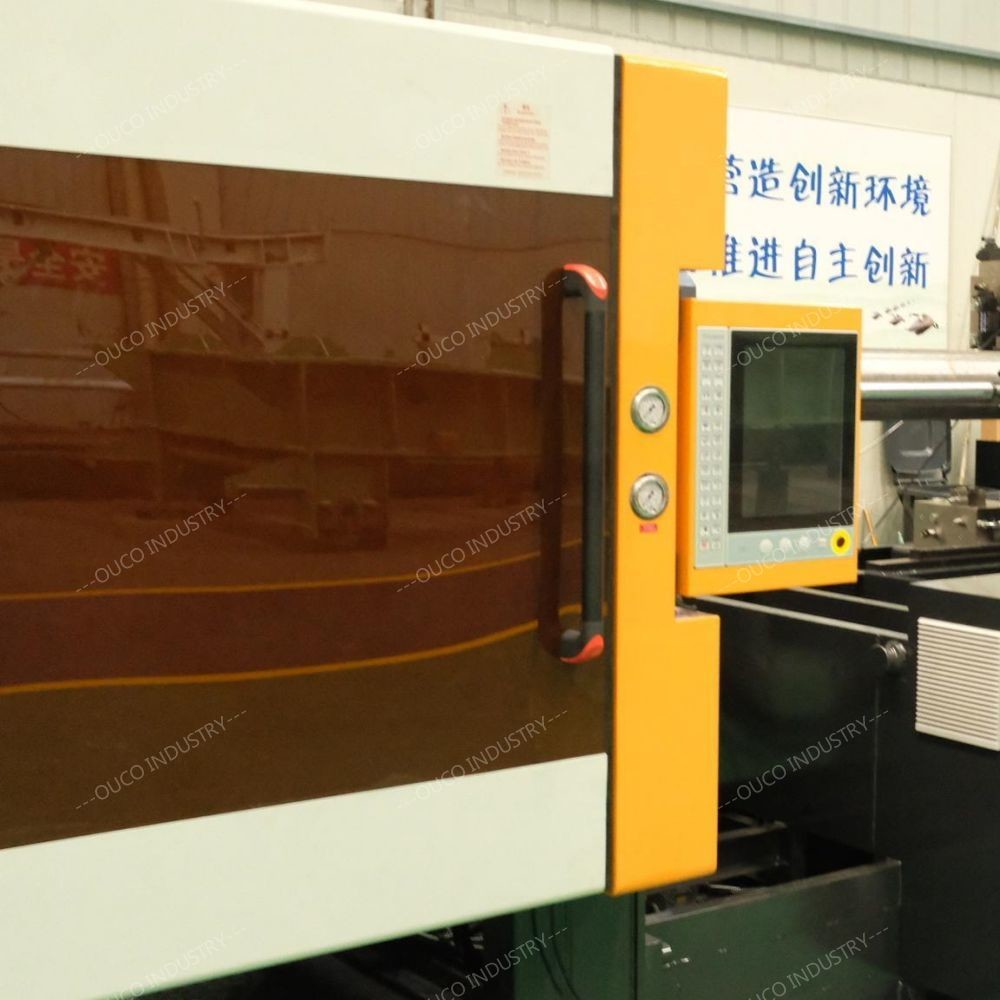

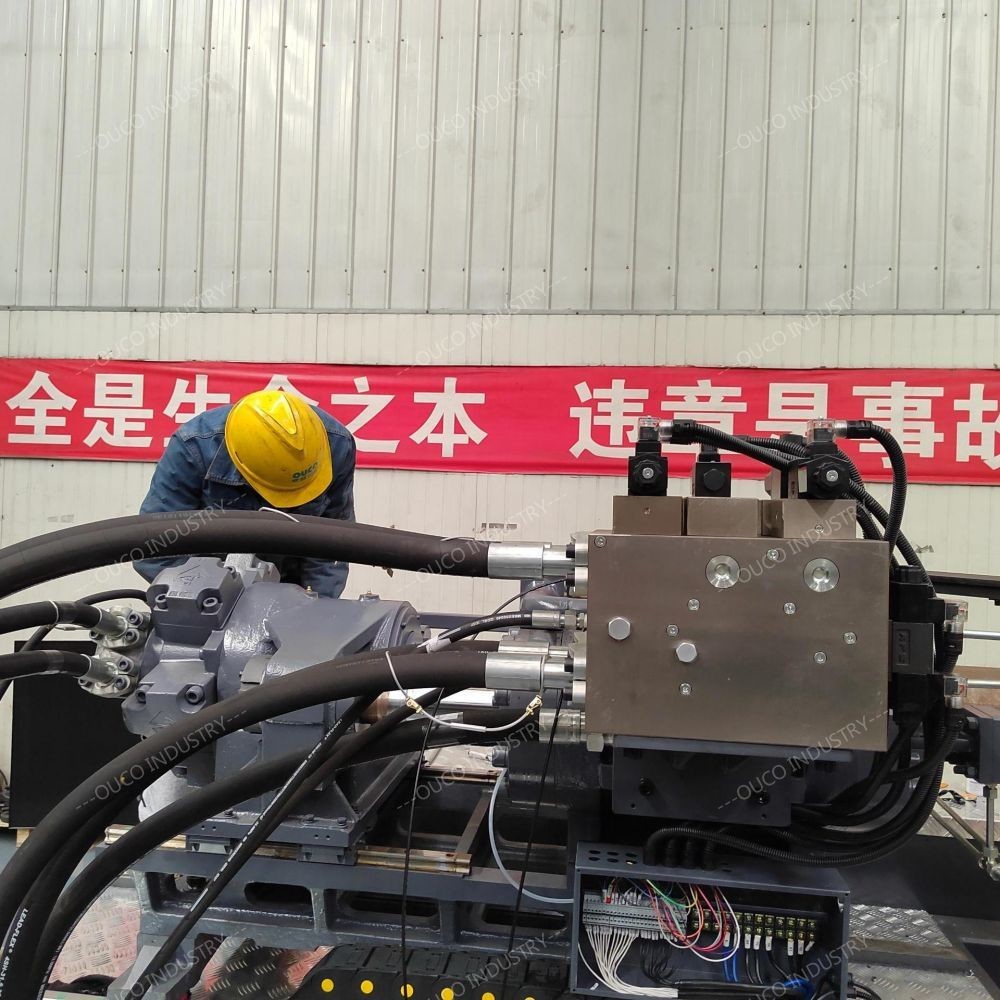

Detail Pictures
