| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-O410T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

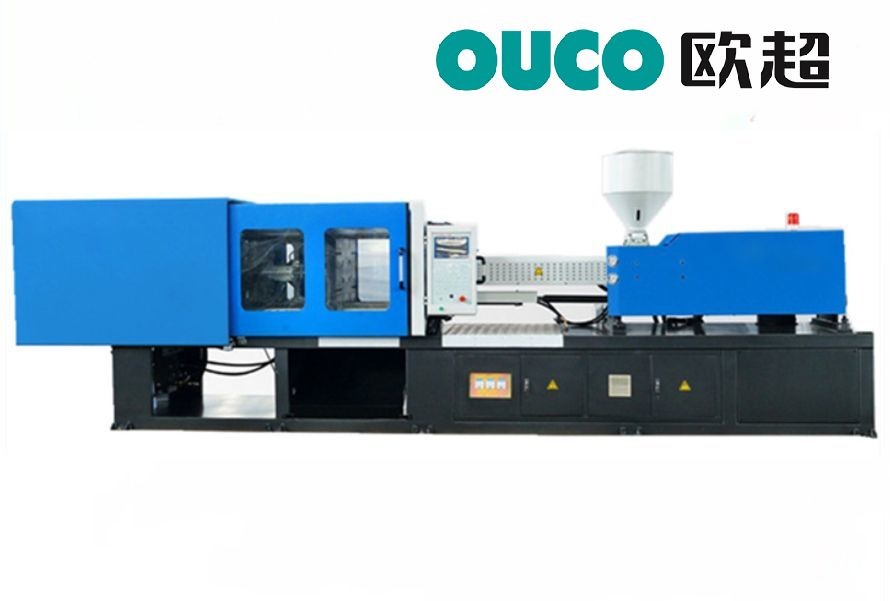

| Product Name: | 410 T Optimized Edition Injection Molding Machine For Crate/Painting Bucket | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 410 T Bucket Injection Molding Machine,SGS Bucket Injection Molding Machine,13N Optimized Edition Injection Molding Machine |
||
As a leading manufacturer of fruit and storage box injection molding machine, I'm pleased to inform you that we OUCO have been working with many companies in Europe, Asia and South America.
What is the advantage of OUCO deep cavity injection molding machine?
1.Excellence clamping structure
2.100% clamping force use
3.Fast ,more 10% output
4.Save 2-5% material
Optimized functions
1.Expanded motor and pump system, optimized hydraulic system for high performance and faster cycles. Like crate (less than 2kg) cycle time 20s;Spray paint bucket (780-800g) cycle time 20s.
2. Specially designed screw and barrel structure for faster plasticization and shorter loading cycle.
Optional bimetallic screw and barrel to be compatible with the recycled material of the box.
3. Optional automation equipment is available to improve production efficiency.
TECHNICAL PARAMETER
| TECHNICAL PARAMETER TABLE | |||
| INJECTION UNIT | SCREW DIAMETER | mm | 90 |
| SCREW L/D RATIO | L/D | 19 | |
| INJECTION CAPACITY IN THEORY | cm3 | 2353 | |
| INJECTION WEIGHT(PS) | g | 2141 | |
| INJECTION PRESSURE | MPa | 135 | |
| INJECTION RATE | g/s | 549 | |
| PLASTICIZING CAPACITY | g/s | 95 | |
| SCREW SPEED | rpm | 196 | |
| CLAMPING UNIT | CLAMPING FORCE | KN | 4100 |
| MOVING MOULD-PLATE STROKE | mm | 710 | |
| MAX. MOULD HEIGHT | mm | 800 | |
| MIN. MOULD HEIGHT | mm | 280 | |
| SPACE BWTWEEN TIE-BARS (W×H) | mm | 770x720 | |
| HYDRAULIC EJECTOR FORCE | mm | 125 | |
| HYDRAULIC EJECTOR STROKE | KN | 180 | |
| EJECTOR NUMBER | n | 13 | |
| OTHERS | PUMP PRESSURE | MPa | 16 |
| MOTOR /DRIVING POWER | KW | 45 | |
| HEATING CAPACITY | KW | 25 | |
| MACHINE DIMENSION (L×W×H) | m | 7.7*1.96*2.35 | |
| MACHINE WEIGHT | t | 14 | |
| OIL TANK CAPACITY | L | 680 | |

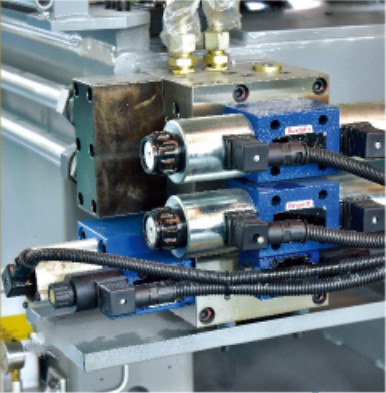

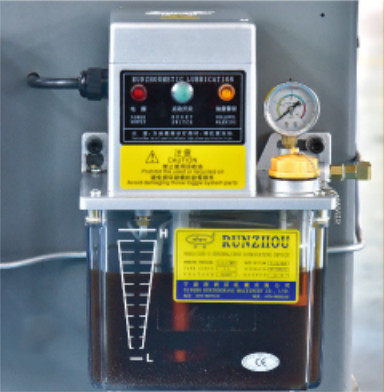

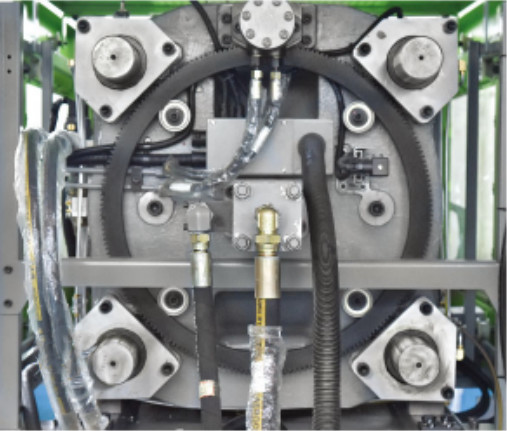

Detail Pictures
