| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-400/500/600T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |

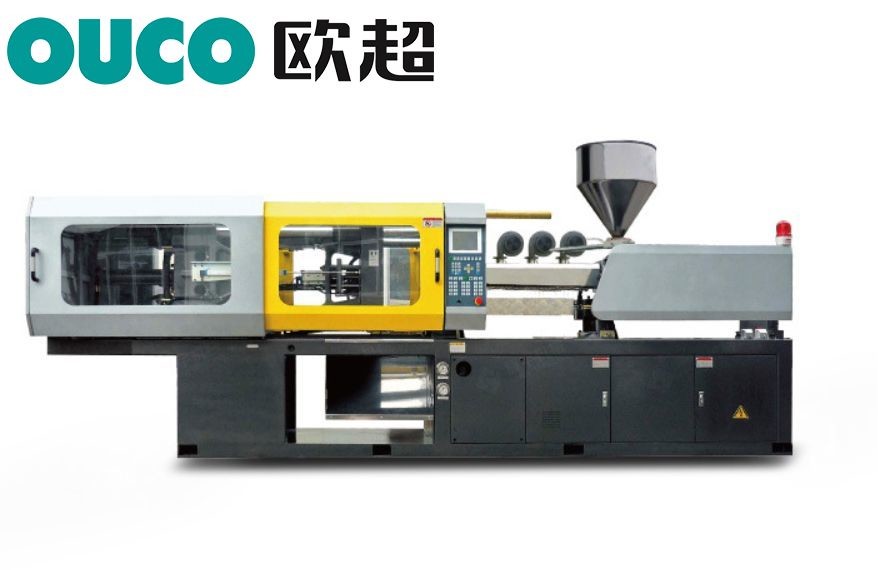

| Product Name: | High-quality Automatic Plastic Inserting Molding Machine, For Fruit Basket Production Line | Plastic Processed:: | PP, PC,PVC |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |
| High Light: | Horizontal 500ton injection molding machine,75kW 500ton injection molding machine,Deep Cavity pvc molding machine |
||
Jiangsu OUCO Heavy Industry Technology Group was founded in February 1984. The company is located in the beautiful Taihu Lake, the foot of Lingshan Mountain, is a high-tech enterprise in Wuxi Huishan District Yangshan Industrial Park. In 2021, the Group invested to establish OUCO (Wuxi) injection molding machinery equipment Co., Ltd. The company covers an area of 35,000 square meters, and the factory covers 25,000 square meters. The company is committed to developing and manufacturing high-quality and high-performance injection molding equipment for automotive parts, medical equipment, large pipe fittings, garbage cans, trays, fruit baskets and other market fields, and customizing efficient, energy-saving and professional production solutions for customers.
OUCO creates a new G-Series product with European standards. SV servo energy-saving system has 8 specifications with clamping force ranging from 110 tons to 600 tons. Each specification can also be selected with 2 or 3 different injection structures according to customer product requirements.
The passionate pursuit of perfection. OUCO has always been committed to meet the needs of customers, create more value for customers is the super injection eternal ideas. we will, as always in the market front, fear hardships and challenges, in energy conservation, automation, machine motors, humanization aspects of continuous efforts, bring customers the greatest return on investment.
Suitable for Fruit Basket Production Line
Double alloy screw barrel, more wear-resistant and corrosion-resistant, so that you get longer screw lifting time
Specially designed large diameter screw, not only the injection volume is large, but also shorten the loading time Increase the hydraulic system to shorten the production cycle, improve the production efficiency and shorten the cycle time greatly Matching high efficiency imported variable pump to reduce production cost and more energy saving. Adopt new rigid frame, better vibration damping and more stable production.
Product Paraments
| Model | 400T | 500T | 600T | |||||||
| Screw Specifications | A | B | C | A | B | C | A | B | C | |
| Screwdi ameter | mm | 65 | 75 | 80 | 70 | 75 | 85 | 75 | 85 | 90 |
| Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| Theoretical injection volume | cm3 | 1C75 | 1431 | 1628 | 1481 | 1700 | 2184 | 1788 | 2297 | 2575 |
| Shot weight (PS) | g | 1C11 | 1345 | 1530 | 1377 | 1581 | 2031 | 1645 | 2113 | 2369 |
| injection rate(Ps) | g/S | 426 | 568 | 646 | G03 | 693 | 890 | G13 | 788 | 884 |
| Injection pressure | MPa | 242 | 182 | 160 | 209 | 182 | 142 | 204 | 159 | 142 |
| Inject on stroke | mm | 360 | 385 | 405 | ||||||
| Max. injection speed | mm/s | 156 | 166 | 157 | ||||||
| Screw speed | r/min | 0-200 | 0-200 | 0-200 | ||||||
| Sys. Pressure | MPa | 16 | 16 | 16 | ||||||
| Pump Motor(Min-Max) | kW | 75 | 94 | 101 | ||||||
| Displacement | ml/r | 100+100 | 125+125 | 160+125 | ||||||
| number of Motors | PC | 2 | 2 | 2 | ||||||
| Heater power | kW | 35 | 41 | 47 | ||||||
| Number oftemp. control zones | 5+1 | 5+1 | 5+1 | |||||||
| Clamping force | kN | 4000 | 5000 | 6000 | ||||||
| Opening stroke | mm | 900 | 1000 | 1150 | ||||||
| Tie bar distance W×L | mm*mm | 760x660 | 860x760 | 960x860 | ||||||
| Min. mold thickness | mm | 300 | 300 | 350 | ||||||
| Max. mold thickness | mm | 730 | 800 | 920 | ||||||
| Ejector stroke | mm | 190 | 210 | 210 | ||||||
| Ejector force forward | kN | 80 | 110 | 113 | ||||||
| Number of ejector bar | PC | 1+12 | 1+12 | 1+12 | ||||||
| Oil tank capacity | L | 680 | 850 | 940 | ||||||
| Machine dimensions(LxWxH) | m*m*m | 8.2x1.9x1.9 | 87x2.0x2.1 | 9.3x2.1x2.3 | ||||||
| Machine weight | Ton | 15 | 19 | 23 | ||||||

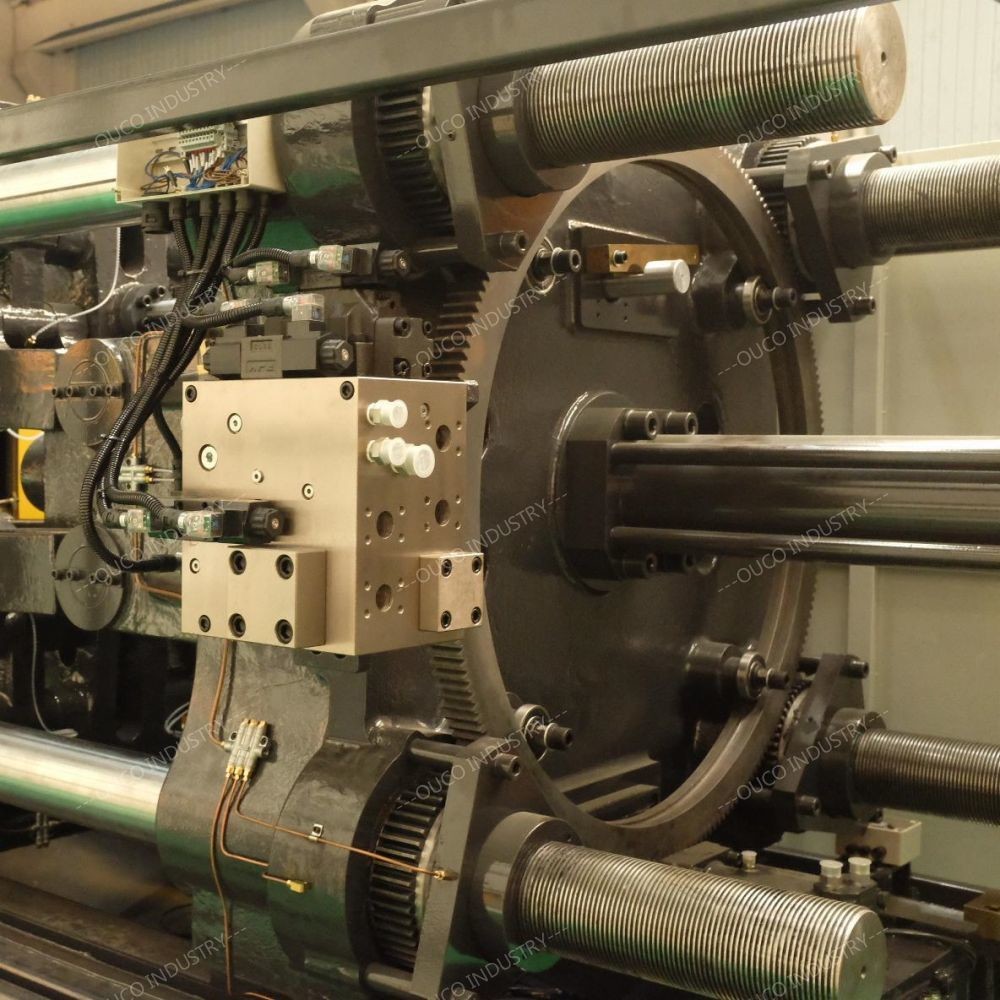

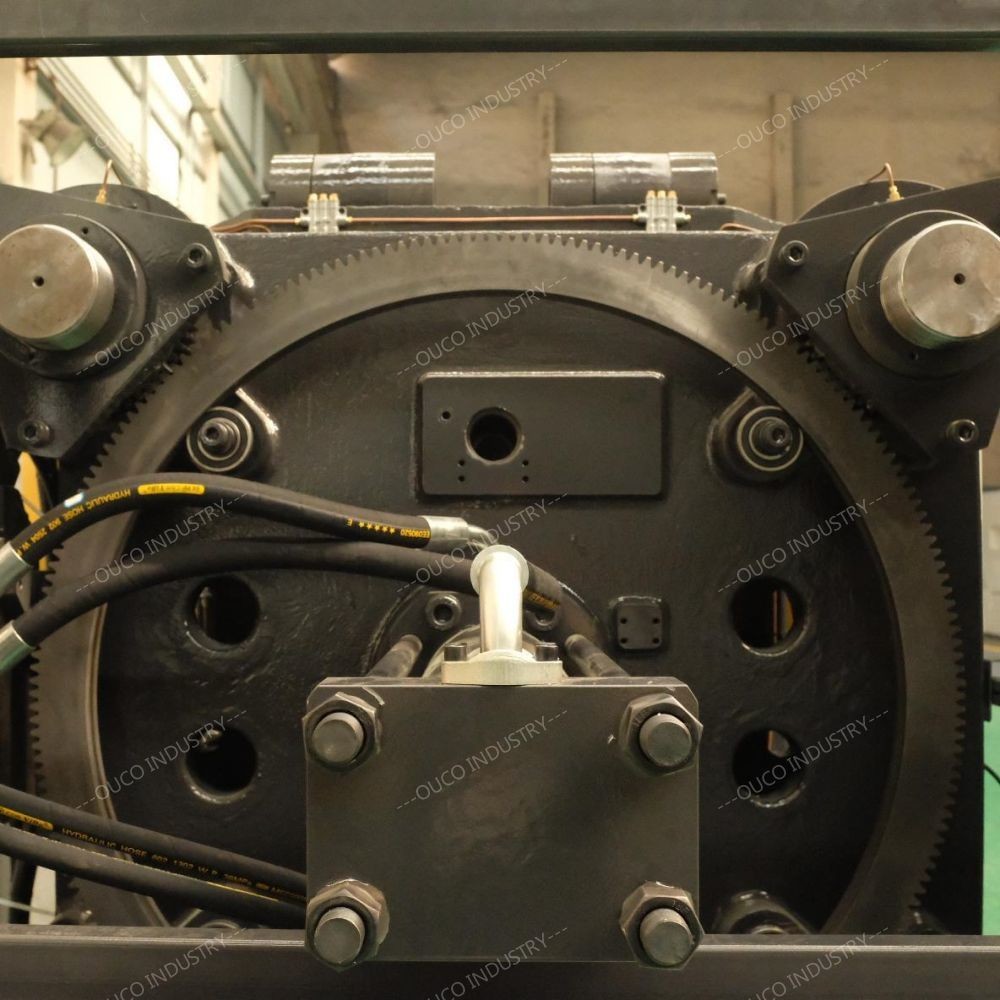

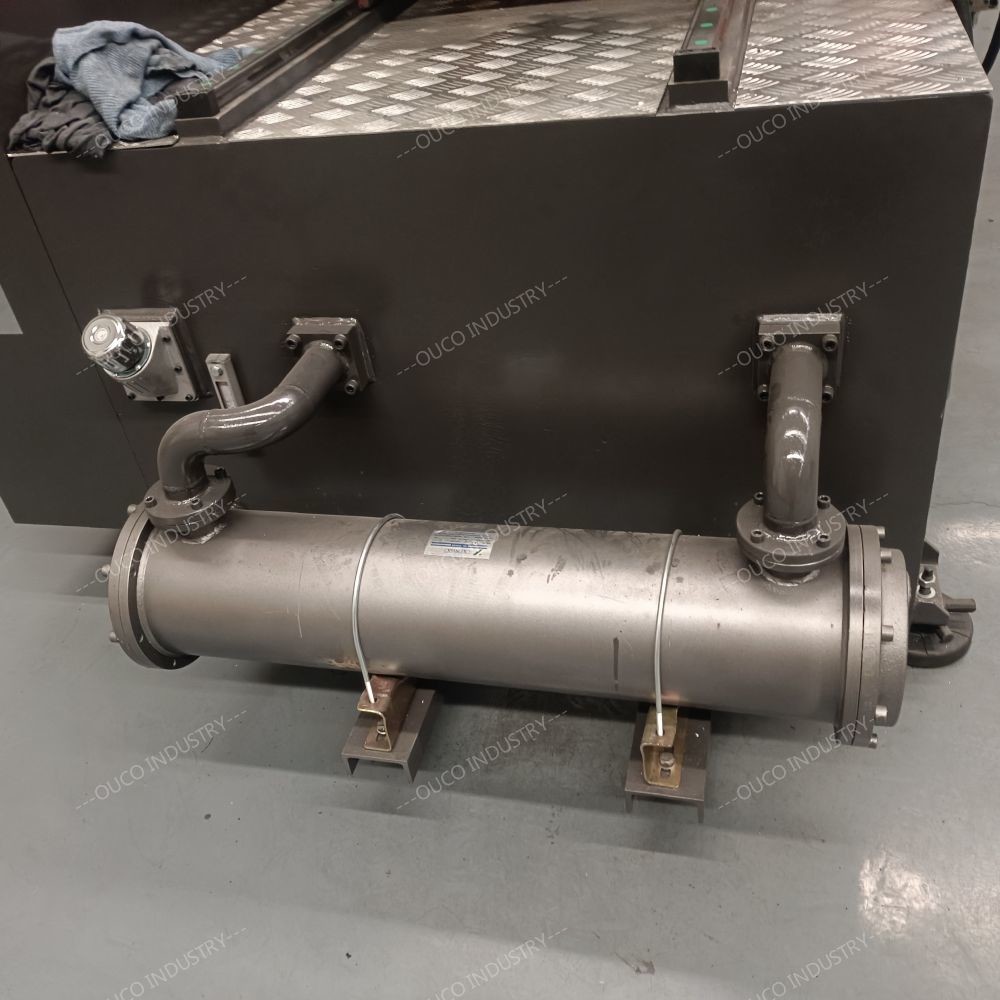

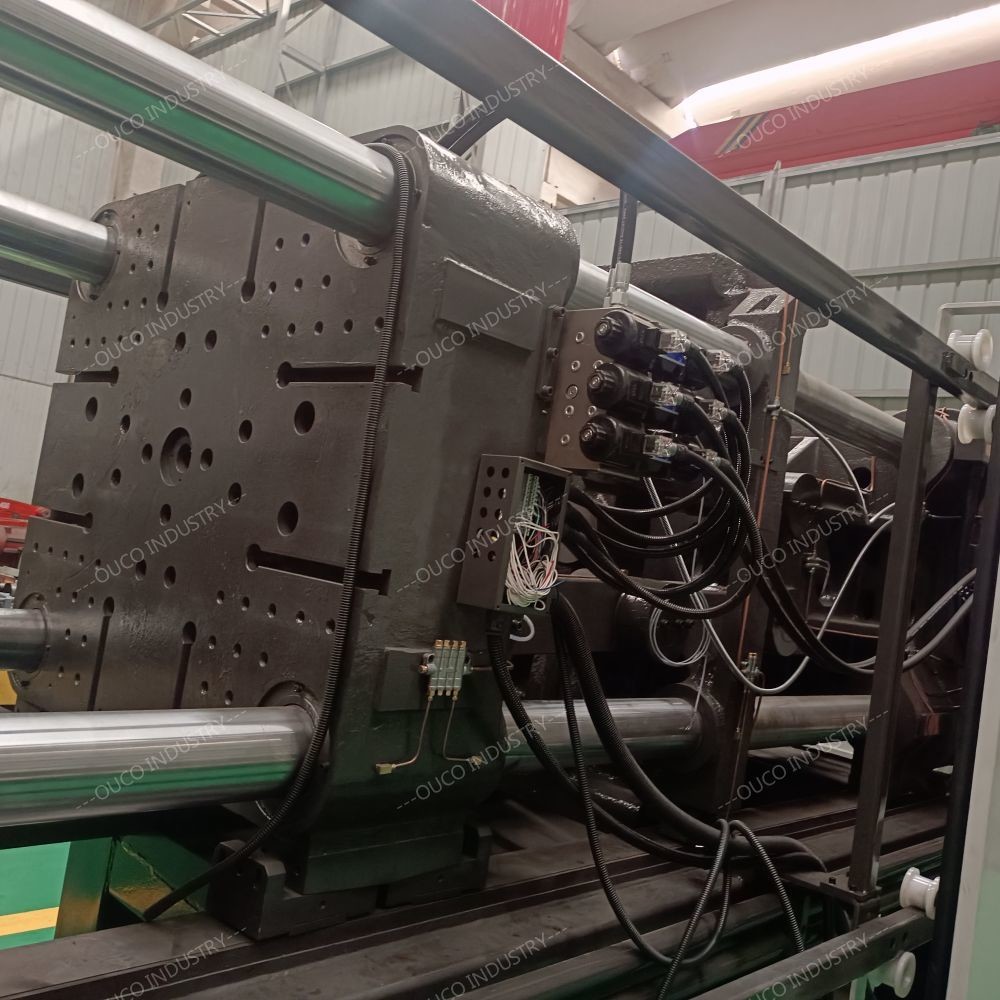

Detailed Pictures
