| Place of Origin: | china |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE |
| Model Number: | OUCO-500T |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 2 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per year |
| Name: | 500T Deep Cavity Bucket Injection Molding Machine Manufacturers | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Clamping Way: | Hydraulic |
| Highlight: | CE 500ton injection molding machine,Automation 500ton injection molding machine,85mm Deep Cavity Injection Molding Machine |
||
Advantage of ouco high speed fruit box injection molding machine
1.Cost is less by same mold opening length
2.Energy saving with electromagnetic heaters and frequency converters
3.Double servo motor power control adopts the latest confluence technology
4.Safe and intelligent mold protection design
Product Parameters
| 机型 | 300T | 400T | 500T | 600T | 700T | ||||||||||||
| 螺杆规格 | A | B | C | A | B | C | A | B | C | A | B | C | A | B | C | ||
| 螺杆直径 | Screw diameter | mm | 50 | 60 | 65 | 65 | 75 | 80 | 70 | 75 | 85 | 75 | 85 | 90 | 85 | 90 | 100 |
| 螺杆长径比 | Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| 理论注射容积 | Theoretical injection volume | cm3 | 638 | 918 | 1078 | 1C75 | 1431 | 1628 | 1481 | 1700 | 2184 | 1788 | 2297 | 2575 | 2552 | 2861 | 3533 |
| 注射重量(PS) | Shot weight (PS) | g | 593 | 853 | 1002 | 1C11 | 1345 | 1530 | 1377 | 1581 | 2031 | 1645 | 2113 | 2369 | 2348 | 2632 | 3250 |
| 注射速率 | injection rate(Ps) | g/S | 330 | 475 | 558 | 426 | 568 | 646 | G03 | 693 | 890 | G13 | 788 | 884 | 788 | 883 | 1091 |
| 注射压力 | Injection pressure | MPa | 286 | 198 | 169 | 242 | 182 | 160 | 209 | 182 | 142 | 204 | 159 | 142 | 209 | 187 | 151 |
| 注射行程 | Inject on stroke | mm | 325 | 360 | 385 | 405 | 450 | ||||||||||
| 最大注射速度 | Max. injection speed | mm/s | 178 | 156 | 166 | 157 | 147 | ||||||||||
| 最大摞杆转速 | Screw speed | r/min | 0-200 | 0-200 | 0-200 | 0-200 | 0-180 | ||||||||||
| 系统压力 | Sys. Pressure | MPa | 16 | 16 | 16 | 16 | 16 | ||||||||||
| 电机总功率 | Pump Motor(Min-Max) | kW | 63 | 75 | 94 | 101 | 114 | ||||||||||
| 油泵排量 | Displacement | ml/r | 163 | 100+100 | 125+125 | 160+125 | 160+160 | ||||||||||
| 电机数员 | number of Motors | PC | 1 | 2 | 2 | 2 | 2 | ||||||||||
| 电热功率 | Heater power | kW | 27 | 35 | 41 | 47 | 52 | ||||||||||
| 温控区数 | Number of temp. control zones | 5+1 | 5+1 | 5+1 | 5+1 | 5+1 | |||||||||||
| 锁模力 | Clamping force | kN | 3000 | 4000 | 5000 | 6000 | 7000 | ||||||||||
| 开模行程 | Opening stroke | mm | 800 | 900 | 1000 | 1150 | 1300 | ||||||||||
| 拉杆内间距 | Tie bar distance W×L | mmxmm | 680x680 | 760x660 | 860x760 | 960x860 | 1020x920 | ||||||||||
| 最小模具厚度 | Min. mold thickness | mm | 210 | 300 | 300 | 350 | 450 | ||||||||||
| 最大模具厚度 | Max. mold thickness | mm | 680 | 730 | 800 | 920 | 1050 | ||||||||||
| 顶出行程 | Ejector stroke | mm | 190 | 190 | 210 | 210 | 210 | ||||||||||
| 顶出力 | Ejector force forward | kN | 62 | 80 | 110 | 113 | 113 | ||||||||||
| 顶出杆数 | Number of ejector bar | PC | 1+12 | 1+12 | 1+12 | 1+12 | 1+12 | ||||||||||
| 油箱容量 | Oil tank capacity | L | 510 | 680 | 850 | 940 | 1020 | ||||||||||
| 机械外形尺寸(约) | Machine dimensions(LxWxH) | mxmxm | 7.7x1.8x1.8 | 8.2x1.9x1.9 | 87x2.0x2.1 | 9.3x2.1x2.3 | 9.7x2.2x2.4 | ||||||||||
| 机器重量(约) | Machine weight | Ton | 10.5 | 15 | 19 | 23 | 25 | ||||||||||
What is the advantage of ouco deep cavity injection molding machine?
1.Excellence clamping structure
2.100% clamping force use
3.Fast ,more 10% output
4.Save 2-5% material
Why choose OUCO?
We are a professional high-tech injection molding machine enterprise with rich experience in manufacturing and selling injection molding machines. Bucket Injection molding Machine is our flagship product .We will customize injection molding solutions for you.

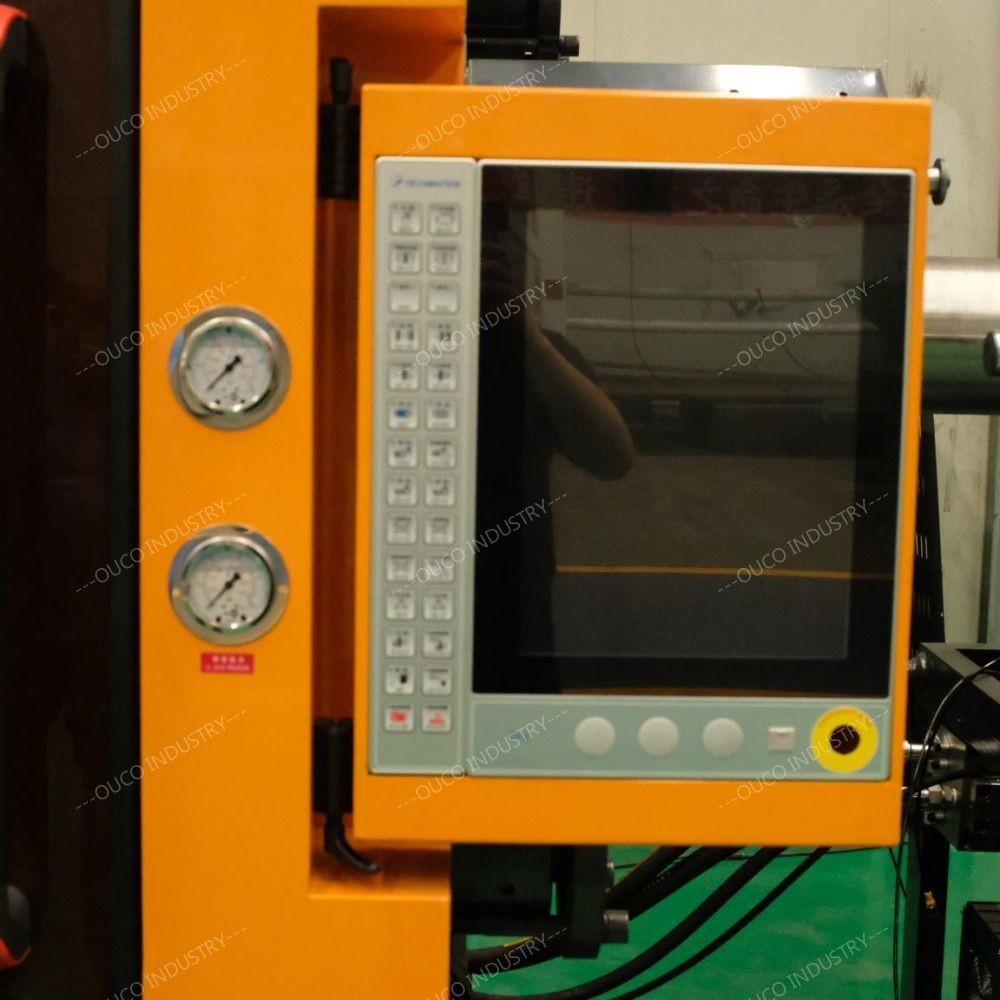

Detailed Pictures
