| Place of Origin: | china |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE |
| Model Number: | OUCO-600T |
| Minimum Order Quantity: | 1 |
| Price: | 80000$ |

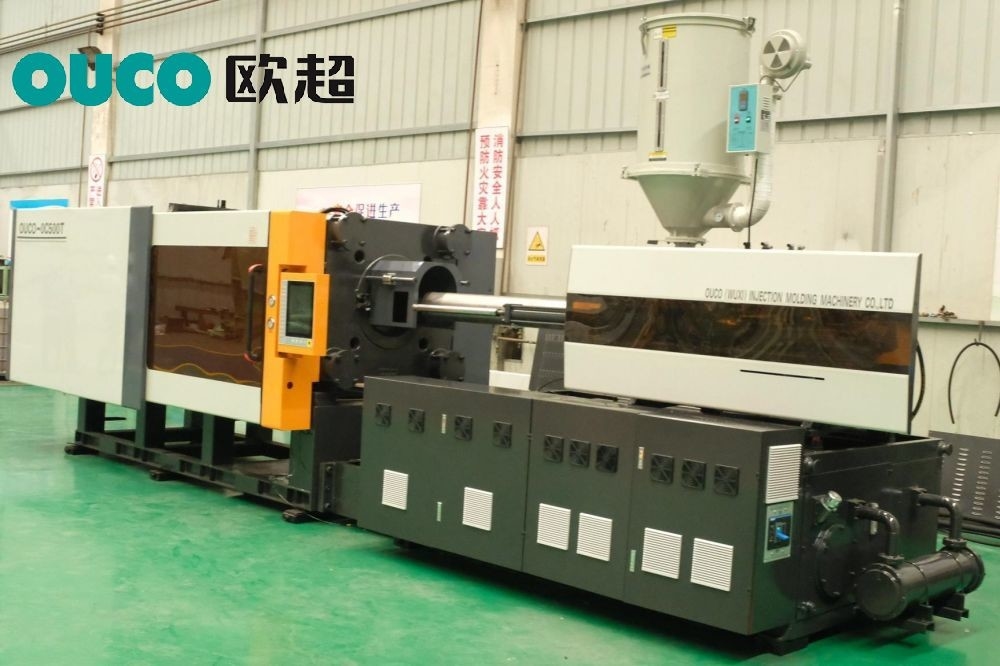

| Name: | 600T Bucket Injection Molding Machine Factory | Color: | Support Customization |
|---|---|---|---|
| Type: | Automation | Motor: | Servo Energy Saving |
| Function: | Plastic Parts Production | Clamping Way: | Hydraulic |
| High Light: | 940L Bucket Injection Molding Machine,90mm Bucket Injection Molding Machine,CE 600 ton injection molding machine |
||
1.Automate production, improve productivity, and meet your production capacity!
2.20%-80% energy saving than ordinary injection molding machines
3.Higher product yield and fewer burrs, reducing your workload
4.Larger spacing between tie rods, suitable for larger molds and multi-cavity requirements
5.Higher repeatability improves product quality and tool life
6.The advanced ejection structure is adopted, the space is larger and the maintenance is convenient.
| 机型 | 300T | 400T | 500T | 600T | 700T | ||||||||||||
| 螺杆规格 | A | B | C | A | B | C | A | B | C | A | B | C | A | B | C | ||
| 螺杆直径 | Screw diameter | mm | 50 | 60 | 65 | 65 | 75 | 80 | 70 | 75 | 85 | 75 | 85 | 90 | 85 | 90 | 100 |
| 螺杆长径比 | Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| 理论注射容积 | Theoretical injection volume | cm3 | 638 | 918 | 1078 | 1C75 | 1431 | 1628 | 1481 | 1700 | 2184 | 1788 | 2297 | 2575 | 2552 | 2861 | 3533 |
| 注射重量(PS) | Shot weight (PS) | g | 593 | 853 | 1002 | 1C11 | 1345 | 1530 | 1377 | 1581 | 2031 | 1645 | 2113 | 2369 | 2348 | 2632 | 3250 |
| 注射速率 | injection rate(Ps) | g/S | 330 | 475 | 558 | 426 | 568 | 646 | G03 | 693 | 890 | G13 | 788 | 884 | 788 | 883 | 1091 |
| 注射压力 | Injection pressure | MPa | 286 | 198 | 169 | 242 | 182 | 160 | 209 | 182 | 142 | 204 | 159 | 142 | 209 | 187 | 151 |
| 注射行程 | Inject on stroke | mm | 325 | 360 | 385 | 405 | 450 | ||||||||||
| 最大注射速度 | Max. injection speed | mm/s | 178 | 156 | 166 | 157 | 147 | ||||||||||
| 最大摞杆转速 | Screw speed | r/min | 0-200 | 0-200 | 0-200 | 0-200 | 0-180 | ||||||||||
| 系统压力 | Sys. Pressure | MPa | 16 | 16 | 16 | 16 | 16 | ||||||||||
| 电机总功率 | Pump Motor(Min-Max) | kW | 63 | 75 | 94 | 101 | 114 | ||||||||||
| 油泵排量 | Displacement | ml/r | 163 | 100+100 | 125+125 | 160+125 | 160+160 | ||||||||||
| 电机数员 | number of Motors | PC | 1 | 2 | 2 | 2 | 2 | ||||||||||
| 电热功率 | Heater power | kW | 27 | 35 | 41 | 47 | 52 | ||||||||||
| 温控区数 | Number of temp. control zones | 5+1 | 5+1 | 5+1 | 5+1 | 5+1 | |||||||||||
| 锁模力 | Clamping force | kN | 3000 | 4000 | 5000 | 6000 | 7000 | ||||||||||
| 开模行程 | Opening stroke | mm | 800 | 900 | 1000 | 1150 | 1300 | ||||||||||
| 拉杆内间距 | Tie bar distance W×L | mmxmm | 680x680 | 760x660 | 860x760 | 960x860 | 1020x920 | ||||||||||
| 最小模具厚度 | Min. mold thickness | mm | 210 | 300 | 300 | 350 | 450 | ||||||||||
| 最大模具厚度 | Max. mold thickness | mm | 680 | 730 | 800 | 920 | 1050 | ||||||||||
| 顶出行程 | Ejector stroke | mm | 190 | 190 | 210 | 210 | 210 | ||||||||||
| 顶出力 | Ejector force forward | kN | 62 | 80 | 110 | 113 | 113 | ||||||||||
| 顶出杆数 | Number of ejector bar | PC | 1+12 | 1+12 | 1+12 | 1+12 | 1+12 | ||||||||||
| 油箱容量 | Oil tank capacity | L | 510 | 680 | 850 | 940 | 1020 | ||||||||||
| 机械外形尺寸(约) | Machine dimensions(LxWxH) | mxmxm | 7.7x1.8x1.8 | 8.2x1.9x1.9 | 87x2.0x2.1 | 9.3x2.1x2.3 | 9.7x2.2x2.4 | ||||||||||
| 机器重量(约) | Machine weight | Ton | 10.5 | 15 | 19 | 23 | 25 | ||||||||||
why choose OUCO?
We are a professional high-tech injection molding machine enterprise with rich experience in manufacturing and selling injection molding machines. Bucket Injection molding Machine is our flagship product .We will customize injection molding solutions for you.
