| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-600T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 Months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | 600 T Servo Motor Injection Molding Machine Factory With Excellent Acceleration Performance | Plastic Processed: | PP,PC,PVC |
|---|---|---|---|
| Applicable: | Manufacturing Plant,Food&Beverage | Type: | Automation |
| Warranty: | 1 Year | Machinery: | Provided |
| Place Of Origin: | Wuxi,China | Selling Points: | Competitive Price |
| Video Outgoing-inspection: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time: | About 50 Days |
| High Light: | 260mm 600 ton injection molding machine,SGS 600 ton injection molding machine,350mm automated injection molding machine |
||
OUCO is a factory focusing on the research and development of small injection molding machines. The injection molding machines we produce are efficient, energy-saving and intelligent equipment.
The Advantage Of OUCO Machine
1. Modular injection unit with excellent acceleration performance
2. High-speed machine tool high stiffness clamping unit.
3. High response and low noise hydraulic system.
4. Optimized control system with good response and accuracy for hybrid motors
Technical Parameter
| OUCO-600T | ||||||||||
| Clamping Unit | ||||||||||
| Clamping force | kN | 6000 | ||||||||
| Moving mould-plate stroke | mm | 870 | ||||||||
| Max.Mould height | mm | 900 | ||||||||
| Min.Mould height | mm | 350 | ||||||||
| Space between tie-bars | mm | 900x850 | ||||||||
| Hydraulic ejector force | kN | 200 | ||||||||
| Hydraulic ejector stroke | mm | 260 | ||||||||
| Ejector number | n | 17 | ||||||||
| Injection Unit | i1600 | I2300 | I2700 | |||||||
| Screw diameter | mm | 60 | 65 | 70 | 65 | 70 | 75 | 70 | 75 | 80 |
| Screw LD ratio | LD | 21.6 | 20 | 20 | 21.5 | 20 | 20 | 21.4 | 20 | 20 |
| lnjection capacity in theory | Cm³ | 791 | 929 | 1078 | 1128 | 1308 | 1502 | 1308.47 | 1502.07 | 1709.03 |
| Injection weight(PS) | g | 720 | 845 | 980 | 1027 | 1191 | 1367 | 1190.71 | 1366.89 | 1555.21 |
| Injection pressure | bar | 2133 | 1800 | 1552 | 2088 | 1800 | 1568 | 2066.33 | 1800 | 1582.03 |
| Injection velocity | mm/s | 350 | 350 | 350 | ||||||
| Plasticizing capacity | g/s | 75 | 90 | 105 | 90 | 105 | 120 | 112 | 125 | 145 |
| Screw speed | rpm | 400 | 400 | 400 | ||||||
| Other | ||||||||||
| Pump pressure | MPa | 17.5 | ||||||||
| Motor/Driving power | kW | 45(注)+30(熔)+30+30(油) | 45(注)+30(熔)+30+30(油) | 45(注)+30(熔)+30+30(油) | ||||||
| Heating capacity | kW | 28 | 30 | 34.86 | ||||||
| Machine dimension | m | 8.79x2.14x2.57 | 9.51x2.27x2.65 | 9.61x3.34x2.83 | ||||||
| Machine weight | t | 26 | 28 | 29 | ||||||
| oil tank capacity | L | 969 | ||||||||

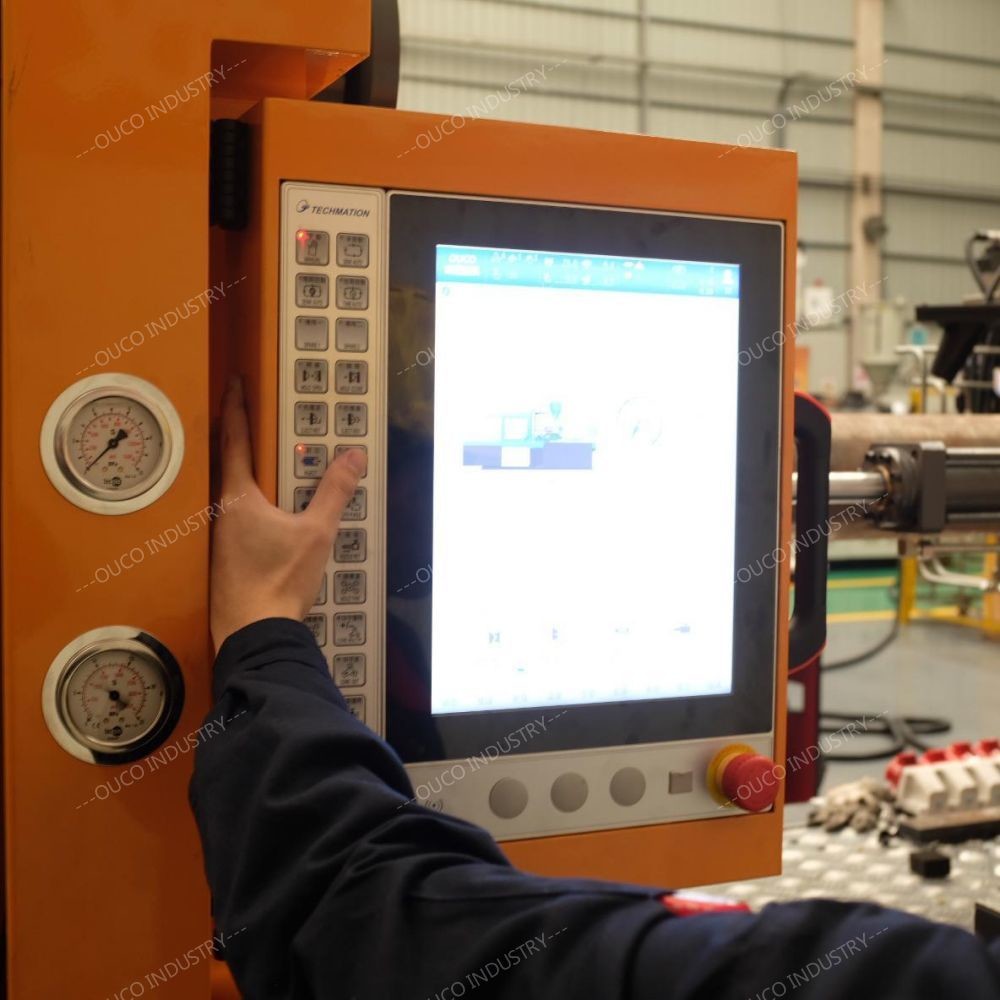

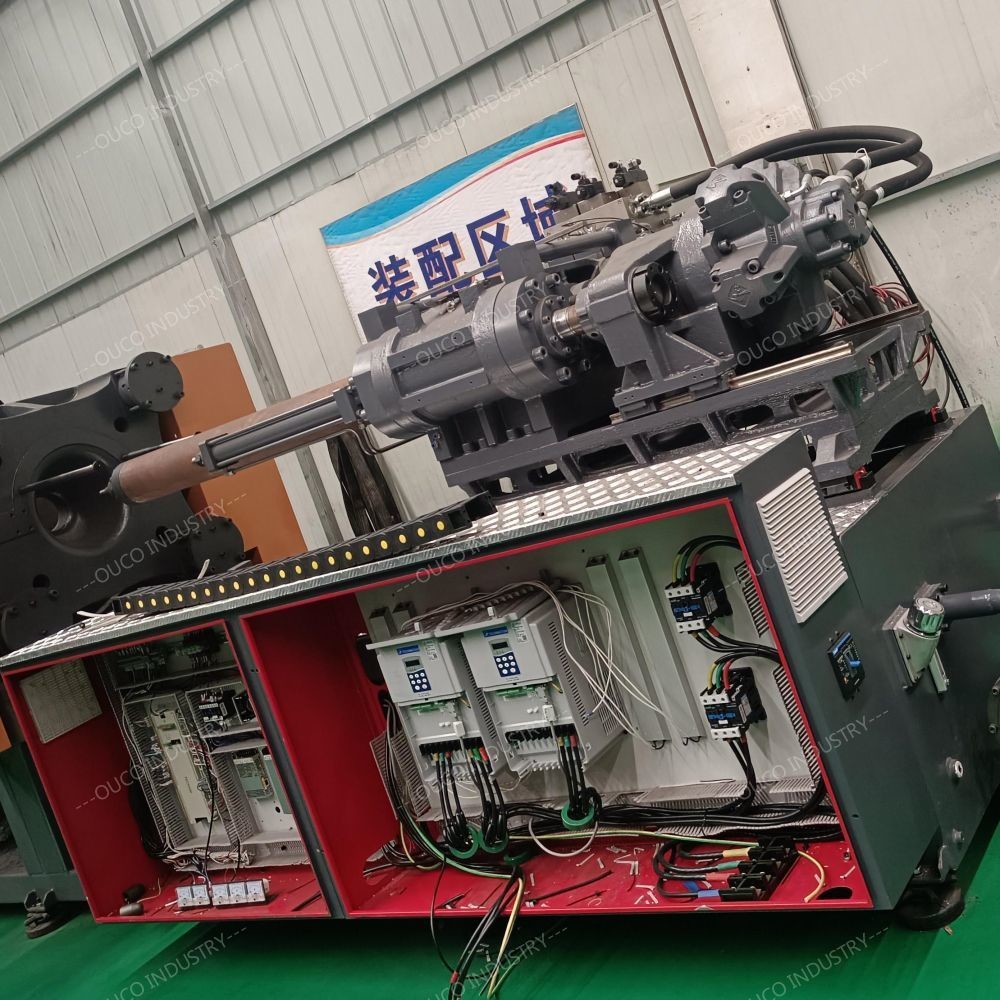

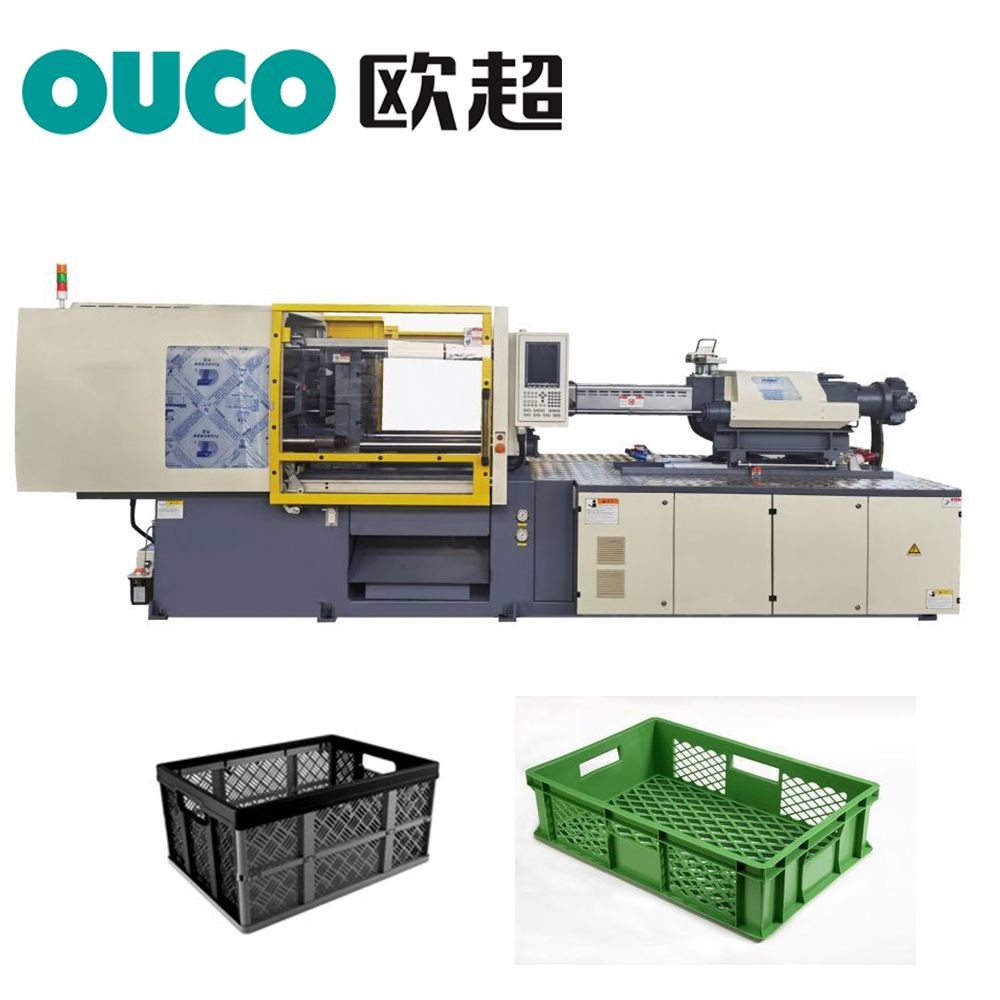

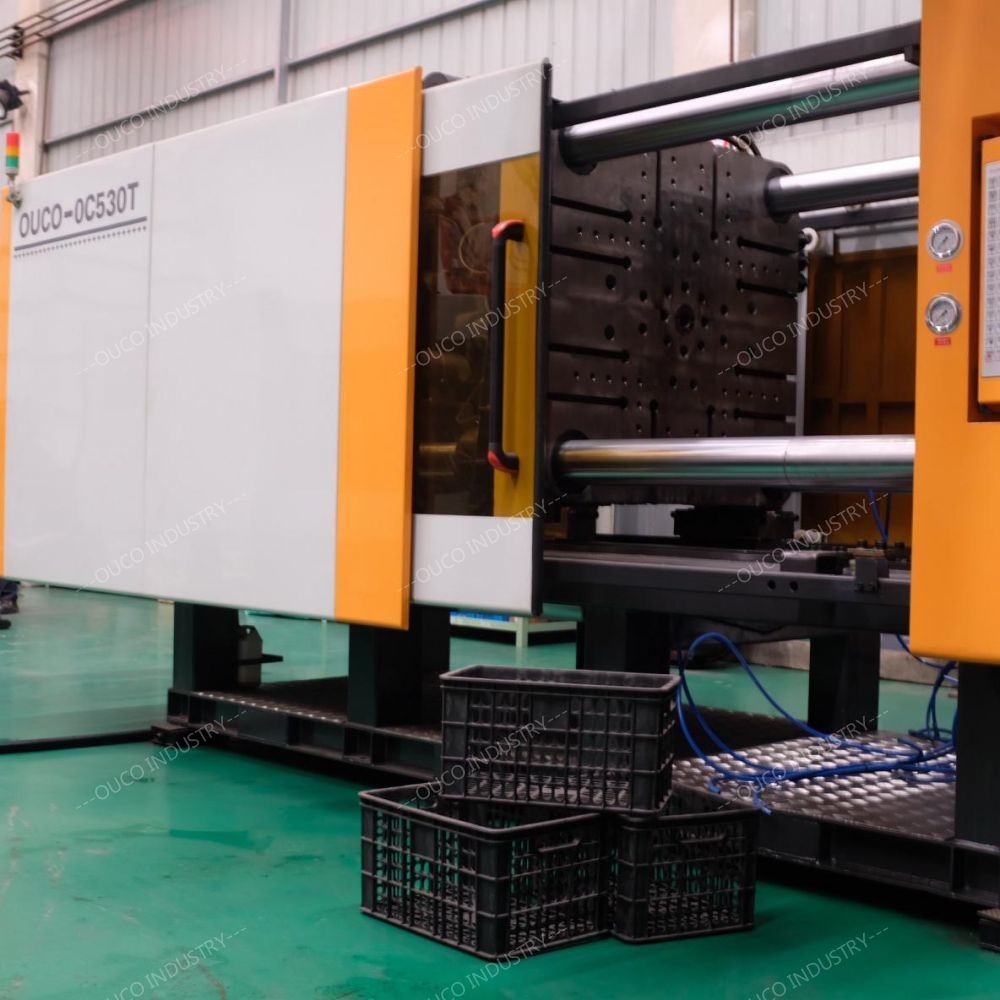

Detail Pictures
