| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-358T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

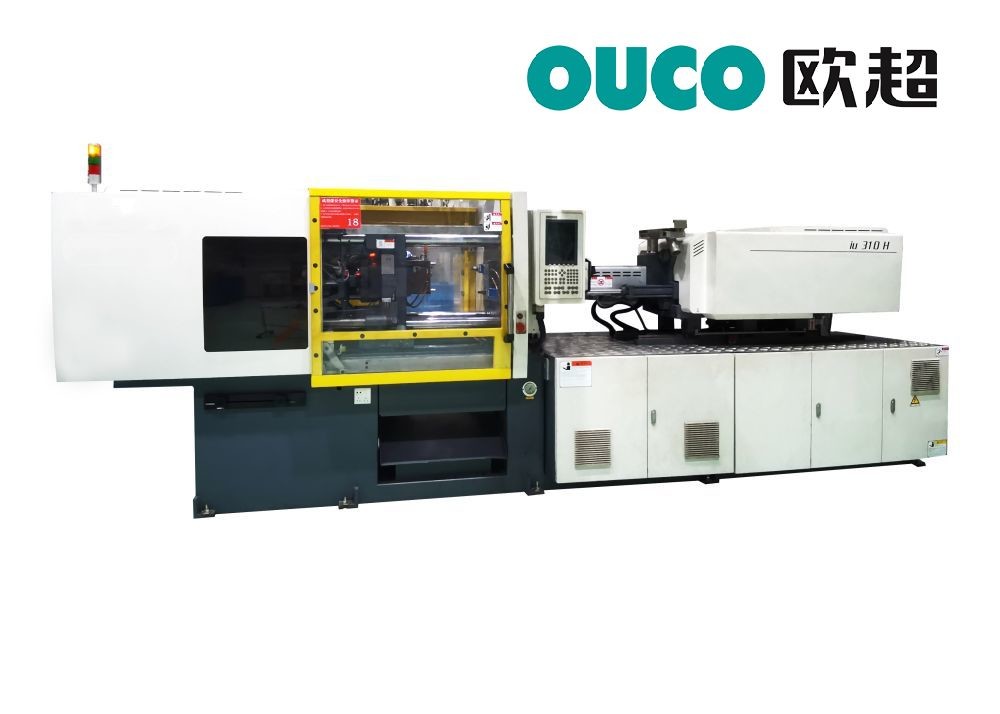

| Product Name: | Super Energy Saving 358 Ton Servo Injection Molding Machine For Sale | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| Highlight: | 358 Ton servo injection molding machine,630mm servo injection molding machine,SGS Energy Saving Injection Molding Machine |
||
Product Details
1. High quality features
The "new breakthrough" of hydraulic injection molding machine, "pressure valve ring control" and "energy supply and demand matching", lead the development trend of injection molding machine!
Pressure valve loop control. Real-time comparison of actual pressure and set pressure, and correction until the actual pressure is equal to the set pressure.
Energy supply and demand matching: How much energy the injection molding machine needs to work, how much energy the electric system provides, with very little energy loss.
2. Super energy saving
40% energy saving than variable pump system. 60% energy saving than fixed pump + fixed speed motor (energy saving effect varies according to the product).
High precision, high response
Adopt high-precision and high-sensitivity pressure sensor and rotary encoder to realize closed-loop control of pressure and flow, and the error of repeated progress is less than 1%. It takes only 0.05 seconds for the servo motor to reach the maximum output power.
3. Low noise
The noise value is within 78db. When the machine is not moving, the servo motor stops rotating and there is almost no noise.
4.Saving cooling water
Adopt the overflow heating method of "no fixed pump + fixed speed motor system". The temperature of hydraulic oil is lower, which greatly reduces the amount of cooling water.
4.New clamping structure
Adopting five-point toggle clamping mechanism of internal rolling, casting linkage and template, reinforced by finite element analysis, can effectively reduce stress and deformation and improve the stiffness and precision of clamping parts.
5. New power composition
The new power system consisting of servo motor, servo driver, pressure sensor, rotary encoder, gear pump and high precision special controller best meets the energy requirement of injection molding machine.
Translated with www.DeepL.com/Translator (free version)
Technical Parameter
| OUCO-358T | ||||||||||
| Clamping Unit | ||||||||||
| Clamping force | kN | 3580 | ||||||||
| Moving mould-plate stroke | mm | 630 | ||||||||
| Max.Mould height | mm | 650 | ||||||||
| Min.Mould height | mm | 250 | ||||||||
| Space between tie-bars | mm | 710x660 | ||||||||
| Hydraulic ejector force | kN | 137 | ||||||||
| Hydraulic ejector stroke | mm | 180 | ||||||||
| Ejector number | n | 13 | ||||||||
| Injection Unit | i900 | i1000 | i1400 | |||||||
| Screw diameter | mm | 45 | 50 | 55 | 50 | 55 | 60 | 55 | 60 | 65 |
| Screw LD ratio | LD | 22.2 | 20 | 20 | 22 | 20 | 20 | 21.8 | 20 | 20 |
| lnjection capacity in theory | Cm³ | 381 | 471 | 570 | 471 | 570 | 678 | 665 | 791 | 929 |
| Injection weight(PS) | g | 347 | 428 | 518 | 428 | 518 | 617 | 605 | 720 | 845 |
| Injection pressure | bar | 2469 | 2000 | 1653 | 2178 | 1800 | 1513 | 2142 | 1800 | 1534 |
| Injection velocity | mm/s | 350 | 350 | 350 | ||||||
| Plasticizing capacity | g/s | 30 | 42 | 50 | 42 | 50 | 60 | 50 | 60 | 75 |
| Screw speed | rpm | 400 | 400 | 400 | ||||||
| Other | ||||||||||
| Pump pressure | MPa | 17.5 | ||||||||
| Motor/Driving power | kW | 37(注)+23(熔)+23(油) | 37(注)+23(熔)+23(油) | 37(注)+23(熔)+23(油) | ||||||
| Heating capacity | kW | 16.83 | 20.3 | 24.3 | ||||||
| Machine dimension | m | 7.32x1.88x2.21 | 7.32x1.88x2.21 | 7.32x1.88x2.28 | ||||||
| Machine weight | t | 13.2 | 13.5 | 14.1 | ||||||
| oil tank capacity | L | 530 | ||||||||

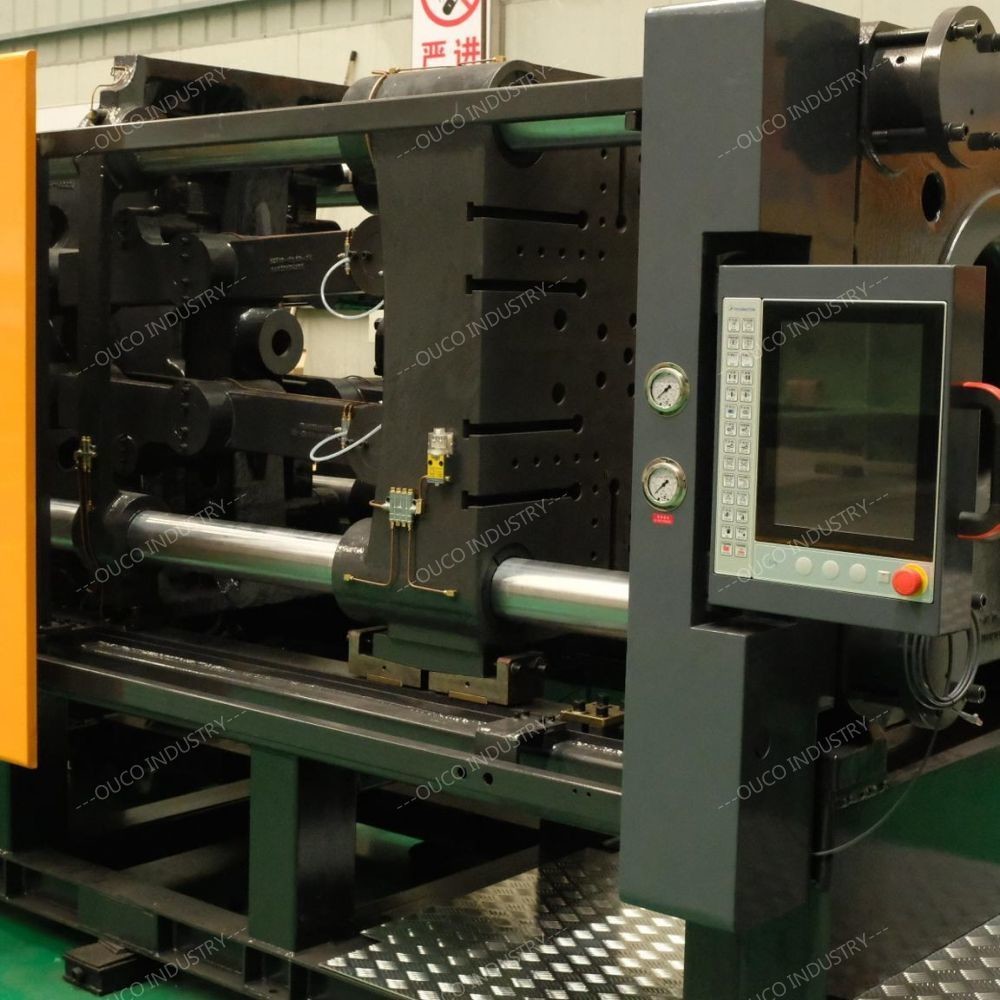

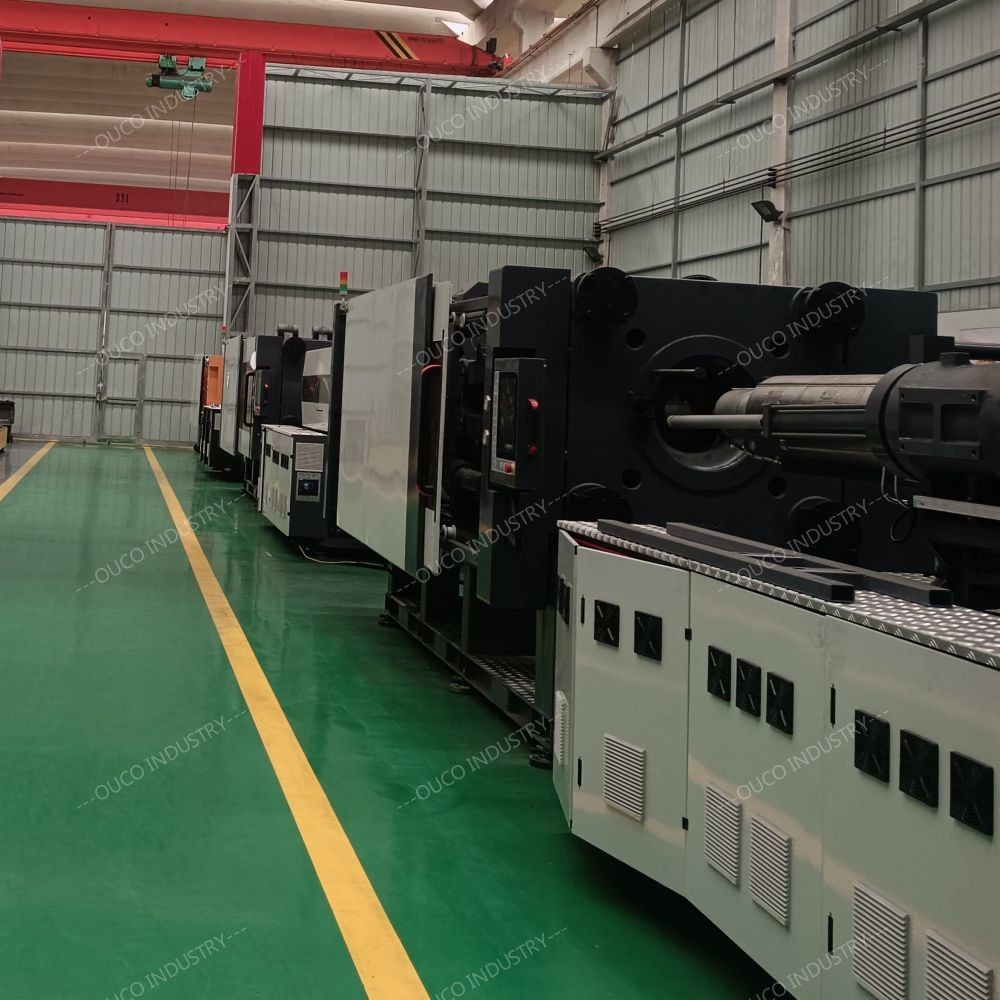

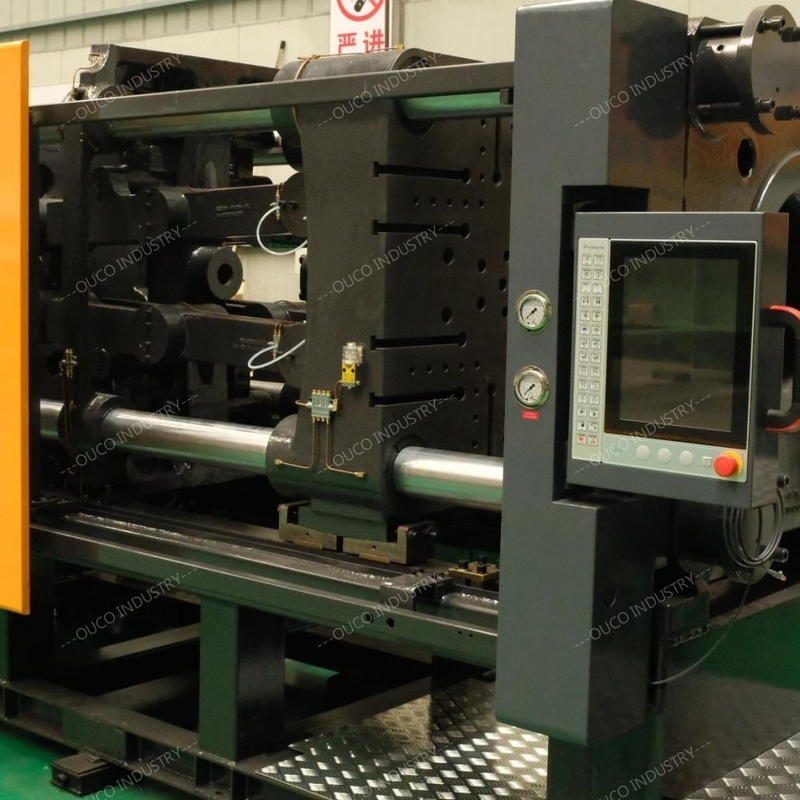

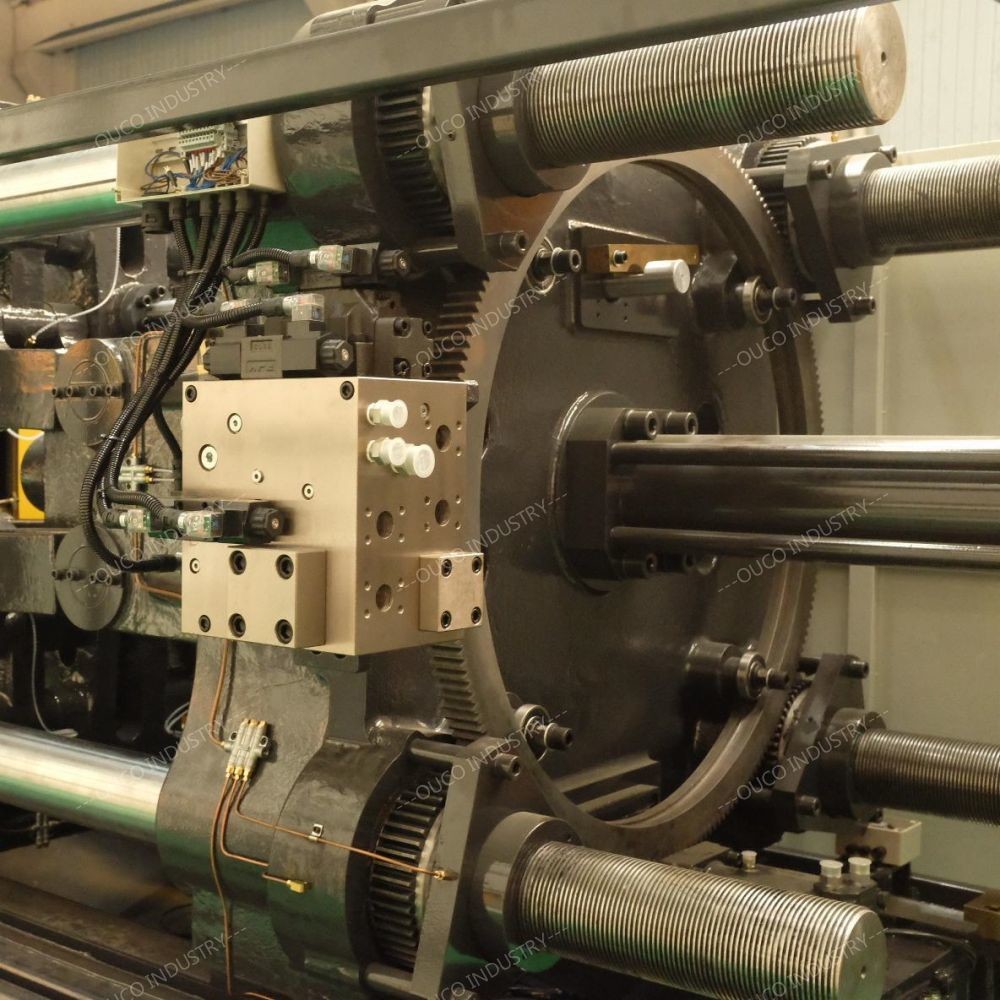

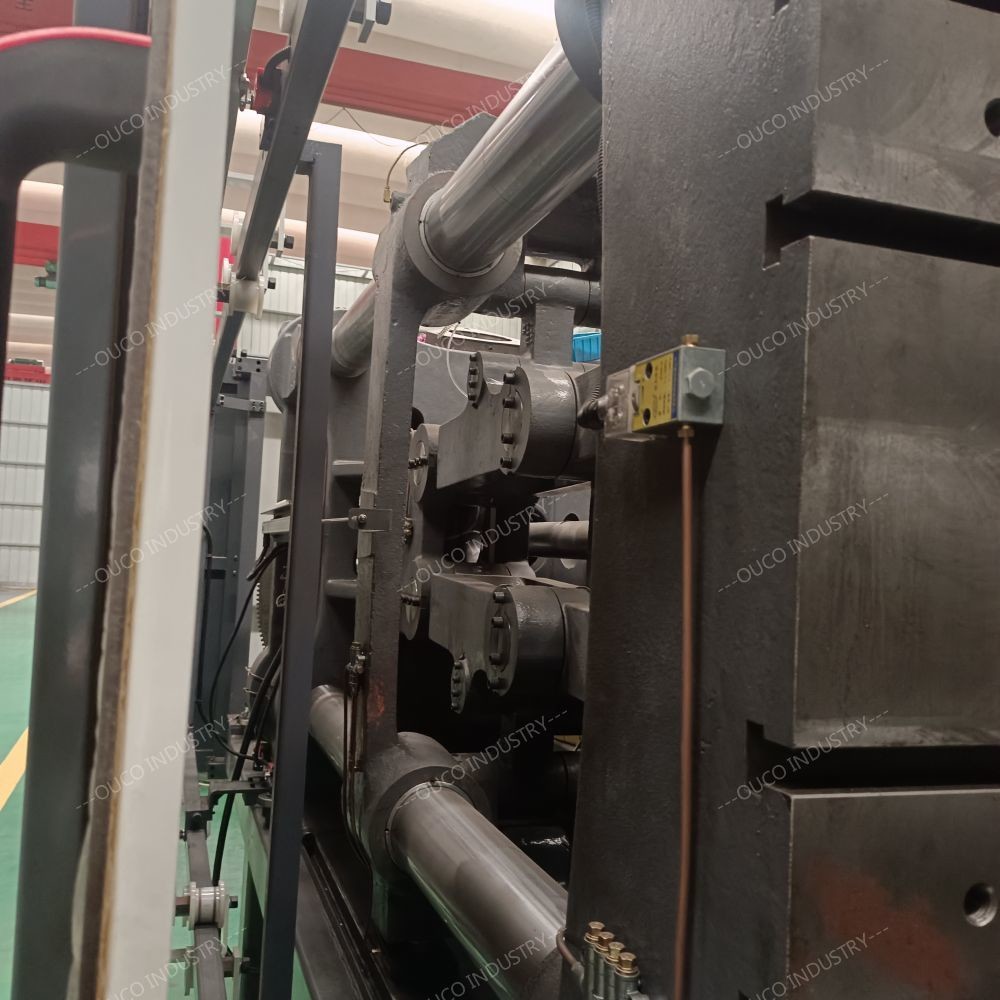

Detail Pictures
