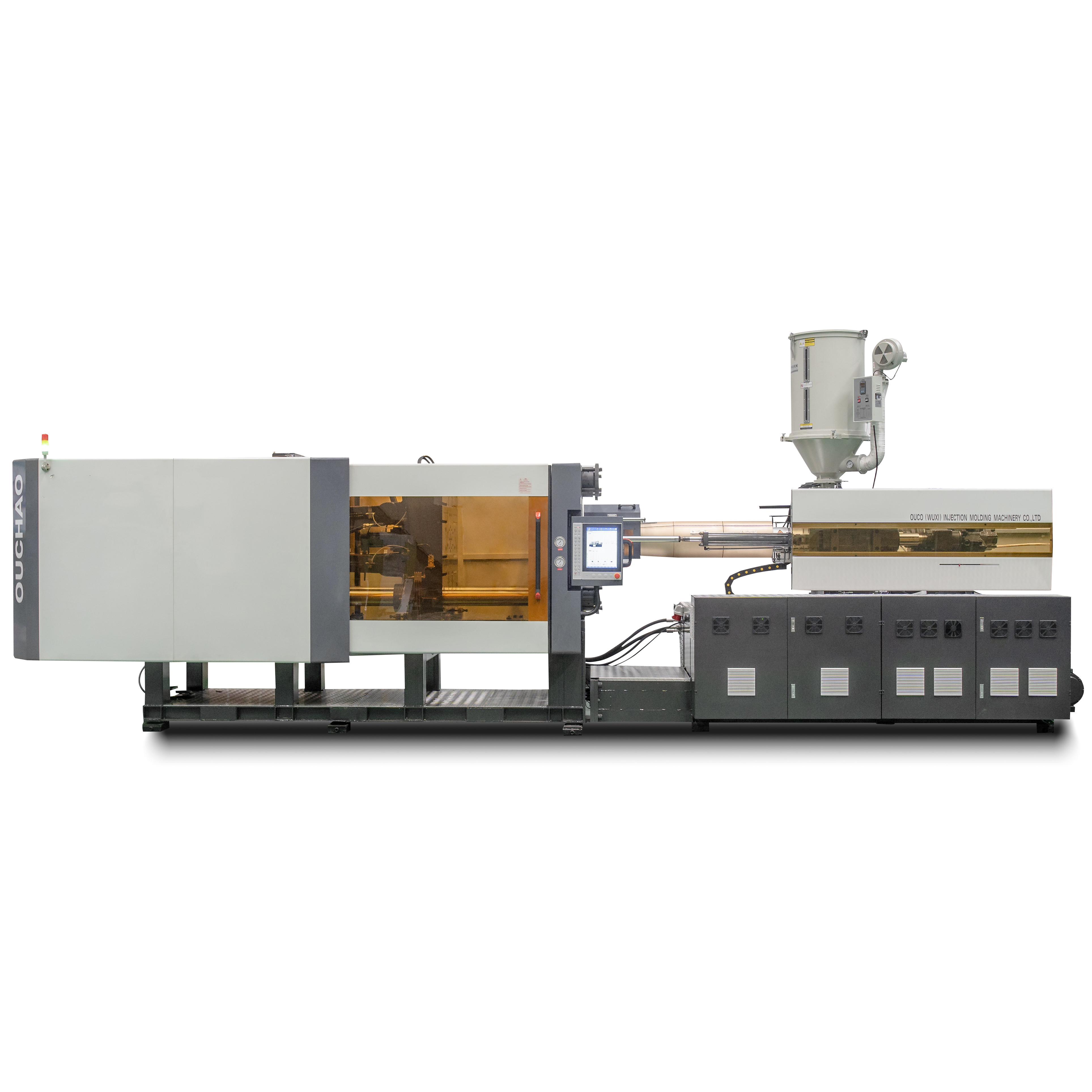

Deep Cavity High Precision Injection Molding Machine Clamping Force 300 Ton

Advantage Of Ouco Hs Machine Injection Molding

1. Direct pressure external curve type central locking,the formwork and mold will not deform,and 100% locking force of the mold will be transmitted;
2. Leading the whole industry of injection molding machine, the extra large mold opening stroke is designed to reduce the purchase cost for deep cavity users;
3. Compared with the traditional injection molding machine structure, it saves material,time and manpower

4. Outward turning crankshaft, it make the same clamping force injection machine have the longer opening stroke

Model		300T			400T			500T
Screw Model		A	B	C	A	B	C	A	B	C
Screwdi ameter	mm	50	60	65	65	75	80	70	75	85
Screw L/Dratio		22	22	22	22	22	22	22	22	22
Theoretical injection volume	cm3	638	918	1078	1C75	1431	1628	1481	1700	2184
Shot weight (PS)	g	593	853	1002	1C11	1345	1530	1377	1581	2031
Injection rate(Ps)	g/S	330	475	558	426	568	646	G03	693	890
Injection pressure	MPa	286	198	169	242	182	160	209	182	142
Inject on stroke	mm	325			360			385
Max. injection speed	mm/s	178			156			166
Screw speed	r/min	0-200			0-200			0-200
Sys. Pressure	MPa	16			16			16
Pump Motor(Min-Max)	kW	63			75			94
Displacement	ml/r	163			100+100			125+125
number of Motors	PC	1			2			2
Heater power	kW	27			35			41
Number oftemp. control zones		5+1			5+1			5+1
Clamping force	kN	3000			4000			5000
Opening stroke	mm	800			900			1000
Tie bar distance W×L	mmxmm	680x680			760x660			860x760
Min. mold thickness	mm	210			300			300
Max. mold thickness	mm	680			730			800
Ejector stroke	mm	190			190			210
Ejector force forward	kN	62			80			110
Number of ejector bar	PC	1+12			1+12			1+12
Oil tank capacity	L	510			680			850
Machine dimensions(LxWxH)	mxmxm	7.7x1.8x1.8			8.2x1.9x1.9			87x2.0x2.1
Machine weight	Ton	10.5			15			19



The injection system adopts high-precision linear guide rail control to effectively reduce mechanical friction and improve injection precision;



Double servo motor power control adopts the latest confluence technology, which can not only run at high speed, but also

automatically control the power consumptionso as to improve the production efficiency.



The hydraulic system is provided by well-known manufacturers in China and is designed and manufactured with high-speedsuper large and special oil circuit.It adopts multi-channel logic control with large flow, low noise and stable performance.The machines with a capacity of more than 450 tons provide the synchronous function of ejector pin while opening the moldso as to shorten the forming cycle of the product.
