| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-CWI-1350S III |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | 10500 Kn Multi-Color Horizontal Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 13500 Kn multi color injection molding machine,650mm multi color injection molding machine,400mm servo plastic injection moulding machine |
||
Single cylinder direct hydraulic clamping system for excellent mechanical balance.
Two independent injectors maximize operational convenience.
The core mechanism is adopted to achieve a high degree of application flexibility.
Facilitates additional injection units to meet molding needs for a 3rd color or component.
Product Advantages
100% clamping force use.
Less possibility of flash, save flash trim work.
Save 2% - 5% on material.
Offer excellent protection to mold, platens and tie bars.
Opening stroke 10-20% longer.
Parameters
| MODEL | CWI-1350S III | |||||||||
| CLAMPING UNIT | clamping force (kN) | 13500 | ||||||||
| Tie bar distance W×L (mm) | 1420*1220 | |||||||||
| Max.Daylight(mm) | 3000 | |||||||||
| Max. mold thickness (mm) | 1400 | |||||||||
| Min. mold thickness(mm) | 650 | |||||||||
| Platen Dimensions W×L (mm) | 2100*1900 | |||||||||
| Ejector Stroke(mm) | 400 | |||||||||
| Ejector Force(Kn) | 341 | |||||||||
| Ejector Quantily | 25 | |||||||||
| Injection unit | 6600I | |||||||||
| Injection Unit | Screw Diameter(mm) | 90 | 100 | 110 | ||||||
| Screw L/D ratio | 23.1 | 21 | 19.1 | |||||||
| Theoretical injection volume (cm3) | 3052 | 3768 | 4559 | |||||||
| Shot Weight (PS) g | 2777 | 3428 | 4148 | |||||||
| Injection Pressure(MPa) | 215 | 174 | 144 | |||||||
| Injection Speed (mm/s) | 76/93 | |||||||||
| Injection Rate (cm3/s) | 788.00 | 974.00 | 1177.00 | |||||||
| Screw Speed (rpm) | 124 | |||||||||
| Other | Motor Power (Kw) | 58 | ||||||||
| pump capacity(L/min) | 650 | |||||||||
| Heater Power (Kw) | 50+50+50+7.5 | |||||||||
| Machine Weight (Ton) | 65 | |||||||||
| Machine size L×W×H (mm) | 12500x3500x2900 | |||||||||

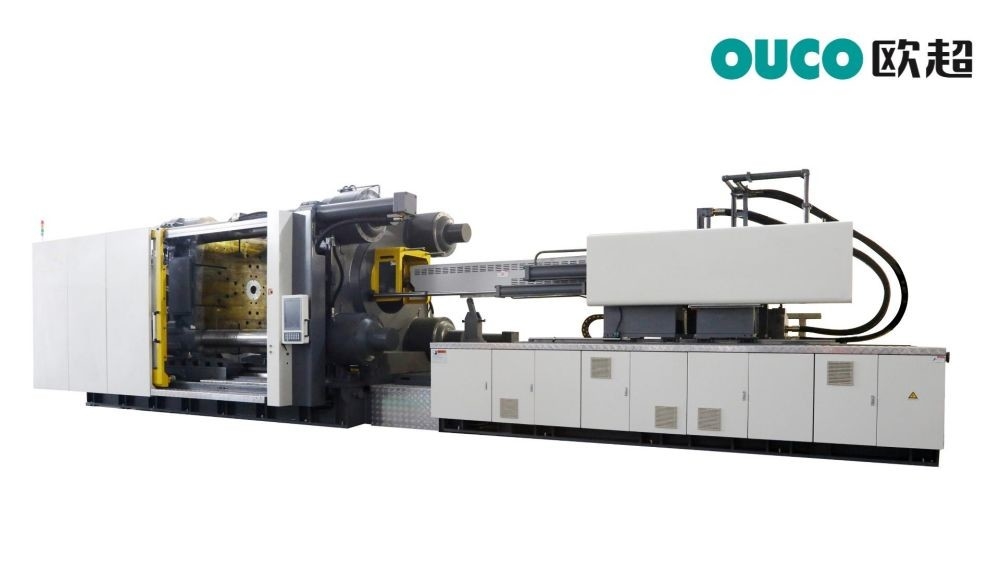

Detail Pictures
