| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE |
| Model Number: | OUCO- 580/910G |
| Minimum Order Quantity: | 1 |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2500 Set/Sets per Year |
| Fuel Tank Capacity: | 880 | Distance Between Tie Bars(Width): | 580mm |
|---|---|---|---|
| Core Components: | Motor | Automatic: | Yes |
| Injection Rate: | 1566(g/s) | Screw Diameter: | 70mm |
| High Light: | 70mm Automatic Injection Moulding Machine,Bucket Paint Automatic Injection Moulding Machine,580mm plastic injection molding machine |
||
A fully automatic injection moulding machine with higher efficiency and reliable operation. The injection table support is made of high precision rubberized fabric guide rails, with low coefficient of friction, low and uniform injection and plasticising resistance, faster injection speed and suitable for high speed precision injection moulding.
Precision control, Techmation advanced control interface High-speed microprocessor ergonomic layout.
Data and image monitoring, self-diagnosis and fault detection capabilities.
Product Parameters
|
clamping unit |
LS580/910G |
|||||
|
clamping force |
5800 |
|||||
|
locking force |
6380 |
|||||
|
max.mould opening stroke |
900 |
|||||
|
min.mould height |
330 |
|||||
|
max.mould height |
1000 |
|||||
|
max.daylight |
1900 |
|||||
|
mould platen(h*v) |
1310*1220 |
|||||
|
ejection stroke |
180 |
|||||
|
ejection force |
130 |
|||||
|
injection unit |
2600 |
3800 |
||||
|
screw diameter |
65 |
70 |
75 |
75 |
80 |
90 |
|
screw geometry |
standard |
|||||
|
l/d ratio |
22 |
22 |
22 |
22 |
22 |
22 |
|
max.shot weight(ps) |
1163 |
1349 |
1548 |
1809 |
2058 |
2605 |
|
max.screw stroke |
385 |
385 |
385 |
450 |
450 |
450 |
|
max.nozzle dipping depth(svo) |
|
50 |
|
|
50 |
|
|
nozzle sealing force |
|
110 |
|
|
110 |
|
|
number of heating zones |
|
5 |
|
|
6 |
|
|
hopper capacity |
|
110 |
|
|
110 |
|
|
>capacity with electr drive |
272 |
274 |
278 |
298 |
301 |
308 |
|
net weight(without oil) |
26300 |
26900 |
||||

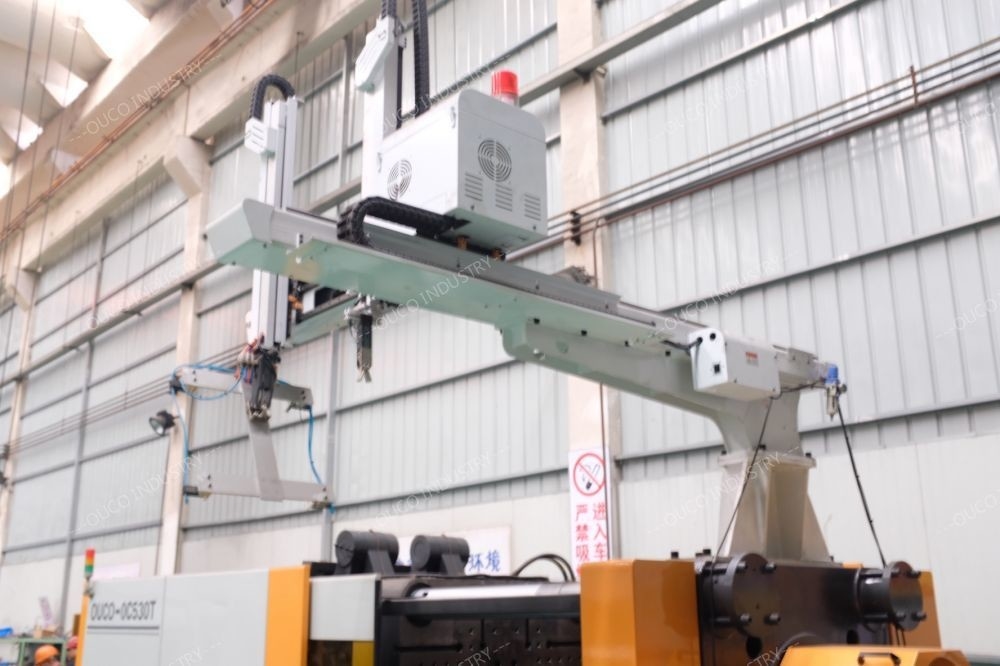

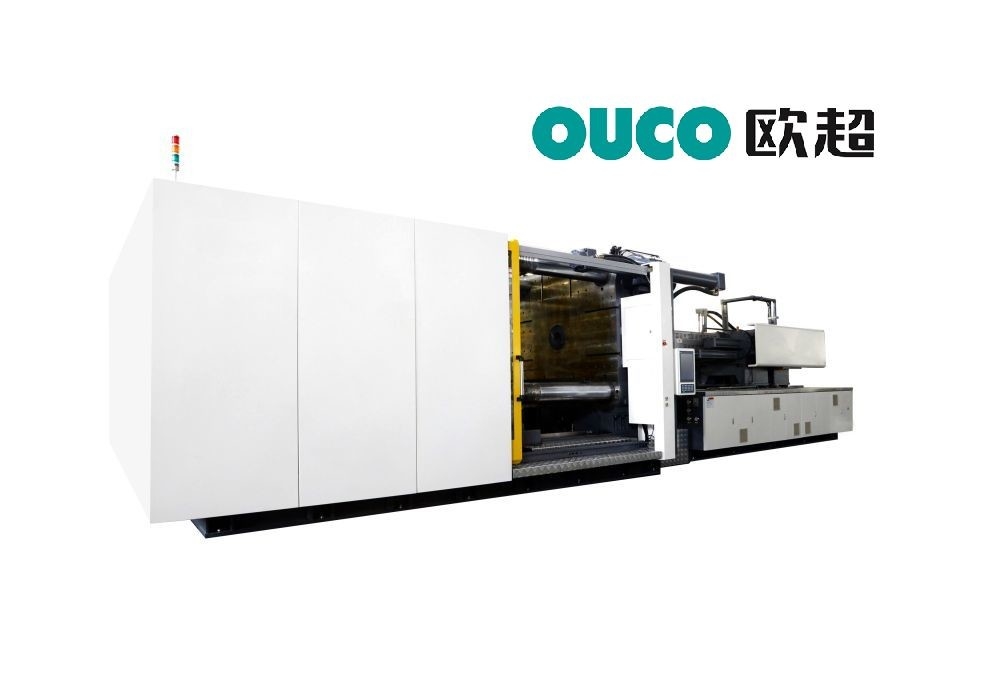

Product Pictures
