| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE |
| Model Number: | OUCO-500T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2500 Set/Sets per Year |
| Style: | Horizontal | Distance Between Tie Bars(Width): | 580mm |
|---|---|---|---|
| Plasticizing Capacity: | 35(g/s) | Ejector Stroke: | 140mm |
| Injection Rate: | 674(g/s) | Core Components: | Pump |
| High Light: | 140mm bucket injection molding machine,500T bucket injection molding machine,35g/s plastic container moulding machine |
||
Techmation Smart controller, latest Servo Motor and Drive.
Nano far infrared heater, more precise temperature control.
Multi-level ejection, Smooth and fast ejection action.
Easy installation of jack, push out the whole guide.
Can realize pulse ejection.
Product parameters
| Model | 500T | |||
| Screw Specifications | A | B | C | |
| Screwdi ameter | mm | 70 | 75 | 85 |
| Screw L/Dratio | 22 | 22 | 22 | |
| Theoretical injection volume | cm3 | 1481 | 1700 | 2184 |
| Shot weight (PS) | g | 1377 | 1581 | 2031 |
| injection rate(Ps) | g/S | G03 | 693 | 890 |
| Injection pressure | MPa | 209 | 182 | 142 |
| Inject on stroke | mm | 385 | ||
| Max. injection speed | mm/s | 166 | ||
| Screw speed | r/min | 0-200 | ||
| Sys. Pressure | MPa | 16 | ||
| Pump Motor(Min-Max) | kW | 94 | ||
| Displacement | ml/r | 125+125 | ||
| number of Motors | PC | 2 | ||
| Heater power | kW | 41 | ||
| Number oftemp. control zones | 5+1 | |||
| Clamping force | kN | 5000 | ||
| Opening stroke | mm | 1000 | ||
| Tie bar distance W×L | mm*mm | 860x760 | ||
| Min. mold thickness | mm | 300 | ||
| Max. mold thickness | mm | 800 | ||
| Ejector stroke | mm | 210 | ||
| Ejector force forward | kN | 110 | ||
| Number of ejector bar | PC | 1+12 | ||
| Oil tank capacity | L | 850 | ||
| Machine dimensions(LxWxH) | m*m*m | 87x2.0x2.1 | ||
| Machine weight | Ton | 19 | ||

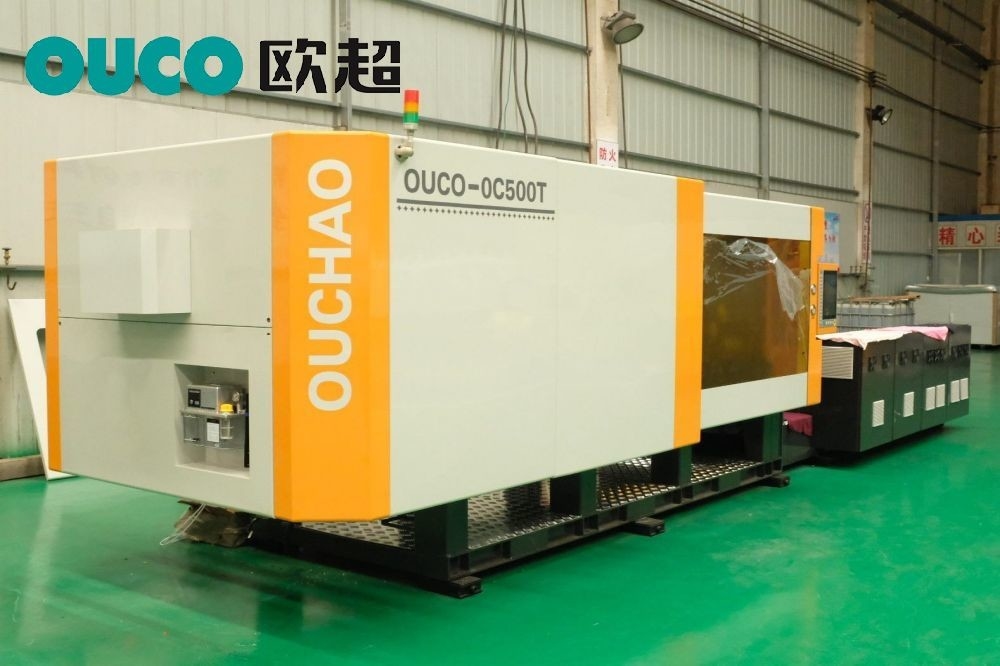

Product Picture
