| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE |
| Model Number: | OUCO-160 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, T/T |
| Type: | Preform Injection | Clamping Force: | 1600KN |
|---|---|---|---|
| Injection Weight: | 260-410g | Opening Stroke: | 480mm |
| Injection Rate: | 166-204cm3 | Production Capacity: | 6000 Sets / Year. |
| Certification: | ISO9001:2008,CE,TUV | ||
| High Light: | 1600KN Horizontal Injection Molding Machine,480mm Horizontal Injection Molding Machine,410g Plastic Injection Molding Machine |
||

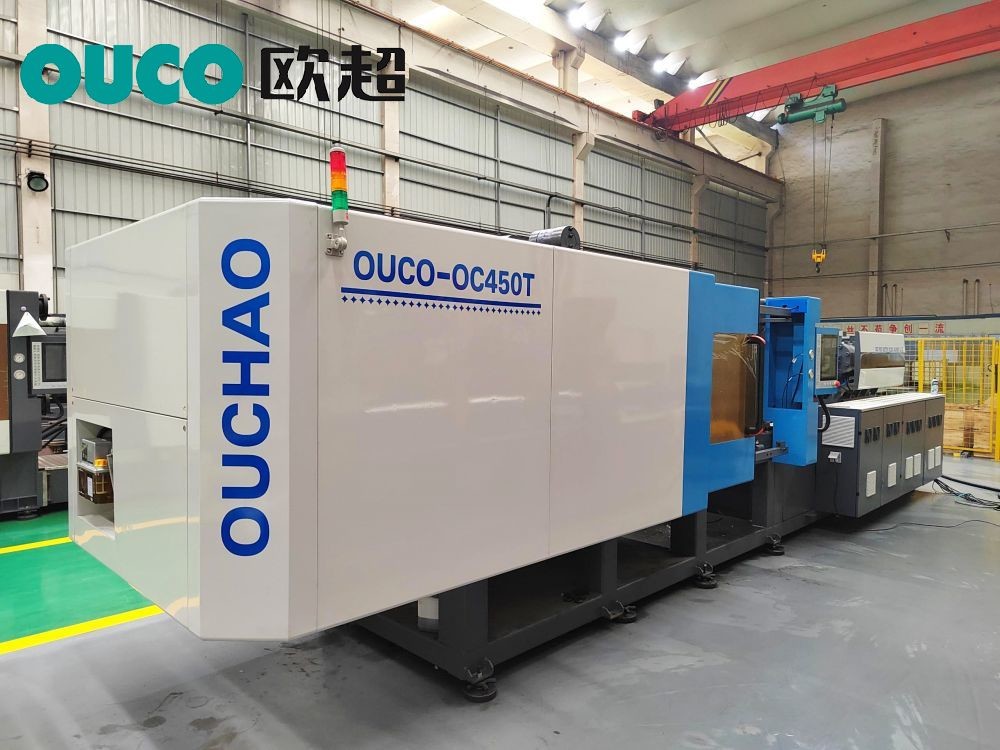

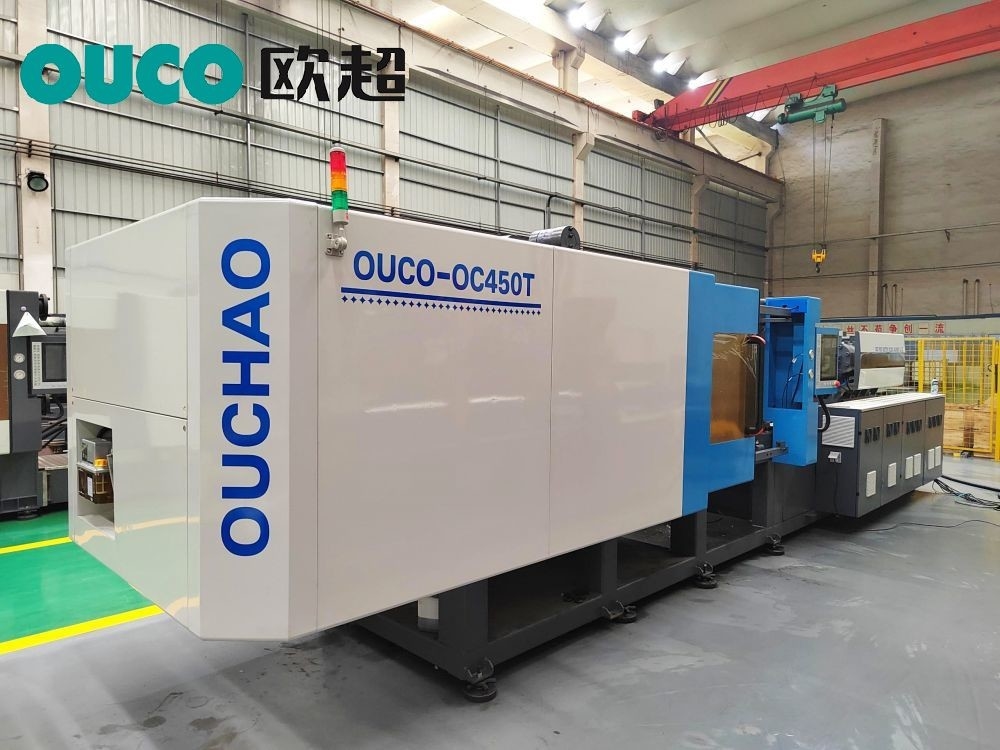

Injection moulding machine for mobile phone and other parts.
• Technology of Germany hydraulic cycle design, ensuring the machine running rapidly and quietly.
• Proportional back pressure control, including zero back pressure fuction.
• CrMo steel material for the tie bars, ensuring the service life of the machine.
• China- Unique- Producer, Central- Locking- Toggle.

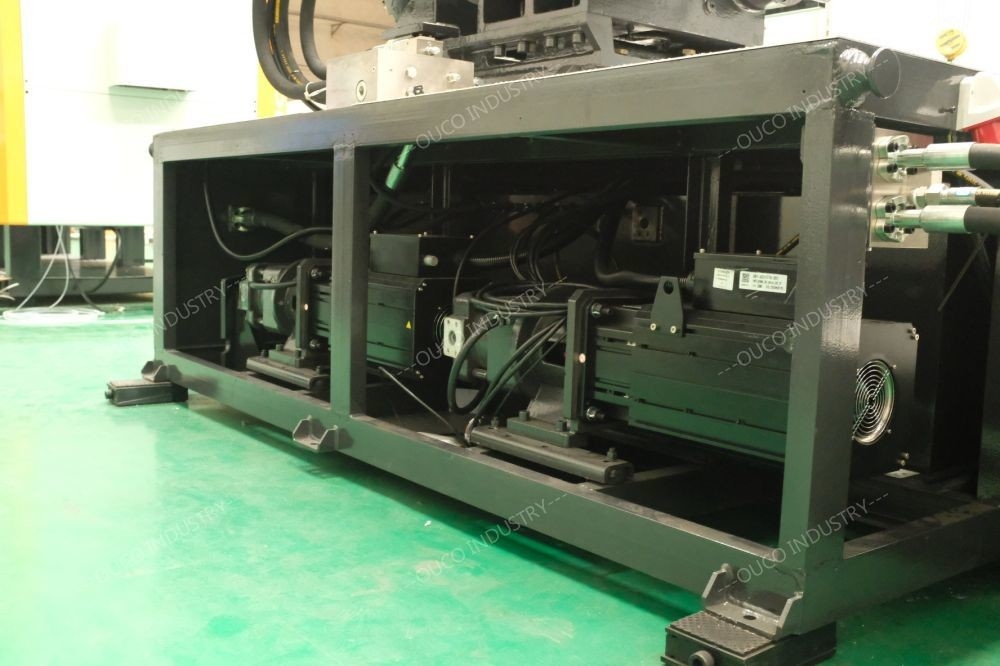

• Self- develop high performance servo saving energy system.
• Enlarged inject speed and enlarged inject pressure.
Essential details:
Condition: New Style: Horizontal
Clamping Force: 1600KN Type: Preform Injection
After-sales Service Provided: Engineers available to service machinery overseas
Plastic Type: Thermoplastic
Automatic: Yes
Injection Rate: 166-204cm3
Injection Weight: 260-410g
Opening Stroke: 480mm
Certification: ISO9001:2008,CE,TUV
| 机型 | 300T | 400T | 500T | 600T | 700T | ||||||||||||
| 螺杆规格 | A | B | C | A | B | C | A | B | C | A | B | C | A | B | C | ||
| 螺杆直径 | Screw diameter | mm | 50 | 60 | 65 | 65 | 75 | 80 | 70 | 75 | 85 | 75 | 85 | 90 | 85 | 90 | 100 |
| 螺杆长径比 | Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| 理论注射容积 | Theoretical injection volume | cm3 | 638 | 918 | 1078 | 1C75 | 1431 | 1628 | 1481 | 1700 | 2184 | 1788 | 2297 | 2575 | 2552 | 2861 | 3533 |
| 注射重量(PS) | Shot weight (PS) | g | 593 | 853 | 1002 | 1C11 | 1345 | 1530 | 1377 | 1581 | 2031 | 1645 | 2113 | 2369 | 2348 | 2632 | 3250 |
| 注射速率 | injection rate(Ps) | g/S | 330 | 475 | 558 | 426 | 568 | 646 | G03 | 693 | 890 | G13 | 788 | 884 | 788 | 883 | 1091 |
| 注射压力 | Injection pressure | MPa | 286 | 198 | 169 | 242 | 182 | 160 | 209 | 182 | 142 | 204 | 159 | 142 | 209 | 187 | 151 |
| 注射行程 | Inject on stroke | mm | 325 | 360 | 385 | 405 | 450 | ||||||||||
| 最大注射速度 | Max. injection speed | mm/s | 178 | 156 | 166 | 157 | 147 | ||||||||||
| 最大摞杆转速 | Screw speed | r/min | 0-200 | 0-200 | 0-200 | 0-200 | 0-180 | ||||||||||
| 系统压力 | Sys. Pressure | MPa | 16 | 16 | 16 | 16 | 16 | ||||||||||
| 电机总功率 | Pump Motor(Min-Max) | kW | 63 | 75 | 94 | 101 | 114 | ||||||||||
| 油泵排量 | Displacement | ml/r | 163 | 100+100 | 125+125 | 160+125 | 160+160 | ||||||||||
| 电机数员 | number of Motors | PC | 1 | 2 | 2 | 2 | 2 | ||||||||||
| 电热功率 | Heater power | kW | 27 | 35 | 41 | 47 | 52 | ||||||||||
| 温控区数 | Number of temp. control zones | 5+1 | 5+1 | 5+1 | 5+1 | 5+1 | |||||||||||
| 锁模力 | Clamping force | kN | 3000 | 4000 | 5000 | 6000 | 7000 | ||||||||||
| 开模行程 | Clamping stroke | mm | 800 | 900 | 1000 | 1150 | 1300 | ||||||||||
| 拉杆内间距 | Tie bar distance W×L | mmxmm | 680x680 | 760x660 | 860x760 | 960x860 | 1020x920 | ||||||||||
| 最小模具厚度 | Min. mold thickness | mm | 210 | 300 | 300 | 350 | 450 | ||||||||||
| 最大模具厚度 | Max. mold thickness | mm | 680 | 730 | 800 | 920 | 1050 | ||||||||||
| 顶出行程 | Ejector stroke | mm | 190 | 190 | 210 | 210 | 210 | ||||||||||
| 顶出力 | Ejector force forward | kN | 62 | 80 | 110 | 113 | 113 | ||||||||||
| 顶出杆数 | Number of ejector bar | PC | 1+12 | 1+12 | 1+12 | 1+12 | 1+12 | ||||||||||
| 油箱容量 | Oil tank capacity | L | 510 | 680 | 850 | 940 | 1020 | ||||||||||
| 机械外形尺寸(约) | Machine dimensions(LxWxH) | mxmxm | 7.7x1.8x1.8 | 8.2x1.9x1.9 | 87x2.0x2.1 | 9.3x2.1x2.3 | 9.7x2.2x2.4 | ||||||||||
| 机器重量(约) | Machine weight | Ton | 10.5 | 15 | 19 | 23 | 25 | ||||||||||
Big: Bigger one size than other brand machines.
Precision: Products higher precision.
Save: Help customer save 2- 5% material.
Outside clamping structure
100% clamping force use.
Less possibility of flash, save flash trim work.
Save 2% - 5% material.
Offer good protection to mould, platens and tie bars.
Opening stroke 10 - 20% longer.
Traditional structure
With heavy clamping force waste, only 80 - 85% efficiency.
Moving platen with obvious deformation, cause flashes, wsaste of material and labor of trim the flashes.

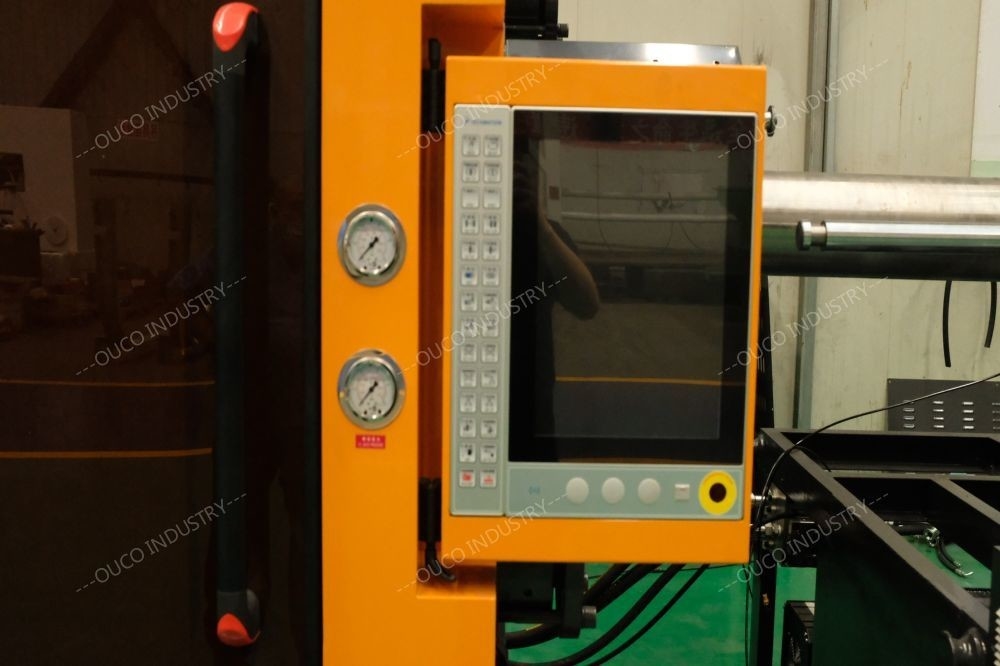

1. Optimized electrical cabinet design, conform to GB, CE, UL, KCS or other safety standard.
2. Electrical parts from famous international manufacturers, ensure the machine with reliable performance Advanced PLC ( KEBA, BECKHOFF, etc. ) , available as option.
1. World leading screw plasticizing set design with technology from Europe.
2. Srew for special purposes ( PC, PMMA, POM, etc. ) available as option.
3. Customized plasticizing set available for special application
