| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-400H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | OC-400H Deep Cavity Bucket Making Injection Molding Machine For Plastic Mop Bucket | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | plastic Mop bucket Injection Molding Machine,Mop plastic bucket injection moulding machine,Deep Cavity bucket moulding machine |
||

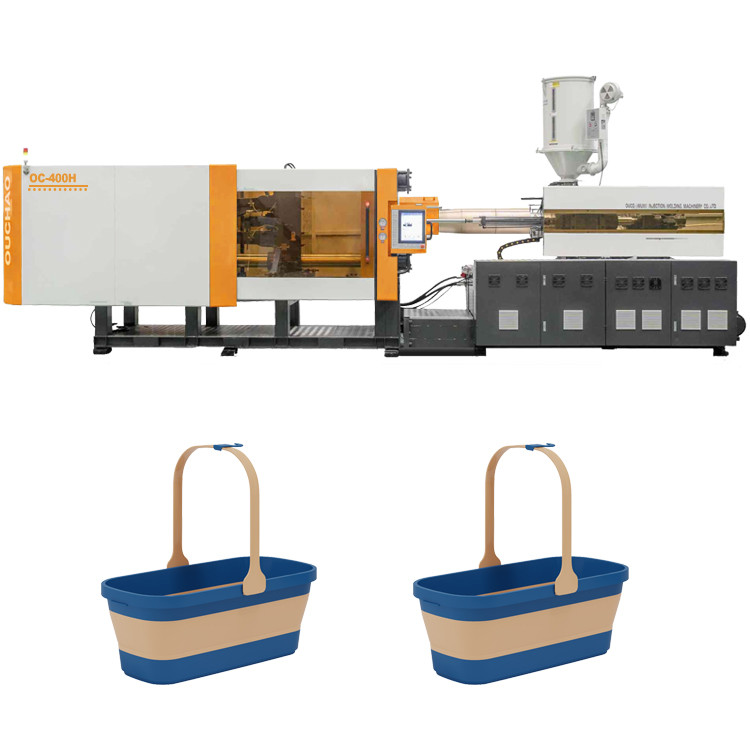

OC-400H Deep Cavity Bucket Making Injection Molding Machine For plastic Mop Bucket
Advantages of OC-400H deep cavity,high speed injection molding machine
1.OC-400H injection molding machine integrating now advanced technology, combining rich molding professional technical requirements, integrating simple and easy-to-use humanized design concepts, and adopting modern processing technology, it has excellent performance such as energy saving and environmental protection, high efficiency and high speed, precise control, reliable operation, and convenient operation, which greatly meets customers' various requirements for machine stability, production efficiency, and environmental protection performance.
2.It has center clamping and ultra-large mold opening stroke. Suitable for the production of deep cavity products.So it is suitable for the production of deep-cavity products and other types of complex molds. It can greatly improve the flexibility of production.
3.Machines are all CE, ISO9001:2008 and SGS certified, which not only demonstrates our high commitment to quality and safety, but also ensures that our products meet international standards.
4.All components are from internationally renowned brands, and the quality is guaranteed.
Parameters
| MODEL | OC-400H | ||
| Injection part | |||
| Screw type | A | B | C |
| Screw diameter (mm) | 70 | 75 | 80 |
| Screw L/D ratio(L/D) | 23.5 | 22 | 21 |
| Theoretical injection volume(cm³) | 1347 | 1546 | 1759 |
| Injection volume (g) | 1301 | 1493 | 1699 |
| Maximum rate for injection to air(g/s) | 368 | 422 | 481 |
| Injection pressure (M Pa) | 175 | 152 | 134 |
| Clamping part | |||
| Clamping force (Ton) | 4000 | ||
| Toggle stroke (mm) | 800 | ||
| Distance between tie bars(mm*mm) | 720*680 | ||
| Maximum mould height (mm) | 730 | ||
| Minimum mould height (mm) | 300 | ||
| Ejection stroke (mm) | 190 | ||
| Ejector force forward (KN) | 62 | ||
| Amount of die thimble (Pcs) | 1+12 | ||
| Others | |||
| Motor power (KW) | 40~55 | ||
| Heater power (kW) | 27 | ||
| Quantity of temperature-control zones | 5+1 | ||
| Boundary dimension(L*W*H) (m) | 8.2×1.9×2.0 | ||
Our service:
1.Supporting service capabilities.From injection molding machines to molds, auxiliary machines, and plastic products, we can realize the entire process and help you build a complete production line.
2.We have 24-hour after-sales service and provide sufficient spare parts. If you have any problems with your product, we can solve it in time.
3. We strictly implement this principle in every aspect of the transaction, always think from the customer's point of view, and provide you with the most humane service.
Application:
Our injection molding machine can produce plastic bucket,crate,container,box and other plastic product with different shapes,different size.If you have any question,feel free to contact us.
You could send the photos which you want to produce,we will recommend the suitable machine to you.

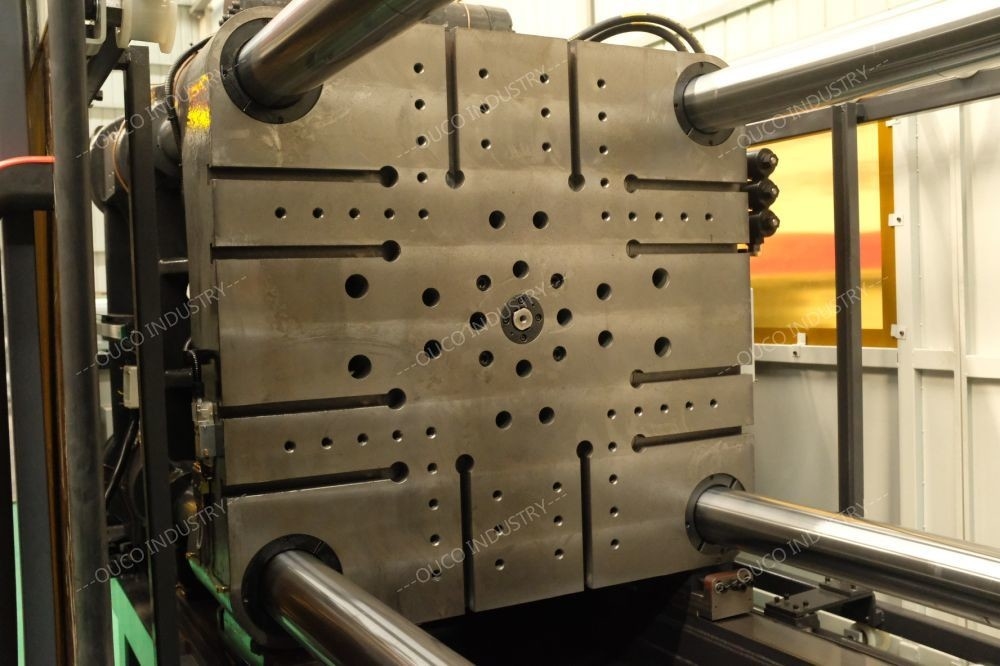

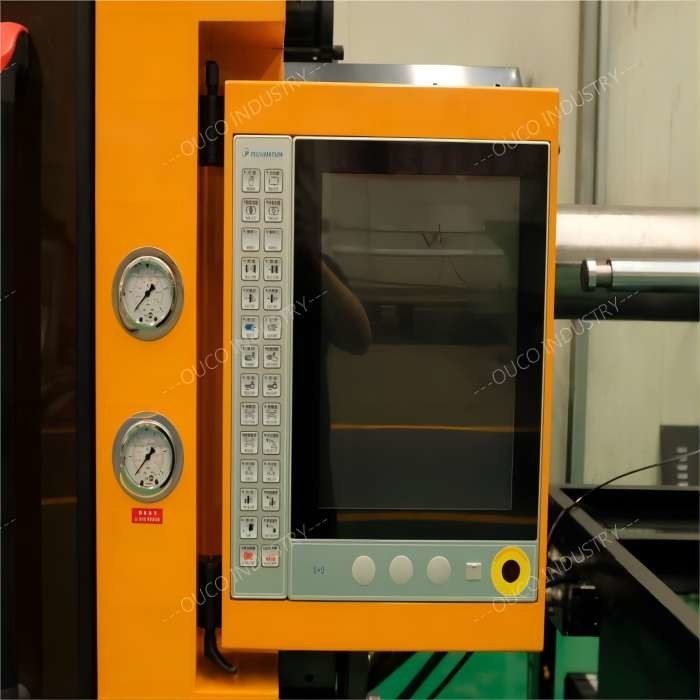

Detail Pictures
