| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-480H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | OC-480H High Precision Plastic Box Making Injection Molding Machine For Household Storage Box | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| Highlight: | Household Storage Box Injection Molding Machine,OC-480H Injection Molding Machine,Precision plastic box injection molding machine |
||

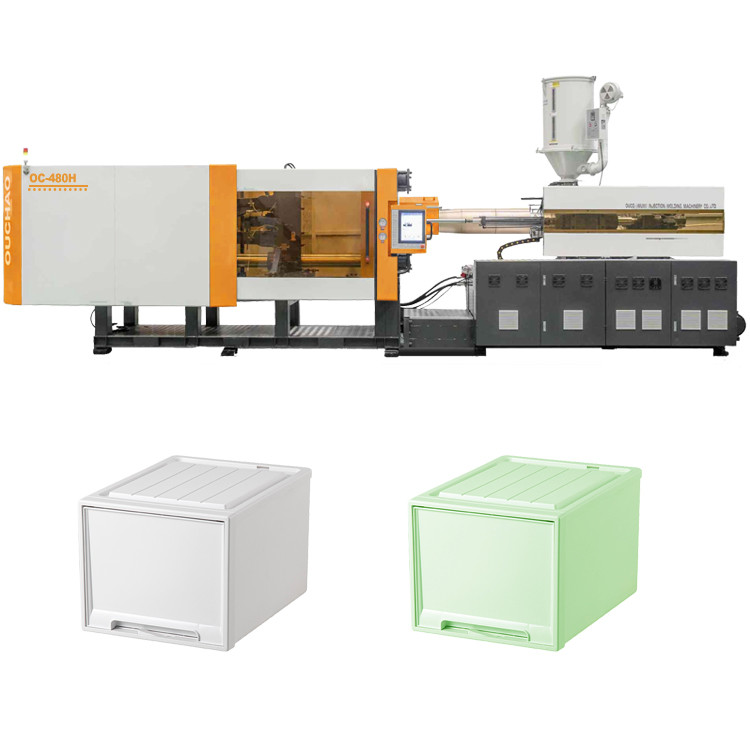

OC-480H High Precision Plastic Box Making Injection Molding Machine For Household Storage Box
Why choose us
OUCO INJECTION MOLDING MACHINERY CO.,LTD., is situated in Wuxi city ,Jiangsu province,China. The company covers an area of 35000 square meters and the factory area is 25000 square meters.OUCO is a high-tech enterprise specializing in injection molding machinery integrating R&D, manufacturing,sales and after-sales service.So we can provide a comprehensive range of supporting services.
OUCO builds high speed machine for deep cavity products with European standard, new universal series products,SV servo energy-saving system, the clamping force is from 110 tons to 2200 tons, and each specification can be equipped with 2 or 3 different injection structures according to the customer's product requirements. In addition,we have developed and designed large two-platen series, with clamping force from 800 tons to 2100 tons.
OUCO adopts advanced equipment and technology and applies scientific management. Besides, it has introduced high-precision machines fitted with imported electric and hydraulic parts, which have tremendously improved the accuracy and steadiness of the whole machine.
Product advantages
It mainly produces high precision injection molding machines with the clamping force rang from 150T to 2200T.The produces have high rigidity structure and equipped imported hydraulic & electronic elements.It has excellent plasticizing performance, is suitable for injection molding of various engineering plastics, and can be customized according to special requirements of users.
The biggest advantage of our injection molding machine is that it has a large mold opening stroke, which is very suitable for the production of deep cavity products and can also be suitable for complex molds, which greatly improves the diversity of production and reduces your machine purchase cost.
Compared with the same type of machines on the market, our machines will have more favorable prices under the same parameters and similar circumstances.
We will also provide you with full purchase consultation, machine installation guidance, after-sales maintenance, spare parts supply and other services to make your purchase more secure.
Parameters
| MODEL | OC-480H | ||
| Injection part | |||
| Screw type | A | B | C |
| Screw diameter (mm) | 75 | 80 | 85 |
| Screw L/D ratio(L/D) | 23.7 | 22.2 | 21 |
| Theoretical injection volume(cm³) | 1597 | 2086 | 2355 |
| Injection volume (g) | 1543 | 2015 | 2275 |
| Maximum rate for injection to air(g/s) | 396 | 517 | 583 |
| Injection pressure (M Pa) | 208 | 159 | 141 |
| Clamping part | |||
| Clamping force (Kn) | 4800 | ||
| Toggle stroke (mm) | 900 | ||
| Distance between tie bars(mm*mm) | 820*780 | ||
| Maximum mould height (mm) | 730 | ||
| Minimum mould height (mm) | 300 | ||
| Ejection stroke (mm) | 190 | ||
| Ejector force forward (KN) | 80 | ||
| Amount of die thimble (Pcs) | 1+12 | ||
| Others | |||
| Motor power (kW) | 50～60 | ||
| Heater power (kW) | 35 | ||
| Quantity of temperature-control zones | 5+1 | ||
| Boundary dimension(L*W*H) (m) | 8.6x 2.1x 2.2 | ||
| Sys.Pressure (Mpa) | 16 | ||

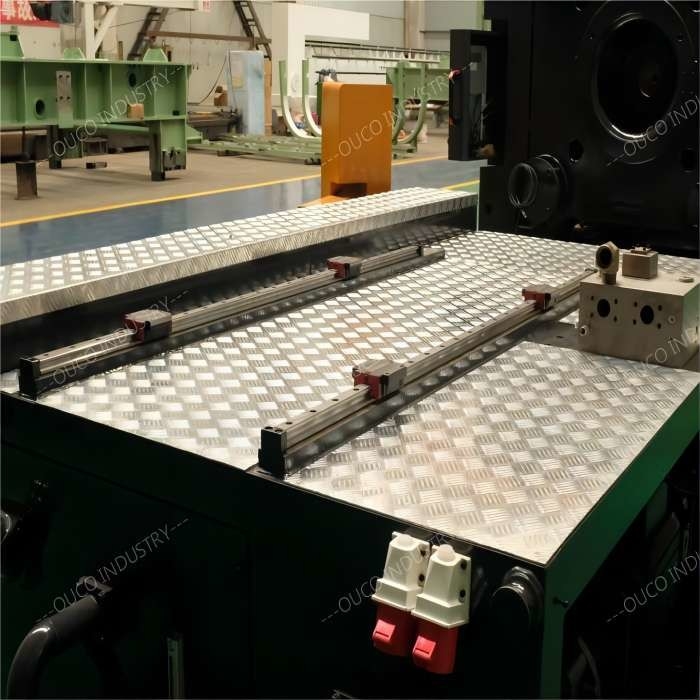

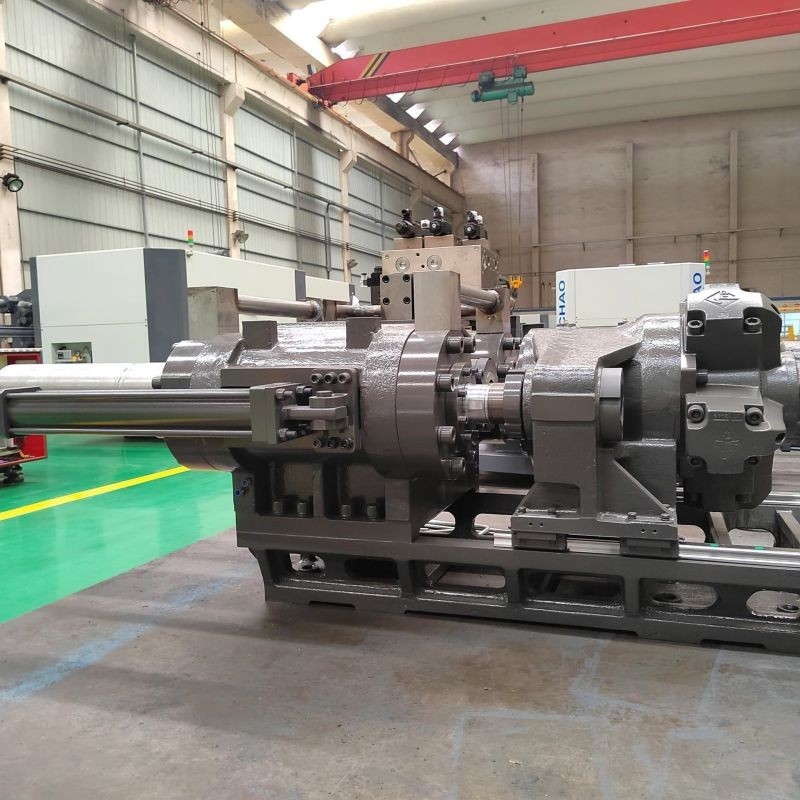

Detail Pictures
Company Profile
