| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-330H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | OC-330H High Speed Injection Plastic Molding Machine For Plastic Laundry Basket | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | High Speed Injection Plastic Molding Machine,OC-330H Injection Plastic Molding Machine,Laundry Basket injection plastic molding machine |
||

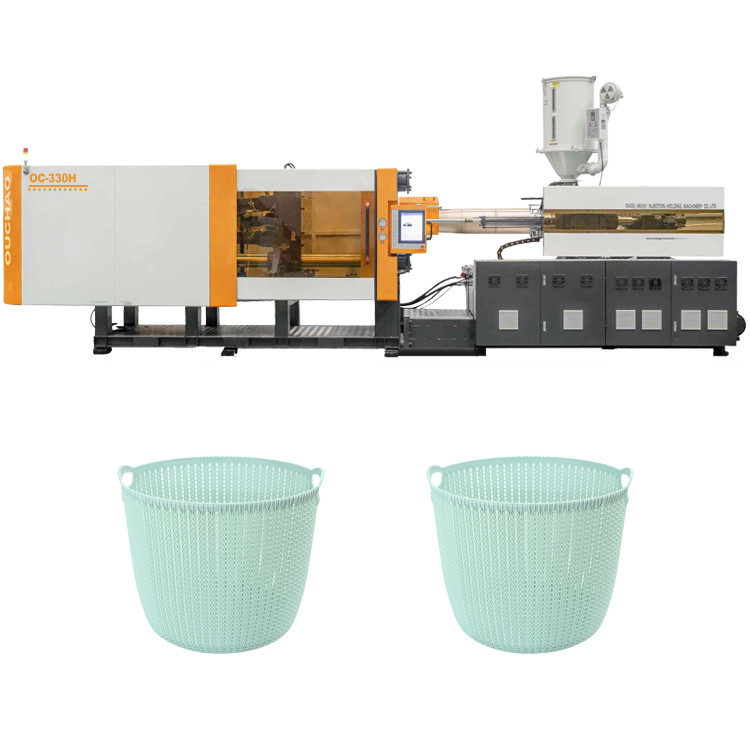

OC-330H High Speed Injection Plastic Molding Machine For Plastic Laundry Basket
About us
OUCO (WUXI) Injection Molding Machinery Co., Ltd. was established in 2021 and is located at No. 20, Tianshun Road, Yangshan Town, Huishan District, Wuxi City, Jiangsu Province, China. Although we are a new brand in the injection molding machine industry, we have been committed to developing and manufacturing injection molding equipment for automotive parts, medical equipment, large pipes, trash cans, pallets and fruit trays and other market areas. We will continue to update and improve our technology level according to market demand, create higher quality and high-performance equipment, provide solutions for more customers, make our machines more automation, precision, and energy-saving, and also make our brand continue to move towards specialization and internationalization.
We have:
Organized Teamwork:
From product design, production, sales to after-sales, we have professional teams responsible for each sector to achieve industry and trade integration.
Quality Assurance
We promise that every product undergoes rigorous quality testing to ensure that it meets the highest standards. We use the highest quality materials and the most advanced technology to ensure the durability and reliability of our products.
Price advantage
Compared with other brands, our price is more advantageous. We provide products of equal or even higher quality, but at a lower price, helping you save the cost of purchasing the machine.
Excellent service
We have considerate pre-sales service and 24-hour after-sales service. We will recommend the most suitable machine model according to your product needs. After the machine is sold, we will regularly inspect the machine for you and provide sufficient spare parts.
About Product
injection unit
Dual-cylinder injection technology is adopted to provide a more precise and stable injection process through two independent injection cylinders, ensuring a consistent amount of material injected each time, thus improving product consistency and quality. At the same time, the production efficiency is significantly enhanced. The two cylinders can work independently, shortening the injection cycle and meeting the needs of mass production.
Clamping unit
It adopts a direct-pressure external curved central mold locking structure to achieve unprecedented stable mold closing interlocking, ensuring a more accurate and reliable mold locking structure. The mold locking utilization rate can reach 100%. In addition, the ultra-large mold opening stroke can Meet the production of multiple products.
Servo hydraulic system
The power system of servo motor and internal gear pump is used to achieve a power output mode based on the amount of energy required, which greatly saves energy and reduces energy consumption by about 20%-80% compared with the traditional power output mode.
Electronic control unit
Using Taiwan Techmation computer, it has fast response speed, high control precision and strong operability. Multiple language versions are available, which can better adapt to the servo system and have wider applicability.
Parameters
| MODEL | OC-330H | ||
| Injection part | |||
| Screw type | A | B | C |
| Screw diameter (mm) | 60 | 65 | 70 |
| Screw L/D ratio(L/D) | 23.6 | 21.8 | 20.2 |
| Theoretical injection volume(cm³) | 899.1 | 1055.2 | 1223.8 |
| Injection volume (g) | 818.2 | 960.3 | 1113.7 |
| Maximum rate for injection to air(g/s) | 190.4 | 223.5 | 259.2 |
| Injection pressure (M Pa) | 213.3 | 181.8 | 156.7 |
| Clamping part | |||
| Clamping force (Ton) | 3300 | ||
| Toggle stroke (mm) | 670 | ||
| Distance between tie bars(mm*mm) | 670*620 | ||
| Maximum mould height (mm) | 670 | ||
| Minimum mould height (mm) | 300 | ||
| Ejection stroke (mm) | 200 | ||
| Ejector force forward (KN) | 80.5 | ||
| Amount of die thimble (Pcs) | 1+12 | ||
| Others | |||
| Motor power (kW) | 25～35 | ||
| Heater power (kW) | 22 | ||
| Quantity of temperature-control zones | 4+1 | ||
| Boundary dimension(L*W*H) (m) | 7×1.8×2.2 | ||
| Sys.Pressure (Mpa) | 16 | ||
Applicable scene:
The fruit basket injection molding machine is suitable for the production of various fruit baskets and is widely used in fruit packaging, supermarkets, farmers' markets, orchards and other fields, providing customers with efficient and high-quality fruit basket production solutions.
