| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC400H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

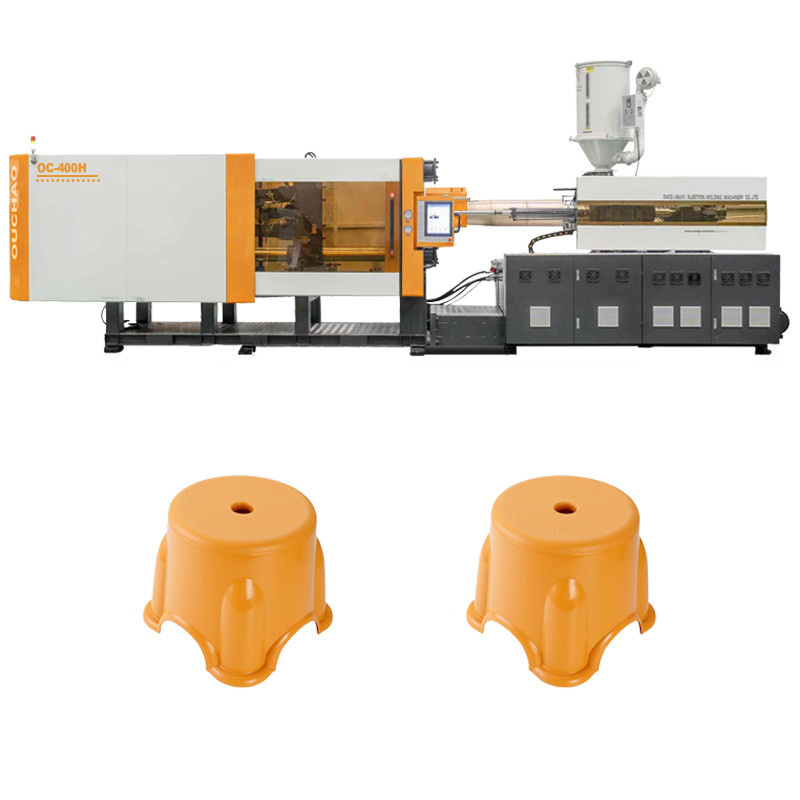

| Product Name: | Plastic Samll Stool Making OUCO 400T Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Small Stool Plastic Injection Molding Machine,400T Injection Molding Machine,Small Stool Injection Molding Machine |
||
Our factory is located in Wuxi City, Jiangsu Province and has a brilliant performance in the field of science and technology and economic development in the country. With the regional advantage, we have formed a technical team with rich experience and long experience in the industry. For the machine, we actively research and develop, optimize the performance of the machine and explore more possibilities.
The technical team will serve as our strong backing. When you encounter special requirements, we will connect with the technical staff through the sales team to further discuss feasible solutions, just to provide you with the best products and services.
There is a finishing center in the factory workshop, and a large number of equipment operators with strong technology and high literacy provide a solid guarantee for the high-precision processing and production of products. In addition, we also provide auxiliary equipment related to injection molding machines. If necessary, we can select and quote auxiliary equipment for you.
Product Advantages
Injection molding machines for the production of plastic small stools have the following significant advantages:
High quality plasticizing effect:

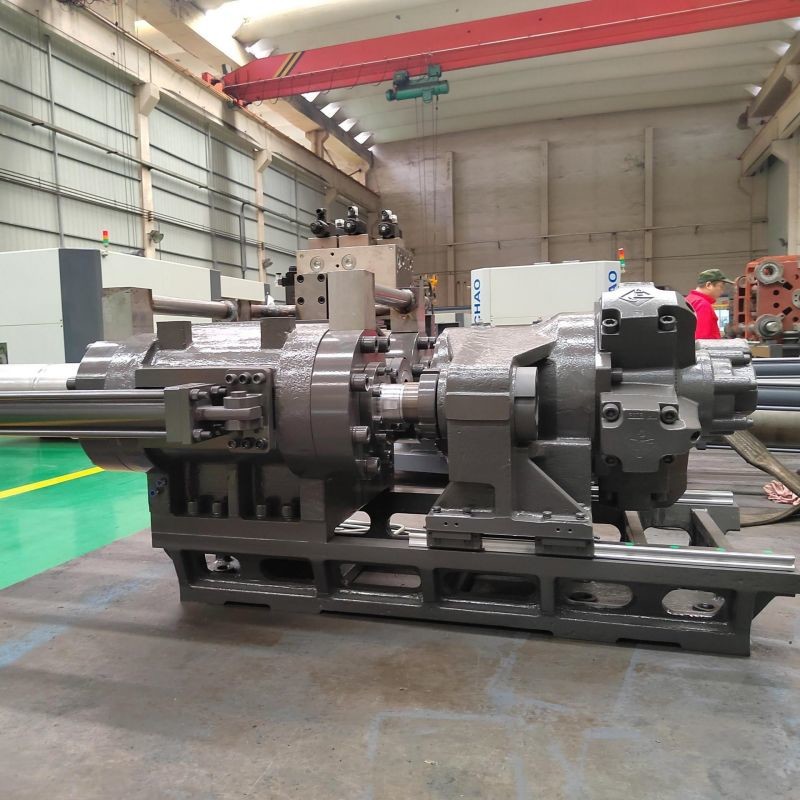

The injection unit adopts linear guide rails to ensure precise injection and plasticizing positions. The use of a special screw barrel can provide excellent plasticizing effects and fast melting speed, which is very suitable for production needs of large injection volumes, ensuring product quality while speeding up the production pace.
Powerful power system:
Equipped with an enlarged power system, the glue injection speed is faster, thereby significantly shortening the production cycle and greatly improving the overall production efficiency.
New Rigid Frame:
The new rigid frame design effectively enhances the shock absorption effect, making the production process more stable, the machine running smoothly, and ensuring product consistency and quality.

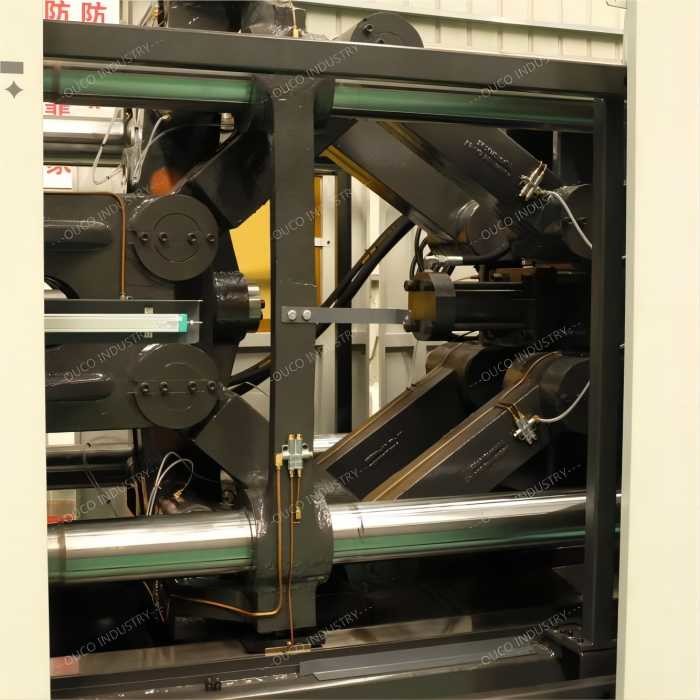

Improved clamping unit:
The use of a new mold clamping unit and high safety factor tie rods improve the overall rigidity and stability of the mold clamping structure, ensuring the safety and reliability of the production process.
OC-400H has the characteristics of high reliability and long life, strong adaptability, stability and reliability, making it an ideal choice for your injection molding production line.
Parameters
|
MODEL |
OC400H |
|
Clamping force (kN) |
4000 |
|
Space between tie bar (mm*mm) |
720*680 |
|
Max. mold thickness (mm) |
730 |
|
Min. mold thickness(mm) |
300 |
|
Opening stroke (mm) |
800 |
|
Ejector stroke(mm) |
190 |
|
Ejector force forward(Kn) |
62 |
|
Screw diameter(mm) |
80 |
|
Screw L/D ratio |
21 |
|
Theoretical injection volume (cm³) |
1759 |
|
Shot weight (PS) g |
1699 |
|
Injection pressure(MPa) |
134 |
|
Injection rate (g/s) |
481 |
|
Motor power (Kw) |
47.5 |
|
Heater power (Kw) |
27 |
|
Machine Weight (T) |
16 |
|
Machine size L×W×H (m) |
8.2*1.9*2.0 |
