| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE |
| Model Number: | OUCO-230EKII |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |

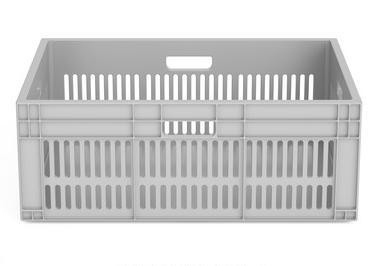

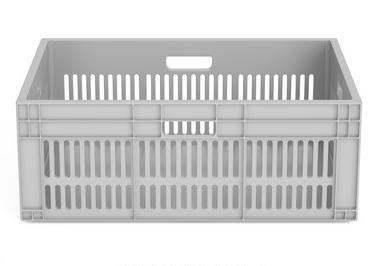

| Product Name: | PVC Hydraulic Injection Molding Machine Companies In China, Crate And Storage Box | Type: | Preform Injection |
|---|---|---|---|
| Clamping Force: | 2300KN | Injection Weight: | 480-588g |
| Opening Stroke: | 530mm | Injection Rate: | 163-202cm3 |
| Power: | 132kW | Motor: | Servo Energy Saving |
| High Light: | 2300KN Hydraulic Injection Moulding Machine,CE Hydraulic Injection Moulding Machine,80mm PVC injection moulding machine |
||
PVC special efficient plasticizing screws( designed by Germany). Forced cooled charge pipe( fan/ air compression).
The central clamping structure honor invention patent of China. Enlarge plasticizing motor.
Widen safety gate. Multiple options of core- pulling modes. Independent R& D for super- energy servo system with high efficiency.
Main Features
1, 5 points vertical double toggle mechanism.
2, Dual- cylinder balance injection system.
3, Multi- stage pressure & speed injection.
4, Back- pressure adjustment device.
5, Low- pressure mold protection( Optional).
6, Multiple hydraulic ejector knock- outs.
7, Mechanical and electrical safety devices.
8, Concentrate and electical safety devices.
9, Hydraulic proportional control.
10, Mechanical leveling pad.
11, Optimized composition hydraulic of the famous brands control.
12, Hydraulic safety device.
13, Linear transducer control.
14, Multiple options of computer CPU systems.
Product Parameters
| Model | 700T | 900T | 1000T | |||||||
| Screw Specifications | A | B | C | A | B | C | A | B | C | |
| Screwdi ameter | mm | 85 | 90 | 100 | 90 | 100 | 110 | 100 | 100 | 120 |
| Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| Theoretical injection volume | cm3 | 2552 | 2861 | 3533 | 3147 | 3886 | 4702 | 4329 | 4329 | 6104 |
| Shot weight (PS) | g | 2348 | 2632 | 3250 | 2896 | 3575 | 4326 | 3900 | 3900 | 5616 |
| injection rate(Ps) | g/S | 788 | 883 | 1091 | 975 | 1204 | 1457 | 920 | 920 | 1325 |
| Injection pressure | MPa | 209 | 187 | 151 | 214 | 173 | 143 | 204 | 204 | 142 |
| Inject on stroke | mm | 450 | 495 | 540 | ||||||
| Max. injection speed | mm/s | 147 | 146 | 137 | ||||||
| Screw speed | r/min | 0-180 | 0-180 | 0-180 | ||||||
| Sys. Pressure | MPa | 16 | 16 | 16 | ||||||
| Pump Motor(Min-Max) | kW | 114 | 141 | 151 | ||||||
| Displacement | ml/r | 160+160 | 125+125+125 | 160+125+125 | ||||||
| number of Motors | PC | 2 | 3 | 3 | ||||||
| Heater power | kW | 52 | 59 | 61 | ||||||
| Number oftemp. control zones | 5+1 | 5+1 | ||||||||
| Clamping force | kN | 7000 | 9000 | 10000 | ||||||
| Opening stroke | mm | 1300 | 1500 | 1700 | ||||||
| Tie bar distance W×L | mm*mm | 1020x920 | 1120x1030 | 1210x1060 | ||||||
| Min. mold thickness | mm | 450 | 450 | 500 | ||||||
| Max. mold thickness | mm | 1050 | 1150 | 1200 | ||||||
| Ejector stroke | mm | 210 | 270 | 300 | ||||||
| Ejector force forward | kN | 113 | 152 | 196 | ||||||
| Number of ejector bar | PC | 1+12 | 1+16 | 1+16 | ||||||
| Oil tank capacity | L | 1020 | 1190 | 1300 | ||||||
| Machine dimensions(LxWxH) | m*m*m | 9.7x2.2x2.4 | 10.2x2.2x2.5 | 10.7x2.4x2.8 | ||||||
| Machine weight | Ton | 25 | 39 | 44 | ||||||

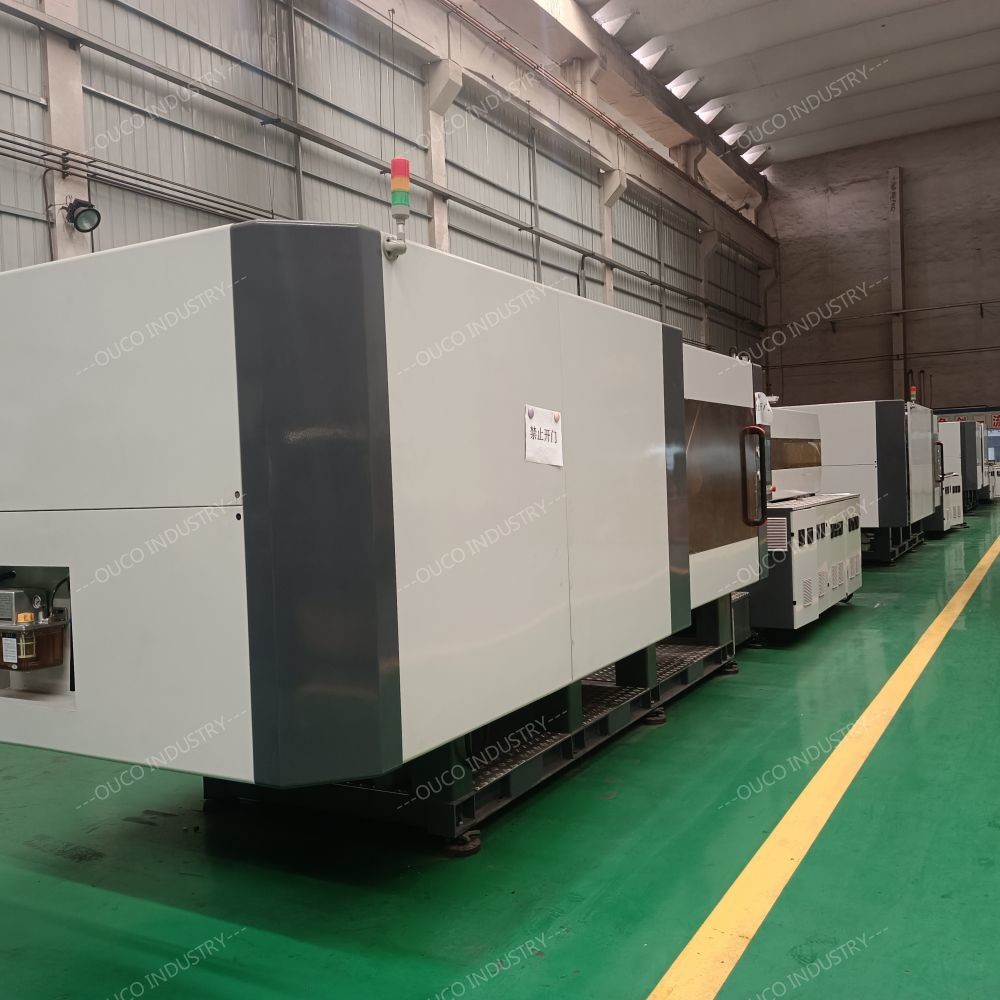

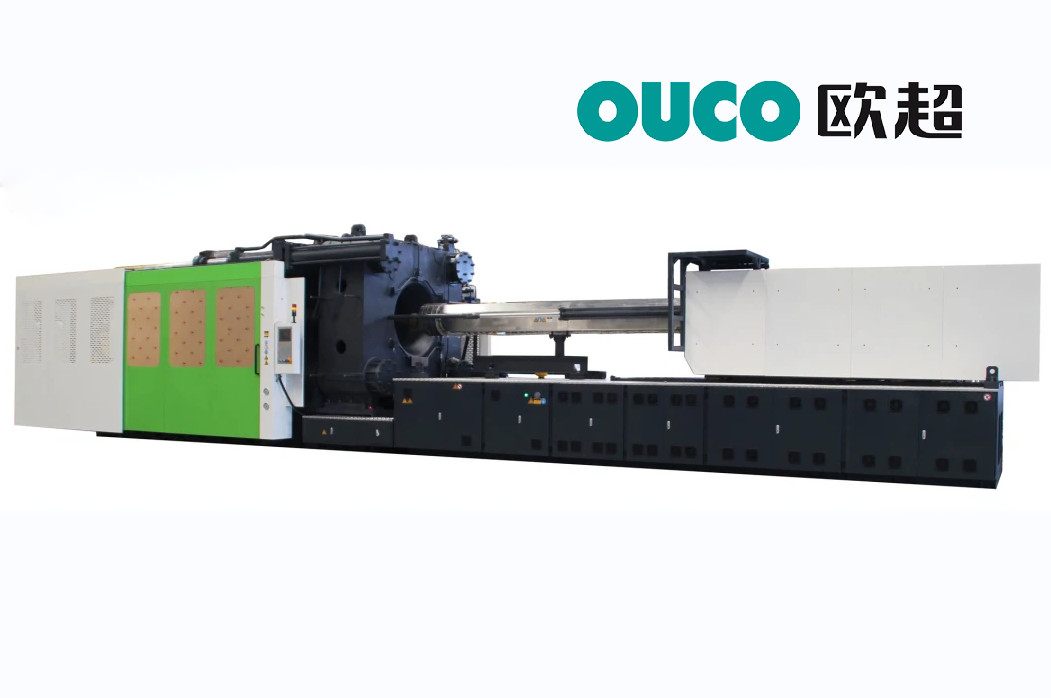

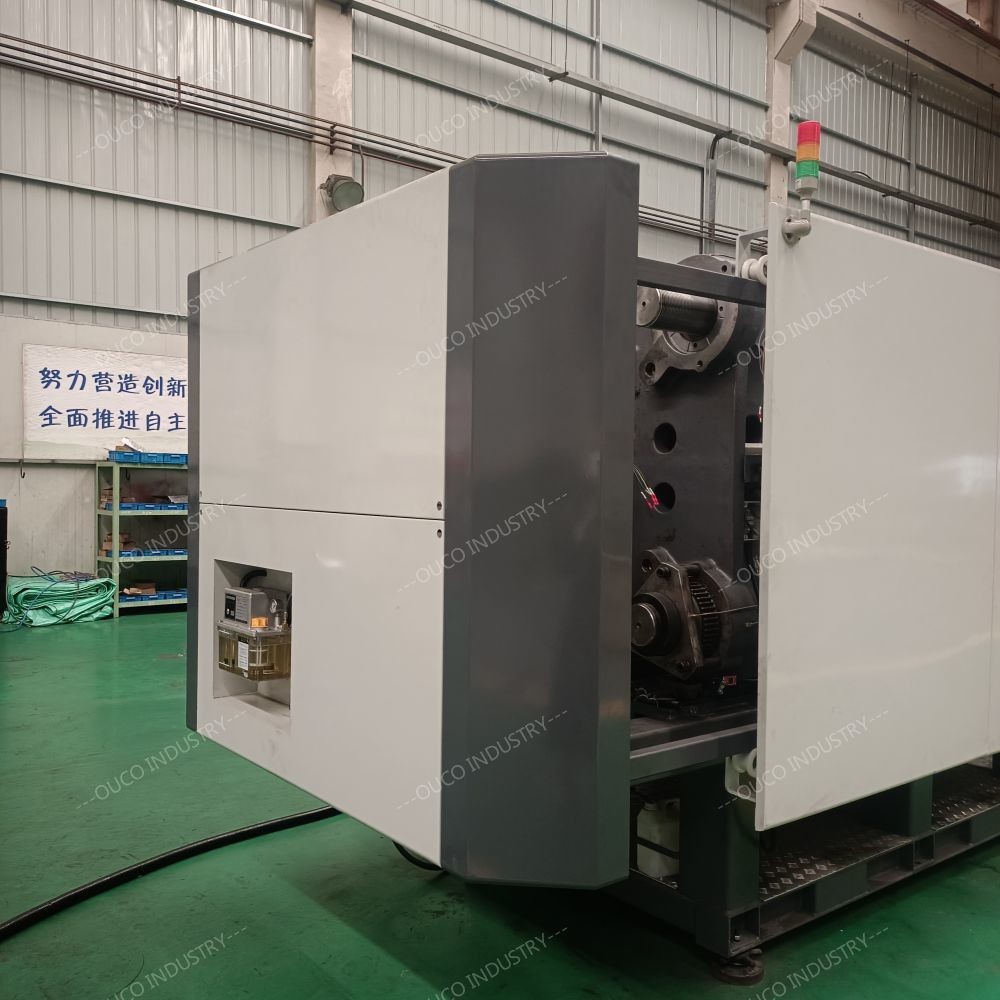

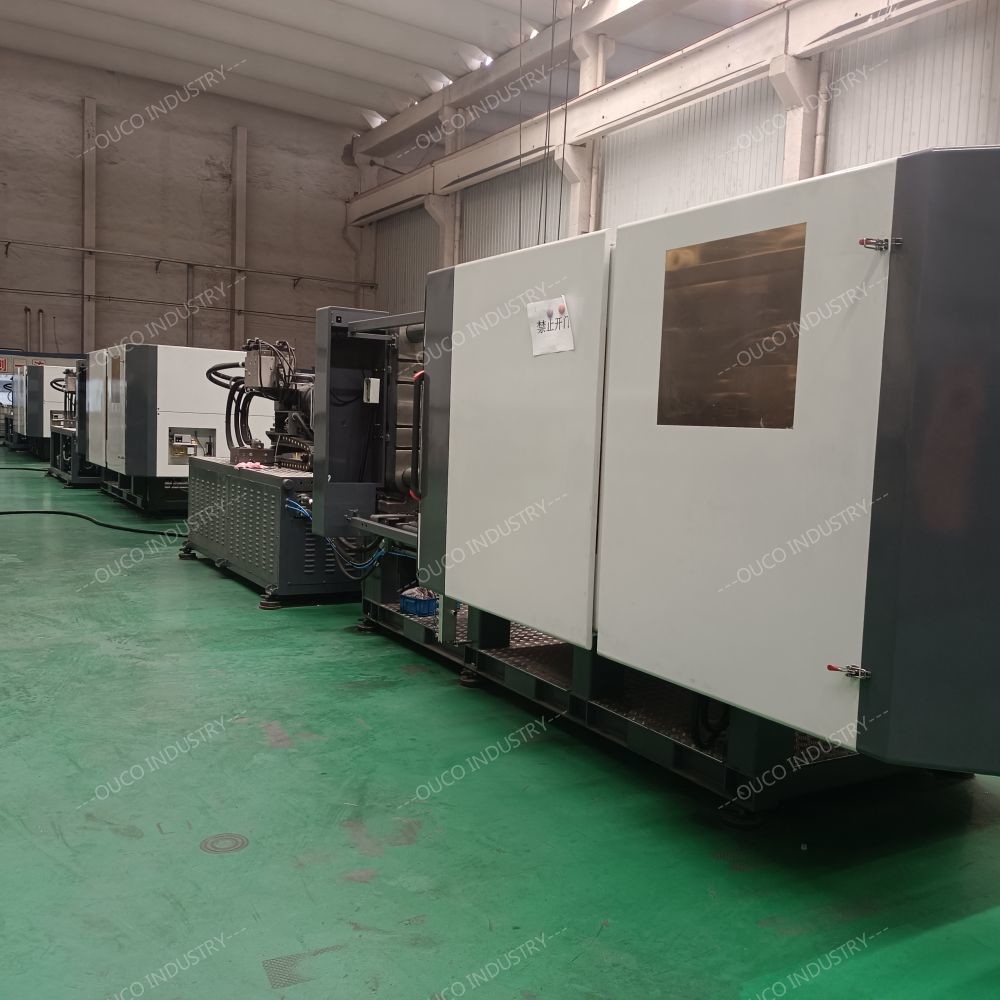

Detailed Pictures
