| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE |
| Model Number: | OUCO-160T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |

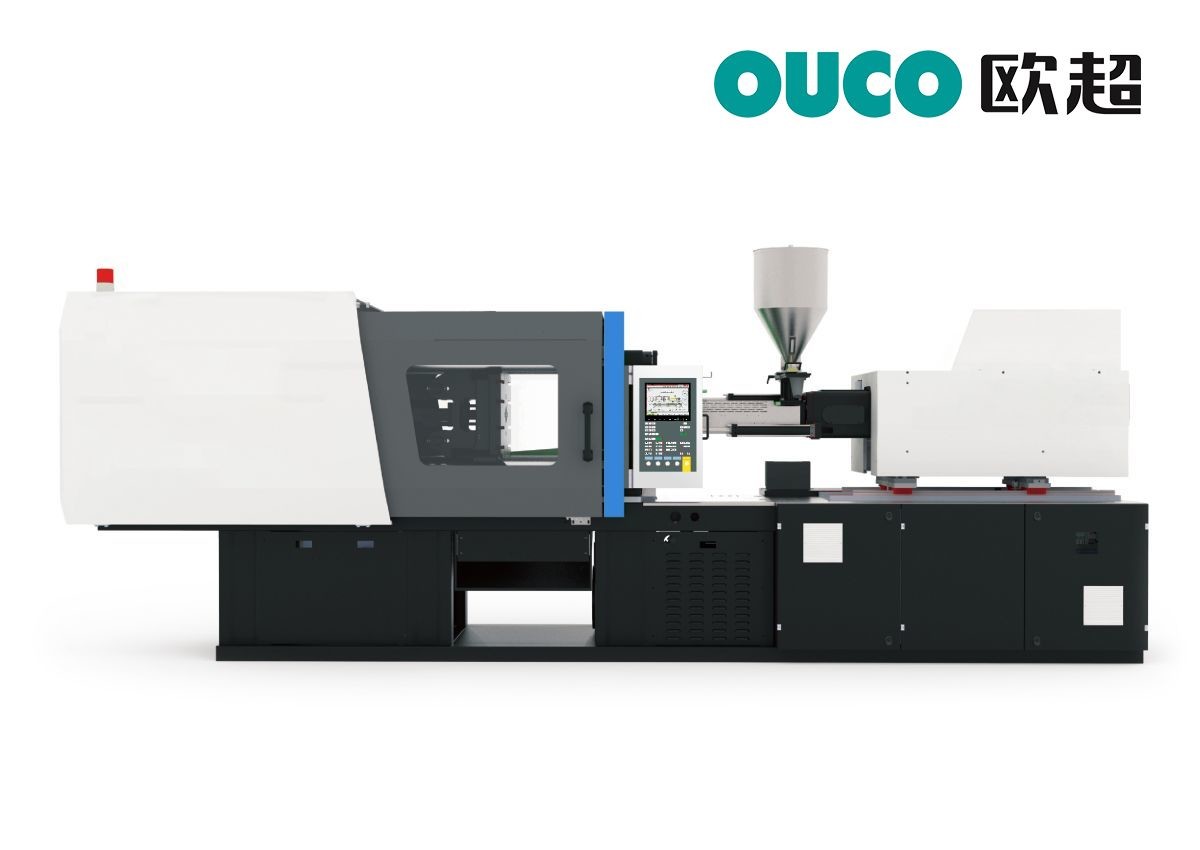

| Product Name: | Various Types Of Plastic Product Injection Molding Machine For Sale | Plastic Processed:: | PP, PC |
|---|---|---|---|
| Distance Between Tie Bars(Width): | 505mm | Weight: | 5500 Kg |
| Plasticizing Capacity(g/s):: | 18-33 | Ejector Number:: | 13 |
| Mold Height:: | 180 - 510 Mm | Ejector Force: | 49 KN |
| Clamping Force: | 1600KN | Application: | Plastic Produc |
| Highlight: | 505mm plastic injection machine,1600KN plastic injection machine,PC 160t injection molding machine |
||
Efficient plasticizing screws with large length to diameter ratio (designed by Germany).
The central clamping structure honor invention patent of China.
Enlarge plasticizing motor. Enlarge ejector force, Multiple options of core- pulling modes. Independent R& D for super- energy servo system with high efficiency.
| Plastic Processed: | PP, PC | Injection Weight (g): | 329 g |
| Distance between Tie Bars(Width)(mm): | 505mm | Screw diameter (mm): | 45 mm |
| Distance between Tie Bars(Height)(mm): | 405mm | Screw L/D Ratio: | 20.4 |
| Plasticizing Capacity(g/s): | 18-33 | Weight (KG): | 5500 kg |
| Mold Height(mm): | 180 - 510 mm | Open Stroke(mm): | 480 mm |
| Ejector Number: | 5 | Power (kW): | 22 kW |
| Ejector Stroke(mm): | 140 mm | Warranty: | 1 Year |
| Ejector Force(kN): | 49 kN | Key Selling Points: | High-accuracy |
| Theoretical Shot Volume: | 358 cm | Applicable Industries: | Hotels, Manufacturing Plant, Retail |
| Injection Rate (g/s): | 166-204cm3 | Showroom Location: | United States, India, South Africa |
| Machine Type: | Hydraulic | Certification: | ISO9001:2008,CE,TUV |

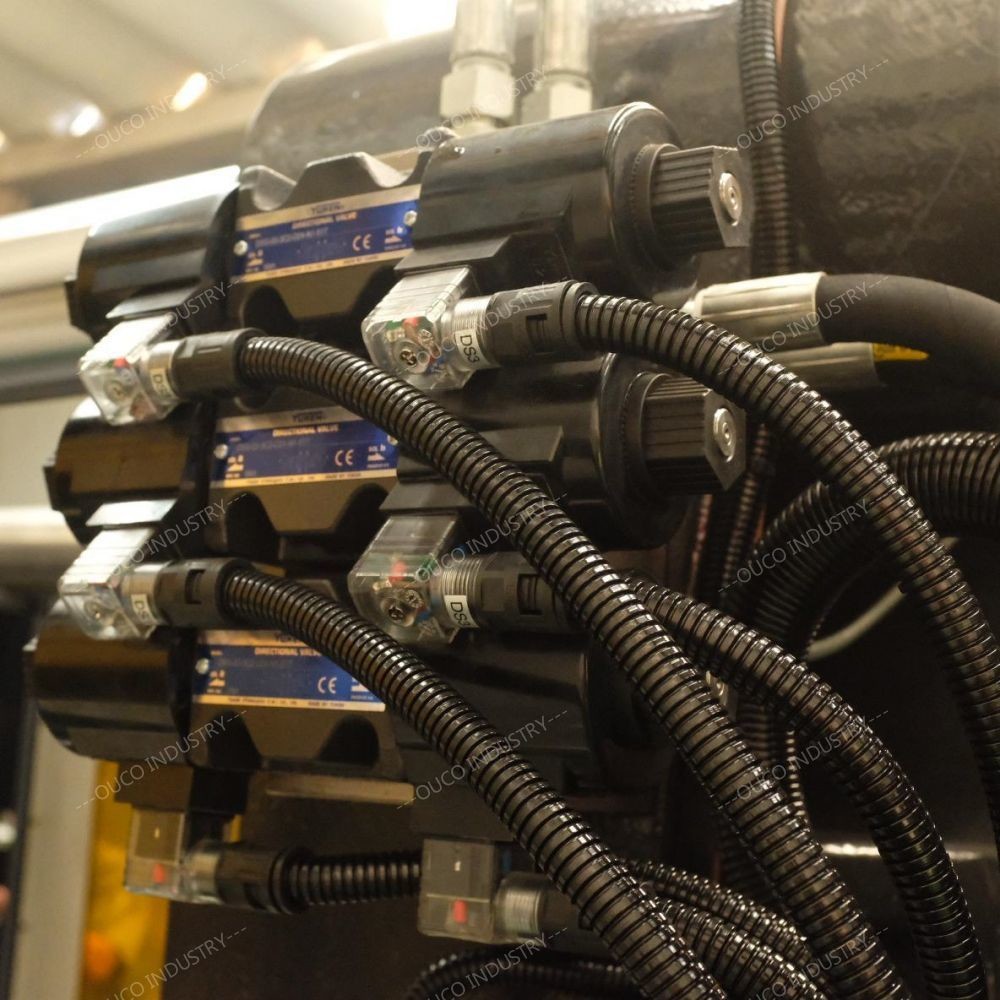

Enlarged hydraulic system and pump servo motor.
Enlarged the torque of the plasticization motor.
Enlarged ejector force.
Advance injection screw design for PET.
Chrome plated injection screw and barrel flange.
Leading technology and performance.
China unique producer, central locking toggle.
Injection molding compounders (CIML) fill the blank in Asia.
Electro-hydraulic hybrid 2 platen machines are special for automotive industry with the leading level.
Oil electric hybrid precision injection molding machine combines the advantages of high-speed and precision of all electric injection molding machine and large continuous output torque of hydraulic motor. It is more effective for specific molding products and longer service life. OUCO's oil electric hybrid, mold opening and closing, glue injection and pressure maintaining adopts the servo motor to directly drive the rolling lead screw to ensure the position accuracy of 0.02mm. The hydraulic driving mode is adopted for the movement of the shooting table, ejection, mold adjustment and glue melting. It ensures the stability of power output for a long time.
The response speed of the whole motor, fast injection response, high speed, full closed-loop control, high precision and short operation cycle
It is suitable for high-speed positioning and high-precision mold opening and closing products
It can realize the synchronous action of glue melting, mold opening and closing and ejection (core pulling and inserting), and improve the production efficiency
Power saving than oil compressor
It is easier to add core pulling device than full motor
Higher cost performance than full motor
