| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE |
| Model Number: | OUCO-160 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per year |

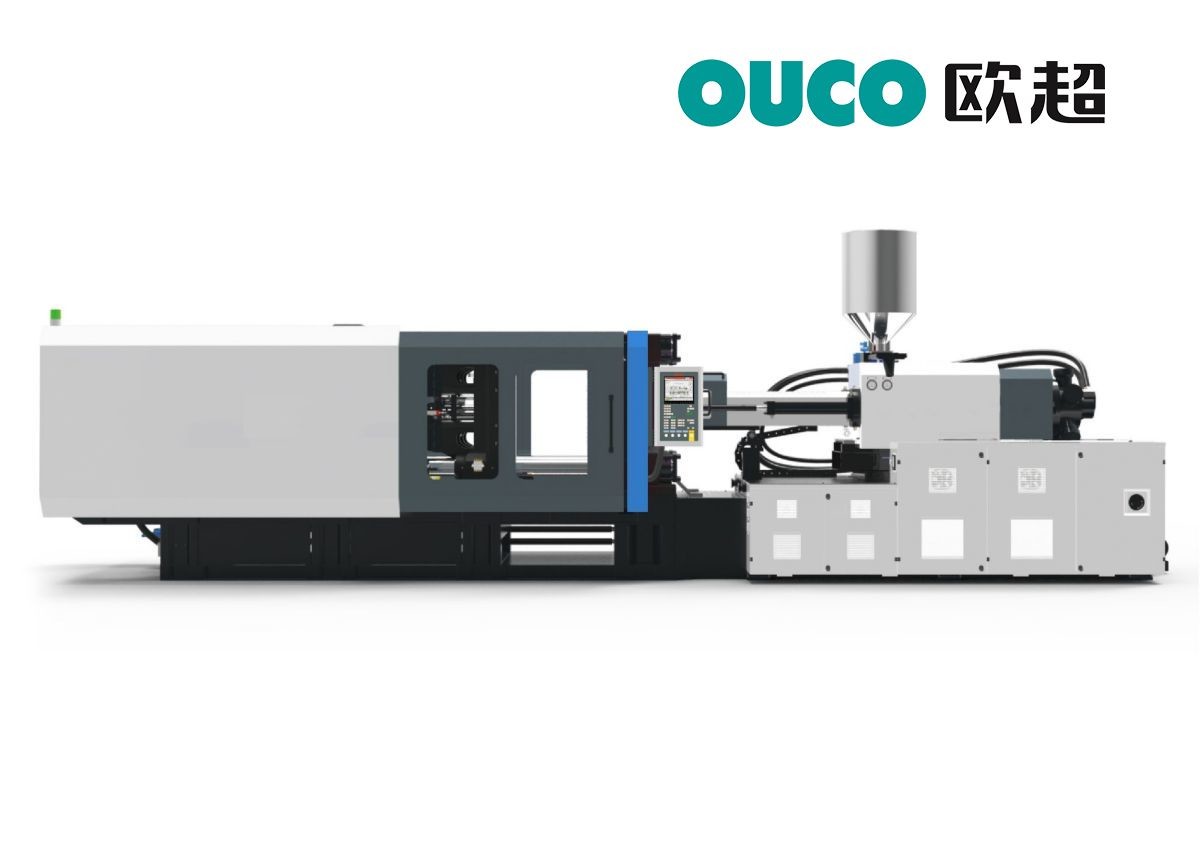

| Product Name: | Thermoset Injection Molding Machine For Plastic Cup Caps | Type: | Preform Injection |
|---|---|---|---|
| Clamping Force: | 1600KN | Injection Weight: | 260-410g |
| Opening Stroke: | 480mm | Injection Rate: | 166-204cm3 |
| Power: | 50HZ | Color: | Support Customization |
| Highlight: | 1600KN thermoset injection molding machine,410g thermoset injection molding machine,Injection Molding Machine for Plastic Cup |
||
• Technology of Germany hydraulic cycle design, ensuring the machine running rapidly and quietly.
• Proportional back pressure control, including zero back pressure fuction.
• CrMo steel material for the tie bars, ensuring the service life of the machine.
• China- Unique- Producer, Central- Locking- Toggle.

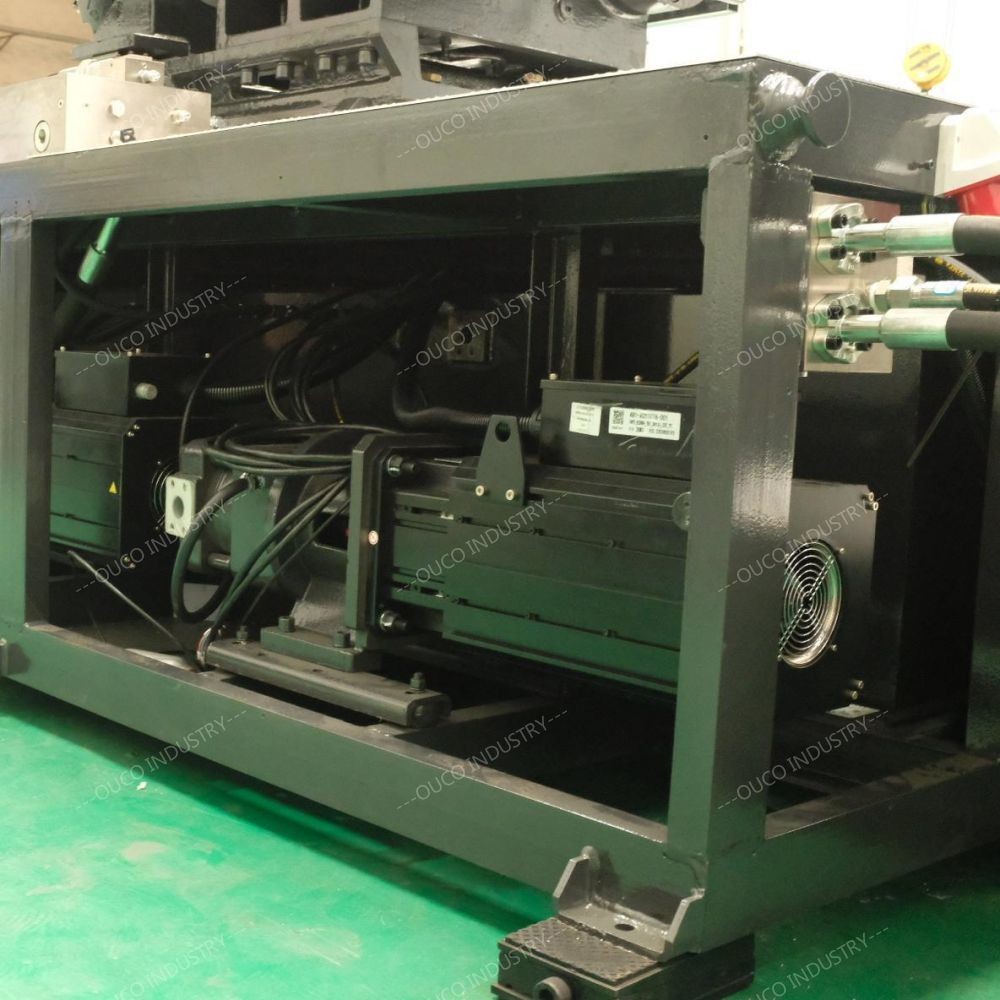

• Self- develop high performance servo saving energy system.
• Enlarged inject speed and enlarged inject pressure.
Product Parameters
| Model | 300T | 400T | 500T | |||||||
| Screw Specifications | A | B | C | A | B | C | A | B | C | |
| Screwdi ameter | mm | 50 | 60 | 65 | 65 | 75 | 80 | 70 | 75 | 85 |
| Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| Theoretical injection volume | cm3 | 638 | 918 | 1078 | 1C75 | 1431 | 1628 | 1481 | 1700 | 2184 |
| Shot weight (PS) | g | 593 | 853 | 1002 | 1C11 | 1345 | 1530 | 1377 | 1581 | 2031 |
| injection rate(Ps) | g/S | 330 | 475 | 558 | 426 | 568 | 646 | G03 | 693 | 890 |
| Injection pressure | MPa | 286 | 198 | 169 | 242 | 182 | 160 | 209 | 182 | 142 |
| Inject on stroke | mm | 325 | 360 | 385 | ||||||
| Max. injection speed | mm/s | 178 | 156 | 166 | ||||||
| Screw speed | r/min | 0-200 | 0-200 | 0-200 | ||||||
| Sys. Pressure | MPa | 16 | 16 | 16 | ||||||
| Pump Motor(Min-Max) | kW | 63 | 75 | 94 | ||||||
| Displacement | ml/r | 163 | 100+100 | 125+125 | ||||||
| number of Motors | PC | 1 | 2 | 2 | ||||||
| Heater power | kW | 27 | 35 | 41 | ||||||
| Number oftemp. control zones | 5+1 | 5+1 | 5+1 | |||||||
| Clamping force | kN | 3000 | 4000 | 5000 | ||||||
| Opening stroke | mm | 800 | 900 | 1000 | ||||||
| Tie bar distance W×L | mm*mm | 680x680 | 760x660 | 860x760 | ||||||
| Min. mold thickness | mm | 210 | 300 | 300 | ||||||
| Max. mold thickness | mm | 680 | 730 | 800 | ||||||
| Ejector stroke | mm | 190 | 190 | 210 | ||||||
| Ejector force forward | kN | 62 | 80 | 110 | ||||||
| Number of ejector bar | PC | 1+12 | 1+12 | 1+12 | ||||||
| Oil tank capacity | L | 510 | 680 | 850 | ||||||
| Machine dimensions(LxWxH) | m*m*m | 7.7x1.8x1.8 | 8.2x1.9x1.9 | 87x2.0x2.1 | ||||||
| Machine weight | Ton | 10.5 | 15 | 19 | ||||||
Main Features
Big: Bigger one size than other brand machines.
Precision: Products higher precision.
Save: Help customer save 2- 5% material.

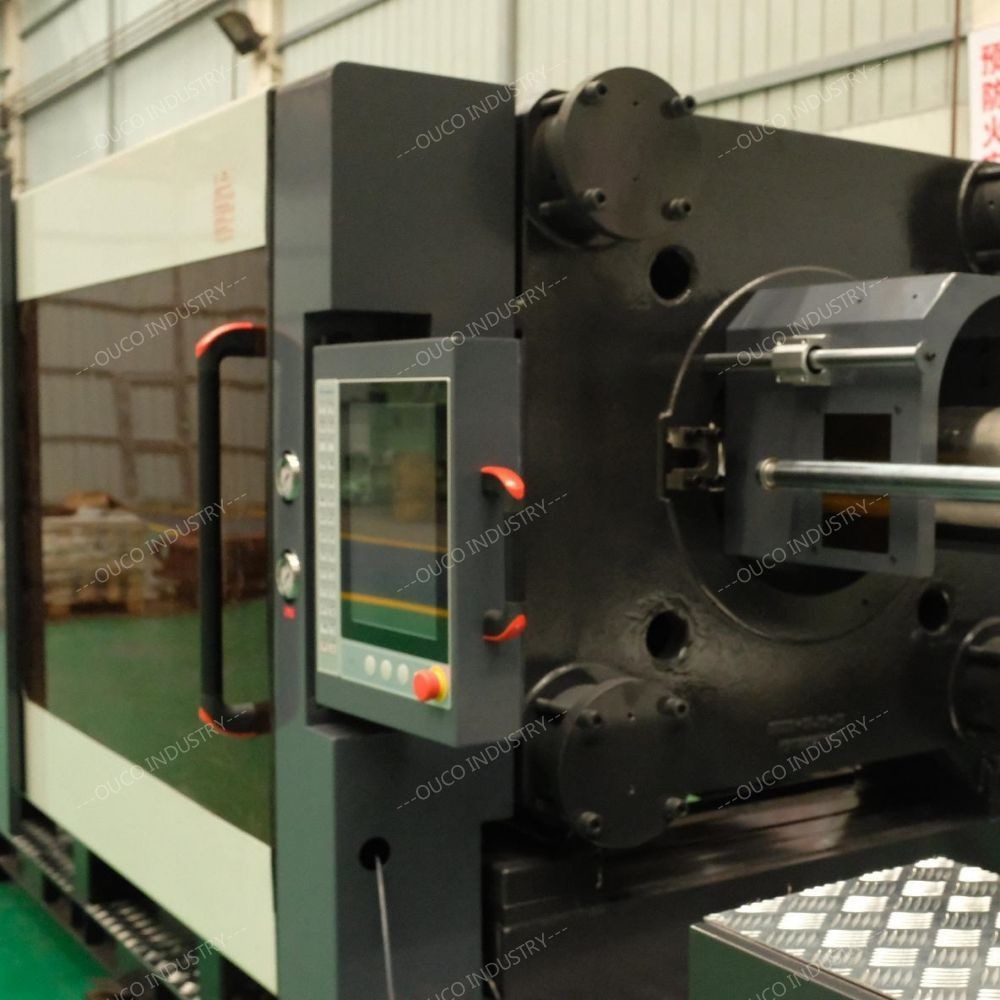

The world's leading control system can meet your high-precision production needs
The vertical screen is different from the traditional screen, the main interface can display more data at the same time
There are 6 languages for customers to choose, suitable for export sales
The whole process is solid and can be freely configured according to different processes
USB20 interface supports connection of Ethernet, printers and other devices
8-step heating PID control function to partially control the barrel heating and improve the full plasticizing ability of raw materials
48 digital transistor output terminals with short-circuit and overload protection
Clamping, injection, thimble stroke identification and motion accuracy are monitored by linear displacement sensors
Automatically adjust clamping force according to different molds
Automatic heating time setting within one week improves production efficiency
The opening and closing bets adopt 5 levels of segment control action which effectively improves the stability of the action.
1, Fully optimized hydraulic system, efficiency 10% higher than last series( Standard EK) .
2, Hydraulic parts from famous international manufacturers, ensure machine with reliable performance.
3, Conform to GB, CE, UL, KCS or other safety standard.
1, Optimized electrical cabinet design, conform to GB, CE, UL, KCS or other safety standard.
2, Electrical parts from famous ithernational manufacturers, ensure machine with reliable performance.
3, Advanced PLC( KEBA, BECKHOFF, etc. ) , available as opption.
1, World leading screw plasticizing set design with technology from Europe.
2, Srew for special purposes ( PC, PMMA, POM, etc. ) available as option.
3, Customized plasticizing set available for special application.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
