| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC800H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

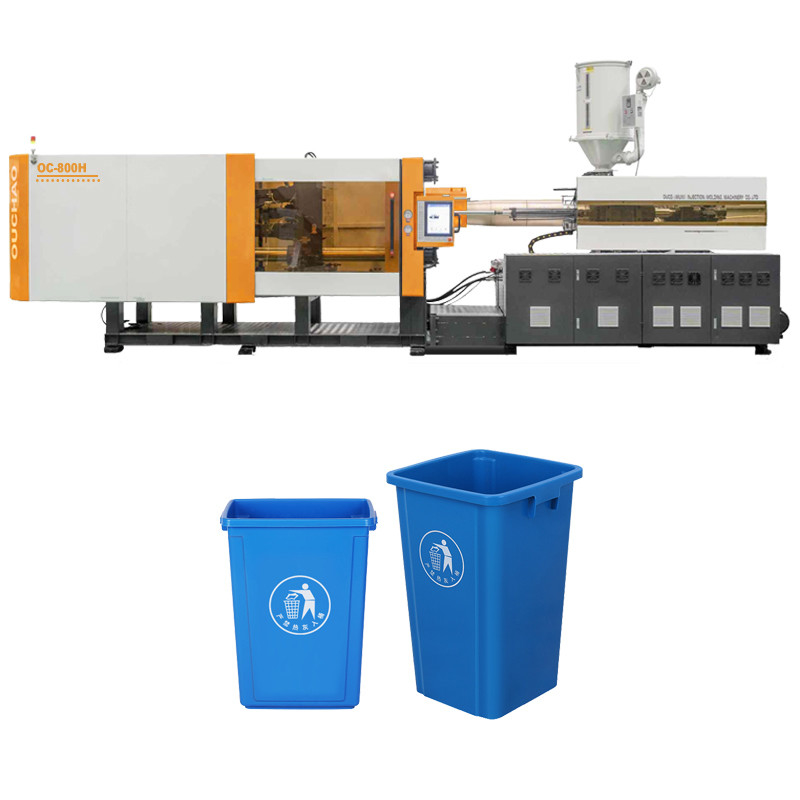

| Product Name: | 800T High Quality Large Plastic Trash Can Making Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
Why choose OUCO
Strong R&D team: We have a high-quality R&D team, composed of experienced engineers and technical experts, all of whom have been in the industry for more than 10 years, and are constantly committed to the development and innovation of new products.
Professional pre-sales consultation: Our sales staff will learn more about your production process and product specifications based on your needs, provide you with professional pre-sales consultation services, and help you choose the most suitable injection molding machine product.
Timely after-sales service: We have established a complete after-sales service system and have a professional after-sales service team that can quickly respond to your service needs and promptly solve the problems you encounter during the production process.
The choice of customers' trust: We always adhere to the customer-centered approach, constantly improve product quality and service levels, and win the trust and support of our customers.
Product Advantages
Outdoor large trash cans are an important part of urban infrastructure and play an important role in maintaining urban environmental hygiene. In recent years, as people's awareness of environmental protection has increased, the demand for outdoor large trash cans has also been growing.
Injection molding is one of the main ways to produce large outdoor trash cans and has the following advantages:
Cost saving: For products such as outdoor large trash cans, cost control is very important. OC-800H can help customers reduce production costs through a short production cycle and extremely high raw material utilization.
Efficient production: With system settings, the injection molding machine can quickly and continuously produce large quantities of plastic products. Products such as large outdoor trash cans usually require mass production to meet market demand. At the same time, our injection molding machines are stably driven by servo motors, which can provide stable and efficient production capabilities to ensure timely supply.
Precise molding: For large outdoor trash cans, the accuracy of size and structure is very important. OC-800H can control the injection volume and injection speed through a precise control system to ensure that the product has good quality and stable performance.
Parameters
| MODEL | OC800H | |||||
| Clamping force (kN) | 8000 | |||||
| Space between tie bar (mm*mm) | 1060*860 | |||||
| Max. mold thickness (mm) | 1000 | |||||
| Min. mold thickness(mm) | 450 | |||||
| Opening stroke (mm) | 1300 | |||||
| Ejector stroke(mm) | 280 | |||||
| Ejector force forward(Kn) | 181 | |||||
| Screw diameter(mm) | 100 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3927 | |||||
| Shot weight (PS) g | 3729 | |||||
| Injection pressure(MPa) | 151 | |||||
| Injection speed (mm/s) | 89 | |||||
| Injection rate (g/s) | 660 | |||||
| Pump power (Kw) | 83 | |||||
| Oil tank capacity(L) | 1020 | |||||
| Heater power (Kw) | 52 | |||||
| Machine Weight (T) | 27 | |||||
| Machine size L×W×H (m) | 10*2.2*2.4 | |||||

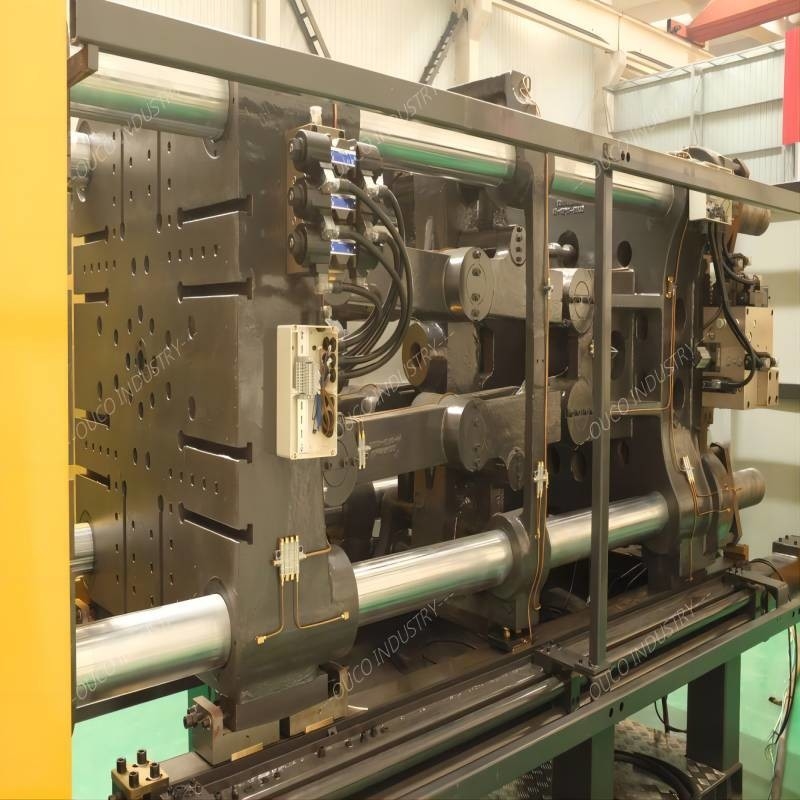

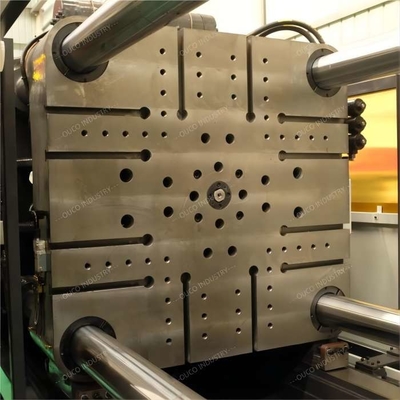

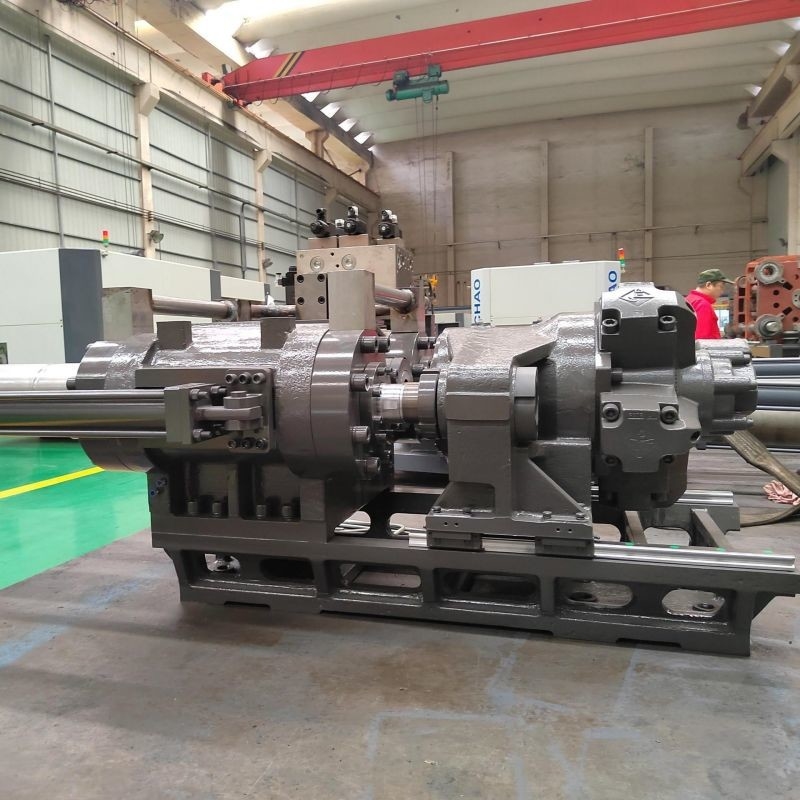

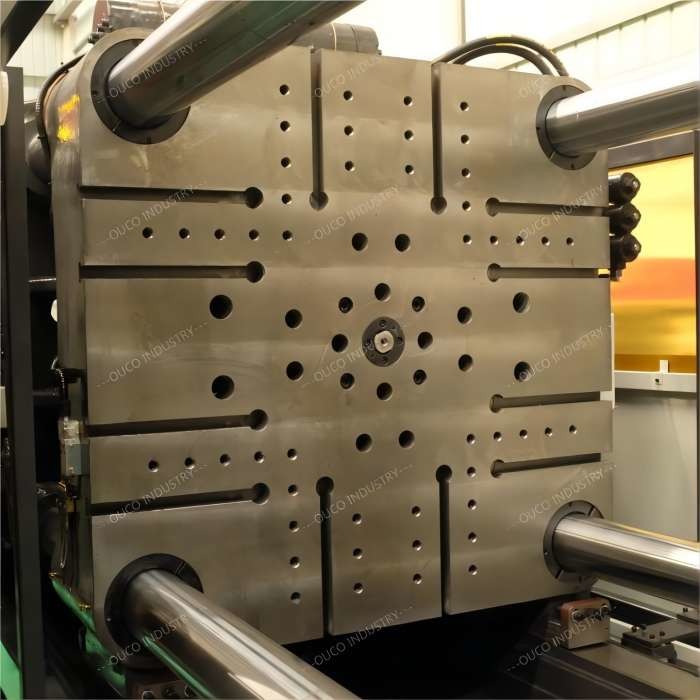

Detail Pictures
