| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-480H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

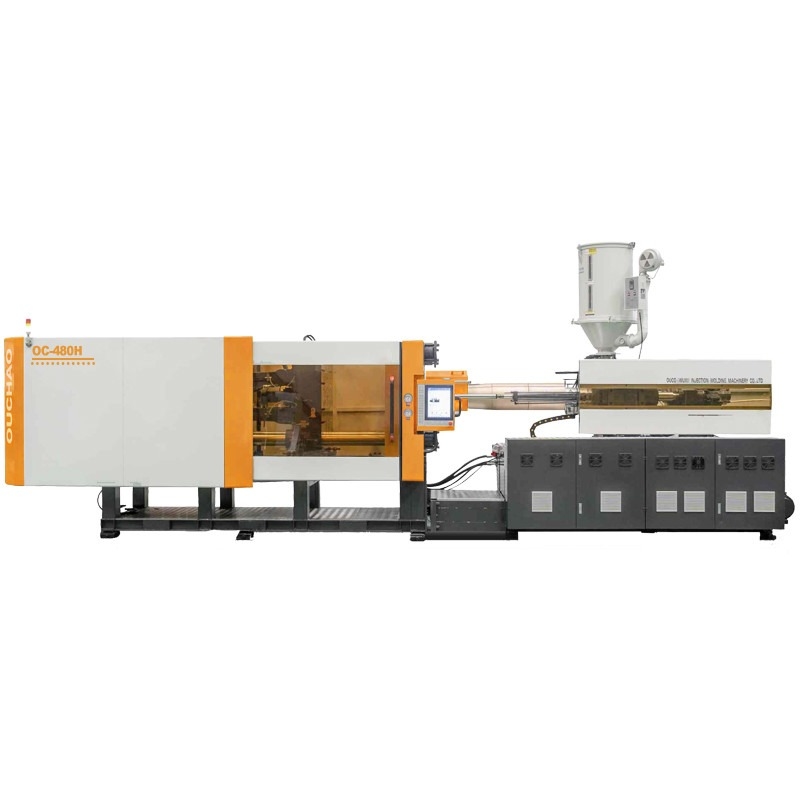

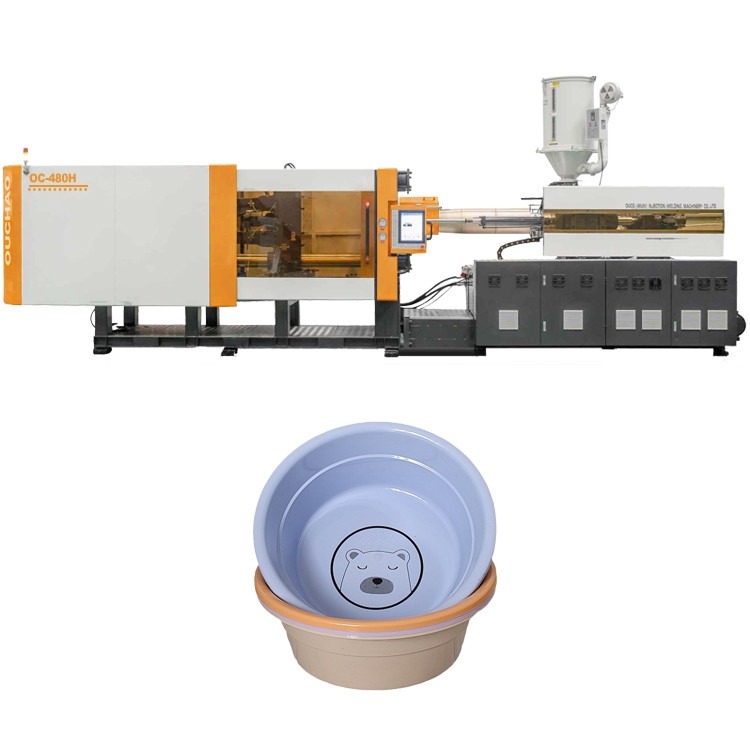

| Product Name: | 480T Injection Molding Machine For The Hydraulically Precise And Efficient Manufacture Of Plastic Products | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 480T Injection Molding Machine,High Efficiency Injection Molding Machine,Plastic Pots Durable Injection Molding Machine |
||
Welcome to advanced production with our state-of-the-art servo motor injection moulding machines, from 150 tonnes to 2200 tonnes, for all your injection moulding needs. Designed with cutting-edge technology and precision engineering, our machines offer unrivalled efficiency, reliability and versatility, ensuring that your production process reaches new levels of productivity and perfection. We have industry-leading solutions that deliver best-in-class performance for all your production needs, allowing you to embrace the future of injection moulding. Our wide range of models provides a comprehensive solution for all your injection moulding needs. Featuring servo motor technology, these machines increase productivity with unrivalled precision, speed and energy economy. Our servomotor injection moulding machines are the best choice for your production operation, whether you are producing small parts or large items. They offer excellent operating performance, high reliability and versatility. You can see the future of injection moulding with our cutting-edge solutions designed to boost your production and company growth.
Product Advantages
1. Adopting advanced servo motor technology, advanced technology, precise and efficient operation.
2. High-pressure injection, high repetition accuracy, improve productivity.
3. Energy-saving design, energy saving and emission reduction, give as much energy as needed, reduce power consumption.
4. Excellent precision and repeatability, achieving stable quality.
5. Wide range of applications, the machine can handle various types of plastics, such as PP, PVC, ABS.
6. Sturdy structure and durability reduces maintenance cost.
7. User-friendly interface for easy operation and monitoring, saving labour cost.
8. Advanced control system allows precise parameter adjustment.
9. High safety function ensures operator's safety and avoids accidents.
10. Customisation and configuration can be selected to meet specific production requirements.
Parameters
| MODEL | OCH-480T | |||||
| Clamping force (kN) | 4800 | |||||
| Space between tie bar (mm*mm) | 820*780 | |||||
| Max. mold thickness (mm) | 730 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 900 | |||||
| Ejector stroke(mm) | 190 | |||||
| Ejector force forward(Kn) | 80 | |||||
| Screw diameter(mm) | 85 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 2355 | |||||
| Shot weight (PS) g | 2275 | |||||
| Injection pressure(MPa) | 141 | |||||
| Injection speed (mm/s) | 106 | |||||
| Injection rate (g/s) | 583 | |||||
| Motor power (Kw) | 65 | |||||
| Oil tank capacity(L) | 680 | |||||
| Heater power (Kw) | 35 | |||||
| Machine Weight (t) | 18 | |||||
| Machine size L×W×H (m) | 8.6*2.1*2.2 | |||||

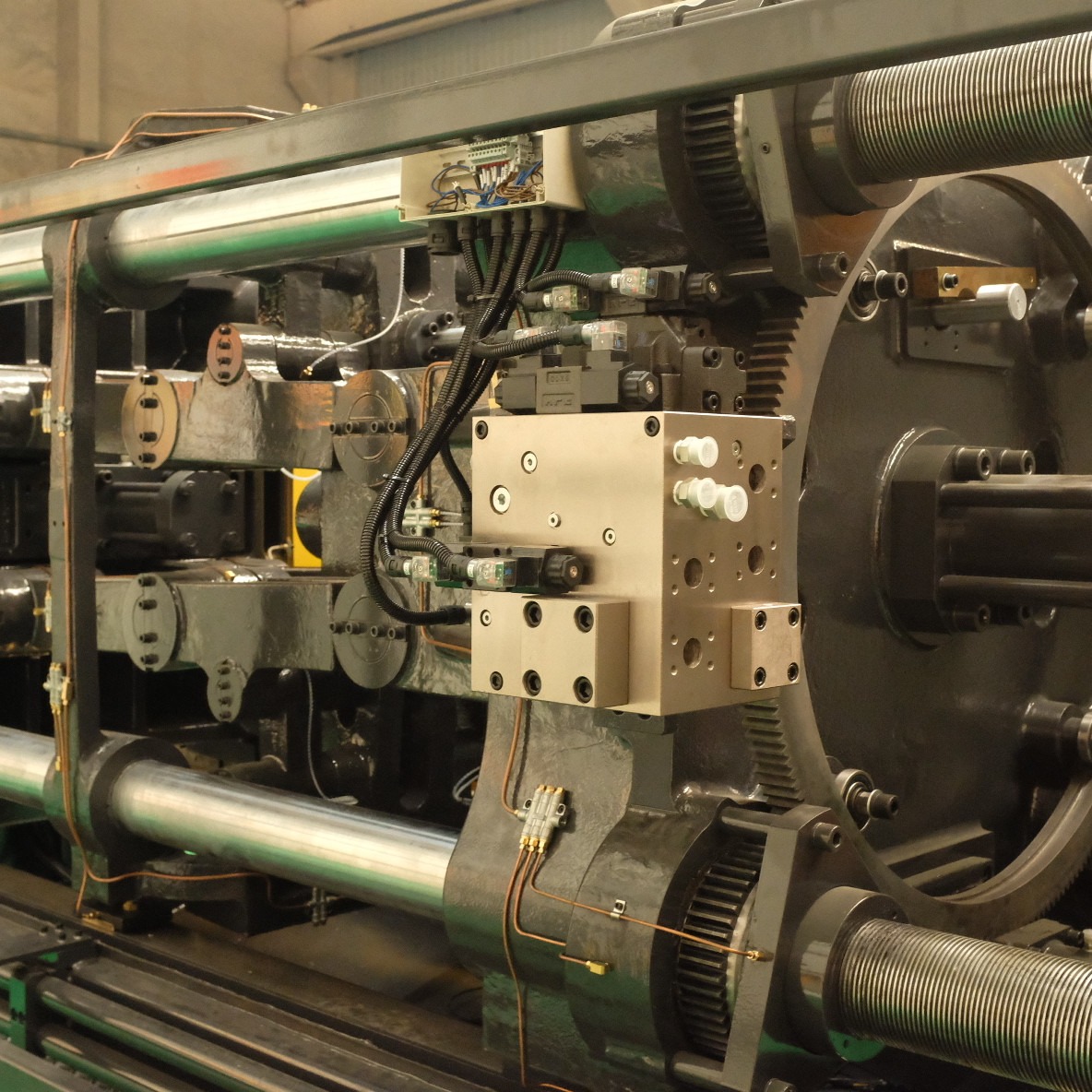

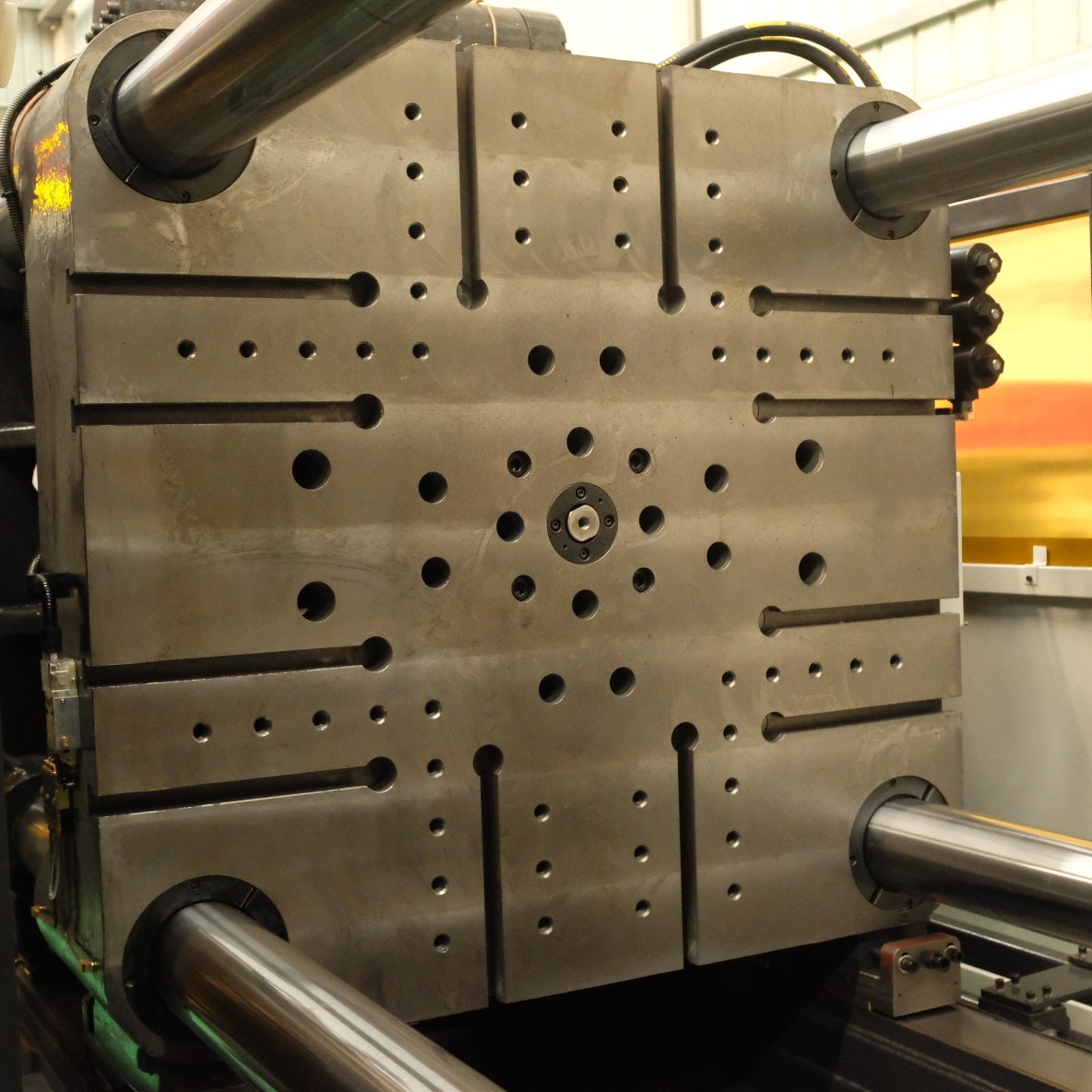

Detail Pictures
