| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC800H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | 800T Plastic Chair Making High Performance Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 800T High Performance Injection Molding Machine,800T Injection Molding Machine,Plastic Chair Making Injection Molding Machine |
||
Company Advantages
OUCO is committed to providing customers with high-quality injection molding machine products and services. We always focus on technology research and development, constantly pursue breakthroughs, and write new definitions of excellence.
Innovation driven, leading the industry
We regard innovation as the vitality of the enterprise, constantly explore new technologies and new processes, and provide customers with better products and services. We encourage our employees to be proactive and innovative to jointly promote the development of the industry.
Customer-centered and meeting needs
We know that customer needs are the driving force for enterprise development. We always put customer needs first, actively understand customer needs, and provide customized solutions to help customers succeed.
Talent-oriented, teamwork
We attach great importance to talent cultivation, provide employees with a good learning and development platform, encourage employees to continuously improve their abilities, and create a good teamwork atmosphere to jointly achieve corporate goals.
Product Advantages

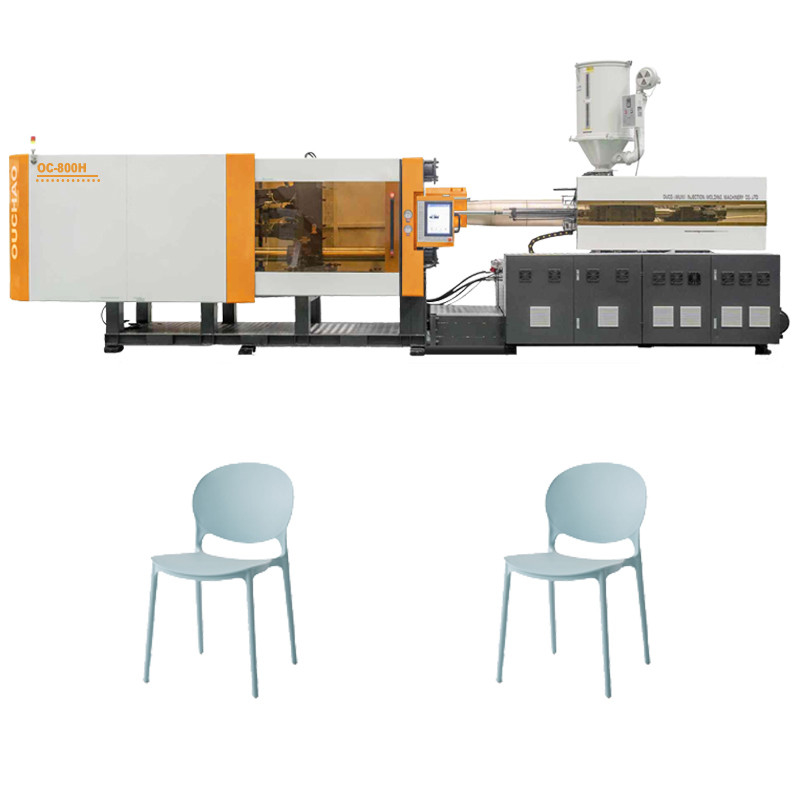

"Chair" is a kind of daily furniture, a seat with a backrest and armrests, available in many styles. There are also many different materials for plastic chairs. Generally speaking, there are two main types: PP and PC. The production of relatively large furniture such as chairs requires the use of a relatively large tonnage plastic injection molding machine. Here we introduce the OC-800H.
Injection molding machine unit
Computer control system
We use Taiwan's famous brand: Techmation, optionally equipped with B&R or KOBA computers as the control computer for the injection molding machine. There are multiple language versions to choose from, which are better adapted to the servo system used by OC-800H and have wide adaptability.
Injection unit
The screw and barrel are made of high-quality new materials to extend their service life. The precision screw design greatly improves the injection accuracy and effectively reduces the defective rate of products.

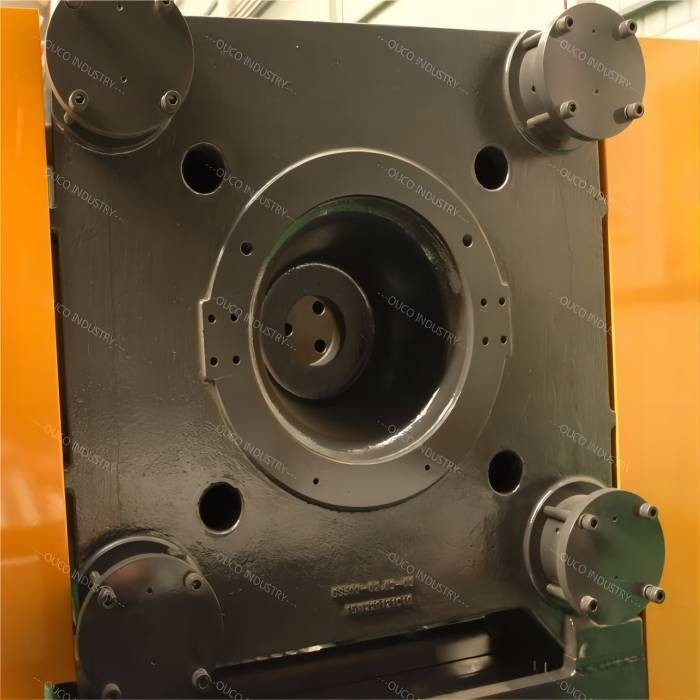

Mold clamping unit
The clamping force is controllable and evenly applied to the mold to minimize template deformation. It improves product accuracy while protecting the mold, extending the service life of the mold and machine.
If you are interested in this machine, please feel free to contact us.
Parameters
| MODEL | OC800H | |||||
| Clamping force (kN) | 8000 | |||||
| Space between tie bar (mm*mm) | 1060*860 | |||||
| Max. mold thickness (mm) | 1000 | |||||
| Min. mold thickness(mm) | 450 | |||||
| Opening stroke (mm) | 1300 | |||||
| Ejector stroke(mm) | 280 | |||||
| Ejector force forward(Kn) | 181 | |||||
| Screw diameter(mm) | 100 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3927 | |||||
| Shot weight (PS) g | 3729 | |||||
| Injection pressure(MPa) | 151 | |||||
| Injection speed (mm/s) | 89 | |||||
| Injection rate (g/s) | 660 | |||||
| Pump power (Kw) | 83 | |||||
| Oil tank capacity(L) | 1020 | |||||
| Heater power (Kw) | 52 | |||||
| Machine Weight (T) | 27 | |||||
| Machine size L×W×H (m) | 10*2.2*2.4 | |||||
Detail Pictures
