| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-380H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

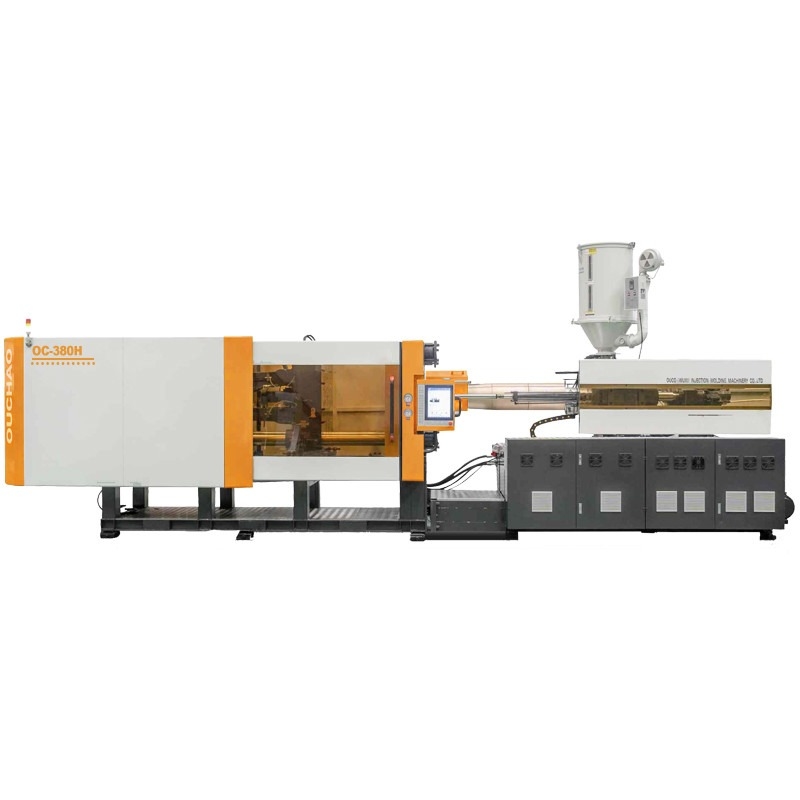

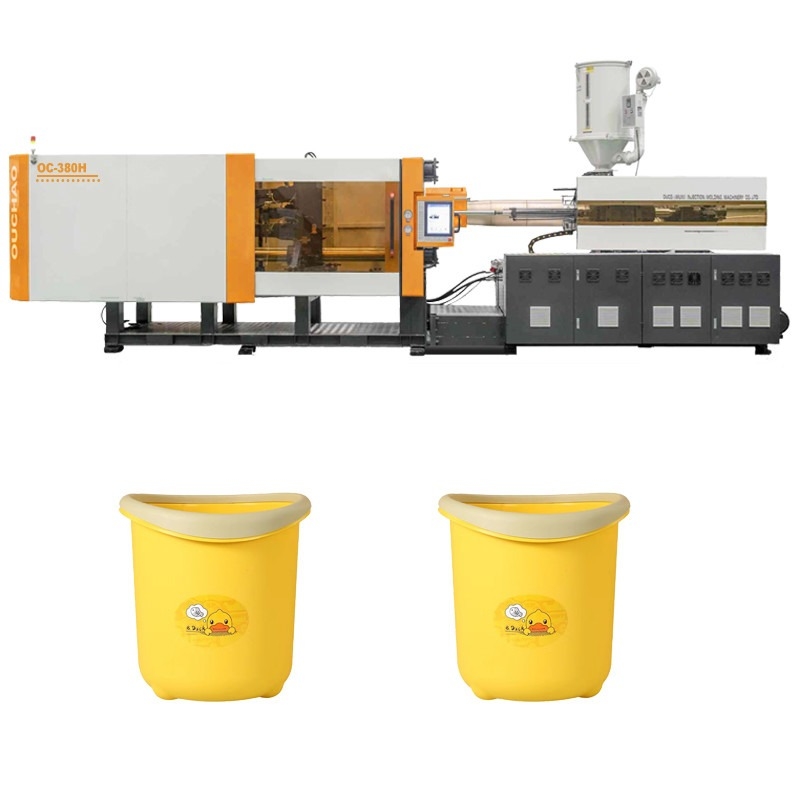

| Product Name: | OUCO Injection Molding Machine 280T High Performance Machine For The Production Of Plastic Waste Bins | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 280T Injection Molding Machine,Plastic Waste Bins Injection Molding Machine,High Performance Injection Molding Machine |
||
OUCO's injection moulding machines lead the industry and are designed for superior performance and broad applicability. We offer all-electric, servo-hydraulic or low-pressure injection moulding systems incorporating advanced injection moulding machine technology to meet diverse production needs. Whether it's from 150 tonnes to 2,200 tonnes of clamping capacity, our machines are able to cope with a wide range of production tasks, from precision medical components to large structural plastic products, with ease. Our experienced engineers will work with you to develop customised machines designed to optimise your production processes, reduce downtime and significantly increase productivity. ouco injection moulding machines are more than just tools - they are your partner in plastics production. We are fully committed to helping you move towards a more successful future.
Product Advantages
This new injection moulding machine has a refreshed appearance, cleverly combining aesthetics and practicality. It is equipped with a colourful LCD display, which is not only visually appealing, but also has a wide range of operations, providing users with a more convenient experience.
In terms of performance, we have upgraded it comprehensively so that technology and performance can be perfectly combined. The machine adopts advanced technology and is fully compliant with CE standards. The latest centre-locking structure ensures the stability and reliability of the machine. It handles both daily operations and complex tasks with ease, providing users with an unparalleled injection moulding experience.
In addition, this injection moulding machine has excellent ripple performance, which is efficient and stable. The mould opens in a stable position with high repeatability and the overall operation is smooth and efficient, which greatly improves production efficiency. At the same time, it has a fast cycle speed, which reduces energy consumption and demonstrates our winning formula. Compared with other injection moulding machines, our production cycle is shorter, material utilisation is higher and energy saving is remarkable.
Last but not least, this injection moulding machine is equipped with high quality screws to bring perfect product quality to users. The technically expert screw design is suitable for most materials and mixing requirements with outstanding performance. Whether it is producing high-precision parts or large structural parts, it is easily capable of doing so, providing users with excellent performance and stable quality.
Parameters
| MODEL | OCH-380T | |||||
| Clamping force (kN) | 3800 | |||||
| Space between tie bar (mm*mm) | 720*680 | |||||
| Max. mold thickness (mm) | 730 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 800 | |||||
| Ejector stroke(mm) | 190 | |||||
| Ejector force forward(Kn) | 62 | |||||
| Screw diameter(mm) | 80 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 1759 | |||||
| Shot weight (PS) g | 1699 | |||||
| Injection pressure(MPa) | 133 | |||||
| Injection speed (mm/s) | 99 | |||||
| Injection rate (g/s) | 481 | |||||
| Motor power (Kw) | 47.5 | |||||
| Oil tank capacity(L) | 125 | |||||
| Heater power (Kw) | 27 | |||||
| Machine Weight (t) | 13 | |||||
| Machine size L×W×H (m) | 8.2*1.9*2.0 | |||||

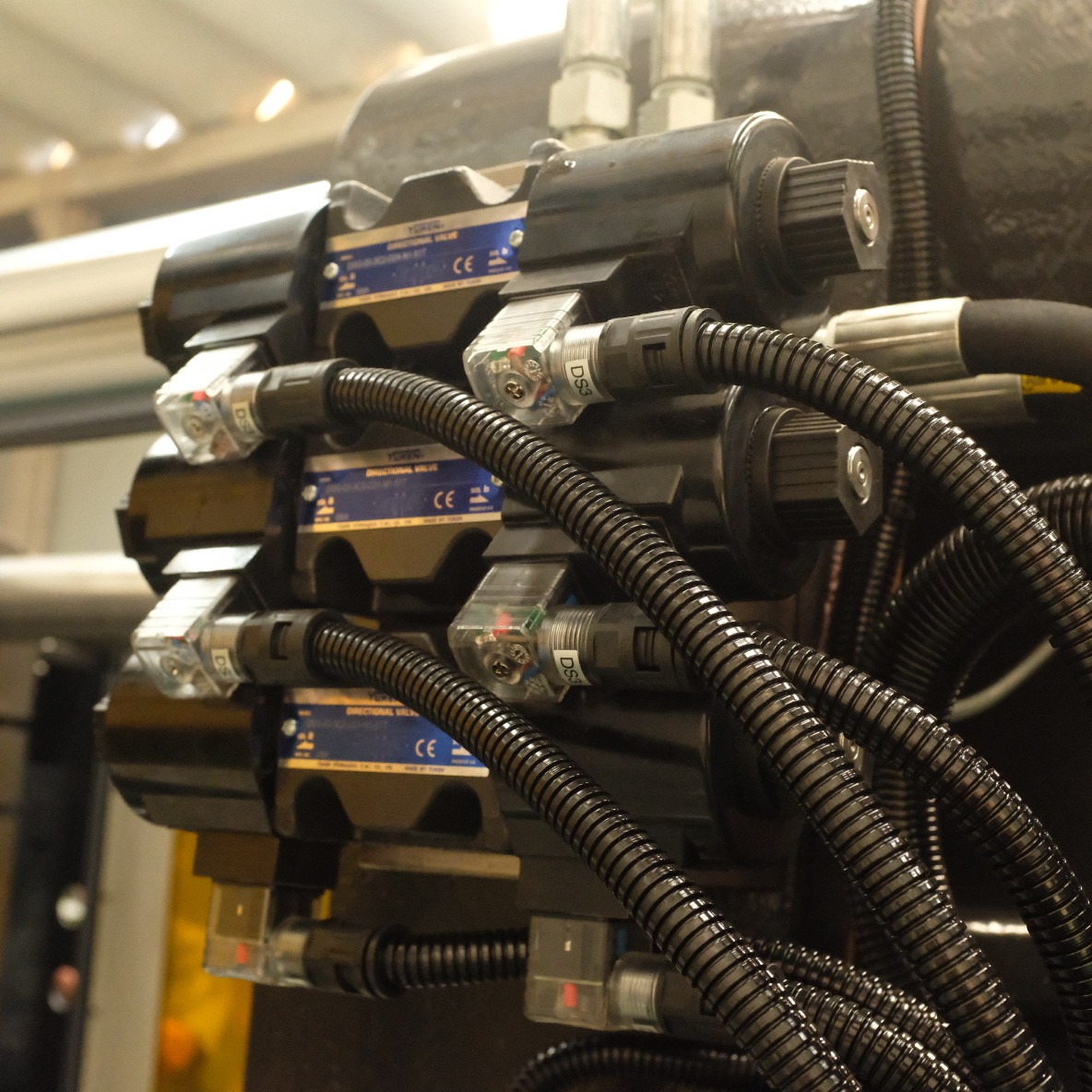

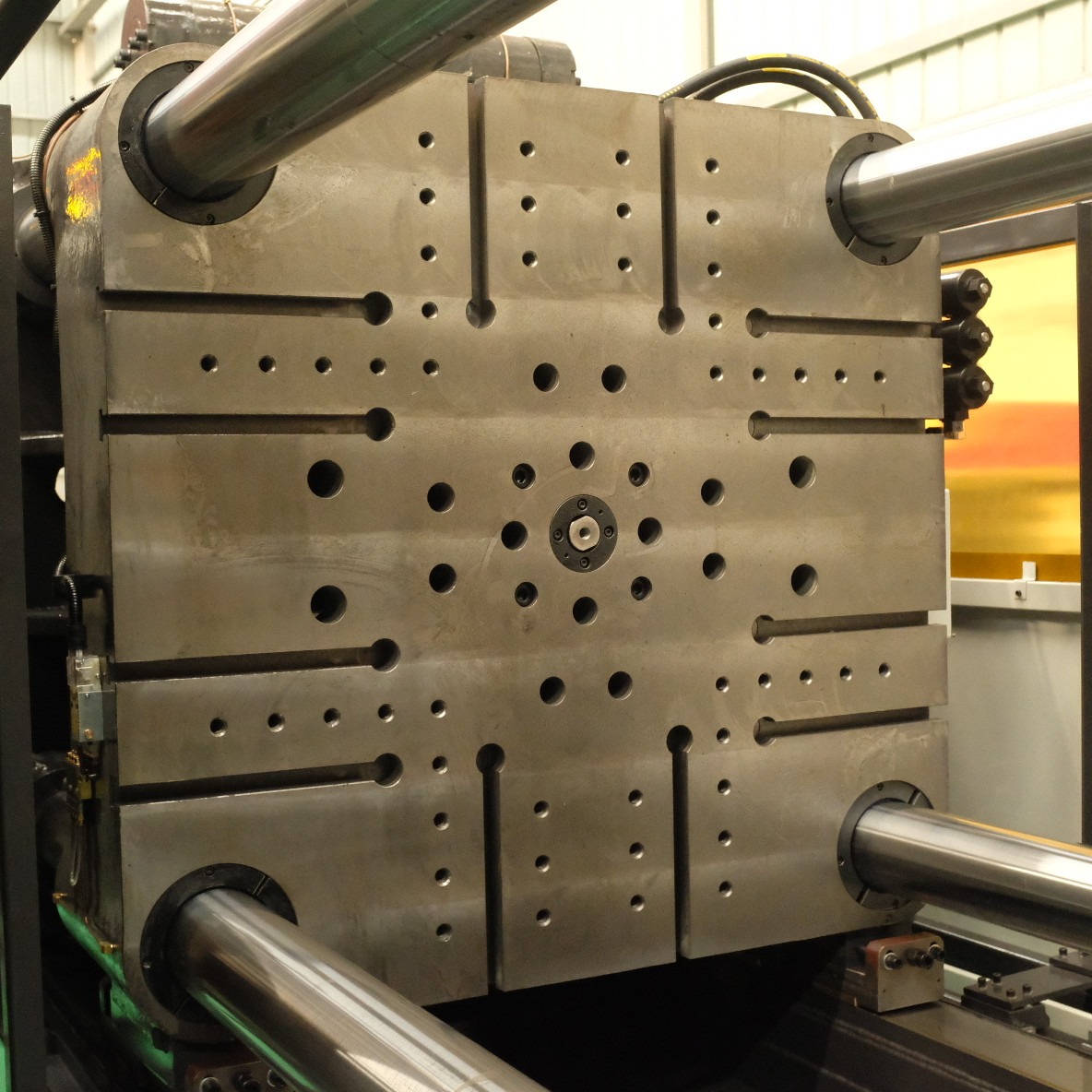

Detail Pictures
