| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC650H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | OUCO 650T Protection Templates Children Clothing Storage Sorting Box Hydraulic Servo Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| Highlight: | 650T Injection Molding Machine,Protection Templates Injection Molding Machine |
||
OUCO injection molding machine is your best partner on the road to wealth. We are always committed to providing customers with excellent service and user experience. As a manufacturer of injection molding machines, we constantly update technology to ensure that we bring customers the most cost-effective products for worry-free use. In addition, we not only provide injection molding machine services, but also provide supporting machine production, such as crushers, suction machines, chillers, etc. If you are interested in our machines, we can provide you with a complete injection molding machine production line, which is convenient and time-saving, thereby minimizing your purchase cost. Choose us, choose the guarantee of quality and trust, and help you achieve high-quality development. In the future, we will continue to increase investment in research and development, continuously improve product performance and technical level, provide customers with better products and services, and help you achieve high-quality development.
Product Advantages

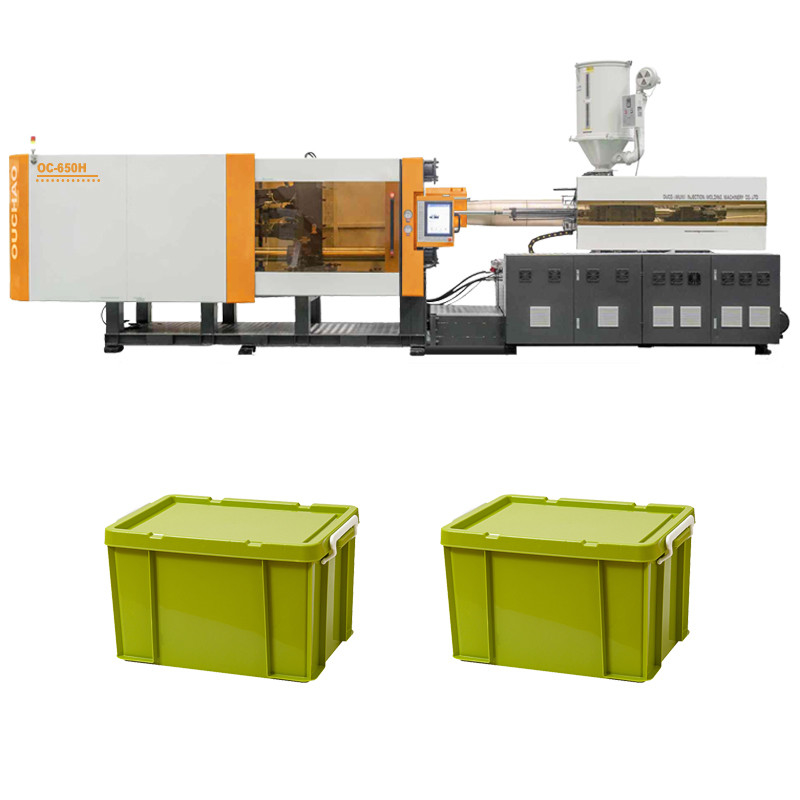

OC-650H has a favorable price and powerful functions, making it a cost-effective choice for your production.
Our injection molding machines offer many advantages to make your production more efficient and smoother. First of all, our machine is driven by a servo motor. The servo motor has the characteristics of rapid response and can achieve changes in speed and position in a short time, adapting to rapid start-stop and complex movement requirements during the injection molding process. Secondly, a variety of special screws are provided, which not only have stronger plasticizing capabilities, but also are faster and more efficient, and the screw material is durable. The injection position electronic ruler control system ensures the accuracy and consistency of the injection molding process, thus improving product quality and production efficiency. In addition, the rigidity of the frame is strengthened, which improves the bending resistance of the frame, so that the frame and template deformation is small when the machine is in operation, maintaining stable production conditions, improving product quality, and achieving a higher yield rate.
Parameters
| MODEL | OC650H | |||||
| Clamping force (kN) | 6500 | |||||
| Space between tie bar (mm*mm) | 960*820 | |||||
| Max. mold thickness (mm) | 900 | |||||
| Min. mold thickness(mm) | 400 | |||||
| Opening stroke (mm) | 1150 | |||||
| Ejector stroke(mm) | 260 | |||||
| Ejector force forward(Kn) | 181 | |||||
| Screw diameter(mm) | 85 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3730 | |||||
| Shot weight (PS) g | 3602 | |||||
| Injection pressure(MPa) | 137 | |||||
| Injection speed (mm/s) | 93 | |||||
| Injection rate (g/s) | 706 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 950 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (Ton) | 24 | |||||
| Machine size L×W×H (m) | 9*2.1*2.3 | |||||

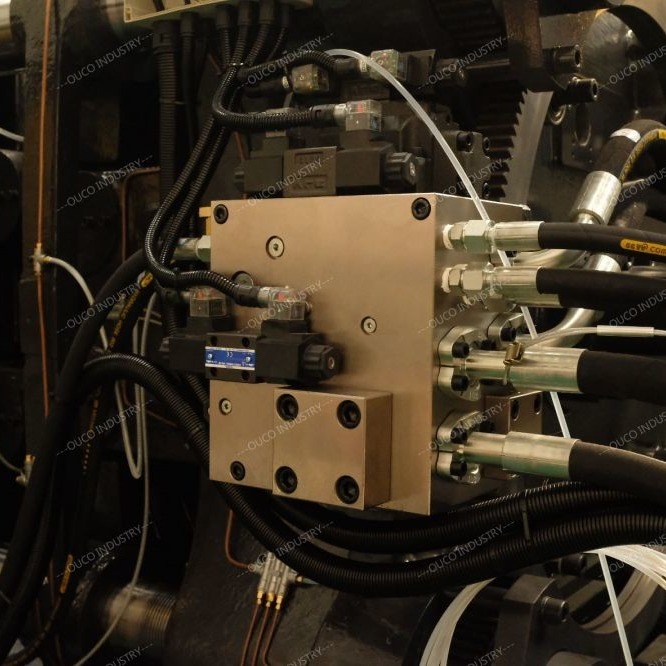

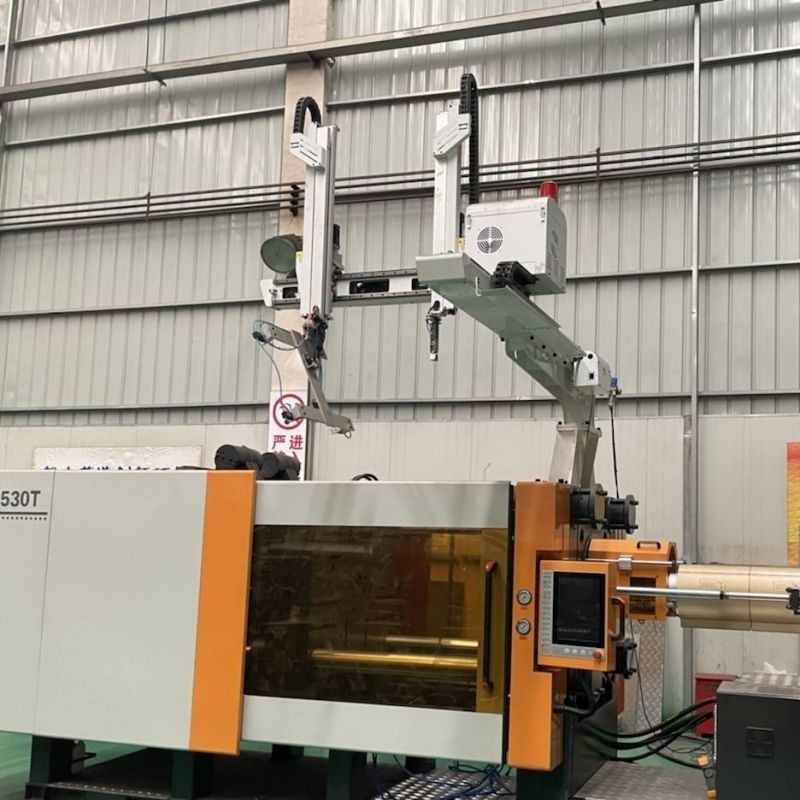

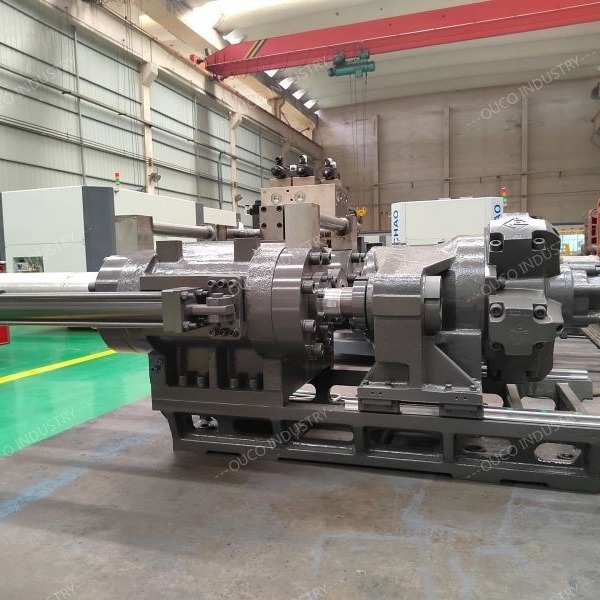

Detail Pictures
