| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC650H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

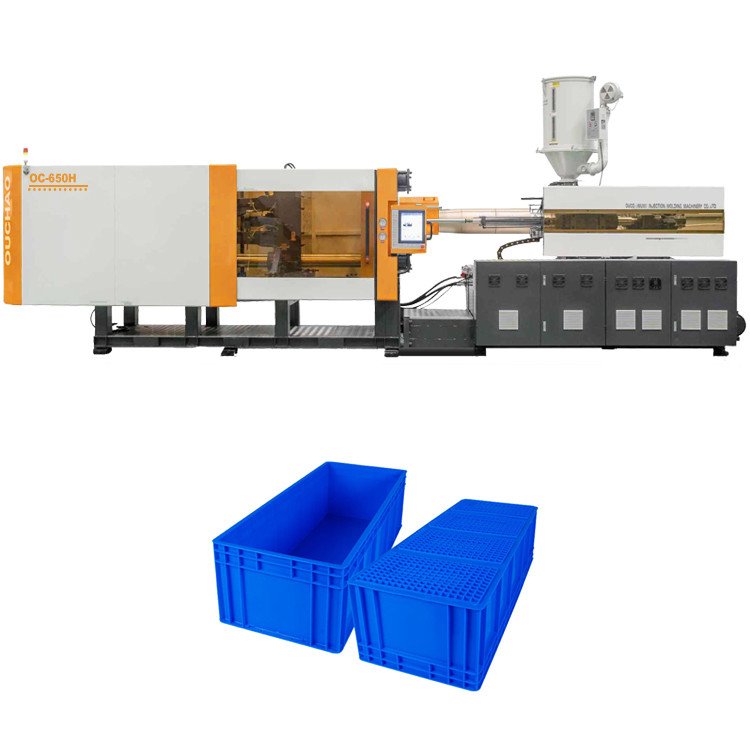

| Product Name: | OUCO 650T Advanced Technology Hydraulic Servo Industrial Logistics Transportation Turnover Box Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Servo Hydraulic Injection Molding Machine,Advanced Technology Injection Molding Machine,Turnover Box hydraulic molding machine |
||
Since the establishment of OUCO Injection Molding Machinery, we have always maintained a keen insight into the latest trends in the market. We continue to learn from excellent cases in the same industry, continue to devote ourselves to developing our own high-performance injection molding machines and always stand at the forefront of the industry. Whether it is technological innovation or production technology, we always pursue excellence and strive to meet the increasingly diverse needs of our customers. Pricing for injection molding machines varies based on model, specification and customization requirements. If you have specific needs and budget, our team will be happy to provide you with the most suitable products and solutions. As a manufacturer of injection molding machines, we have certain competitive advantages in terms of price. Choosing OUCO not only effectively controls procurement costs, but also enjoys full and thoughtful service from a professional team. We firmly believe that OUCO Injection Molding Machine will be your quality partner and will serve you wholeheartedly!
Product Advantages
With the advanced technology of OC-650H, you will reach new heights in producing plastic products. We use dual-cylinder and dual-rail injection technology to ensure rapid injection response, high precision, and small motion inertia. The powerful injection device enables a larger injection volume, a shorter production cycle for the same plastic product, and a significant increase in output. The linear slide rail installed on the injection platform has light load, reduces wear, and the injection control is accurate and stable. The clamping force is controllable and evenly applied to the mold, making the edges of the molded product smooth and smooth with less burrs, which improves the accuracy of the product and is wear-resistant and fall-resistant. The high-rigidity template structure design ensures low deformation of the template during high-pressure mold clamping, thereby achieving precision injection molding. The energy-saving and environmentally friendly design of OUCO injection molding machine not only saves raw materials, but also extends the service life of the machine, making it your best choice for producing plastic products.
Parameters
| MODEL | OC650H | |||||
| Clamping force (kN) | 6500 | |||||
| Space between tie bar (mm*mm) | 960*820 | |||||
| Max. mold thickness (mm) | 900 | |||||
| Min. mold thickness(mm) | 400 | |||||
| Opening stroke (mm) | 1150 | |||||
| Ejector stroke(mm) | 260 | |||||
| Ejector force forward(Kn) | 181 | |||||
| Screw diameter(mm) | 85 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3730 | |||||
| Shot weight (PS) g | 3602 | |||||
| Injection pressure(MPa) | 137 | |||||
| Injection speed (mm/s) | 93 | |||||
| Injection rate (g/s) | 706 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 950 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (Ton) | 24 | |||||
| Machine size L×W×H (m) | 9*2.1*2.3 | |||||

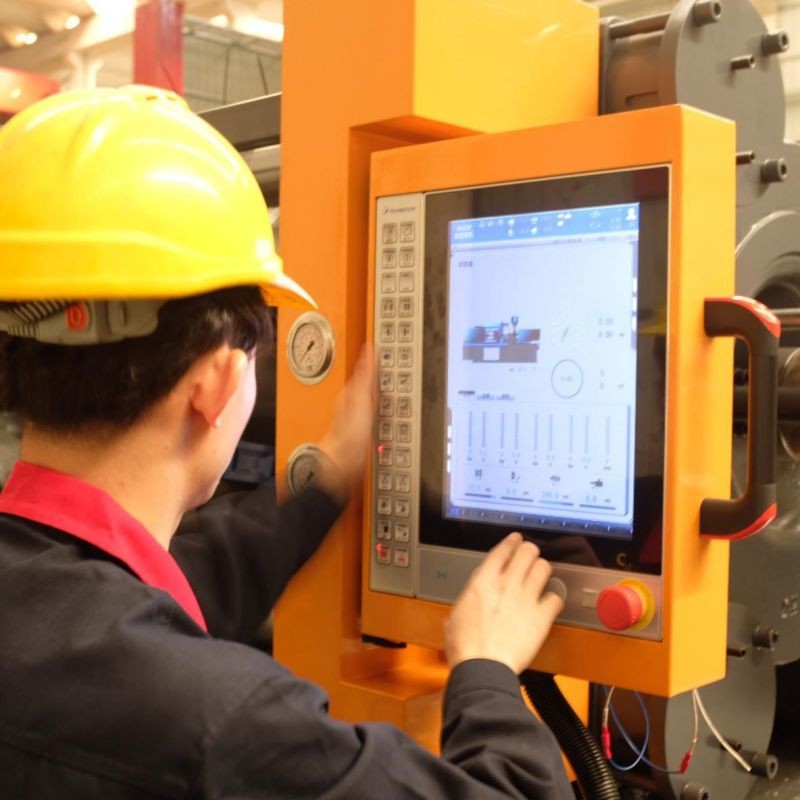

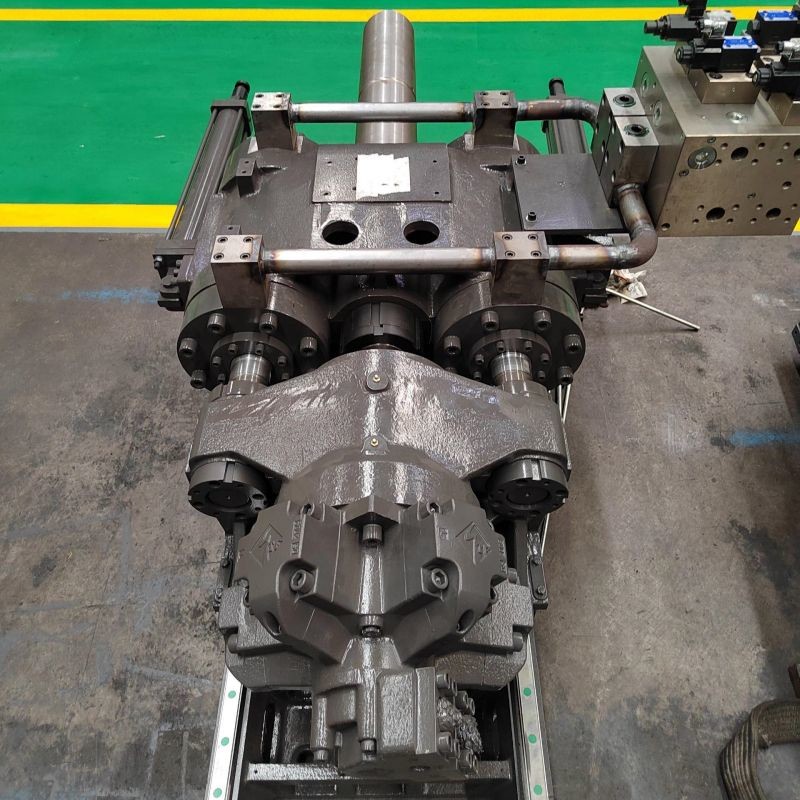

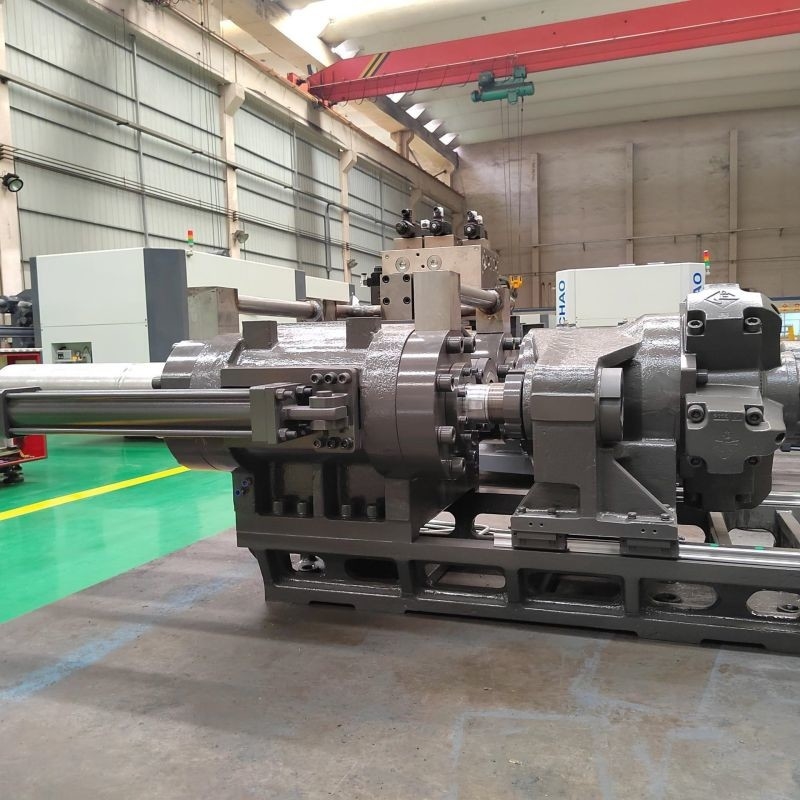

Detail Pictures
