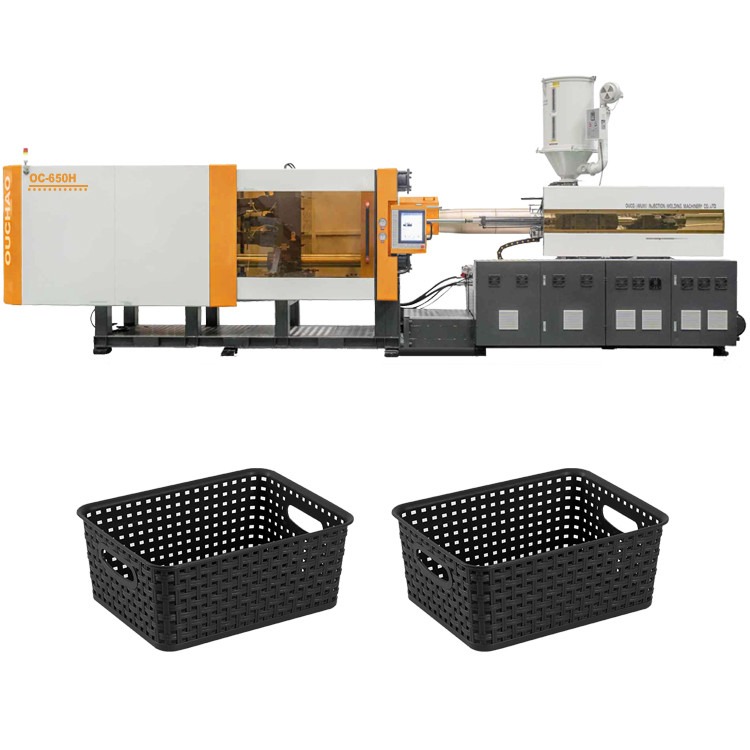

OUCO Professional And Efficient 650T Injection Molding Machine For Manufacturing Fruit Baskets
OUCO injection molding machine your reliable partner choice for injection molding process, our company can provide better customized service for injection molding machine.
We adopt the mode of 'advanced technology + precision manufacturing', integrating design, production and processing, assembly, testing and sales to provide you with perfect and professional injection molding machine equipment. In order to meet the diversified needs of our customers, we develop high-speed injection molding machines, high-precision two-version injection molding machines, standard general-purpose injection molding machines, servo-hydraulic injection molding machines, and electric injection molding machines.
Features and Advantages:
1. High clamping utilization, its hydraulic system closes the mold at the same time during the mold opening process, the clamping utilization is as high as 100% compared to the traditional internal turning. The clamping force varies from 2800-8000N according to the user's demand. 2.
2. stable injection performance, AI intelligent control, high precision, accurate mold closing, less flying edge.
3. energy saving, material saving and environmental protection, through technological innovation, reduce energy consumption, save cost and increase the added value of products.
4. large mold opening stroke, convenient to install larger molds, reasonable closing structure, uniform template force, not easy to deformation, effectively extend the life of the mold.
Product Advantages
1. Advantages of the plasticizing part: high precision of barrel storage, stable output, fast melting speed of screw, not easy to cause cracking when running under high pressure and high speed. High injection efficiency. The nozzle connection and positioning is designed as built-in positioning, which is not easy to leak glue, avoiding waste and saving raw materials. High pressure and high speed operation is not easy to cause cracking of the precursor.
2. The advantages of the electronic control part: the use of Taiwan Hongxun computer, fast response time, high control accuracy, more convenient operation, a variety of languages to choose from, better adapted to the servo, wide applicability.

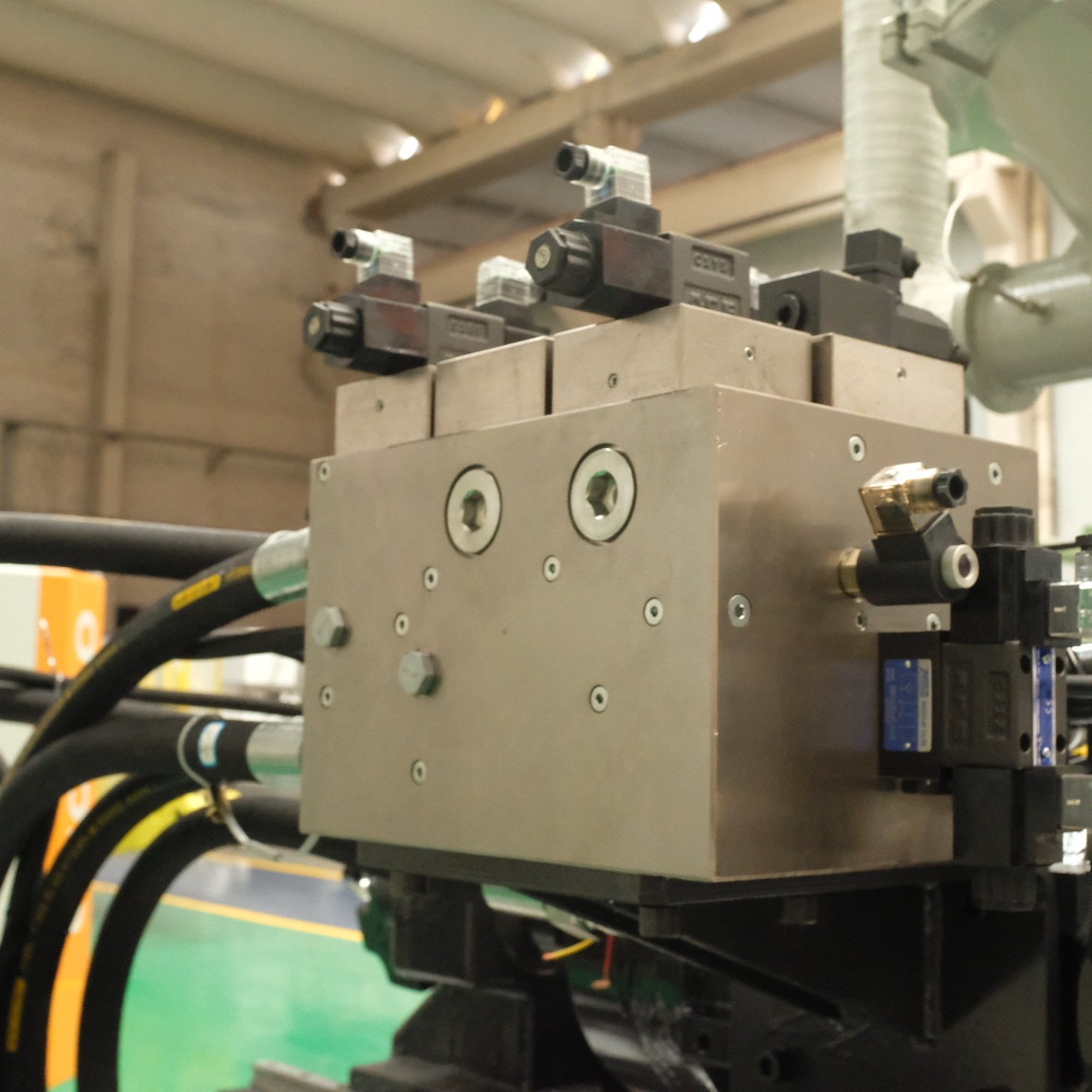

3. Some of the advantages of the power section: the use of high-speed, oversized, specially designed and manufactured oil circuit, multi-channel logic control, high flow, low noise, stable performance, high molding accuracy.
Parameters
| MODEL |
OCH-650T |
| Clamping force (kN) |
6500 |
| Space between tie bar (mm*mm) |
960*820 |
| Max. mold thickness (mm) |
900 |
| Min. mold thickness(mm) |
400 |
| Opening stroke (mm) |
1150 |
| Ejector stroke(mm) |
260 |
| Ejector force forward(Kn) |
181 |
| Screw diameter(mm) |
100 |
| Screw L/D ratio |
22 |
| Theoretical injection volume (cm3) |
3730 |
| Shot weight (PS) g |
3602 |
| Injection pressure(MPa) |
137 |
| Injection speed (mm/s) |
93 |
| Injection rate (g/s) |
706 |
| Motor power (Kw) |
75 |
| Oil tank capacity(L) |
950 |
| Heater power (Kw) |
41 |
| Machine Weight (kg) |
24 |
| Machine size L×W×H (mm) |
9000*2100*2300 |
Detail Pictures
