| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-300G |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 weeks |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 2000 sets/year |
| Product Name: | OC 300G Suction Machine WIth Small Size Strong Suction For Injection Molding Machine | Motor Specification: | 1.5KW/2HP 1Ф |
|---|---|---|---|
| Conveying Capacity: | 300 KG/H | Loading Distance: | 3.5 M |
| Static Wind Pressure: | 1300 MM/H20 | Reservoir Volume: | 7.5 L |
| Feed Pipe Diameter: | Ф38 MM | Dimensions: | 34×34×59 CM |
| Transport Package: | FCL | Weight: | 12 KG |
| High Light: | Small Suction Machine,Injection Molding Suction Machine,Small Size suction machine |
||
In modern injection molding production, the perfect combination of high-performance auxiliary machines is indispensable. We are well aware of the importance of auxiliary machines in a complete injection molding machine production line, so we are intensifying our research and development of high-quality auxiliary machines that match our injection molding machines. In OUCO, you can purchase the complete injection molding production equipment at once, saving time and effort. Striving for excellence and bringing you higher performance injection molding machine products has always been our pursuit.
Product Advantages

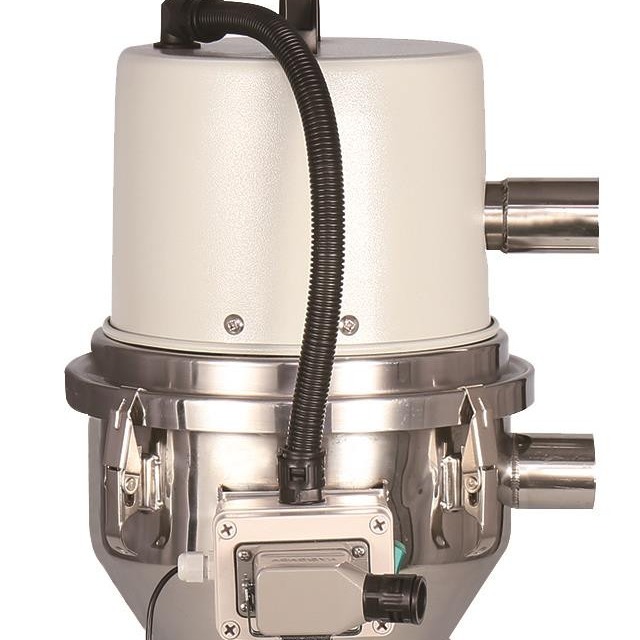

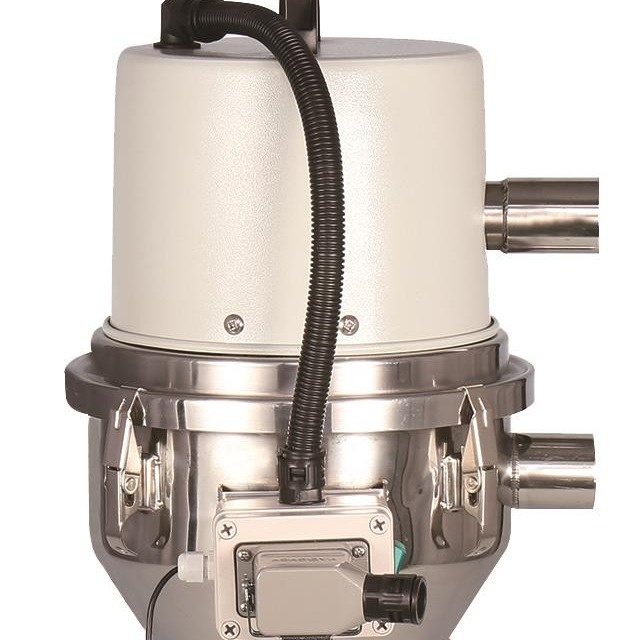

OC-300G has a small size and light weight, it can be directly placed on a hopper dryer or other raw material containers to complete automatic suction work. In terms of accessories, we choose imported branded motors with low noise, high suction, reliable quality and stable conveying capacity. The barrel body is made of stainless steel, which protects the raw materials from pollution and is sturdy and durable. We believe that the OC-300G suction machine will become an important guarantee for stable production on your injection molding production line.
| Model | OC-300G | |
| Motor specification | 1.5KW/2HP 1Ф | |
| Conveying capacity | KG/H | 300 |
| Loading distance | M | 3.5 |
| Static wind pressure | MM/H20 | 1300 |
| Reservoir volume | L | 7.5 |
| Feed pipe diameter | MM | Ф38 |
| Distribution tube | MM | Ф38×3.5m 1pcs |
| Dimensions | CM | 34×34×59 |
| Weight | KG | 12 |
