| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-650H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | 650T Orange Making Injection Molding Machine For Production Fruit Baskets | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Fruit Baskets Injection Molding Machine,Orange Injection Molding Machine,650T Injection Molding Machine |
||
OUCO, a preeminent high-tech enterprise established in 1984, nestles in the vibrant Yangshan Industrial Park of Huishan District, Wuxi City. Our company is deeply devoted to the research and development of automotive components, precision medical devices, large-scale pipe fittings, bins, trays, fruit baskets, and numerous other diversified applications. Our core focus lies in providing high-quality and cutting-edge injection molding equipment that meets the most stringent industry standards.
We remain steadfast in our original vision and mission, customizing efficient, energy-efficient, and professional production solutions tailored to the specific needs of our customers. At OUCO, we strive to exceed expectations and deliver nothing but the best.
Product Advantages
1. Energy-efficient powertrain: The OUCO 650T features an innovative energy-saving powertrain system that delivers just the right amount of energy according to production needs. This not only reduces unnecessary energy waste, but also helps reduce production costs.
2. Combination of servo motor and internal gear pump: The powertrain of the OUCO 650T consists of a servo motor and an internal gear pump, a combination that breaks through traditional process limitations. The servo motor is known for its high precision and efficiency, while the internal gear pump ensures stable energy transmission. The combination of the two enables the OUCO 650T to save significant energy while maintaining high performance.
3. Significant energy saving effect: By adopting advanced servo motor and internal gear pump technology, OUCO 650T achieves significant reduction in energy consumption.
4. Efficient production of complex precision moulds: OUCO 650T not only has excellent energy-saving performance, but also performs well in production. OUCO 650T are able to meet the various needs of customers, helping customers to achieve higher productivity and product quality.
Parameters
| MODEL | OCH-650T | |||||
| Clamping force (kN) | 6500 | |||||
| Space between tie bar (mm*mm) | 960*820 | |||||
| Max. mold thickness (mm) | 900 | |||||
| Min. mold thickness(mm) | 400 | |||||
| Opening stroke (mm) | 1150 | |||||
| Ejector stroke(mm) | 260 | |||||
| Ejector force forward(Kn) | 181 | |||||
| Screw diameter(mm) | 100 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3730 | |||||
| Shot weight (PS) g | 3602 | |||||
| Injection pressure(MPa) | 137 | |||||
| Injection speed (mm/s) | 93 | |||||
| Injection rate (g/s) | 706 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 950 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (kg) | 24 | |||||
| Machine size L×W×H (mm) | 9000*2100*2300 | |||||

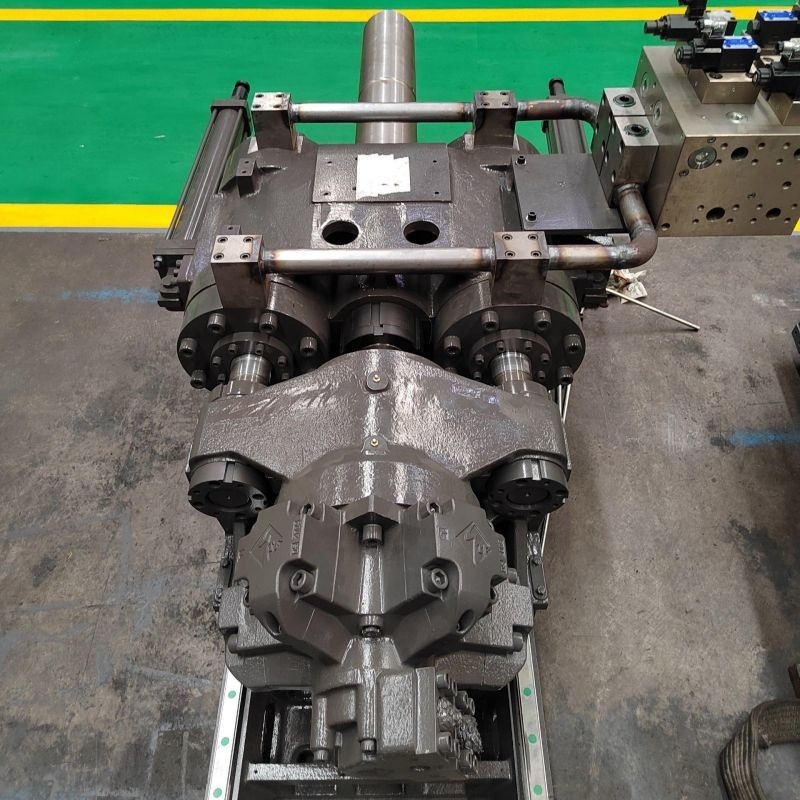

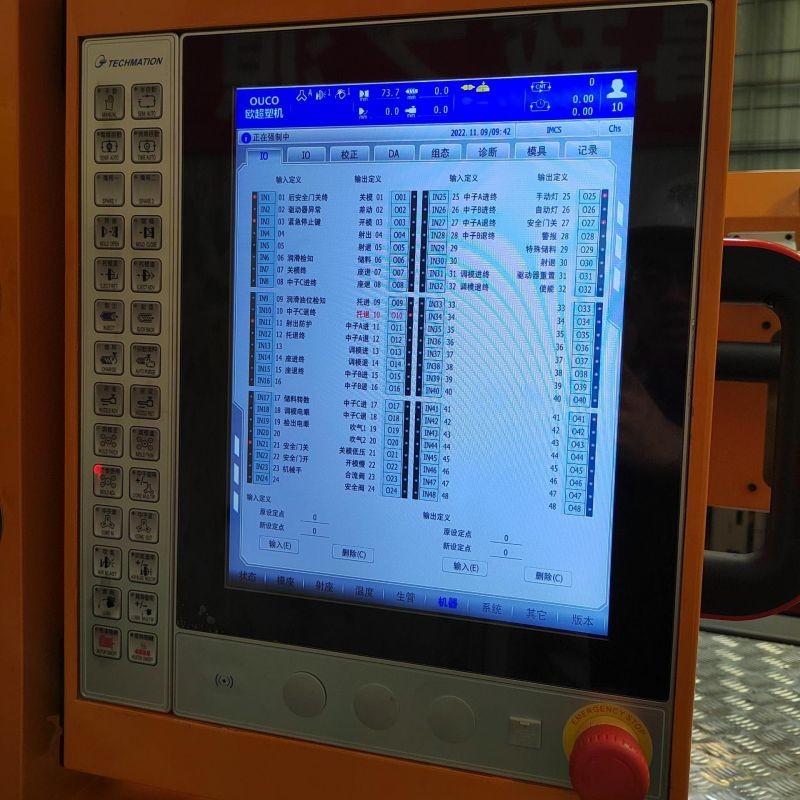

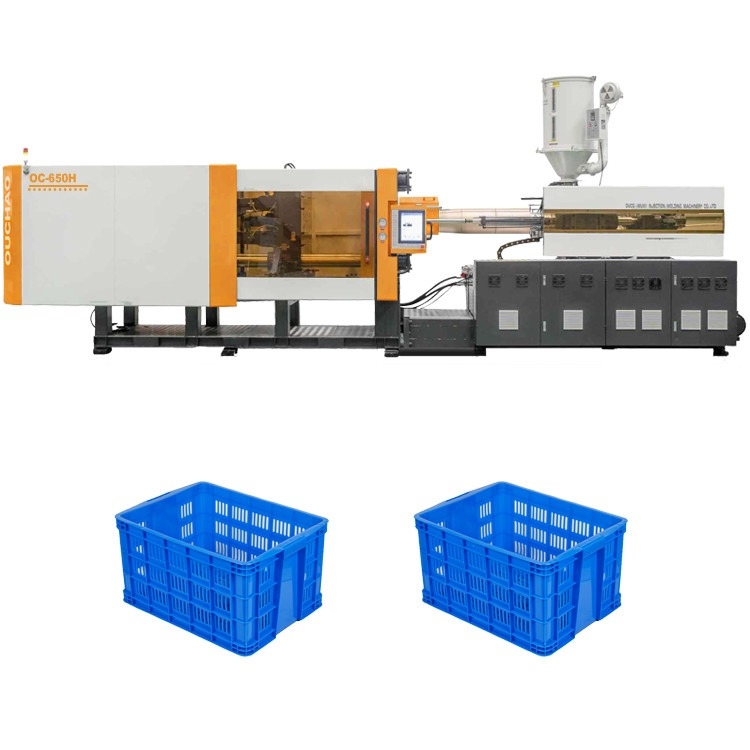

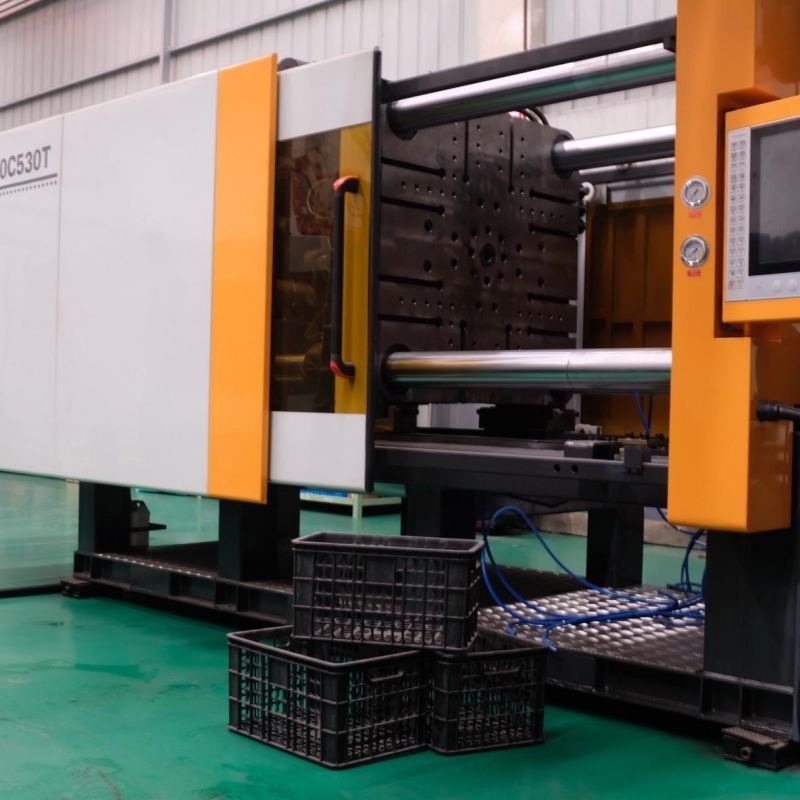

Detail Pictures
