| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE |
| Model Number: | OUCO-380 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per year |

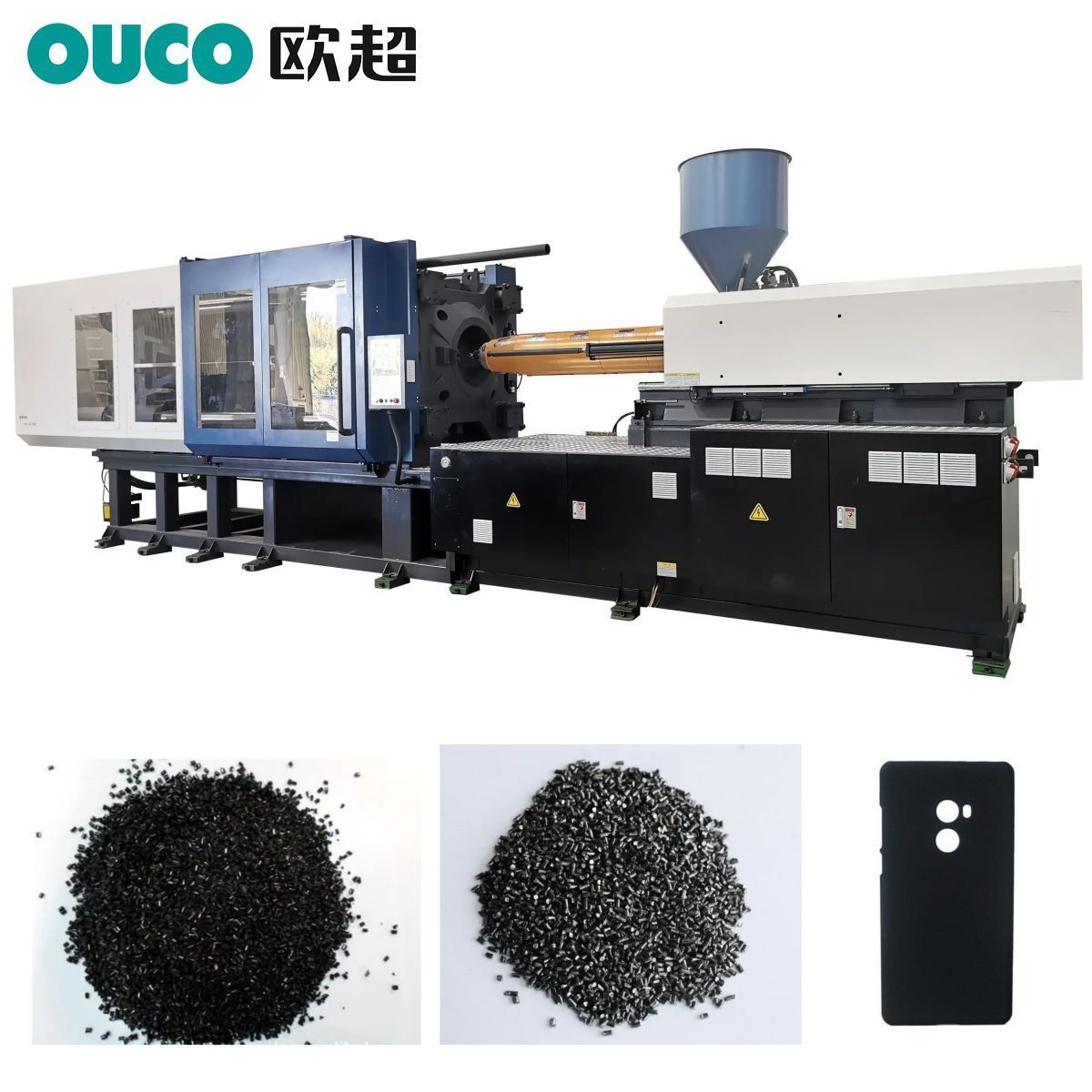

| Product Name: | OUCO Bakelite Injection Molding Machine Specially Designed For Thermosetting Materials | Type: | Preform Injection |
|---|---|---|---|
| Clamping Force: | 1600KN | Injection Weight: | 260-410g |
| Opening Stroke: | 480mm | Injection Rate: | 166-204cm3 |
| Power: | 50HZ | Color: | Support Customization |
| High Light: | OUCO Bakelite Injection Molding Machine,Injection Molding Machine For Thermosetting,1600KN Injection Molding Machine |
||
Center locking, reducing flash and material saving
High rigidity formwork, resistant to high pressure and not deformed
Adopting Hongxun controller, the system is stable, reliable, and responsive
Horizontal bar injection structure, stable injection, convenient cleaning
Using specialized screws for long service life
Servo system, efficient and energy-saving
Product Parameters
| Model | 300T | 400T | 500T | |||||||
| Screw Specifications | A | B | C | A | B | C | A | B | C | |
| Screwdi ameter | mm | 50 | 60 | 65 | 65 | 75 | 80 | 70 | 75 | 85 |
| Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| Theoretical injection volume | cm3 | 638 | 918 | 1078 | 1C75 | 1431 | 1628 | 1481 | 1700 | 2184 |
| Shot weight (PS) | g | 593 | 853 | 1002 | 1C11 | 1345 | 1530 | 1377 | 1581 | 2031 |
| injection rate(Ps) | g/S | 330 | 475 | 558 | 426 | 568 | 646 | G03 | 693 | 890 |
| Injection pressure | MPa | 286 | 198 | 169 | 242 | 182 | 160 | 209 | 182 | 142 |
| Inject on stroke | mm | 325 | 360 | 385 | ||||||
| Max. injection speed | mm/s | 178 | 156 | 166 | ||||||
| Screw speed | r/min | 0-200 | 0-200 | 0-200 | ||||||
| Sys. Pressure | MPa | 16 | 16 | 16 | ||||||
| Pump Motor(Min-Max) | kW | 63 | 75 | 94 | ||||||
| Displacement | ml/r | 163 | 100+100 | 125+125 | ||||||
| number of Motors | PC | 1 | 2 | 2 | ||||||
| Heater power | kW | 27 | 35 | 41 | ||||||
| Number oftemp. control zones | 5+1 | 5+1 | 5+1 | |||||||
| Clamping force | kN | 3000 | 4000 | 5000 | ||||||
| Opening stroke | mm | 800 | 900 | 1000 | ||||||
| Tie bar distance W×L | mm*mm | 680x680 | 760x660 | 860x760 | ||||||
| Min. mold thickness | mm | 210 | 300 | 300 | ||||||
| Max. mold thickness | mm | 680 | 730 | 800 | ||||||
| Ejector stroke | mm | 190 | 190 | 210 | ||||||
| Ejector force forward | kN | 62 | 80 | 110 | ||||||
| Number of ejector bar | PC | 1+12 | 1+12 | 1+12 | ||||||
| Oil tank capacity | L | 510 | 680 | 850 | ||||||
| Machine dimensions(LxWxH) | m*m*m | 7.7x1.8x1.8 | 8.2x1.9x1.9 | 87x2.0x2.1 | ||||||
| Machine weight | Ton | 10.5 | 15 | 19 | ||||||
Main Features
Bigger size than other brand machines.
higher precision.
Help customer save 2- 5% material.
The world's leading control system can meet your high-precision production needs
Compared to traditional screens, the main interface can display more data simultaneously
Multiple languages available for export
Free configuration according to different processes, solid and smooth
The USB20 interface supports the connection of devices such as Ethernet and printers
Excellent heat control function improves the complete plasticization ability of raw materials
48 digital transistor output terminals with short circuit and overload protection
Clamping, injection, ejector stroke recognition, and motion accuracy are monitored by linear displacement sensors
Automatically adjust the locking force according to the mold
The opening and closing betting adopt a 5-level segmented control action, effectively improving the stability of the action
1, Fully optimized hydraulic system, efficiency 10% higher than last series( Standard EK) .
2, Hydraulic parts from famous international manufacturers, ensure machine with reliable performance.
3, Conform to GB, CE, UL, KCS or other safety standard.
1, Optimized electrical cabinet design, conform to GB, CE, UL, KCS or other safety standard.
2, Electrical parts from famous ithernational manufacturers, ensure machine with reliable performance.
3, Advanced PLC( KEBA, BECKHOFF, etc. ) , available as opption.
1, World leading screw plasticizing set design with technology from Europe.
2, Srew for special purposes ( PC, PMMA, POM, etc. ) available as option.
3, Customized plasticizing set available for special application.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
