| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-PV530T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | 530 T High Efficiency Hydraulic Injection Molding Machine With High Rigidity Mold Plate | Plastic Processed: | PP,PC |
|---|---|---|---|
| Applicable: | Manufacturing Plant,Food&Beverage | Type: | Automation |
| Warranty: | 1 Year | Machinery: | Provided |
| Place Of Origin: | Wuxi,China | Selling Points: | Competitive Price |
| Video Outgoing-inspection: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time: | About 50 Days |
| High Light: | Hydraulic Injection Molding Machine High Rigidity,530 T Hydraulic Injection Molding Machine,100mm Hydraulic Injection Molding Machine |
||
Product Details

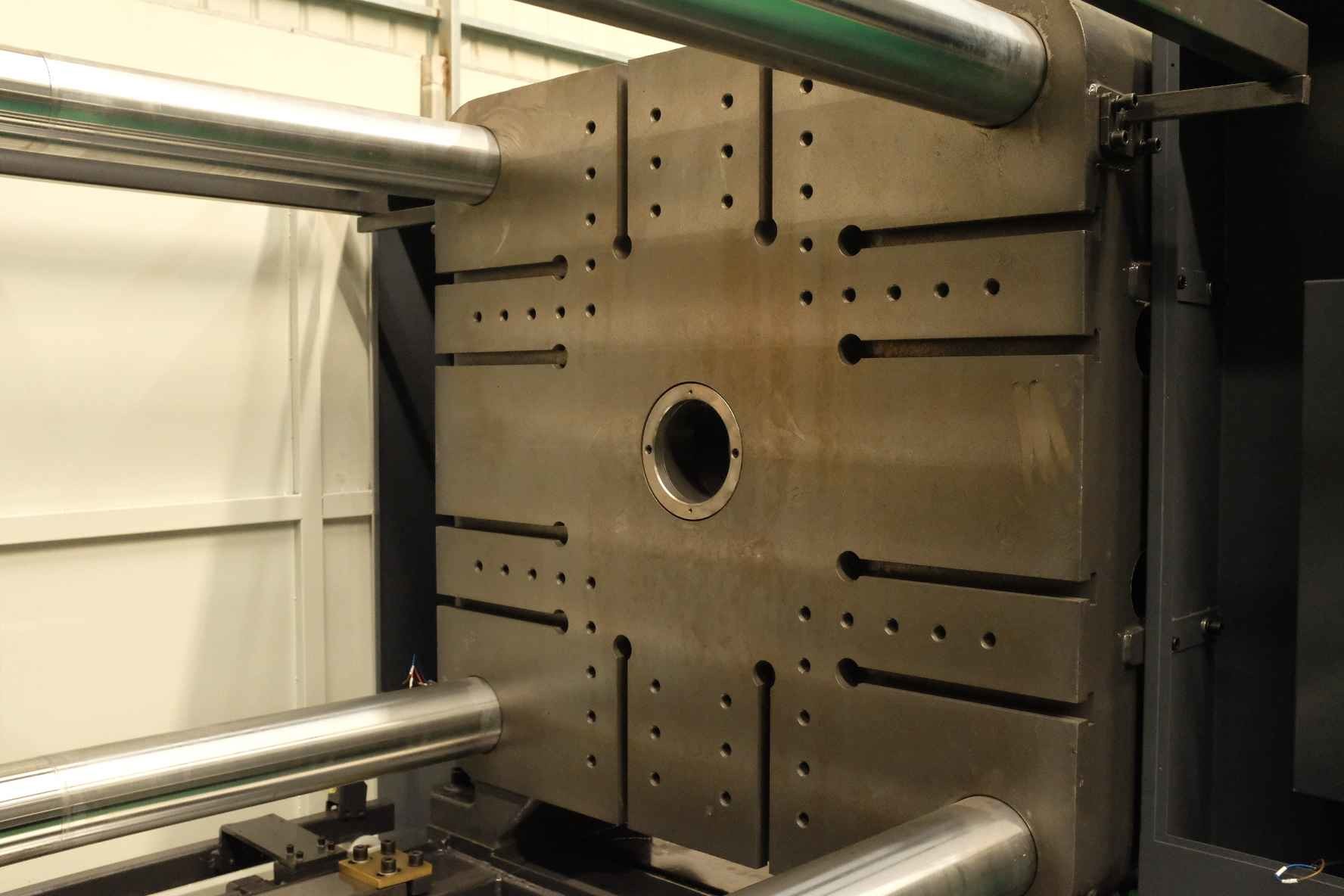

1. The mold plate has strong rigidity and smooth operation;
2. Effectively protect the Corinthian pillars and molds;
3. The mold plate is not easily worn and durable, reducing maintenance costs;
4.Can meet production needs under high intensity and high load conditions;
TECHNICAL PARAMETER
| TECHNICAL PARAMETER TABLE | ||
| Injection Unit | ||
| Screw diameter | mm | 100 |
| Screw L/D ratio | L/D | 22 |
| Injection capacity in theory | cm³ | 3342 |
| Injection weight | g | 3233 |
| Injection pressure | MPa | 113 |
| Injection rate | g/s | 1145 |
| Screw speed | rpm | 150 |
| Clamping Unit | ||
| Clamping force | KN | 5300 |
| Moving mould-plate stroke | mm | 1000 |
| Max.Mould height | mm | 830 |
| Min.Mould height | mm | 350 |
| Space between tie-bars | mm | 860x800 |
| Hydraulic ejector force | KN | 103 |
| Hydraulic ejector stroke | mm | 210 |
| Ejector number | n | 13 |
| Other | ||
| Pump pressure | MPa | 16 |
| Motor/Driving power | KW | 47.5x2 |
| Heating capacity | KW | 41 |
| Machine dimension | m | 8.7x2.0x2.1 |
| Machine weight | t | 19 |
| Oil tank capacity | L | 850 |

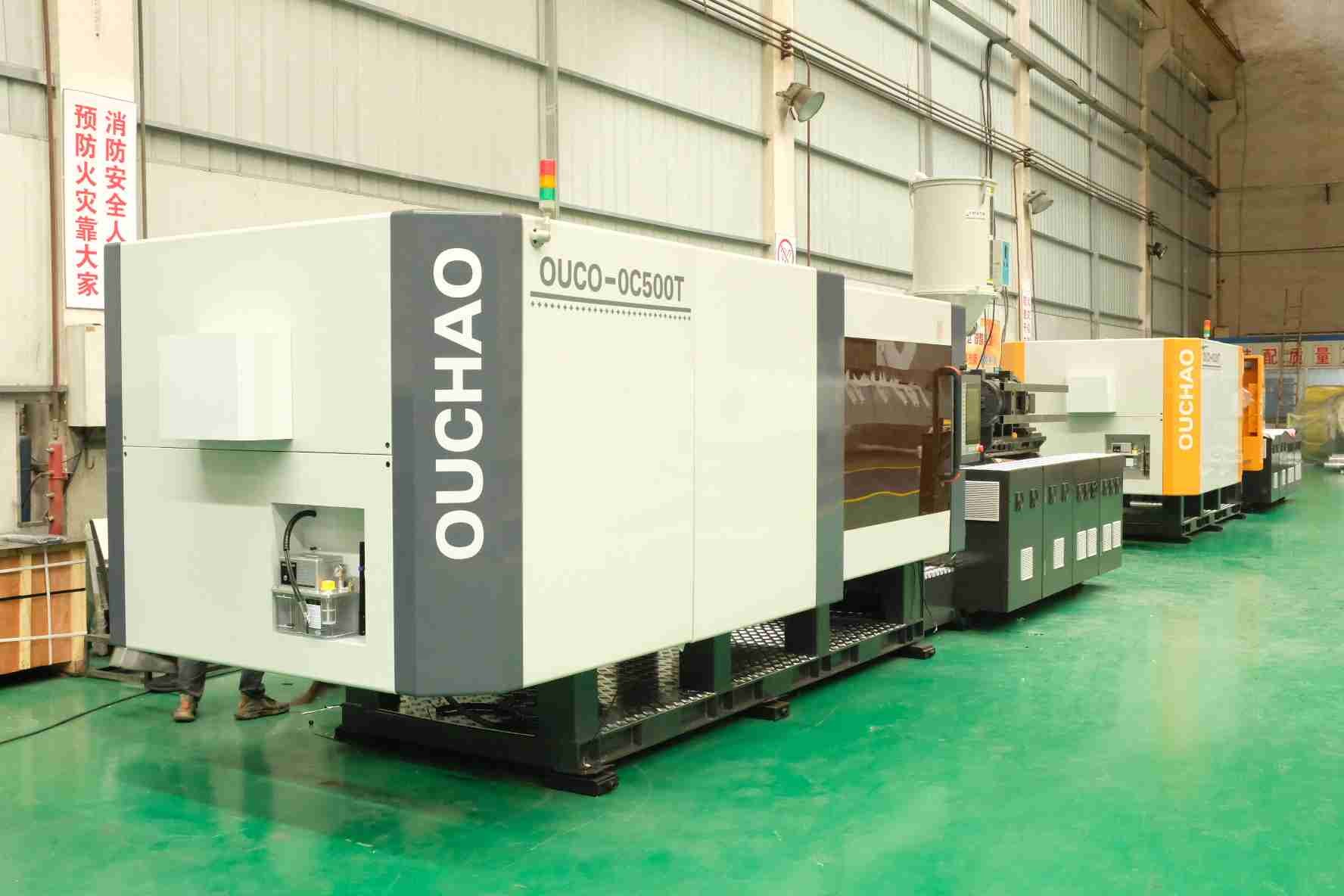

Detail Pictures
