| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-CWI2100S |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |
| Product Name: | Deep-Cavity Precision Accurate, Stable, Proportional Injection Plastic Moulding Machine | Plastic Processed:: | PP, PC,PVC |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |
| High Light: | Deep Cavity Bucket Injection Molding Machine,CWI2100S Bucket Injection Molding Machine,4200mm Injection Plastic Moulding Machine |
||
1. New shooter structure
Compact structure and good rigidity of the new injection platform structureThe modular design of the injection platform makes it easy to replace the large and small injection platforms to meet the molding needs of different products and shorten the delivery time
2. Double bar shooting + barrel support, barrel anti-sag adjustment assembly, simple adjustment, stable operation of the injection platform, accurate measurement, and easy precision molding; high-strength guide rail frame, small deformation of the injection platform, and replacement of screw rods by rotation of the injection platform
3 .High response oil circuit control valve.The hydraulic system uses a high-response proportional valve to improve the precision and stability of mold opening and closing, and shorten the brake response time
4. Six cylinders evenly distributed direct pressure clamping structure
5. The mold clamping action and high-pressure mold clamping are completed by two sets of mechanical structures, which have higher stability. The high-pressure oil cylinders are distributed in a ring, directly acting on the mold mounting surface, effectively reducing mold deformation, better protecting the mold, and more conducive to the quality of product molding
Ultra-short molding cycle
6. The mold clamping dry cycle is shortened by 40% compared with traditional models.
7. Clamping force is accurate and stable.The mold clamping force of the two-platen machine is accurate, stable, and proportional to the system pressure, with good linearity, which is beneficial to the protection of the mold, and the repeatability of the product is high.
Product Paraments
| CWI-2100S | ||||||
| Mold | 2100S Ⅲ | |||||
| Clamping Force(Kn) | 21000 | |||||
| Space Between Tie-bars(mm) | 1800×1600 | |||||
| Clamping Stroke(mm) | 3700 | |||||
| Mould Thickness Max(mm) | 1700 | |||||
| Mould Thickness Min(mm) | 800 | |||||
| Size of Platen(mm) | 2620×2420 | |||||
| Ejector Stroke(mm) | 400 | |||||
| Ejector Force(Kn) | 406 | |||||
| Ejector Quantily | 33 | |||||
| Injection Equipment | 18000I | 30000I | ||||
| Screw Diameter(mm) | 130 | 140 | 150 | 150 | 160 | 170 |
| Screw L/D ratio | 22.6 | 21 | 19.6 | 22.4 | 21 | 19.8 |
| Shot Size(cm3) | 8821 | 10231 | 11744 | 15890 | 18080 | 20410 |
| Shot Weight((PS)g) | 8027 | 9310 | 10687 | 14619 | 16634 | 18777 |
| 286.3 | 332.0 | 381.0 | 515.9 | 586.9 | 662.6 | |
| Injection Pressure(MP) | 203 | 175 | 152 | 193 | 176 | 150 |
| Injection Rate(mm/s) | 1034.0 | 1513.0 | 1737.0 | 1364.0 | 1533.0 | 1753.0 |
| Injection Speed(cm3/s | 98 | 77 | ||||
| Screw Speed(g/s0 | 10~166 | 10~100 | ||||
| Plasticising Capacityrpm | 143.0 | 152.0 | 166.0 | 160.0 | 184.0 | 205.0 |
| Oil Tank CapacityL | 2000 | |||||
| Heater PowerKw | 100 | 120 | ||||
| Team Control zoneL | 5+1 | |||||
| System Pressure MaxMPa | 16 | |||||
| Pump OutputL/min | 1000 | |||||
| Servo PowerKw | 50+50+50+50+7.5 | |||||
| Machine Weightton | 110 | |||||
| Machine Dimension(mm) | 14500×4200×3530 | |||||
In view of the advantages of two-platen injection molding machines over three-platen injection molding machines, 90% of injection molding machines over 500 tons in developed countries such as Europe and Japan are two-platen machines. The T-two-platen injection molding machines developed by OUCO are carefully polished under the organization of the European Chief Technical Engineer The products produced have absorbed the essence of Italian technology and are manufactured in accordance with EU CE standards. They have the characteristics of high stability, high reliability, high precision and outstanding energy saving. The models cover 600-4000 tons.
The two-platen machine is a special model for deep-cavity products specially developed for the market demand of large plastic parts. The unique advantage of large part space is suitable for the production of large-scale products: industrial plastic parts, pallets, pallet boxes, auto parts (bumpers, air spoilers), beach chairs and tables, etc.
The second-platen machine also has the advantages of large mold opening stroke, fast mold change, precise control of mold clamping force, fast injection speed, and high injection repeatability accuracy, so as to truly meet the actual production needs of customers.

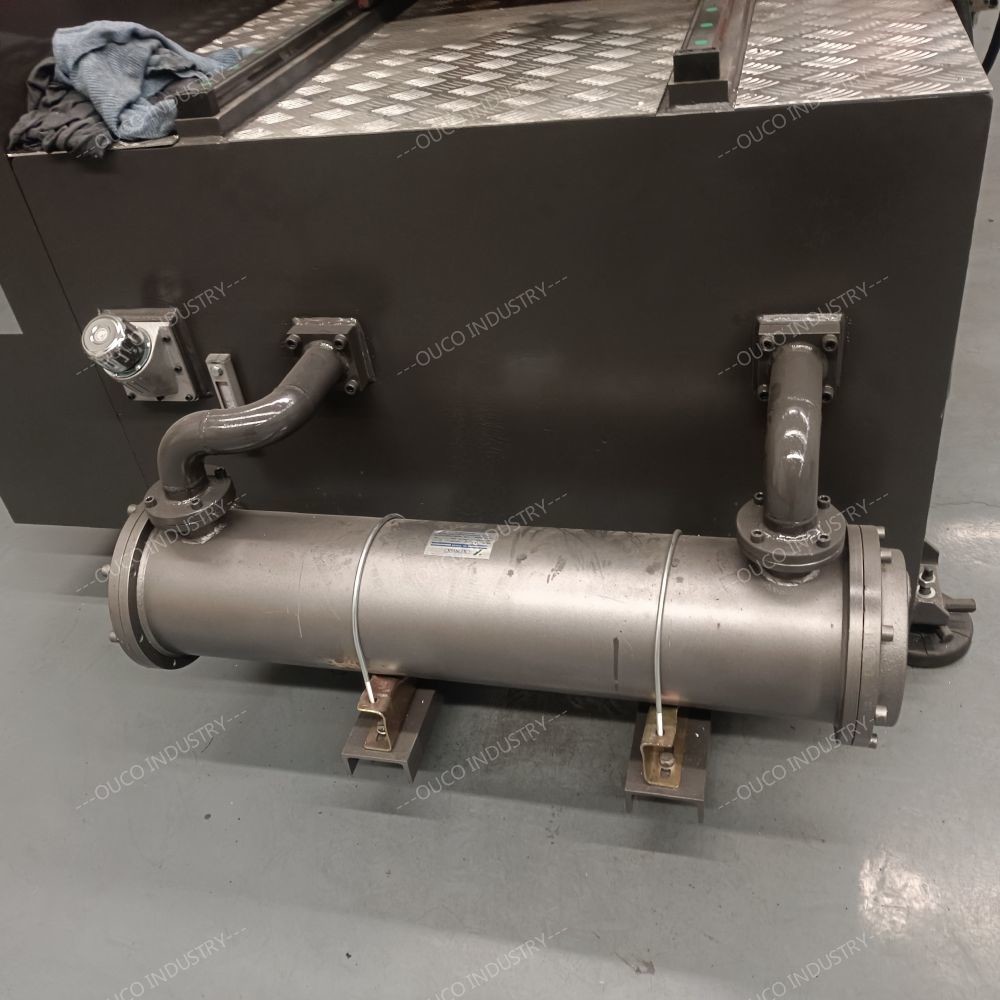

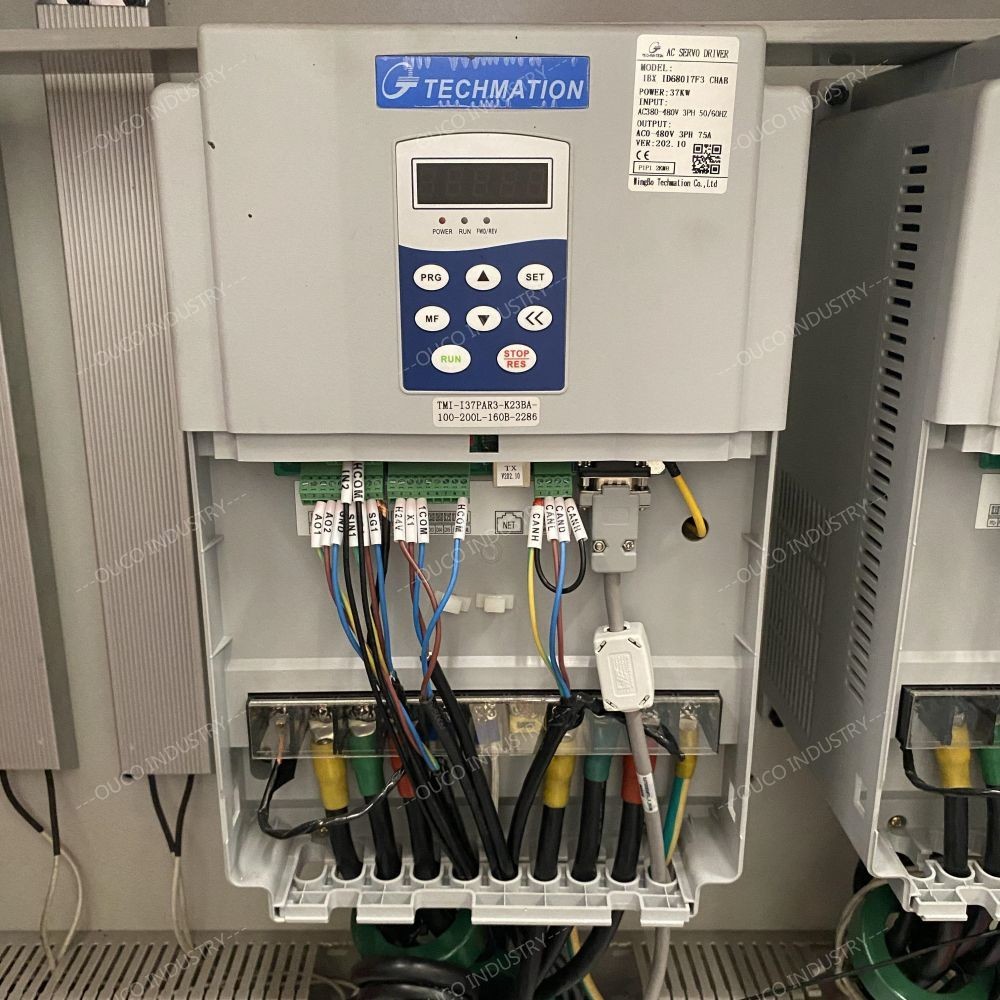

Detailed Pictures
