| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-350T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

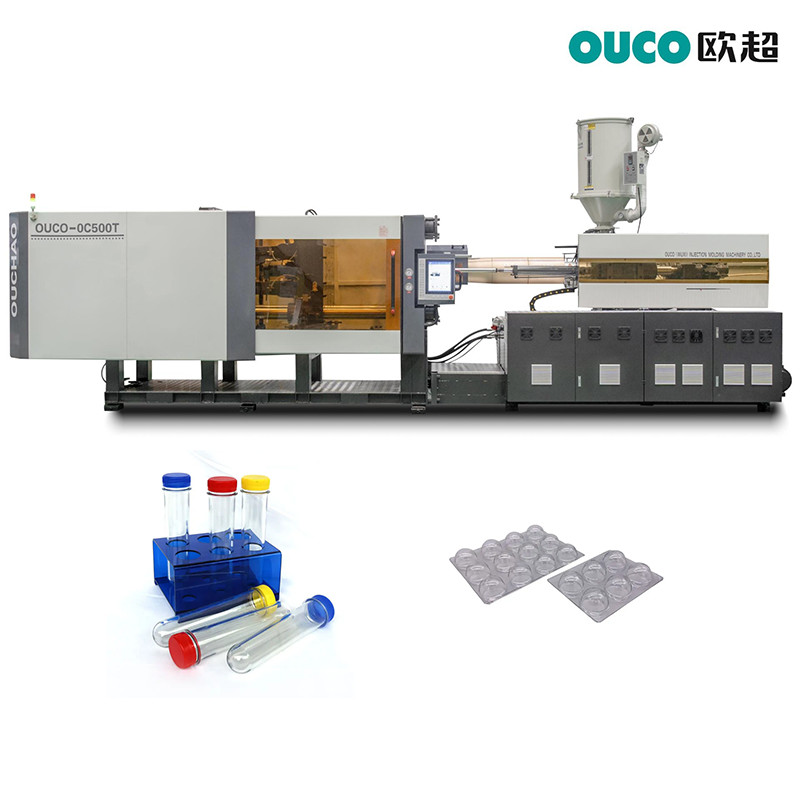

| Product Name: | Customized High Security PET Injection Molding Machine With Larger Power System | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
OUCO is a factory focusing on the research and development of PET injection molding machines. OUCO focuses on helping customers make preform injection molding machines. The equipment is stable and efficient, which can help our customers quickly expand the market and obtain huge profits.
Product Description
1.High-displacement hydraulic system design, larger power system, injection speed increased by 15% compared with similar products, mold cycle cycle shortened by 10-15%, comprehensively improves the performance of injection molding machines, and can meet high-standard molding requirements
2.The oil circuit board is distributed in the position of each actuator, with fast response speed, good dynamic performance, faster injection molding process and better product molding
3.The injection unit adopts a modular pallet design, and a one-line dual-cylinder balanced injection device, which makes the screw uniformly stressed during the injection molding process, significantly improves the stability of the injection, and makes the positioning of the barrel more accurate
4.High-rigidity wide formwork design, combined with tie-rods with a high safety factor, can improve the rigidity and stability of the clamping structure as a whole
Product Parameters
|
DESCRIPTION
|
UNIT
|
DATA
|
|
|
Injection unit
|
Shot volume
|
cm3
|
307.6
|
|
Shot weight (PS)
|
g
|
359.8
|
|
|
oz
|
12.6
|
||
|
Screw diameter
|
mm
|
48
|
|
|
Injection pressure
|
Mpa
|
136.7
|
|
|
Screw L:D ratio
|
|
24:1
|
|
|
Max. injection speed
|
mm/s
|
96
|
|
|
Plasticizing Capacity (PET)
|
g/s
|
37
|
|
|
Screw stroke
|
mm
|
170
|
|
|
Screw speed(stepless)
|
r/min
|
0-181
|
|
|
Clamping unit
|
Clamping force
|
kN
|
1200
|
|
Opening stroke
|
mm
|
360
|
|
|
Space between bars
|
mm*mm
|
410x370
|
|
|
Max. Daylight
|
mm
|
760
|
|
|
Mold thickness(Min.Max)
|
mm
|
145-400
|
|
|
Ejector stroke
|
mm
|
120
|
|
|
Ejector number
|
|
5
|
|
|
Ejector force
|
kN
|
42
|
|
|
Power unit
|
Hydraulic system pressure
|
Mpa
|
17.5
|
|
Pump Motor
|
kw
|
15
|
|
|
Heating capacity
|
kw
|
11.2
|
|
|
Number of temp control zones
|
|
5
|
|
|
General unit
|
Oil tank capacity
|
L
|
195
|
|
Machine dimensions(LxWxH)
|
m*m*m
|
4.95x1.23x1.62
|
|
|
Machine weight
|
kg
|
3600
|
