| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-350T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | Customized High Security PET Injection Molding Machine Stable And Efficiency In China | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
OUCO is a factory focusing on the research and development of PET injection molding machines. OUCO focuses on helping customers make preform injection molding machines. The equipment is stable and efficient, which can help our customers quickly expand the market and obtain huge profits.
Product Description
1. Adopt PET special screw, significantly increase the melting speed and injection volume, reduce the plasticizing temperature and AA value, effectively improve the shrinkage of the preform, improve the transparency; PET special plasticizing components, to ensure high-speed high-quality plastic under low shear conditions change.
2. Increased power oil pump motor configuration can achieve high-efficiency production, which is 20% faster than conventional machines.
3. The screw and plasticizing components are chrome-plated on the surface, which is easy to clean and more durable.
4. Increase the ejection stroke and ejection force, which is suitable for the production of PET preforms.
5. PID temperature control of the melt tube and nozzle, precise temperature control.
6. The high-efficiency and energy-saving servo control system saves 30% to 50% of electricity compared with conventional machines.
7. The machine has complete specifications and is suitable for the selection of various preforms.
8. Optional synchronous pressure holding system can increase production capacity by 15%~25%.
9. The clamping part is fully enclosed sheet metal structure, which meets the requirements of sanitation and temperature control.
Product Parameters
|
DESCRIPTION
|
UNIT
|
DATA
|
|
|
Injection unit
|
Shot volume
|
cm3
|
307.6
|
|
Shot weight (PS)
|
g
|
359.8
|
|
|
oz
|
12.6
|
||
|
Screw diameter
|
mm
|
48
|
|
|
Injection pressure
|
Mpa
|
136.7
|
|
|
Screw L:D ratio
|
|
24:1
|
|
|
Max. injection speed
|
mm/s
|
96
|
|
|
Plasticizing Capacity (PET)
|
g/s
|
37
|
|
|
Screw stroke
|
mm
|
170
|
|
|
Screw speed(stepless)
|
r/min
|
0-181
|
|
|
Clamping unit
|
Clamping force
|
kN
|
1200
|
|
Opening stroke
|
mm
|
360
|
|
|
Space between bars
|
mm*mm
|
410x370
|
|
|
Max. Daylight
|
mm
|
760
|
|
|
Mold thickness(Min.Max)
|
mm
|
145-400
|
|
|
Ejector stroke
|
mm
|
120
|
|
|
Ejector number
|
|
5
|
|
|
Ejector force
|
kN
|
42
|
|
|
Power unit
|
Hydraulic system pressure
|
Mpa
|
17.5
|
|
Pump Motor
|
kw
|
15
|
|
|
Heating capacity
|
kw
|
11.2
|
|
|
Number of temp control zones
|
|
5
|
|
|
General unit
|
Oil tank capacity
|
L
|
195
|
|
Machine dimensions(LxWxH)
|
m*m*m
|
4.95x1.23x1.62
|
|
|
Machine weight
|
kg
|
3600
|

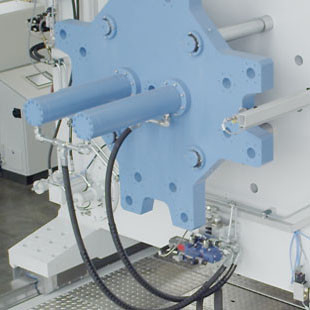

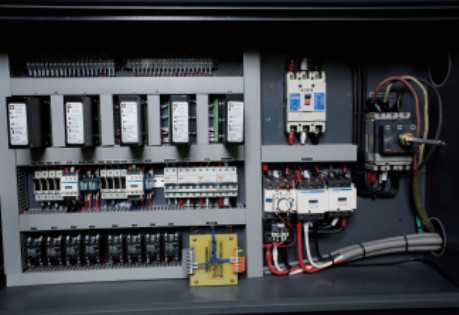

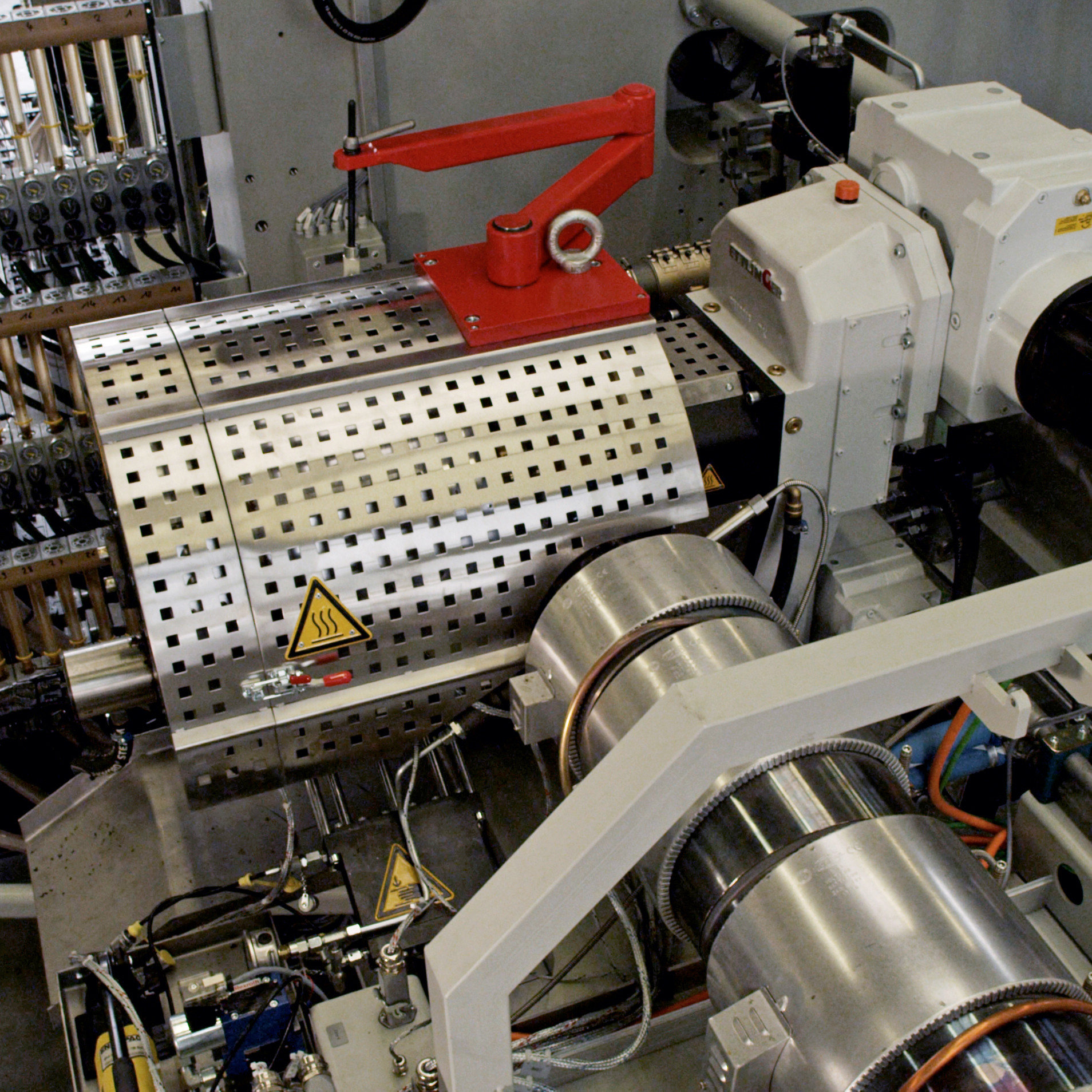

Detail Pictures
