| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-220T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |

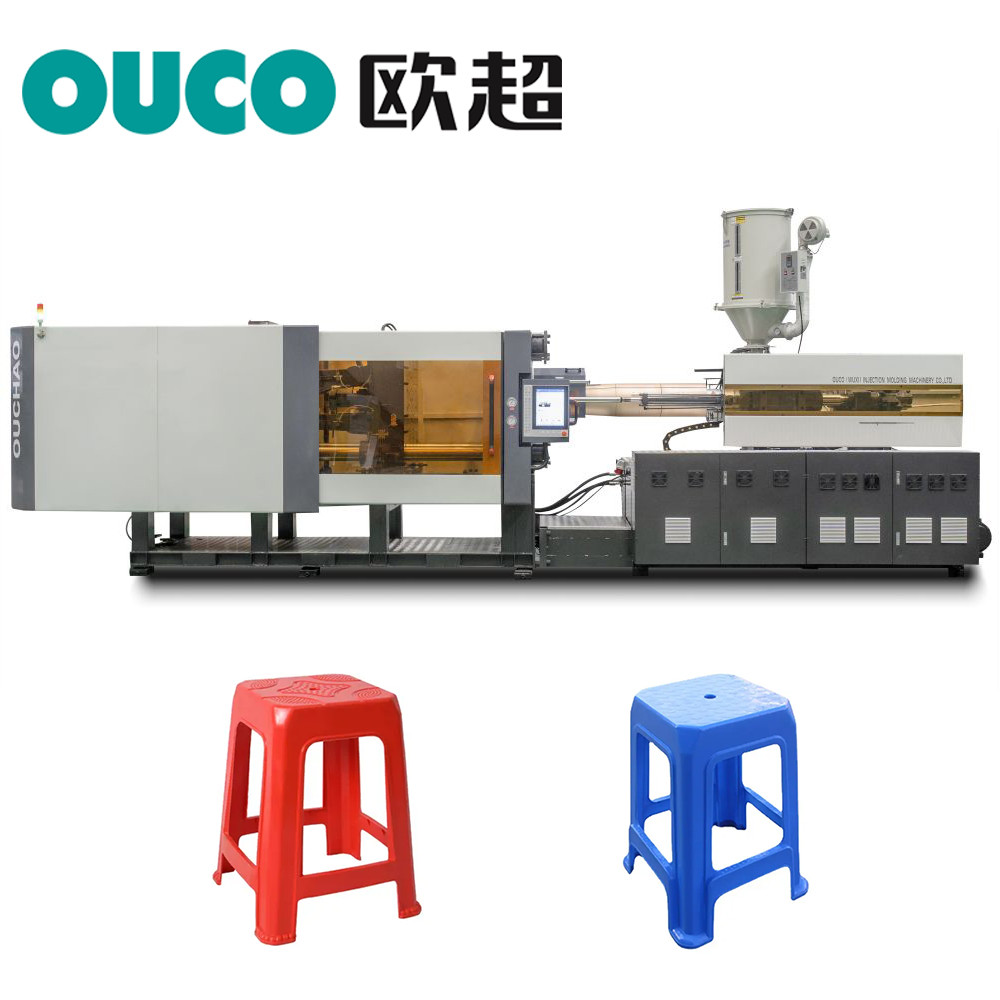

| Product Name: | 200-450T High Precision Servo Valve Injection Plastic Bucket Moulding Machine For Sale | Plastic Processed:: | PP, PC,PVC |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |
| Highlight: | 450T Automatic Injection Moulding Machine,Servo Valve Automatic Injection Moulding Machine,high precision injection molding machine |
||
Features of the clamping unit
·Reinforced lock template
·Bold alloy tie rod
·Reinforced mechanical hinge structure design
Control unit
·High-precision and high-response KEBA computer system color display (touch optional)
·Injection molding control high precision servo valve
·International famous brand electrical components, stable and easy to maintain
Machine appearance
1. European standard CE safety protection structure
2. Adjustable anti-vibration feet
3. Large-area safety pedal humanized design steps
4. Commonly used toolbox (toolbox for turnkey projects is optional)
5. Reserve USB, electric socket
6. Manipulator excuse EURO MAP 12
Product Paraments
| GH电液混合动力系列 | ||||||||||||||
| 机型 | CWI-220GH | CWI-280GH | CWI-350GH | CWI-450GH | ||||||||||
| 合模装置 | 锁模力 Kn | Clamping Force | 2200 | 2800 | 3500 | 4500 | ||||||||
| 拉杆间距 mm | Space Between Tie-bars | 570×570 | 630×630 | 710×710 | 820×820 | |||||||||
| 开模最大开距 mm | Clamping Stroke | 500 | 550 | 610 | 790 | |||||||||
| 最大模厚 mm | Mould Thickness Max | 600 | 650 | 720 | 800 | |||||||||
| 最小模厚 mm | Mould Thickness Min | 220 | 240 | 260 | 300 | |||||||||
| 模板尺寸 mm | Size of Platen | 830×830 | 915×915 | 1020×1020 | 1170×1170 | |||||||||
| 顶出长度 mm | Ejector Stroke | 170 | 170 | 200 | 220 | |||||||||
| 顶出力 Kn | Ejector Force | 76 | 76 | 76 | 113 | |||||||||
| 顶针数 | Ejector Quantily | 9 | 13 | 13 | 13 | |||||||||
| 注射装置 | 射胶装置 | Injection Unit | 650IH | 860IH | 860IH | 860IH | ||||||||
| 螺杆直径 mm | Screw Diameter | 35 | 40 | 45 | 45 | 50 | 55 | 45 | 50 | 55 | 45 | 50 | 55 | |
| 螺杆长径比 | Screw L/D ratio | 24.3 | 23.7 | 21 | 23.3 | 21 | 18.9 | 23.3 | 21 | 18.9 | 23.3 | 21 | 18.9 | |
| 理论射胶容积 cm3 | Shot Size | 173 | 226 | 286 | 349 | 431 | 518 | 349 | 431 | 518 | 349 | 431 | 518 | |
| 注射重量 (PS)g | Shot Weight | 157 | 206 | 260 | 318 | 392 | 471 | 318 | 392 | 471 | 318 | 392 | 471 | |
| oz | 5.6 | 7.3 | 9.2 | 11.2 | 13.8 | 16.6 | 11.2 | 13.8 | 16.6 | 11.2 | 13.8 | 16.6 | ||
| 注塑压力 Mpa | Injection Pressure | 270 | 207 | 158 | 239 | 194 | 157 | 239 | 194 | 157 | 239 | 194 | 157 | |
| 注射速度 mm/s | Injection Speed | 300 | 300 | 300 | 300 | |||||||||
| 注塑速率 cm3/s | Injection Rate | 287 | 376 | 477 | 477 | 588 | 712 | 477 | 588 | 712 | 477 | 588 | 712 | |
| 螺杆最大转速 rpm | Screw Speed | 300 | 300 | 300 | 300 | |||||||||
| 其他 | 油泵电机功率 Kw | Motor Power | 22/42 | 30/75 | 30/75 | 30/75 | ||||||||
| 油泵排量 L/min | 139 | 220 | 220 | 220 | ||||||||||
| 电热功率 Kw | Heater Power | 10.87 | 13 | 13 | 13 | |||||||||
| 机器净重 ton | Machine Weight | 7.5 | 11.8 | 13 | 13 | |||||||||
| 机器尺寸(长×宽×高) mm | Machine Dimension | 5830×1640×1870 | 6375×1680×2075 | 6750×1920×2350 | 7960×2100×2460 | |||||||||

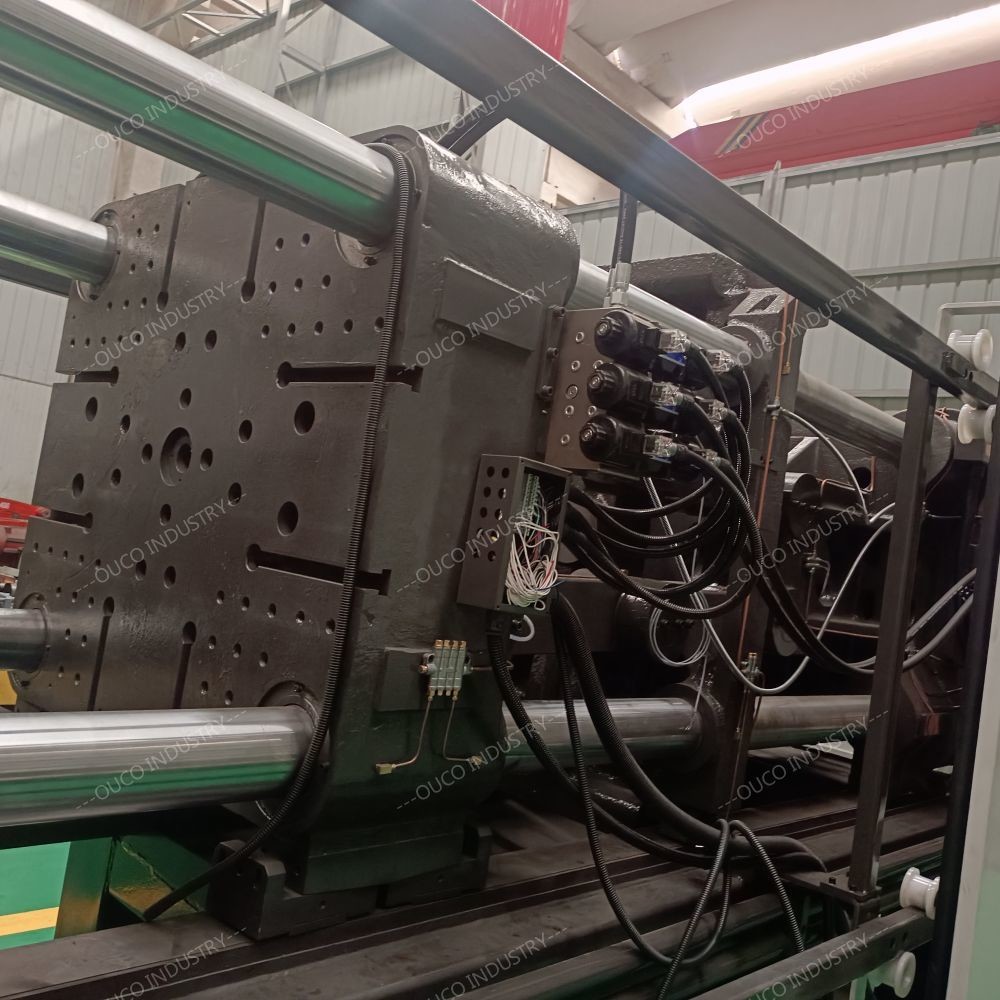

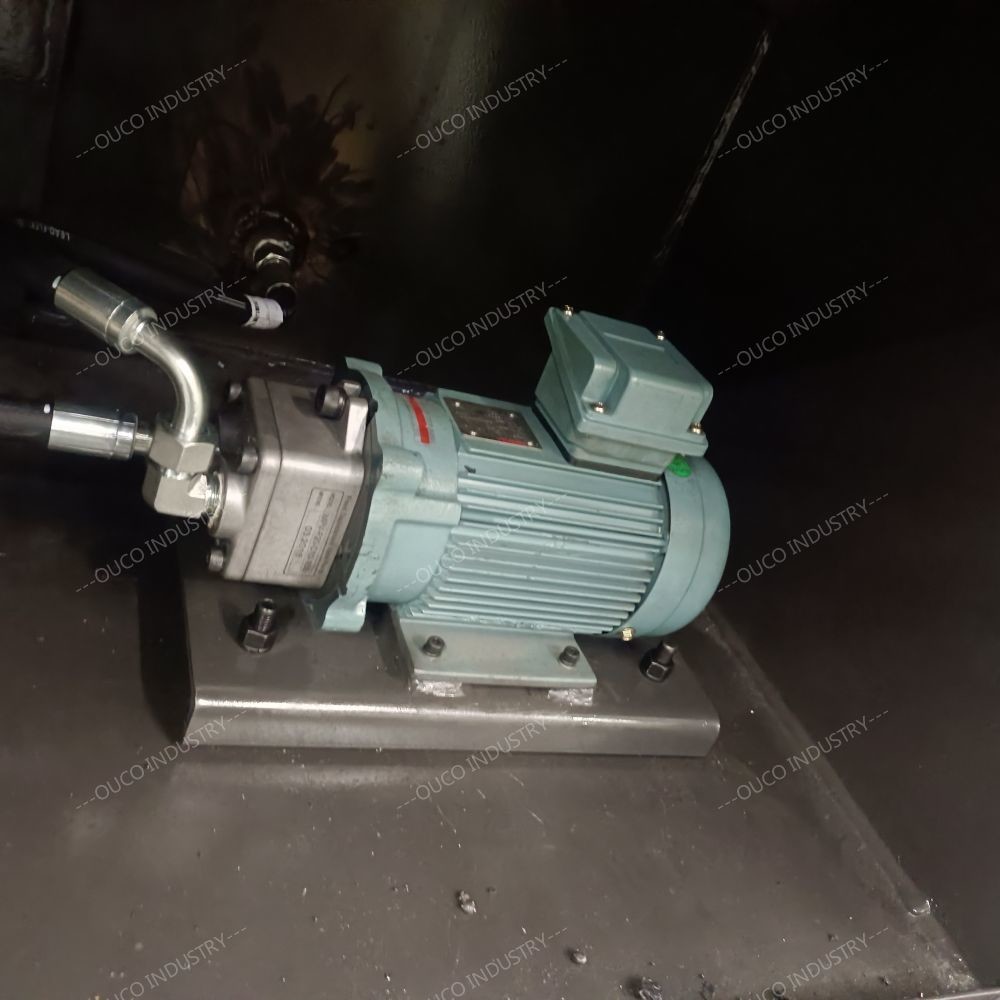

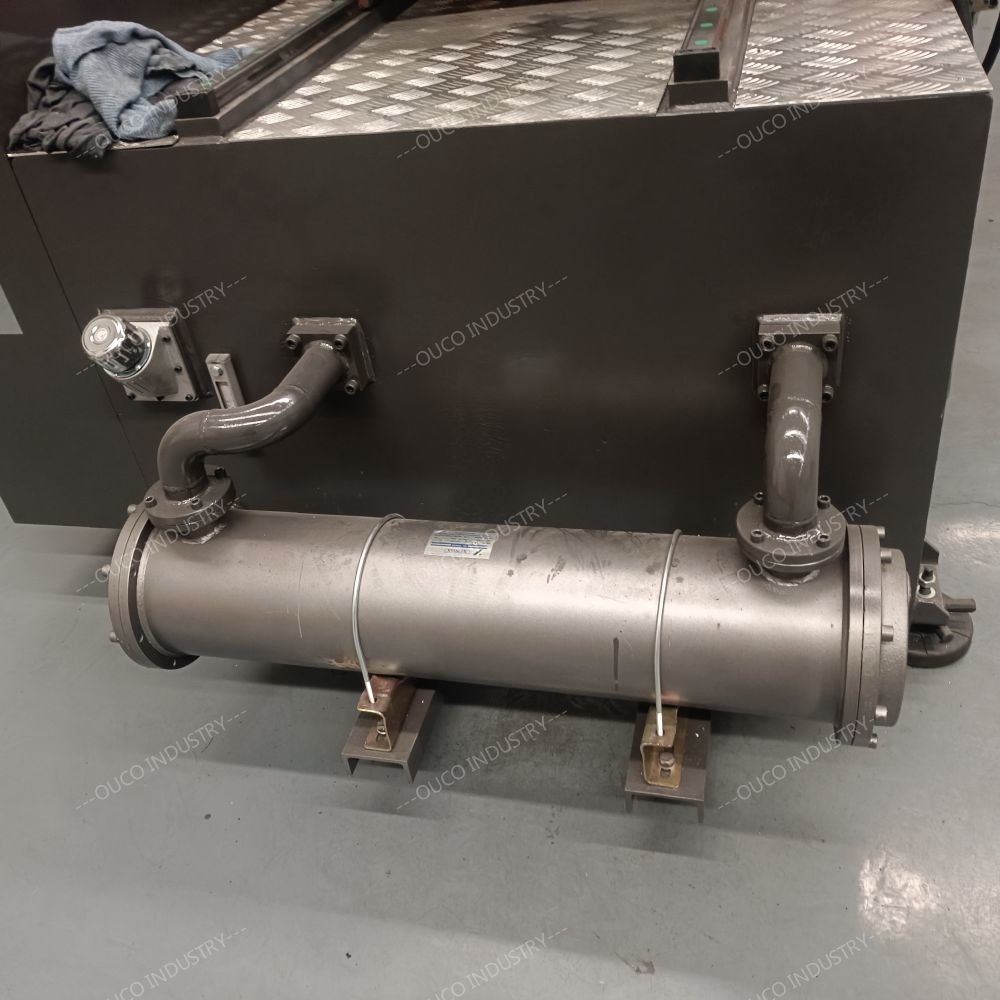

Detailed Pictures
