| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-370T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |
| Product Name: | 200-450T Injection Plastic Moulding Machine With Automatic Exchange Of Molds IN China | Plastic Processed:: | PP, PC,PVC |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |
| Highlight: | 200T Automatic Injection Moulding Machine,ISO9001 Plastic Automatic Injection Moulding Machine,PVC vertical injection moulding machine |
||
What we can do for you?
- Professional pre-sales and after-sales service
- Detailed production schedule updated regularly
- Delivery on time and short production time
- Customize the machine according to your requirements
- Well-trained engineers will offer you any technical support
Advantage of OUCO GH Servo Plastic Molding Machine
Intelligent motion control for short dry cycle times
Tailor-made servo drives
Square tie bar distance for more freedom
Linear guides (optional)
Intelligent mold protection
Application-oriented injection units
Latest control technology
Product Paraments
| GH电液混合动力系列 | ||||||||||||||
| 机型 | CWI-220GH | CWI-280GH | CWI-350GH | CWI-450GH | ||||||||||
| 合模装置 | 锁模力 Kn | Clamping Force | 2200 | 2800 | 3500 | 4500 | ||||||||
| 拉杆间距 mm | Space Between Tie-bars | 570×570 | 630×630 | 710×710 | 820×820 | |||||||||
| 开模最大开距 mm | Clamping Stroke | 500 | 550 | 610 | 790 | |||||||||
| 最大模厚 mm | Mould Thickness Max | 600 | 650 | 720 | 800 | |||||||||
| 最小模厚 mm | Mould Thickness Min | 220 | 240 | 260 | 300 | |||||||||
| 模板尺寸 mm | Size of Platen | 830×830 | 915×915 | 1020×1020 | 1170×1170 | |||||||||
| 顶出长度 mm | Ejector Stroke | 170 | 170 | 200 | 220 | |||||||||
| 顶出力 Kn | Ejector Force | 76 | 76 | 76 | 113 | |||||||||
| 顶针数 | Ejector Quantily | 9 | 13 | 13 | 13 | |||||||||
| 注射装置 | 射胶装置 | Injection Unit | 650IH | 860IH | 860IH | 860IH | ||||||||
| 螺杆直径 mm | Screw Diameter | 35 | 40 | 45 | 45 | 50 | 55 | 45 | 50 | 55 | 45 | 50 | 55 | |
| 螺杆长径比 | Screw L/D ratio | 24.3 | 23.7 | 21 | 23.3 | 21 | 18.9 | 23.3 | 21 | 18.9 | 23.3 | 21 | 18.9 | |
| 理论射胶容积 cm3 | Shot Size | 173 | 226 | 286 | 349 | 431 | 518 | 349 | 431 | 518 | 349 | 431 | 518 | |
| 注射重量 (PS)g | Shot Weight | 157 | 206 | 260 | 318 | 392 | 471 | 318 | 392 | 471 | 318 | 392 | 471 | |
| oz | 5.6 | 7.3 | 9.2 | 11.2 | 13.8 | 16.6 | 11.2 | 13.8 | 16.6 | 11.2 | 13.8 | 16.6 | ||
| 注塑压力 Mpa | Injection Pressure | 270 | 207 | 158 | 239 | 194 | 157 | 239 | 194 | 157 | 239 | 194 | 157 | |
| 注射速度 mm/s | Injection Speed | 300 | 300 | 300 | 300 | |||||||||
| 注塑速率 cm3/s | Injection Rate | 287 | 376 | 477 | 477 | 588 | 712 | 477 | 588 | 712 | 477 | 588 | 712 | |
| 螺杆最大转速 rpm | Screw Speed | 300 | 300 | 300 | 300 | |||||||||
| 其他 | 油泵电机功率 Kw | Motor Power | 22/42 | 30/75 | 30/75 | 30/75 | ||||||||
| 油泵排量 L/min | 139 | 220 | 220 | 220 | ||||||||||
| 电热功率 Kw | Heater Power | 10.87 | 13 | 13 | 13 | |||||||||
| 机器净重 ton | Machine Weight | 7.5 | 11.8 | 13 | 13 | |||||||||
| 机器尺寸(长×宽×高) mm | Machine Dimension | 5830×1640×1870 | 6375×1680×2075 | 6750×1920×2350 | 7960×2100×2460 | |||||||||

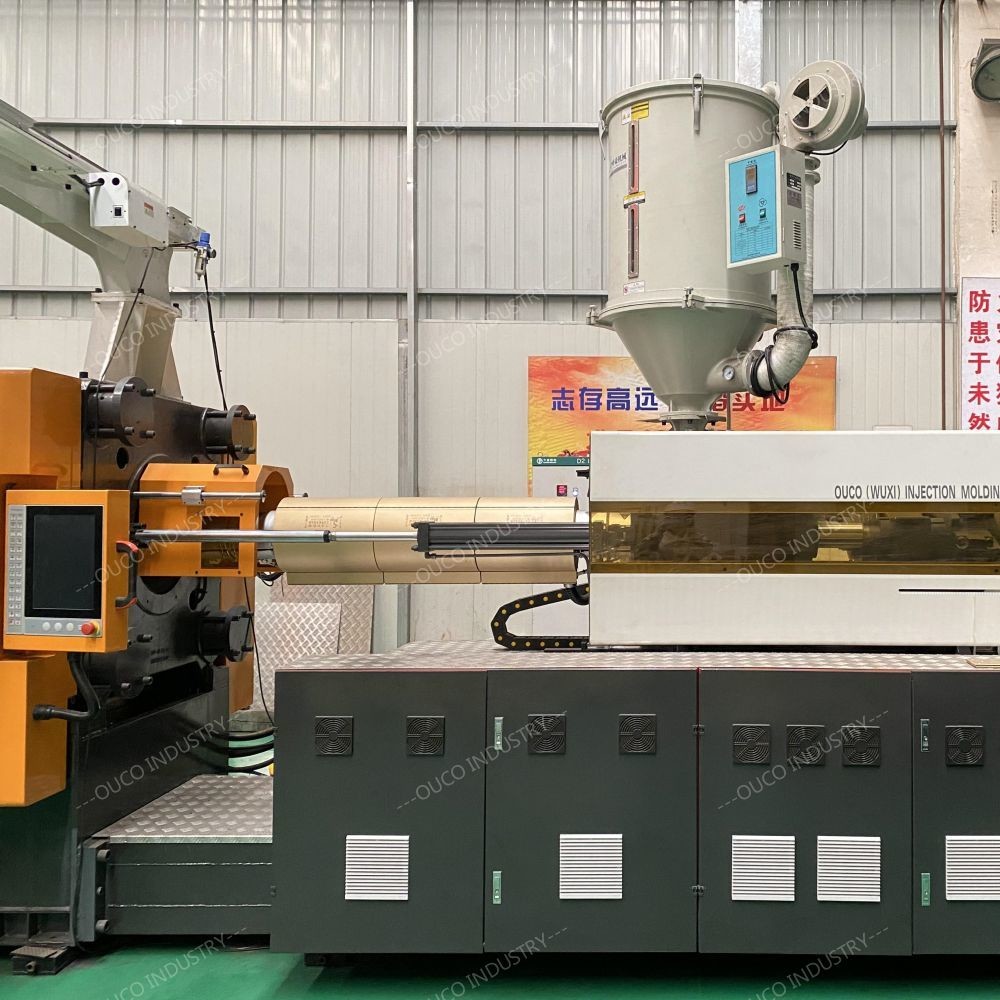

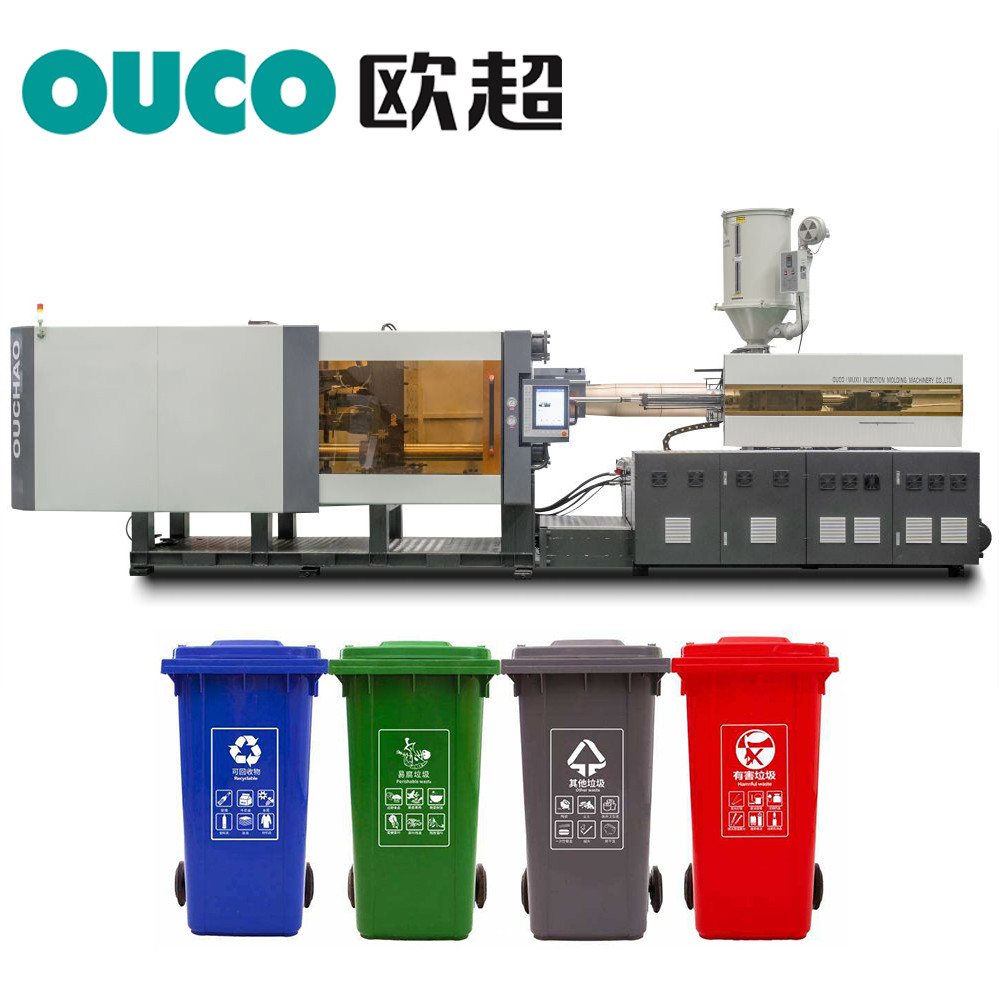

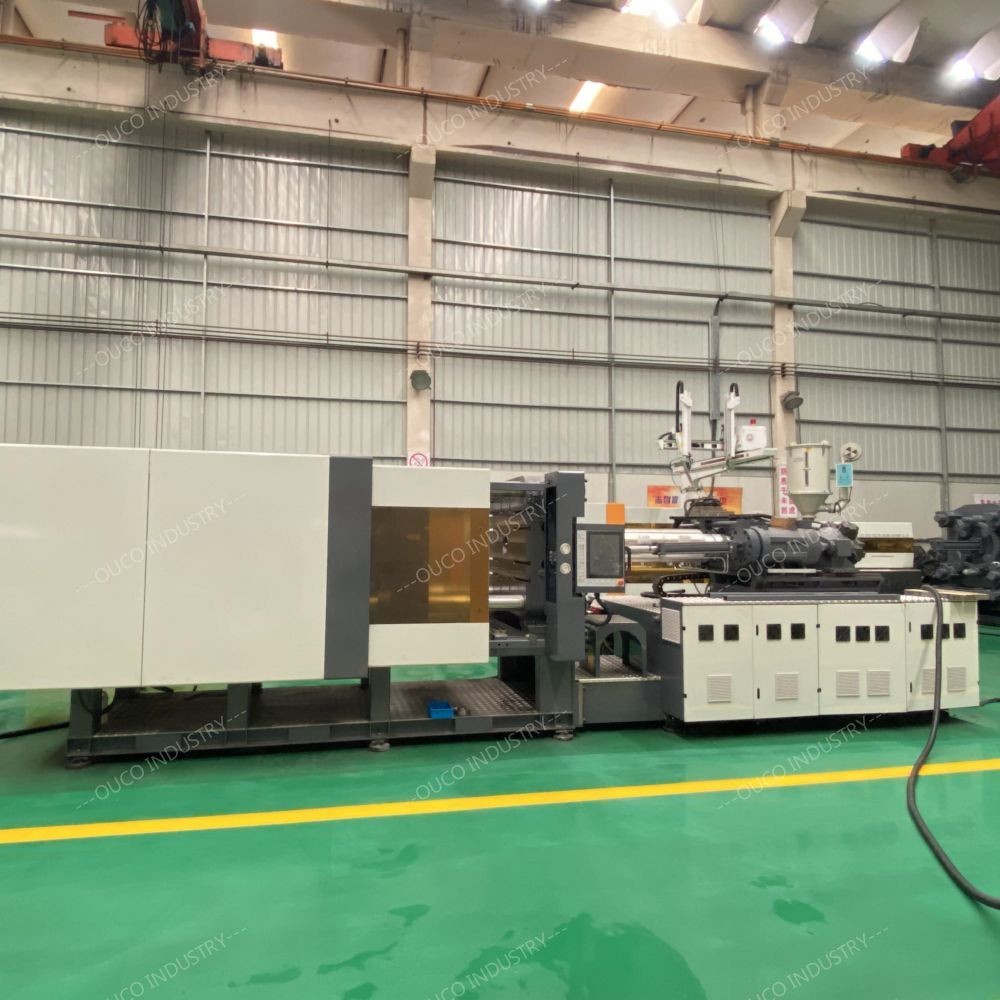

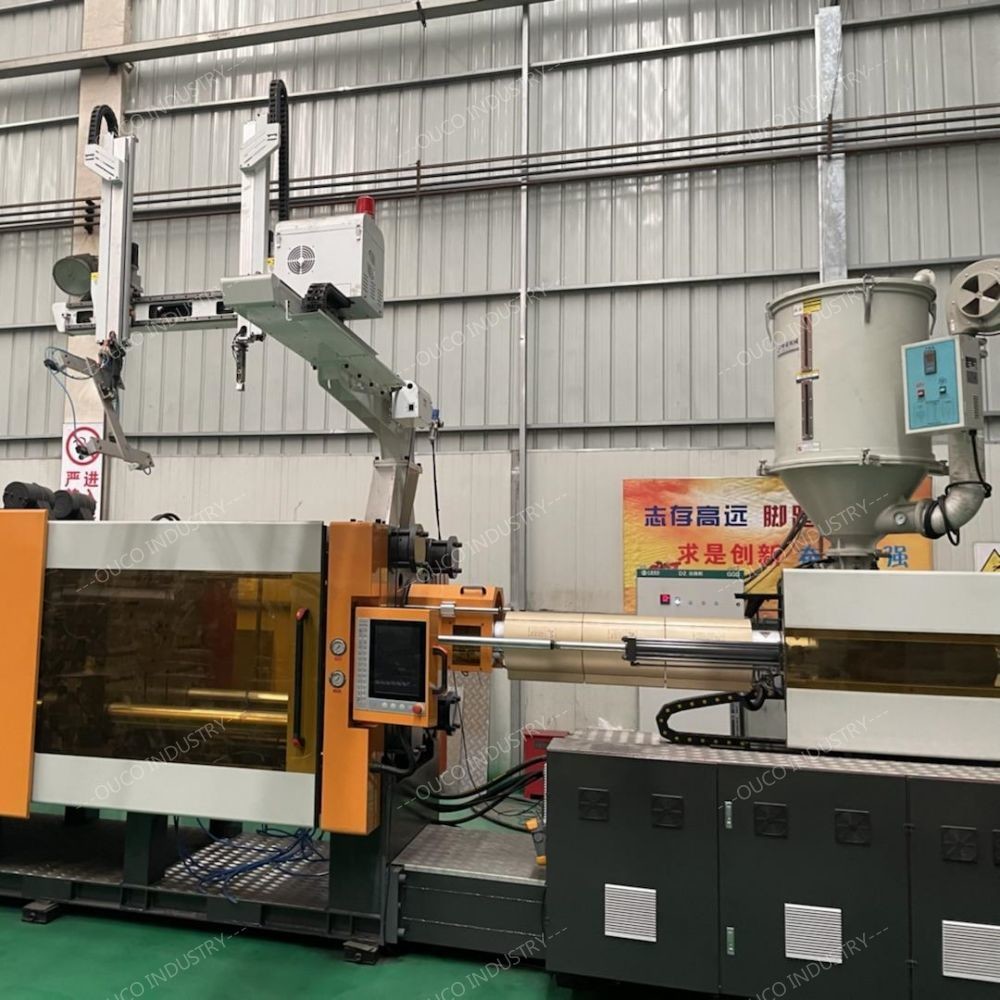

Detailed Pictures
