| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-CWI-1350S III |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | Energy Saving Servo Two-Platen Injection Molding Machine, Large Capacity | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| Highlight: | SGS two platen injection molding machine,3000mm two platen injection molding machine,1400mm Servo Injection Molding Machine |
||

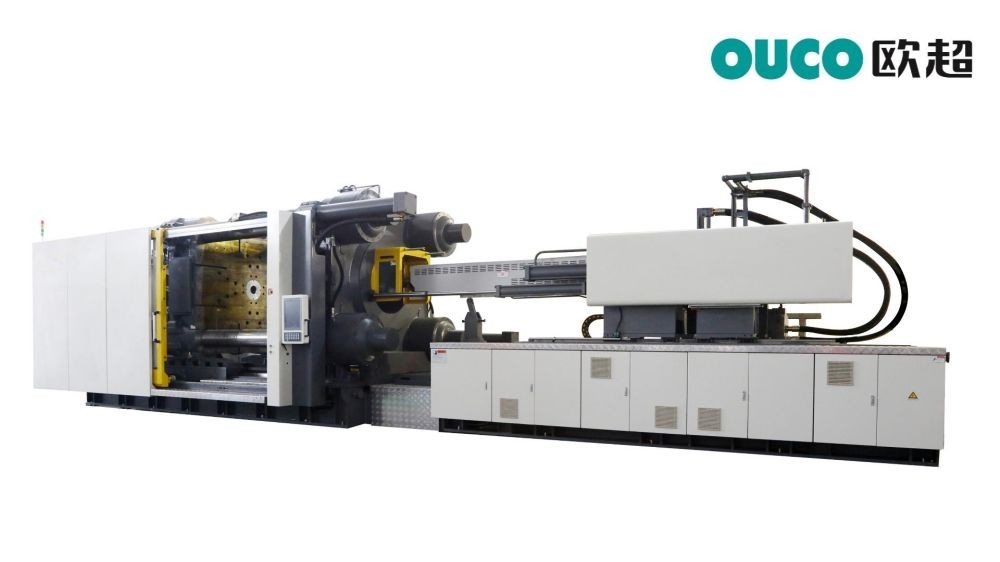

OUCO CWI-1350S III (18000I injection equipment) Horizontal Structure, suitable for plastic type of thermoplastic, screw type plasticizing, Hydraulic and Mechanical Clamping Way are all available, automatic control.
Product Advantages
1. All machine parts are supplied by well-known manufacturers with advanced quality control system
2. Adopting two-platen mould closing system for fast clamping speed and higher output cycle. Good material quality also ensures more durable formwork.
3. Four-cylinder direct clamping structure ensures stable high pressure and balanced clamping precise clamping force to improve mould life.
4. The automatic mould adjustment function is controlled by the computer. The data collected by the computer from sensors and analysis to ensure mould closing accuracy.
5. The injection unit adopts linear motion to ensure the stability and accuracy of the injection
6. Pressure and hydraulic flow are controlled by a highly responsive closed-loop servo system. This is fast and energy saving.
7. The hydraulic system adopts Japanese famous brand of hydraulic parts and cartridge logic
valve hydraulic circuit improves the system response speed.
Parameters
| MODEL | CWI-1350S III | |||||||||
| CLAMPING UNIT | clamping force (kN) | 13500 | ||||||||
| Tie bar distance W×L (mm) | 1420*1220 | |||||||||
| Max.Daylight(mm) | 3000 | |||||||||
| Max. mold thickness (mm) | 1400 | |||||||||
| Min. mold thickness(mm) | 650 | |||||||||
| Platen Dimensions W×L (mm) | 2100*1900 | |||||||||
| Ejector Stroke(mm) | 400 | |||||||||
| Ejector Force(Kn) | 341 | |||||||||
| Ejector Quantily | 25 | |||||||||
| Injection unit | 6600I | |||||||||
| Injection Unit | Screw Diameter(mm) | 130 | 140 | 150 | ||||||
| Screw L/D ratio | 22.6 | 21 | 19.6 | |||||||
| Theoretical injection volume (cm3) | 8821 | 10231 | 11744 | |||||||
| Shot Weight (PS) g | 8027 | 9310 | 10687 | |||||||
| Injection Pressure(MPa) | 203 | 176 | 152 | |||||||
| Injection Speed (mm/s) | 74 | |||||||||
| Injection Rate (cm3/s) | 835 | 969 | 1112 | |||||||
| Screw Speed (rpm) | 10-160 | |||||||||
| Other | Motor Power (Kw) | 89.26 | ||||||||
| pump capacity(L/min) | 650 | |||||||||
| Heater Power (Kw) | 50+50+50+7.5 | |||||||||
| Machine Weight (Ton) | 65 | |||||||||
| Machine size L×W×H (mm) | 12500x3500x2900 | |||||||||
