| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-CWI-1350S III |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

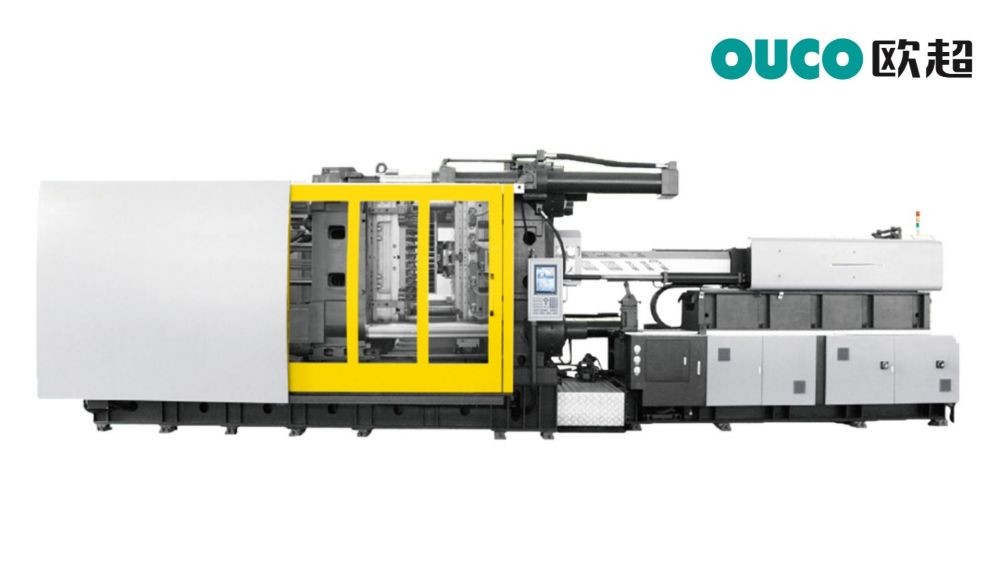

| Product Name: | Full Automatic PET Garbage Can Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| Highlight: | 341Kn Horizontal Injection Molding Machine,650mm Horizontal Injection Molding Machine,SGS PET Injection Molding Machine |
||
1. High efficient mixing of PET special screw, with the ceramic heating ring, significantly improves the melt glue speed and injection
2. Reduce the plasticizing temperature and the AA value. Effectively improve the contraction problem of products, and improve transparency.
3. The servo control system saves 30%~50% power better than the conventional machine.
4. The variable pump control system saves 20%~30% power more than conventional machines.
5. Special coated chrome PET screw with a large aspect ratio, fully meet the requirements of PET transparency and plastic quality, prevent accumulation of material, easy to clean.
6. Large top output and top stroke meet the needs of PET bottle embryo molding.
PET series bottle embryo special injection molding machine, the special plasticizing system is designed for PET forming characteristics. According to the characteristics of PET molding and the design of a special molding system, the machine specifications are complete, and suitable for a variety of different bottle embryo selections.
Parameters
| MODEL | CWI-1350S III | |||||||||
| CLAMPING UNIT | clamping force (kN) | 13500 | ||||||||
| Tie bar distance W×L (mm) | 1420*1220 | |||||||||
| Max.Daylight(mm) | 3000 | |||||||||
| Max. mold thickness (mm) | 1400 | |||||||||
| Min. mold thickness(mm) | 650 | |||||||||
| Platen Dimensions W×L (mm) | 2100*1900 | |||||||||
| Ejector Stroke(mm) | 400 | |||||||||
| Ejector Force(Kn) | 341 | |||||||||
| Ejector Quantily | 25 | |||||||||
| Injection unit | 11000I | |||||||||
| Injection Unit | Screw Diameter(mm) | 110 | 120 | 130 | ||||||
| Screw L/D ratio | 22.9 | 21 | 19.4 | |||||||
| Theoretical injection volume (cm3) | 5461 | 6500 | 7628 | |||||||
| Shot Weight (PS) g | 4969 | 5915 | 6941 | |||||||
| Injection Pressure(MPa) | 209 | 176 | 145 | |||||||
| Injection Speed (mm/s) | 85 | |||||||||
| Injection Rate (cm3/s) | 809.00 | 964.00 | 1131.00 | |||||||
| Screw Speed (rpm) | 10-225 | |||||||||
| Other | Motor Power (Kw) | 85 | ||||||||
| pump capacity(L/min) | 650 | |||||||||
| Heater Power (Kw) | 50+50+50+7.5 | |||||||||
| Machine Weight (Ton) | 65 | |||||||||
| Machine size L×W×H (mm) | 12500x3500x2900 | |||||||||
