| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-CWI110GB |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | OUCO CWI-800S III Two-plate Large Plastic Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |

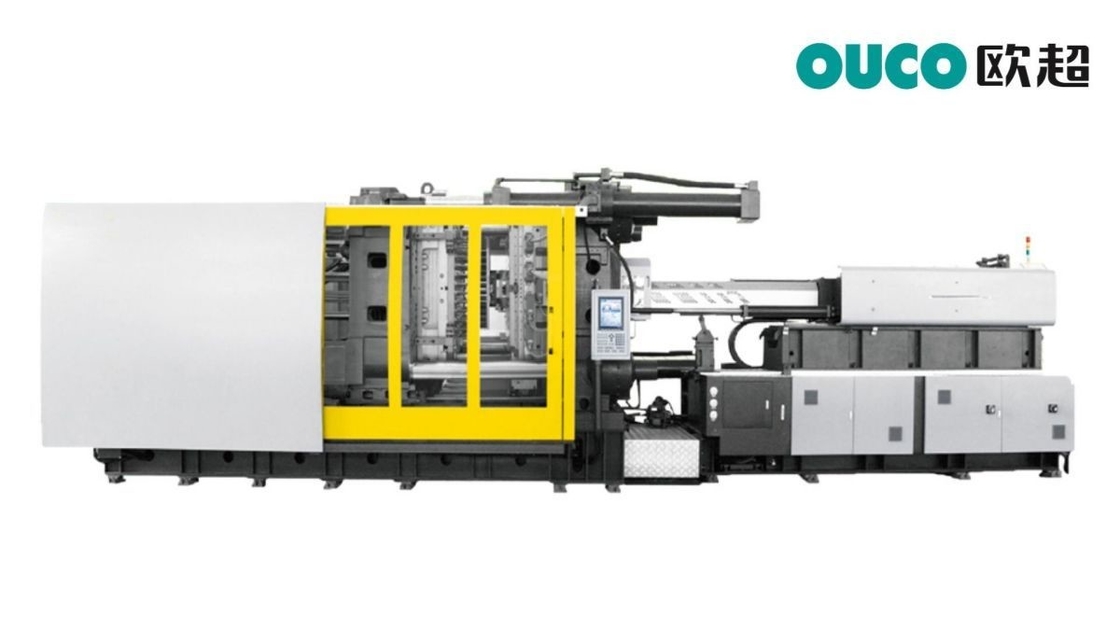

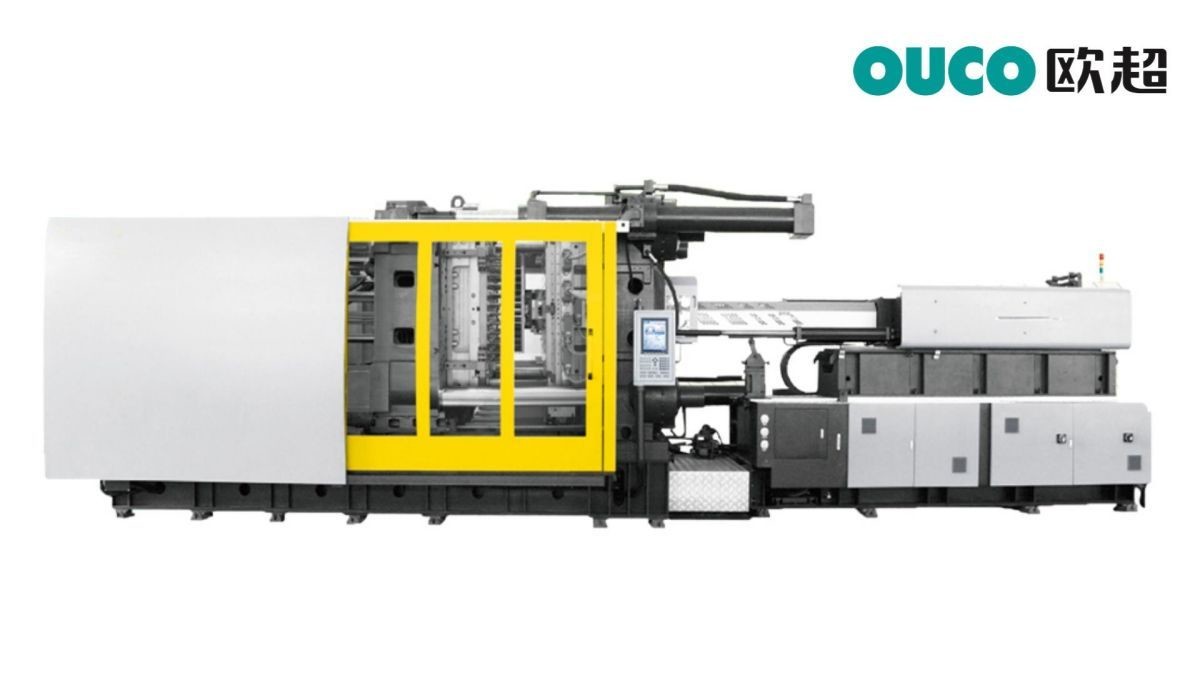

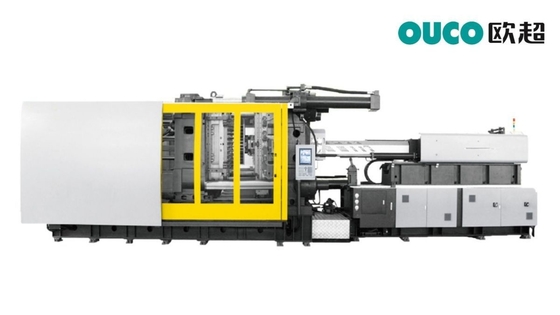

OUCO CWI-800S III two-plate injection moulding machines are used to manufacture plastic fruit baskets, auto parts, plastic trash cans. The four-cylinder direct clamping structure ensures its durability and extended service life.
Product Advantages
1. All machine parts are supplied by well-known manufacturers with the advanced QC system
2. With the two-platen clamping system, the clamping speed is fast and improves the production cycle. The good quality of material also ensures the mold platen is more durable.
3. Four-cylinder direct clamping structure ensures high-pressure stability, clamping balance, and precise of clamping force which improves the lifetime of the mold.
4. Auto-mold adjusting function is controlled by computer. Computer collected data from transducers and analyzed. It ensures mold clamping precision.
5. Injection unit with the linear guide ensures the injection stability and precision
6. Pressure and hydraulic flow are controlled by a high response closed loop servo system. The speed is fast and energy-saving.
7. Hydraulic System adopts hydraulic parts from a Japanese famous brand and the cartridge logic valve hydraulic circuit improves the system response speed.
Parameters
| MODEL | CWI-800S III | |||||||||
| CLAMPING UNIT | clamping force (kN) | 8000 | ||||||||
| Tie bar distance W×L (mm) | 1070*970 | |||||||||
| Max.Daylight(mm) | 2500 | |||||||||
| Max. mold thickness (mm) | 1200 | |||||||||
| Min. mold thickness(mm) | 500 | |||||||||
| Platen Dimensions W×L (mm) | 1590*1490 | |||||||||
| Ejector Stroke(mm) | 280 | |||||||||
| Ejector Force(Kn) | 212 | |||||||||
| Ejector Quantily | 25 | |||||||||
| Injection unit | 4000I | |||||||||
| Injection Unit | Screw Diameter(mm) | 80 | 85 | 90 | ||||||
| Screw L/D ratio | 22.3 | 21 | 19.8 | |||||||
| Theoretical injection volume (cm3) | 2059 | 2325 | 2606 | |||||||
| Shot Weight (PS) g | 1895 | 2139 | 2398 | |||||||
| Injection Pressure(MPa) | 196 | 174 | 155 | |||||||
| Injection Speed (mm/s) | 135 | |||||||||
| Injection Rate (cm3/s) | 680 | 768 | 861 | |||||||
| Screw Speed (rpm) | 10-205 | |||||||||
| Other | Motor Power (Kw) | 43.85 | ||||||||
| pump capacity(L/min) | 500 | |||||||||
| Heater Power (Kw) | 50+50+7.5 | |||||||||
| Machine Weight (Ton) | 35 | |||||||||
| Machine size L×W×H (mm) | 9400x2600x2600 | |||||||||

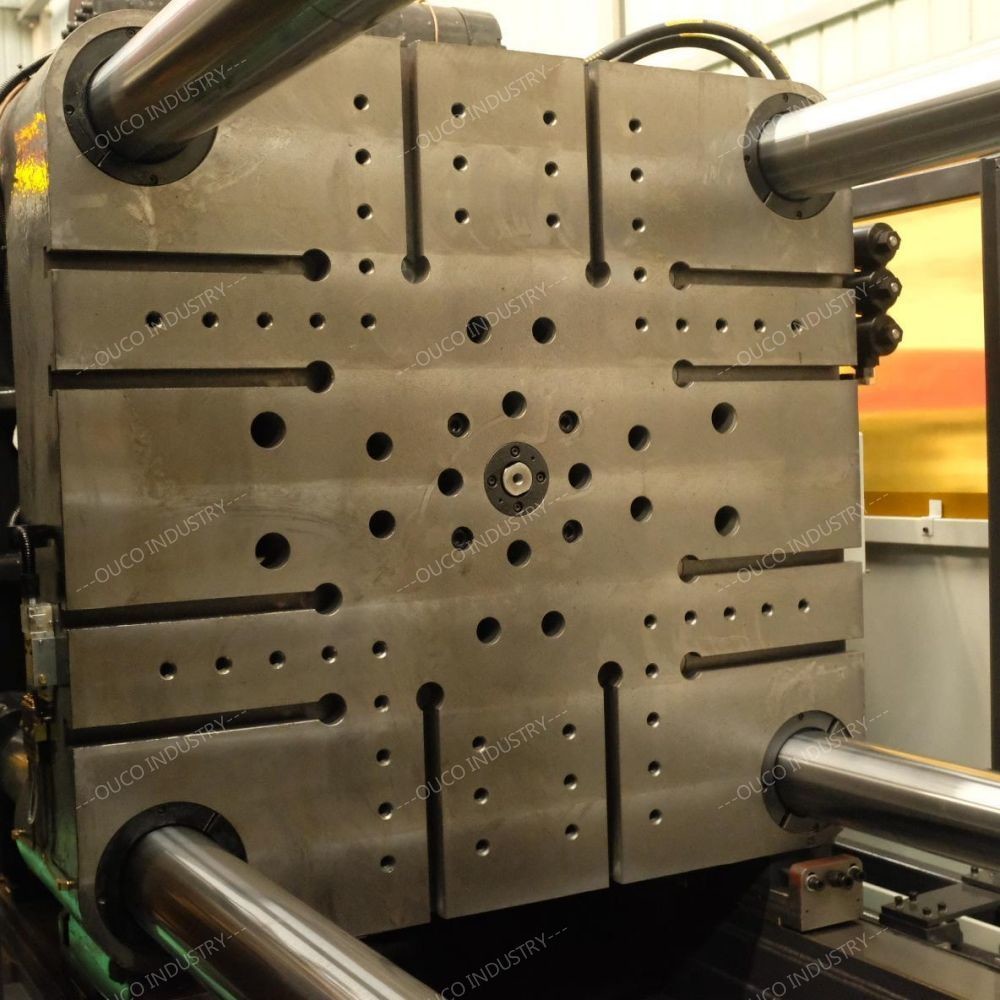

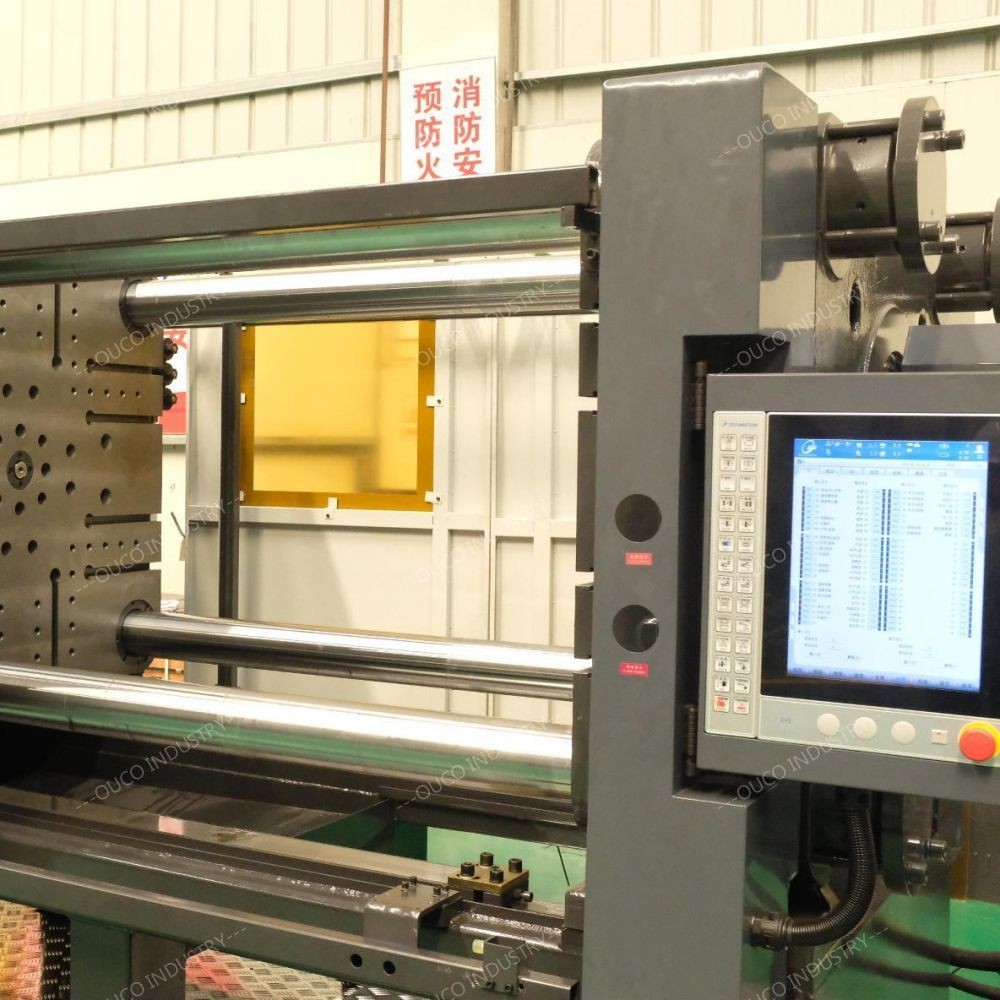

Detail Pictures
