| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE |
| Model Number: | OUCO-1100DK |
| Minimum Order Quantity: | 1 |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2500 Set/Sets per Year |

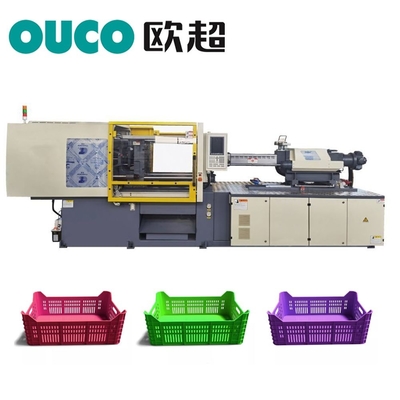

| Name: | 1350 Ton Two Platen Horizontal Rubber Injection Moulding Machine With High Quality | Automatic: | Yes |
|---|---|---|---|
| Opening Stroke:: | Horizontal | Certification:: | ISO9001:2008,CE,TUV |
| Power: | 72kW | Clamping Force: | 1429KN |
| Injection Rate: | 165mm/s |
Essential details
Condition:New
Style:Horizontal
Clamping Force:1429KN
Type:Preform Injection
After-sales Service Provided:Engineers available to service machinery overseas
Name:Two Platen Injection Moulding Machine
Product name:injection molding plastic
Plastic Type:Thermoplastic
Automatic:Yes
Injection Rate:111mm/s
Injection Weight:5071-7083g
Power:72-87kW
Certification:ISO9001:2008,CE,TUV
Opening Stroke:2200/1500mm
Two Platen Injection Moulding Machine
Two platen design, super open stroke.
Electrical clamp fast movement driven by servo motor and ball screw spindle, shorter cycle time, more precise.
High stiffness platen support, bigger mold weight capacity.
Pressure build- up in 4 cylinder synchronously, more even clamp force, longer service life.
Fast mold change, shorter tie- bar, easy to add additional device of tie- bar puller.
Less moving compoment, less lubrication point, less maintenance cost.
Excellence KEBA controller, touch screen, easy operation, stable and reliable.
| CWI-1350S Ⅲ | |||||||||||
| 机型 | 1350S Ⅲ | ||||||||||
| 合模装置 | 锁模力 Kn | Clamping Force | 13500 | ||||||||
| 拉杆间距 mm | Space Between Tie-bars | 1420×1220 | |||||||||
| 开模最大开距 mm | Clamping Stroke | 3000 | |||||||||
| 最大模具 mm | Mould Thickness Max | 1400 | |||||||||
| 最小模具 mm | Mould Thickness Min | 650 | |||||||||
| 模板尺寸 mm | Size of Platen | 2100×1900 | |||||||||
| 顶出长度 mm | Ejector Stroke | 400 | |||||||||
| 顶出力 Kn | Ejector Force | 341 | |||||||||
| 顶针数 | Ejector Quantily | 25 | |||||||||
| 注塑装置 | 射胶配置 | Injection Equipment | 6600I | 11000I | 18000I | ||||||
| 螺杆直径 mm | Screw Diameter | 90 | 100 | 110 | 110 | 120 | 130 | 130 | 140 | 150 | |
| 螺杆长径比 | Screw L/D ratio | 23.3 | 21 | 19.1 | 22.9 | 21 | 19.4 | 22.6 | 21 | 19.6 | |
| 理论射胶容积 cm3 | Shot Size | 3052 | 3768 | 4559 | 5461 | 6500 | 7628 | 8821 | 10231 | 11744 | |
| 实际射胶量 (PS)g | Shot Weight | 2777 | 3428 | 4148 | 4969 | 5915 | 6941 | 8027 | 9310 | 10687 | |
| oz | 99.0 | 122.3 | 148.0 | 177.2 | 210.9 | 247.5 | 286.6 | 332.0 | 381.0 | ||
| 射胶压力 MP | Injection Pressure | 215 | 174 | 144 | 209 | 176 | 145 | 203 | 176 | 152 | |
| 注射速率 mm/s | Injection Rate | 788.0 | 974.0 | 1177.0 | 809.0 | 964.0 | 1131.0 | 835.0 | 969.0 | 1112.0 | |
| 射胶速度 cm3/s | Injection Speed | 124 | 85 | 74 | |||||||
| 螺杆转速 g/s | Screw Speed | 10~225 | 10~160 | ||||||||
| 塑化能力 rpm | Plasticising Capacity | 78.0 | 83.0 | 111.0 | 102.0 | 126.0 | 146.0 | 142.0 | 155.0 | 165.0 | |
| 电力及其他 | 油箱容积 L | Oil Tank Capacity | 1300 | ||||||||
| 电热功率 Kw | Heater Power | 58 | 85 | 89.26 | |||||||
| 电热区数 L | Team Control zone | 5+1 | |||||||||
| 系统压力 MPa | System Pressure Max | 16 | |||||||||
| 油泵输量 L/min | Pump Output | 650 | |||||||||
| 电机功率 Kw | Servo Power | 50+50+50+7.5 | |||||||||
| 机器净重 ton | Machine Weight | 65 | |||||||||
| 机器尺寸(长×宽×高) mm | Machine Dimension | 12500×3500×2900 | |||||||||
BL DK two platen machine, develop by German expert team, with European advanced technology, focus on automotive
and home appliances, offering high precision and high stability injection molding solutions for customers.
100% clamping force use.
Less possibility of flash, save flash trim work.
Save 2% - 5% material.
Offer good protection to mould, platens and tie bars.
Opening stroke 10 - 20% longer.
With heavy clamping force waste, only 80 - 85% efficiency.
Moving platen with obvious deformation, cause flashes, wsaste of material and labor of trim the flashes.
