| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE |
| Model Number: | CWI-450GB |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |
| Product Name: | Servo Injection Plastic Making Machine CWI-400GB | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
Jiangsu OUCO Heavy Industry Technology Group was founded in February 1984. The company is located in the beautiful Taihu Lake, the foot of Lingshan Mountain, is a high-tech enterprise in Wuxi Huishan District Yangshan Industrial Park. In 2021, the Group invested to establish OUCO (Wuxi) injection molding machinery equipment Co., Ltd. The company covers an area of 35,000 square meters, and the factory covers 25,000 square meters. The company is committed to developing and manufacturing high-quality and high-performance injection molding equipment for automotive parts, medical equipment, large pipe fittings, garbage cans, trays, fruit baskets and other market fields, and customizing efficient, energy-saving and professional production solutions for customers.
OUCO creates a new G-Series product with European standards. SV servo energy-saving system has 8 specifications with clamping force ranging from 110 tons to 600 tons. Each specification can also be selected with 2 or 3 different injection structures according to customer product requirements.
The passionate pursuit of perfection. OUCO has always been committed to meet the needs of customers, create more value for customers is the super injection eternal ideas. we will, as always in the market front, fear hardships and challenges, in energy conservation, automation, machine motors, humanization aspects of continuous efforts, bring customers the greatest return on investment.
Parameters
| Model | 300T | 400T | 500T | |||||||
| Screw Specifications | A | B | C | A | B | C | A | B | C | |
| Screwdi ameter | mm | 50 | 60 | 65 | 65 | 75 | 80 | 70 | 75 | 85 |
| Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| Theoretical injection volume | cm3 | 638 | 918 | 1078 | 1C75 | 1431 | 1628 | 1481 | 1700 | 2184 |
| Shot weight (PS) | g | 593 | 853 | 1002 | 1C11 | 1345 | 1530 | 1377 | 1581 | 2031 |
| injection rate(Ps) | g/S | 330 | 475 | 558 | 426 | 568 | 646 | G03 | 693 | 890 |
| Injection pressure | MPa | 286 | 198 | 169 | 242 | 182 | 160 | 209 | 182 | 142 |
| Inject on stroke | mm | 325 | 360 | 385 | ||||||
| Max. injection speed | mm/s | 178 | 156 | 166 | ||||||
| Screw speed | r/min | 0-200 | 0-200 | 0-200 | ||||||
| Sys. Pressure | MPa | 16 | 16 | 16 | ||||||
| Pump Motor(Min-Max) | kW | 63 | 75 | 94 | ||||||
| Displacement | ml/r | 163 | 100+100 | 125+125 | ||||||
| number of Motors | PC | 1 | 2 | 2 | ||||||
| Heater power | kW | 27 | 35 | 41 | ||||||
| Number oftemp. control zones | 5+1 | 5+1 | 5+1 | |||||||
| Clamping force | kN | 3000 | 4000 | 5000 | ||||||
| Opening stroke | mm | 800 | 900 | 1000 | ||||||
| Tie bar distance W×L | mm*mm | 680x680 | 760x660 | 860x760 | ||||||
| Min. mold thickness | mm | 210 | 300 | 300 | ||||||
| Max. mold thickness | mm | 680 | 730 | 800 | ||||||
| Ejector stroke | mm | 190 | 190 | 210 | ||||||
| Ejector force forward | kN | 62 | 80 | 110 | ||||||
| Number of ejector bar | PC | 1+12 | 1+12 | 1+12 | ||||||
| Oil tank capacity | L | 510 | 680 | 850 | ||||||
| Machine dimensions(LxWxH) | m*m*m | 7.7x1.8x1.8 | 8.2x1.9x1.9 | 87x2.0x2.1 | ||||||
| Machine weight | Ton | 10.5 | 15 | 19 | ||||||

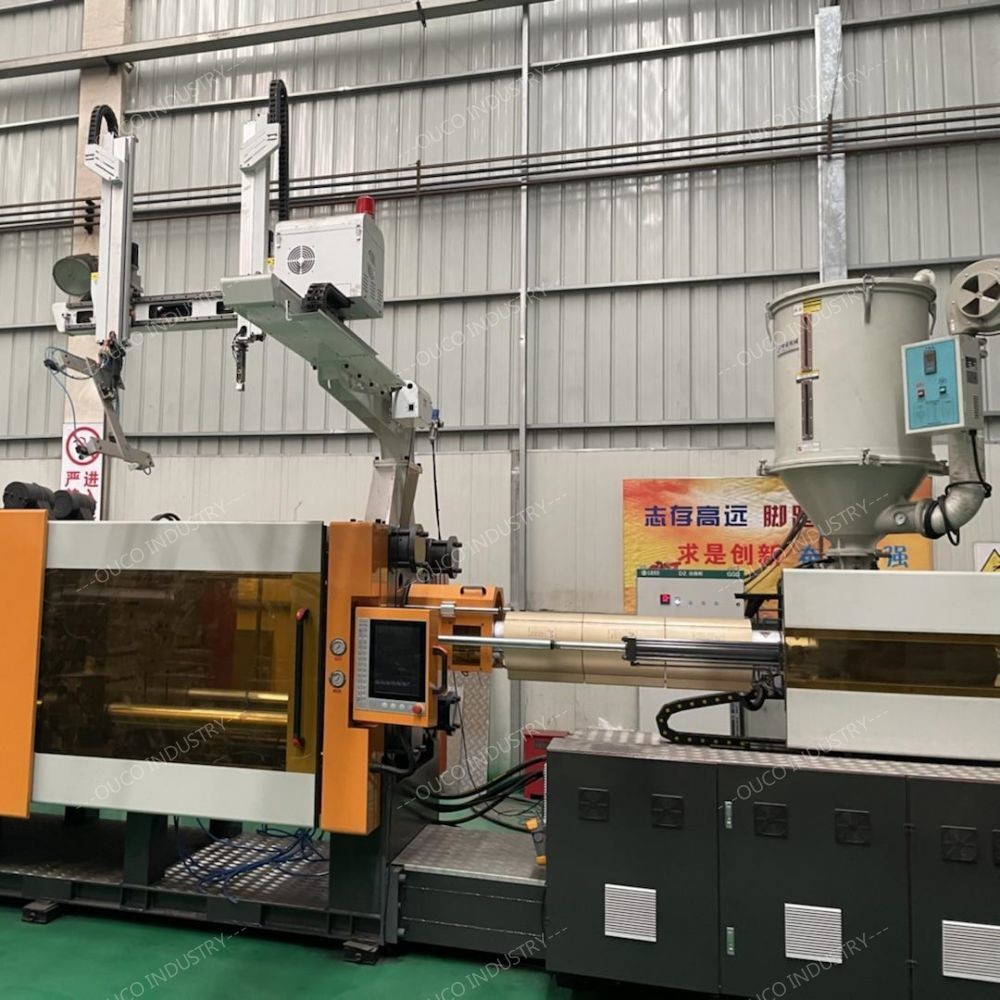

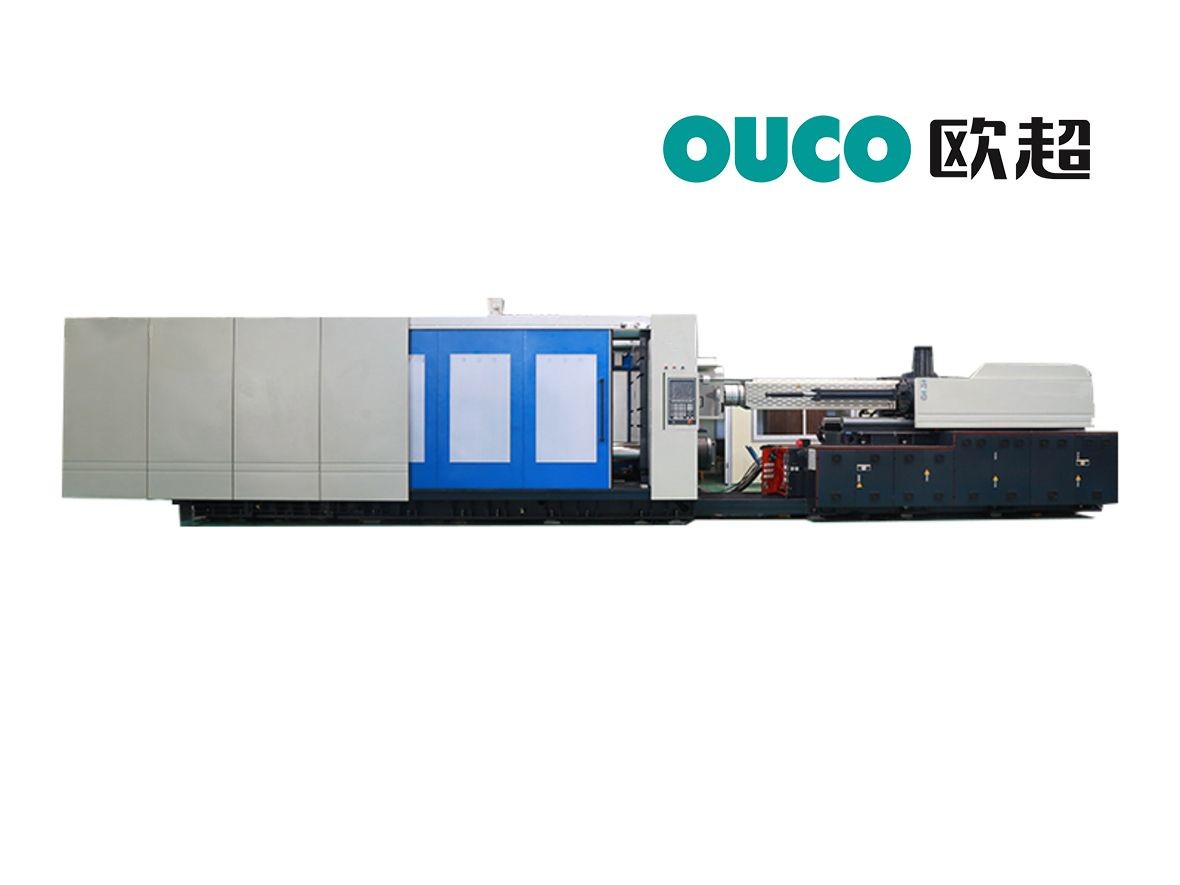

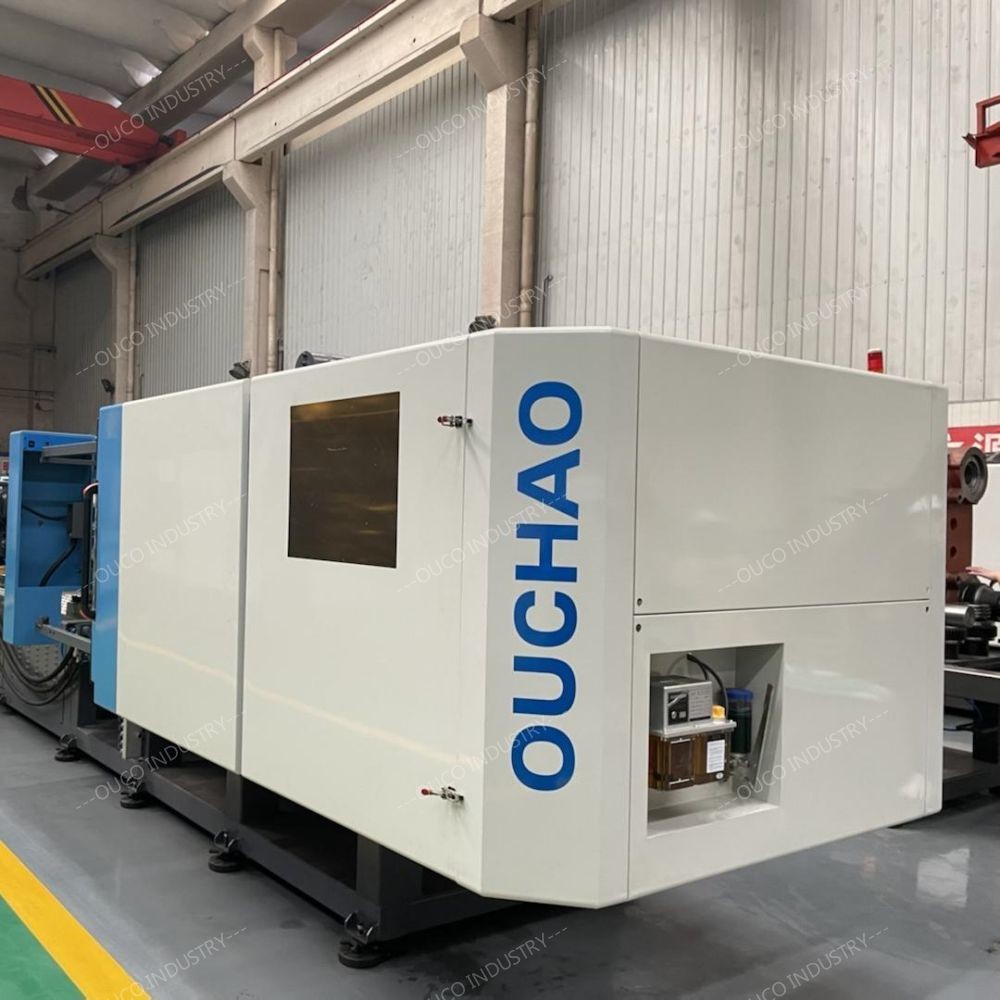

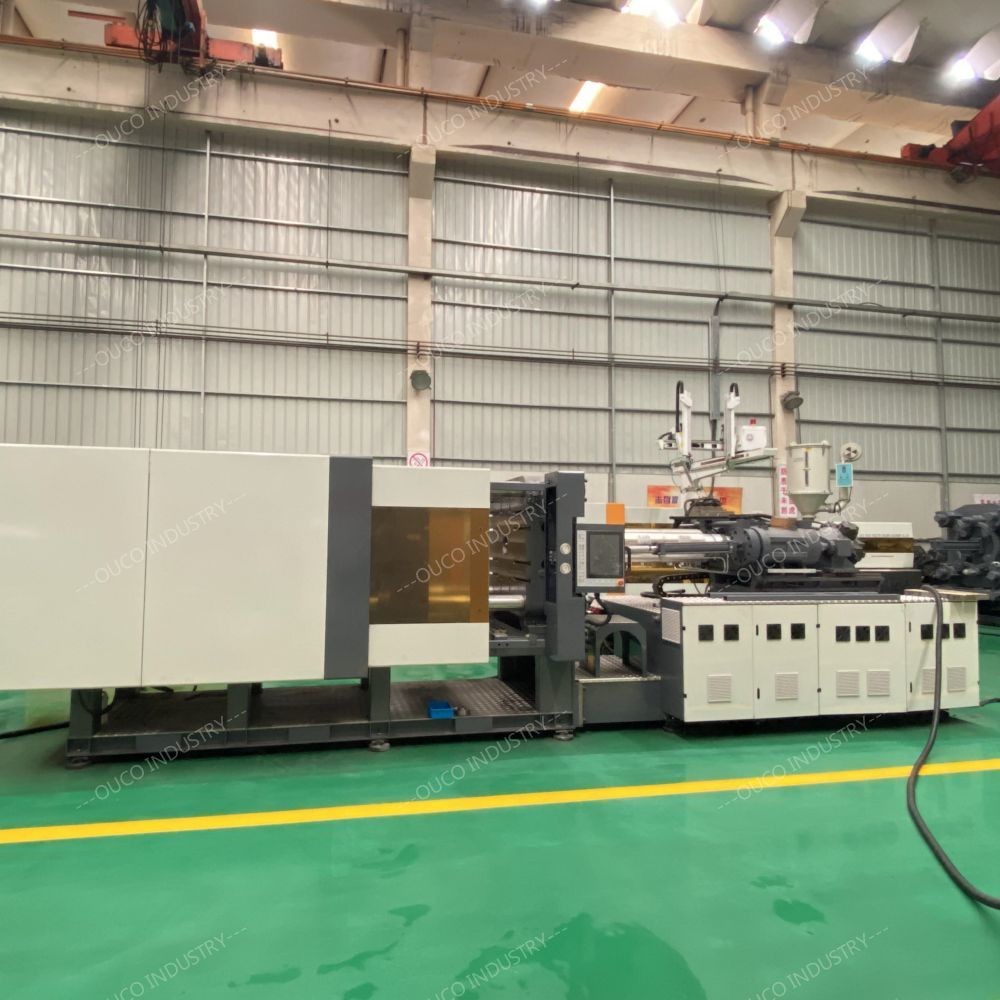

Detail Pictures
