| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-230H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | OUCO 230 Ton High Speed Plastic Injection Molding Machine Bucket Making Machine For Industrial Trash Can | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| Highlight: | 230 Ton Bucket Injection Molding Machine,High Speed Bucket Injection Molding Machine,230t plastic bucket injection moulding machine |
||

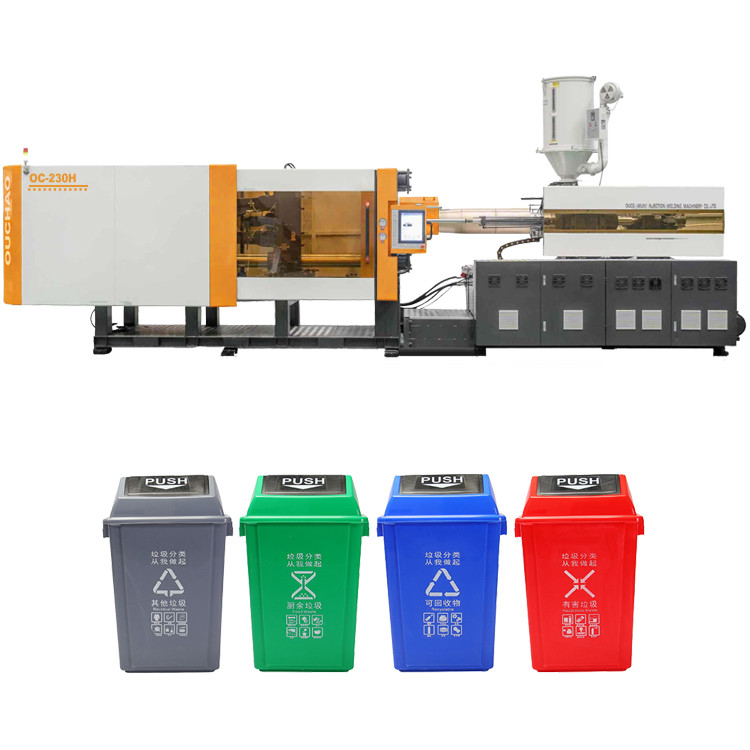

OUCO 230 Ton High Speed Plastic Injection Molding Machine Bucket Making Machine For Industrial Trash Can
Features of OC-230H:
Our injection molding machines are designed for high-precision and high-efficiency production needs. Whether it is daily household or industrial application, we can provide you with solutions. The OC series injection molding machines independently developed and designed by our OUCO are suitable for both industrial and household plastic fruit baskets, trays, trash cans, plastic chairs, plastic buckets, etc., and are widely used. This OC series 230-ton high-efficiency and energy-saving injection molding machine has an injection volume of 455g-657g and a tie rod spacing of 570mm*520mm. It is fully sufficient for the production of small and medium-sized plastic products. It is equipped with dual-cylinder injection, center clamping, energy-saving power system and other technologies. This is undoubtedly a very cost-effective injection molding machine.
Advantages of OC-230H high speed injection molding machine:
Large mold opening stroke: This model is particularly suitable for the production of deep-cavity products and products with complex structures. The increased mold opening stroke can easily cope with various large and deep-cavity molds, ensuring the flexibility and production efficiency of the mold.
Center clamping structure: The advanced center clamping technology is adopted to effectively improve the precision of the product. This design not only improves the uniformity of clamping, but also effectively protects the mold and template, prolongs the service life of the equipment, and reduces maintenance costs.
Wide applicability: This model is suitable for various types of molds and can be flexibly adjusted according to production needs. Whether it is the production of household appliance housings, auto parts, or electronic product housings, it can easily cope with and adapt to a variety of production scenarios.
Cost-effectiveness: This injection molding machine achieves an ideal balance between performance and price. It not only provides excellent production capacity and high precision, but is also cost-competitive, helping companies effectively reduce production costs and improve return on investment.
Parameters
| MODEL | OC-230H | ||
| Injection part | |||
| Screw type | A | B | C |
| Screw diameter (mm) | 50 | 55 | 60 |
| Screw L/D ratio(L/D) | 23.9 | 21.7 | 19.9 |
| Theoretical injection volume(cm³) | 500.7 | 605.8 | 721 |
| Injection volume (g) | 455.6 | 551.3 | 656.1 |
| Maximum rate for injection to air(g/s) | 142.9 | 173 | 205.8 |
| Injection pressure (M Pa) | 223 | 184.3 | 154.9 |
| Clamping part | |||
| Clamping force (Ton) | 2300 | ||
| Toggle stroke (mm) | 560 | ||
| Distance between tie bars(mm*mm) | 570*520 | ||
| Maximum mould height (mm) | 560 | ||
| Minimum mould height (mm) | 250 | ||
| Ejection stroke (mm) | 175 | ||
| Ejector force forward (KN) | 61.6 | ||
| Amount of die thimble (Pcs) | 1+8 | ||
| Others | |||
| Motor power (kW) | 18~25 | ||
| Heater power (kW) | 17 | ||
| Quantity of temperature-control zones | 4+1 | ||
| Boundary dimension(L*W*H) (m) | 5.7×1.4×2.0 | ||
| Sys.Pressure (Mpa) | 16 | ||

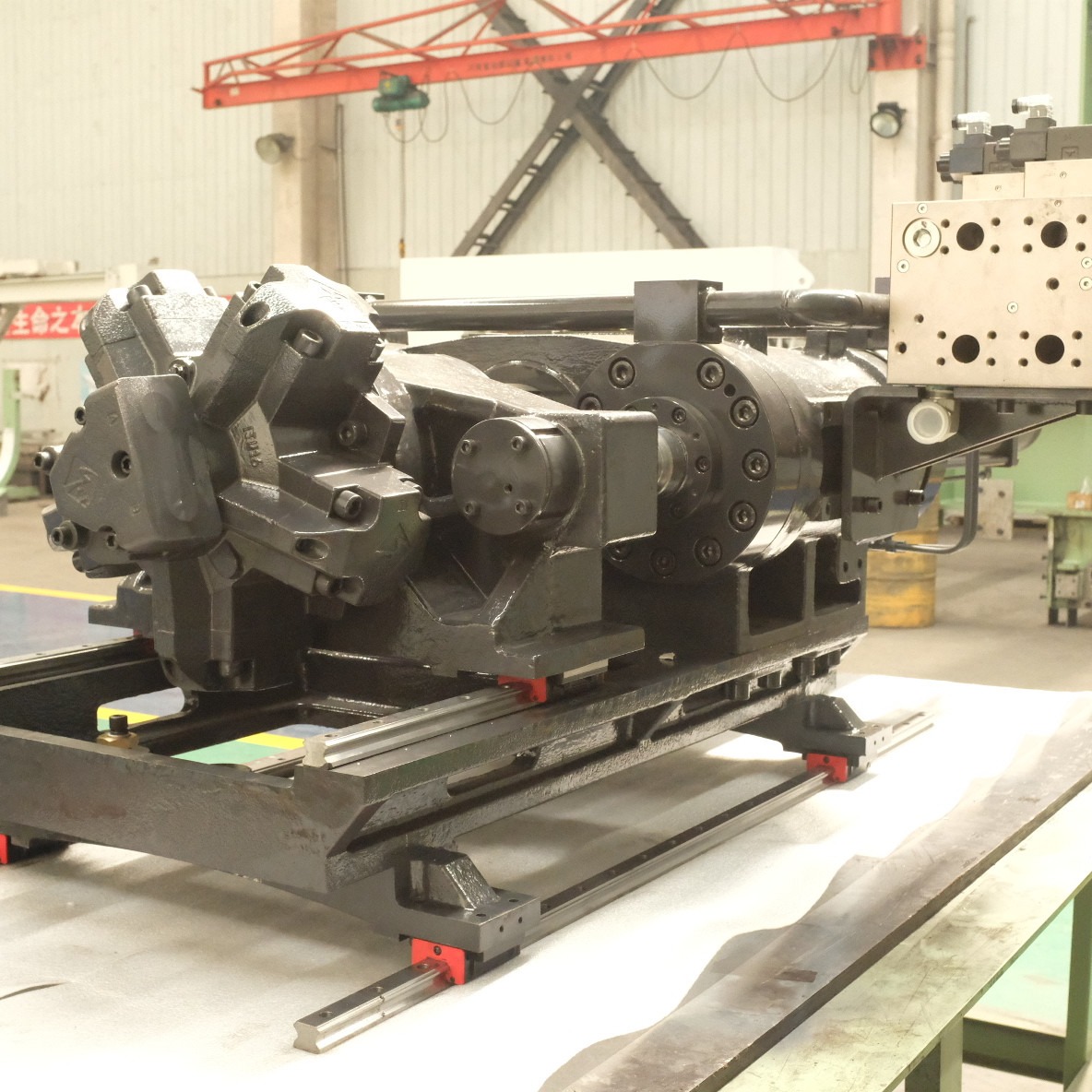

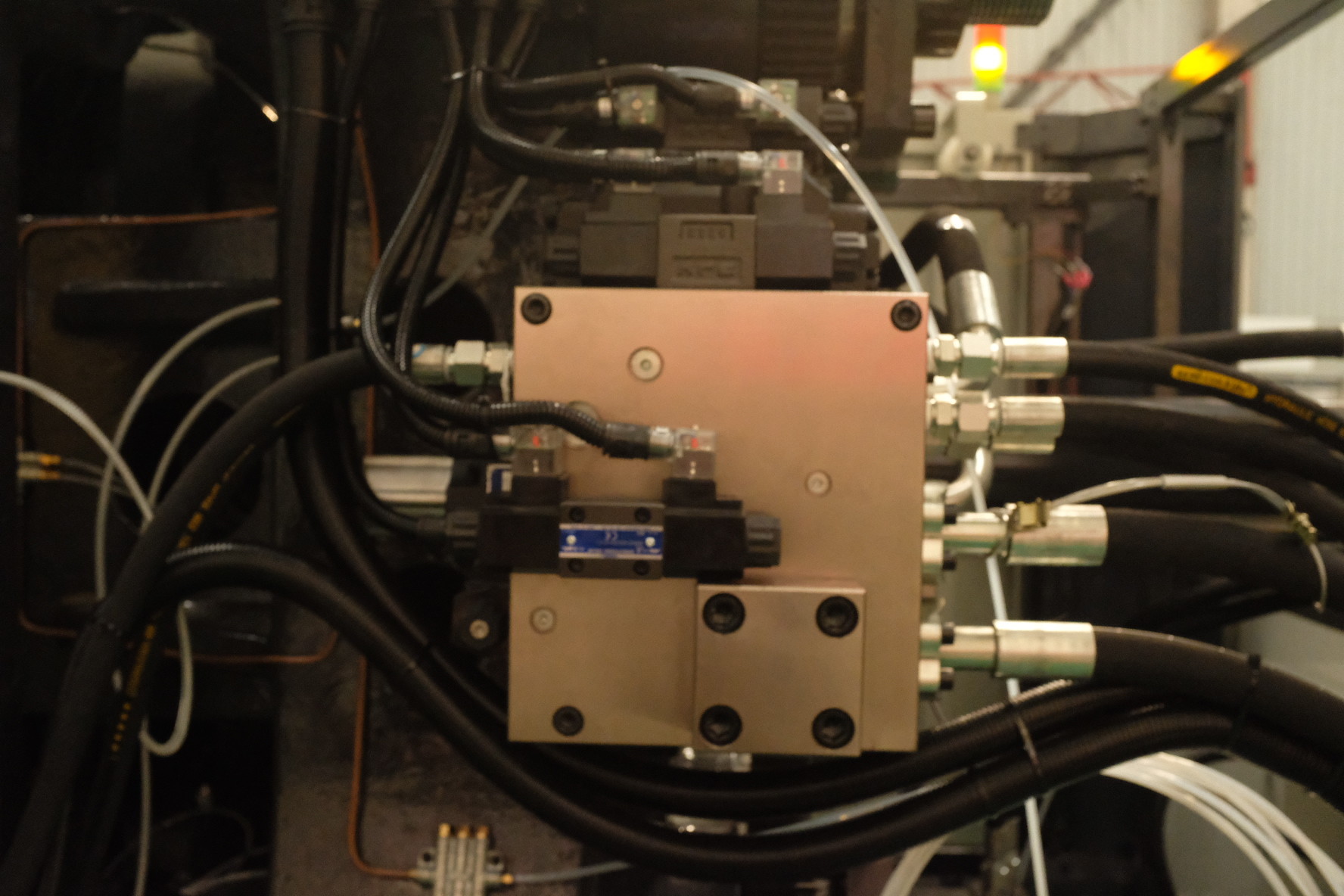

Detail Pictures
