| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-90UV |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | OUCO 90T Precision Hydraulic Servo Comfortable Durable High-Quality Plastic Toothbrush Cups Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Precision Hydraulic Servo Injection Molding Machine,90T Injection Molding Machine,Toothbrush Cups Hydraulic Injection Molding Machine |
||
We strictly control every production process, from the procurement of raw materials to the final product leaving the factory undergo strict quality inspection and testing. Ensure industry-leading performance, stability, and accuracy. Our technical team has rich experience and professional knowledge, they can provide personalized customized solutions according to customer requirements, to meet the production needs of customers in different industries as much as possible. By choosing us, not only have you chosen a high-quality injection molding machine, but you have also chosen a trustworthy partner who can assist you in production.
Product Advantages
OC-90UV is equipped with an 8.7-inch LCD color display screen, providing a more intuitive operating interface and rich information display, allowing you to keep track of the machine status at any time. 200 sets of computer memory mold memory function make mold changing operations more convenient and greatly improve production efficiency. The temperature deviation display and thermocouple circuit breaker alarm function ensure the safety and reliability of the production process. Our injection molding machine adopts an advanced variable pump system and is equipped with a servo drive system to achieve precise control, energy conservation, and efficiency. By choosing OC-90UV, you will enjoy an efficient, stable, and safe production experience, creating greater value for your enterprise.
| MODEL | OC90UV | |||||
| Clamping force (kN) | 900 | |||||
| Space between tie bar (mm*mm) | 360*360 | |||||
| Max. mold thickness (mm) | 360 | |||||
| Min. mold thickness(mm) | 150 | |||||
| Opening stroke (mm) | 320 | |||||
| Ejector stroke(mm) | 100 | |||||
| Ejector force forward(Kn) | 31 | |||||
| Screw diameter(mm) | 30 | |||||
| Screw L/D ratio | 23 | |||||
| Theoretical injection volume (cm3) | 113 | |||||
| Shot weight (PS) g | 106 | |||||
| Injection pressure(MPa) | 243 | |||||
| Screw speed (rpm) | 0-180 | |||||
| Dry-cycle time(sec) | 1.1 | |||||
| Motor power (Kw) | 9 | |||||
| Oil tank capacity(L) | 160 | |||||
| Heater power (Kw) | 6.5 | |||||
| Machine Weight (Ton) | 3.1 | |||||
| Machine size L×W×H (m) | 4.2*1.1*1.7 | |||||

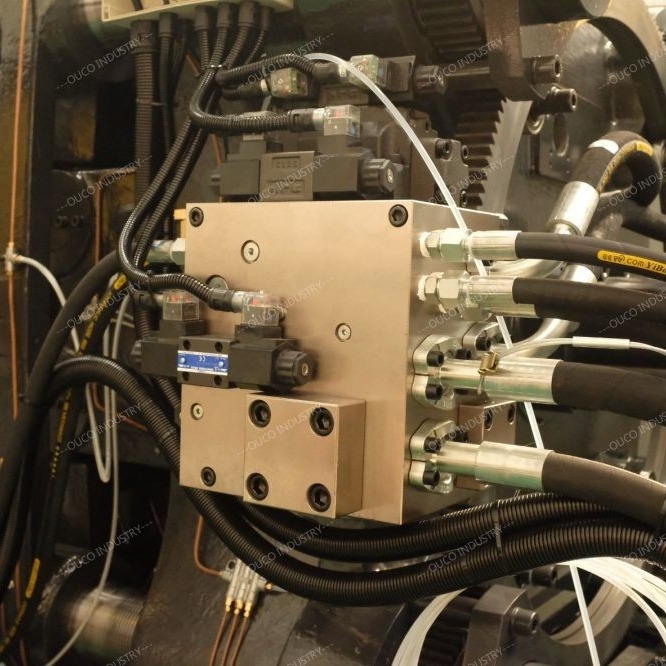

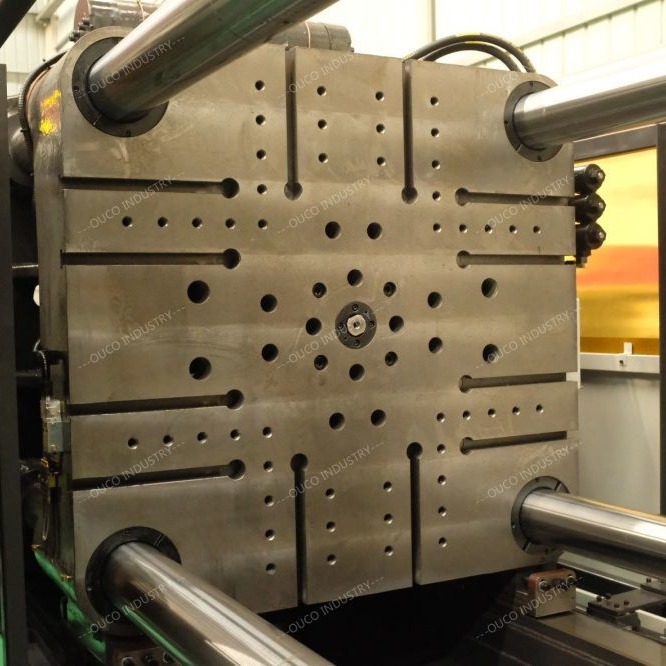

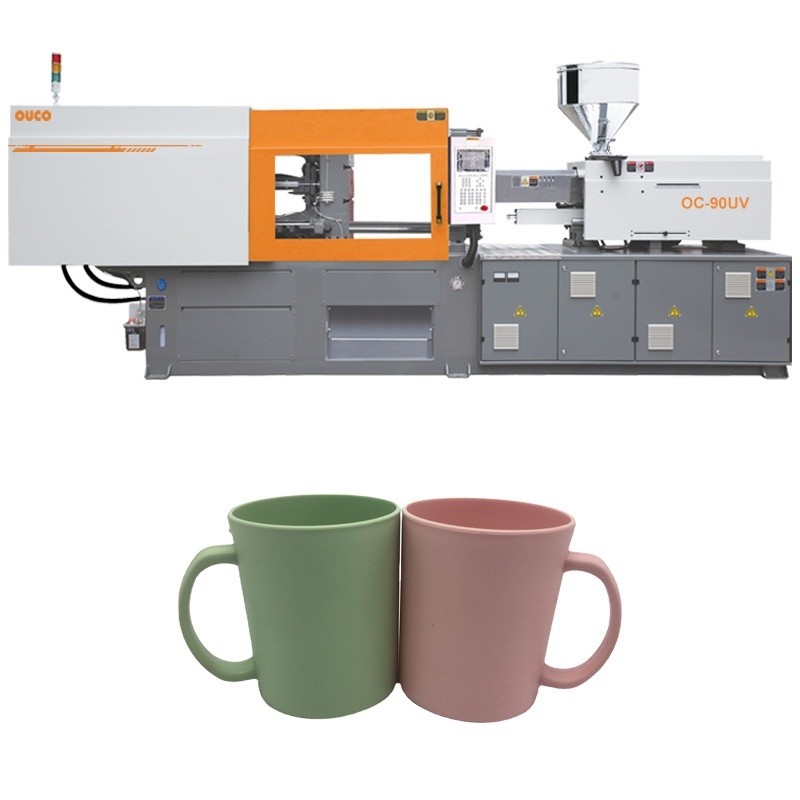

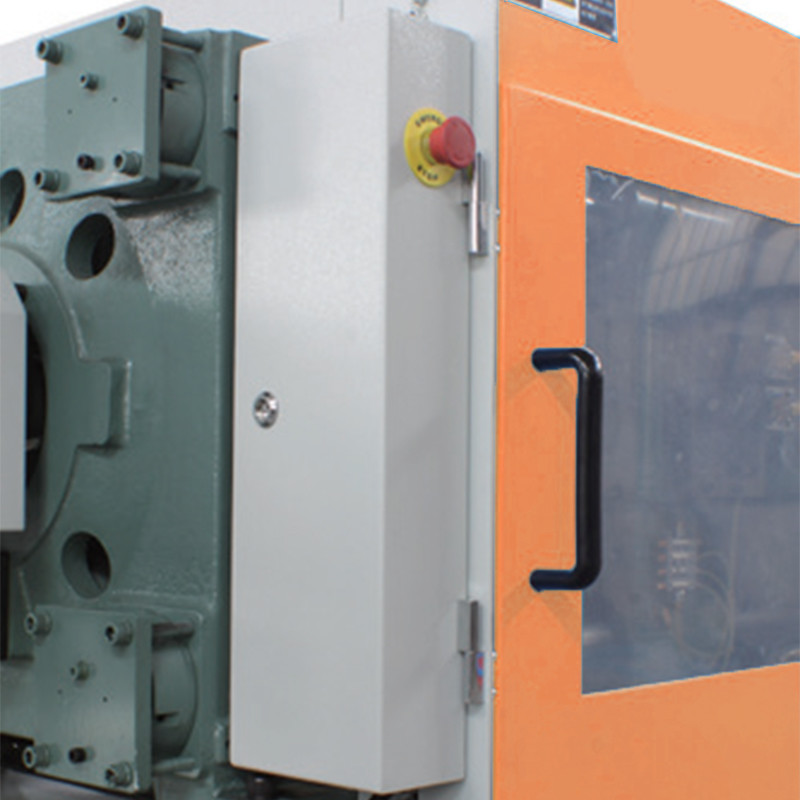

Detail Pictures
