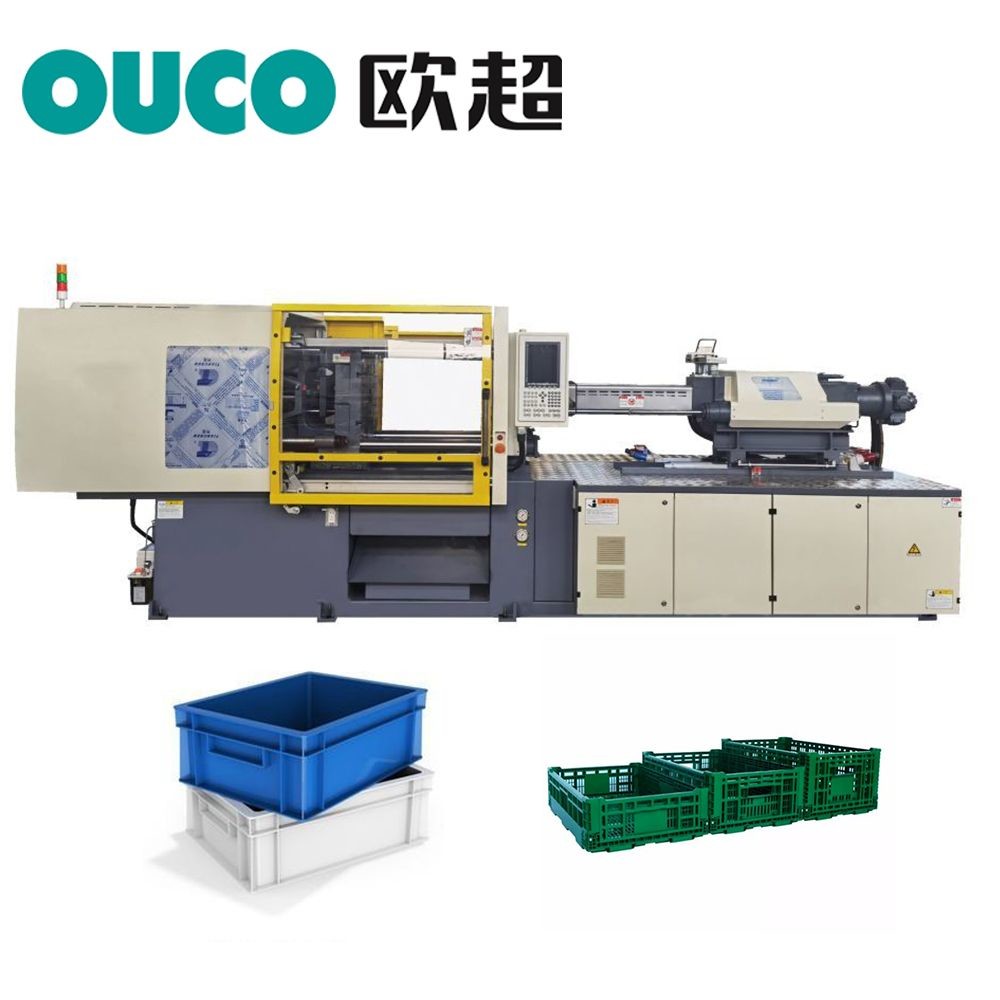

ISO9001 Servo Injection Molding Machine Plastic 180 Ton Injection Molding Machine

Effectively Servo 180Ton-220Ton Customized Plastic Injection Molding Machine In China

OUCO mini injection molding machine is equipped with control system imported from Austria, suitable for different machines and configurations
The man-machine interface is friendly and easy to operate.
CE, UL, CSA, TUV standard manufacturing
Stable, durable, low failure rate, realize continuous production in 3 shifts 24 hours a day

Advantage of OUCO Mini Plastic Molding Machine

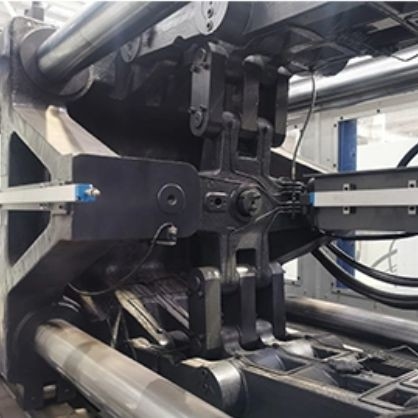

1. Reinforced steel plate and square tube for machine frame .

    Strengthened toggle, bushing and platen .

    Tie bars are manufactured from high grade steel .

    Longer mould opening and ejector stroke and stronger ejection force .

    Moving platen using lubrication free bushing.

2. Advantage of the injection unit: The double cylinder structure on the injection unit can ensure cantering performance of the nozzle and seal betten between mould and nozzle, so no plastic leaks. Higher injection accuracy, low coefficient friction and more uniform during injection and plasticising process; easy to adjust and greatly reduce movement inertia during injection, hence improve injection speed and plasticising capacity

3. Advantage of computer control unit: Our European computer control unit has high speed CPU and DSP module and it increases high control to analogue output module, back plane module and has fast response.

5.Advantage of enclosed slide door: The fully enclosed slide door could effectively prevent foreign matter entre the clamping unit, and is beautiful and more secure. Mechanical safety door use brakes device or brake line, it is safe and reliable, flexible and convenient.

6. Advantage of the hydraulic unit: Unique hydraulic circuit design using cartridge valve plate. It has fast response time, pressure and speed control is precise, so higher product precision and repeatability

7. Advantage of plasticising unit: Adopt high quality material barrel screw, plastic melting is fast, so reduces melting time. Injection nozzle and front flange connection design is inside position, result in better connection, hard to leak and can withstand high pressure and high speed injection.

Product Paraments
