| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-90UV |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

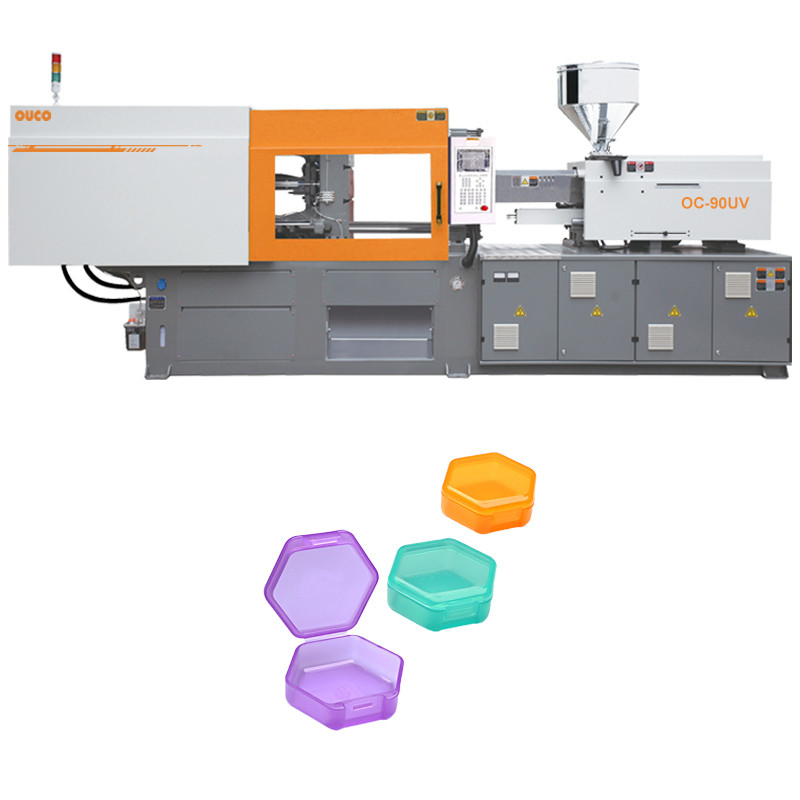

| Product Name: | OUCO 90T Energy Saving Hydraulic Servo Portable Plastic Medicine Box Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | OUCO Hydraulic Servo Injection Molding Machine,90T Portable Injection Molding Machine,Plastic Medicine Box Injection Molding Machine |
||
We understand that each customer's needs are unique, so we provide flexible customization services to meet the requirements of different industries and applications. Whether you are seeking to improve production efficiency, reduce energy consumption, or pursue more intelligent production processes, we have suitable injection molding machine production solutions. By choosing us, you not only receive durable products, but also a trusted long-term partner to help you achieve greater success in the market.
Product Advantages

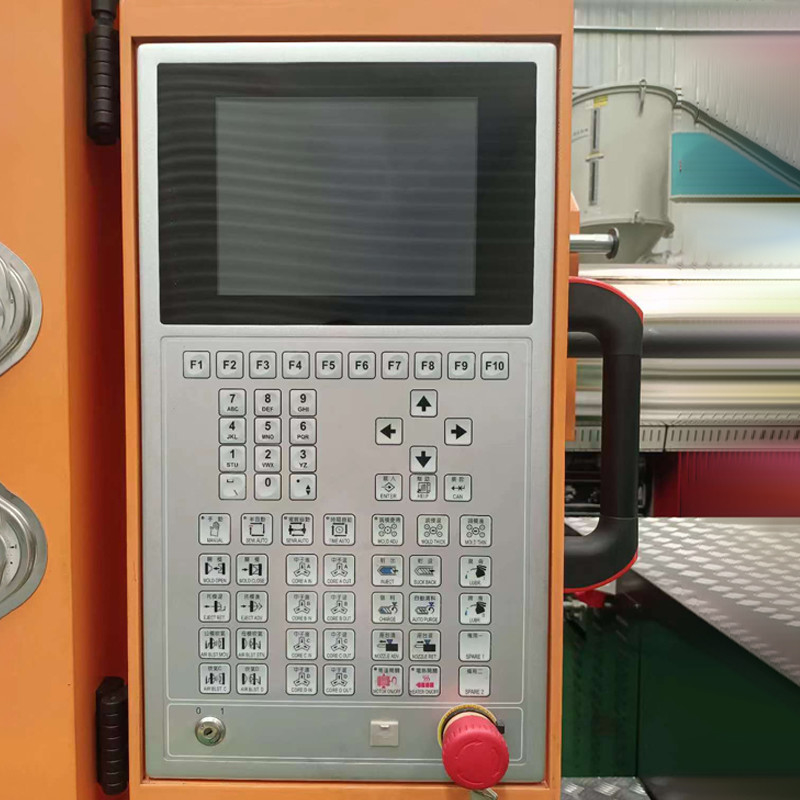

OC-90UV is equipped with a high-performance servo motor power control system, which will not cause excessive energy loss, greatly saving the energy. We have optimized and upgraded the template, with a sturdy structure and minimal deformation, effectively extending the service life of the machine. Equipped with a dedicated computer for injection molding machines produced by well-known manufacturers, it can improve the execution speed and machine work accuracy of the control system, monitor the production process in real time, and display various fault diagnoses. Let you feel more at ease when producing products.
| MODEL | OC90UV | |||||
| Clamping force (kN) | 900 | |||||
| Space between tie bar (mm*mm) | 360*360 | |||||
| Max. mold thickness (mm) | 360 | |||||
| Min. mold thickness(mm) | 150 | |||||
| Opening stroke (mm) | 320 | |||||
| Ejector stroke(mm) | 100 | |||||
| Ejector force forward(Kn) | 31 | |||||
| Screw diameter(mm) | 30 | |||||
| Screw L/D ratio | 23 | |||||
| Theoretical injection volume (cm3) | 113 | |||||
| Shot weight (PS) g | 106 | |||||
| Injection pressure(MPa) | 243 | |||||
| Screw speed (rpm) | 0-180 | |||||
| Dry-cycle time(sec) | 1.1 | |||||
| Motor power (Kw) | 9 | |||||
| Oil tank capacity(L) | 160 | |||||
| Heater power (Kw) | 6.5 | |||||
| Machine Weight (Ton) | 3.1 | |||||
| Machine size L×W×H (m) | 4.2*1.1*1.7 | |||||

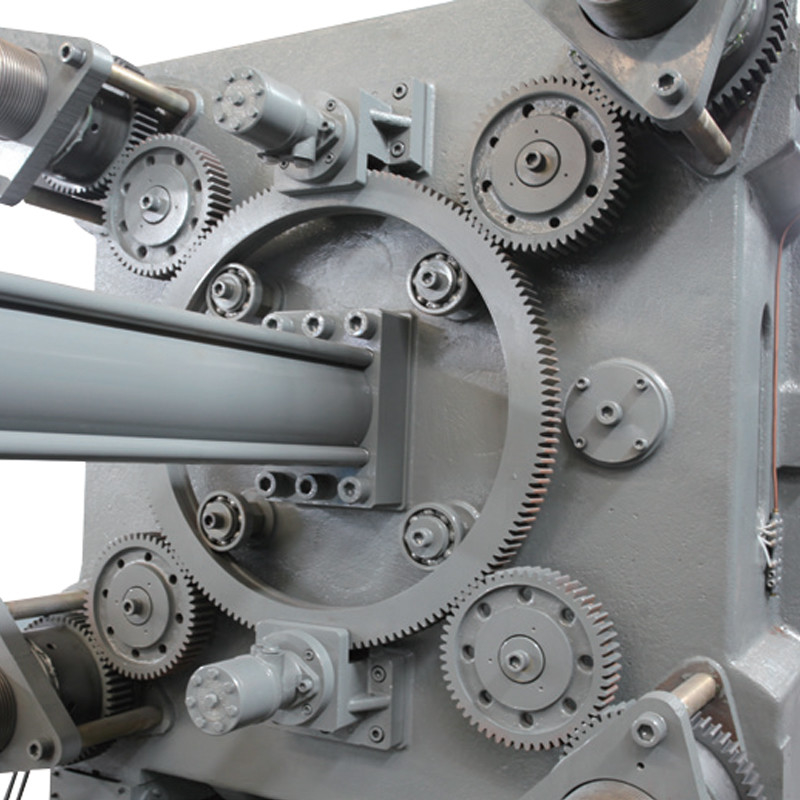

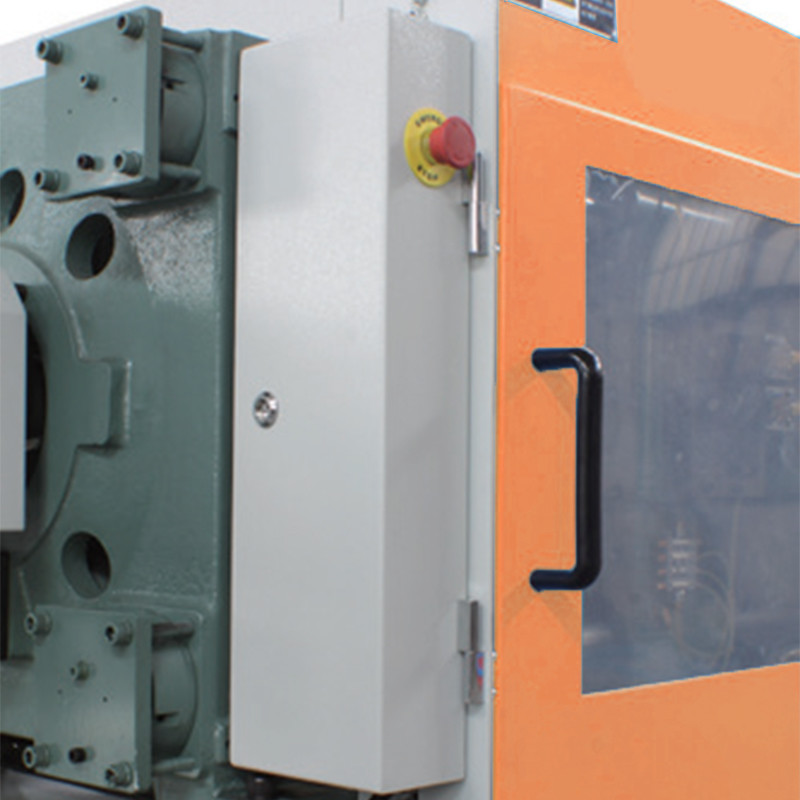

Detail Pictures
