| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-1350T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |

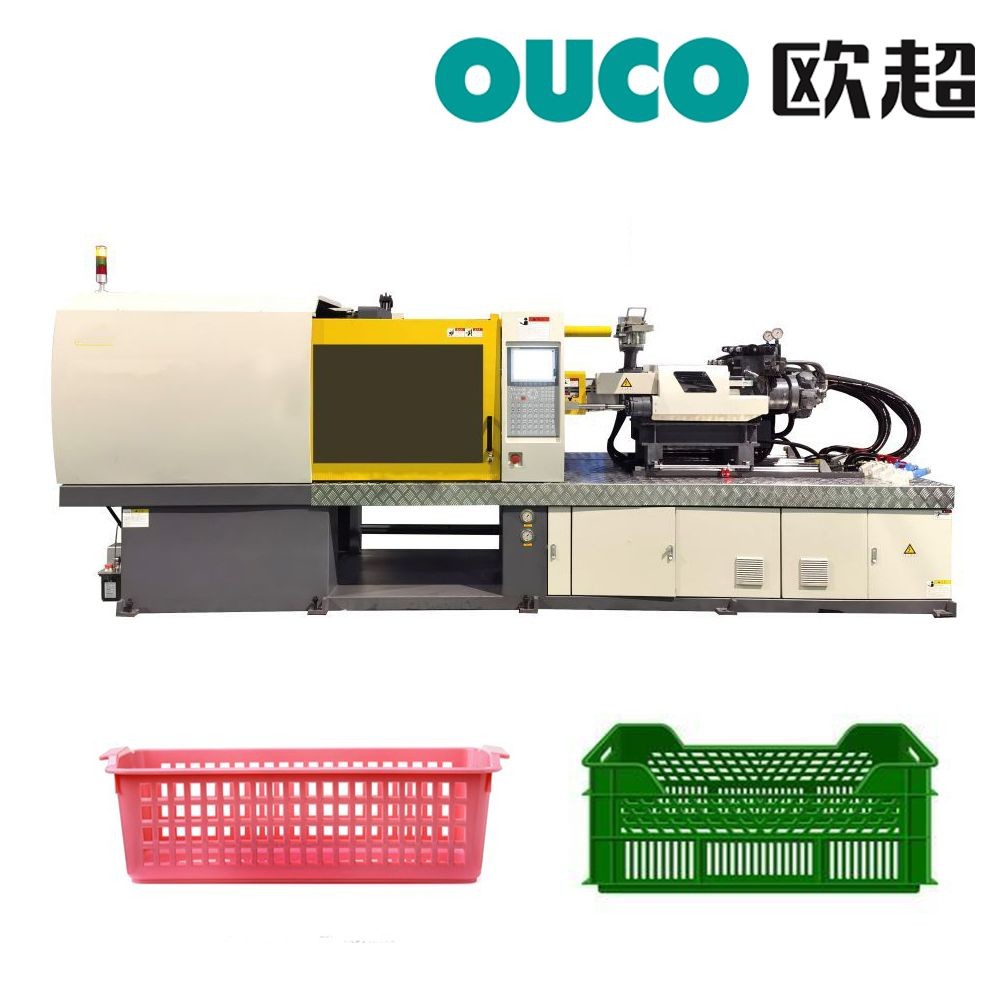

| Product Name: | Two Plate 1350T Effectively Injection Plastic Moulding Machine For Bucket For Sale | Plastic Processed:: | PP, PC,PVC |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |
| Highlight: | 1350T Bucket Injection Molding Machine,PC Bucket Injection Molding Machine,16MPa automatic injection moulding machine |
||
Advantage of OUCO CWI Servo Plastic Molding Machine
OUCO brake non-contact: non-contact air-avoiding design, four oil cylinders synchronously independent brake, effectively prevent the brake thread and Corinthian thread from colliding during the action, and eliminate the damage of parts caused by the impact. The unique brake structure avoids structural misalignment and jamming. The brake is closed, and the brake thread and the Corinthian thread avoid the air. When the high-pressure boost is performed, the brake thread and the Corinthian thread will only contact. When the machine is running for a long time, the brake thread and Corinthian thread will not be damaged, which effectively prolongs the service life.
Brake without contact:
The non-contact air-avoiding design, the four oil cylinders are synchronously and independently holding the brake, which effectively prevents the collision between the brake thread and the Corinthian thread during the action, and eliminates the damage of the parts caused by the impact.
The unique brake structure avoids structural misalignment and jamming. The brake locks together, and the brake thread and the Corinthian thread avoid the air. When the high-pressure boost is performed, the brake thread and the Corinthian thread will only contact. When the machine is running for a long time, the brake thread and Corinthian thread will not be damaged, which effectively prolongs the service life.
Product Paraments
| CWI-1350S Ⅲ | |||||||||||
| 机型 | 1350S Ⅲ | ||||||||||
| 合模装置 | 锁模力 Kn | Clamping Force | 13500 | ||||||||
| 拉杆间距 mm | Space Between Tie-bars | 1420×1220 | |||||||||
| 开模最大开距 mm | Clamping Stroke | 3000 | |||||||||
| 最大模具 mm | Mould Thickness Max | 1400 | |||||||||
| 最小模具 mm | Mould Thickness Min | 650 | |||||||||
| 模板尺寸 mm | Size of Platen | 2100×1900 | |||||||||
| 顶出长度 mm | Ejector Stroke | 400 | |||||||||
| 顶出力 Kn | Ejector Force | 341 | |||||||||
| 顶针数 | Ejector Quantily | 25 | |||||||||
| 注塑装置 | 射胶配置 | Injection Equipment | 6600I | 11000I | 18000I | ||||||
| 螺杆直径 mm | Screw Diameter | 90 | 100 | 110 | 110 | 120 | 130 | 130 | 140 | 150 | |
| 螺杆长径比 | Screw L/D ratio | 23.3 | 21 | 19.1 | 22.9 | 21 | 19.4 | 22.6 | 21 | 19.6 | |
| 理论射胶容积 cm3 | Shot Size | 3052 | 3768 | 4559 | 5461 | 6500 | 7628 | 8821 | 10231 | 11744 | |
| 实际射胶量 (PS)g | Shot Weight | 2777 | 3428 | 4148 | 4969 | 5915 | 6941 | 8027 | 9310 | 10687 | |
| oz | 99.0 | 122.3 | 148.0 | 177.2 | 210.9 | 247.5 | 286.6 | 332.0 | 381.0 | ||
| 射胶压力 MP | Injection Pressure | 215 | 174 | 144 | 209 | 176 | 145 | 203 | 176 | 152 | |
| 注射速率 mm/s | Injection Rate | 788.0 | 974.0 | 1177.0 | 809.0 | 964.0 | 1131.0 | 835.0 | 969.0 | 1112.0 | |
| 射胶速度 cm3/s | Injection Speed | 124 | 85 | 74 | |||||||
| 螺杆转速 g/s | Screw Speed | 10~225 | 10~160 | ||||||||
| 塑化能力 rpm | Plasticising Capacity | 78.0 | 83.0 | 111.0 | 102.0 | 126.0 | 146.0 | 142.0 | 155.0 | 165.0 | |
| 电力及其他 | 油箱容积 L | Oil Tank Capacity | 1300 | ||||||||
| 电热功率 Kw | Heater Power | 58 | 85 | 89.26 | |||||||
| 电热区数 L | Team Control zone | 5+1 | |||||||||
| 系统压力 MPa | System Pressure Max | 16 | |||||||||
| 油泵输量 L/min | Pump Output | 650 | |||||||||
| 电机功率 Kw | Servo Power | 50+50+50+7.5 | |||||||||
| 机器净重 ton | Machine Weight | 65 | |||||||||
| 机器尺寸(长×宽×高) mm | Machine Dimension | 12500×3500×2900 | |||||||||

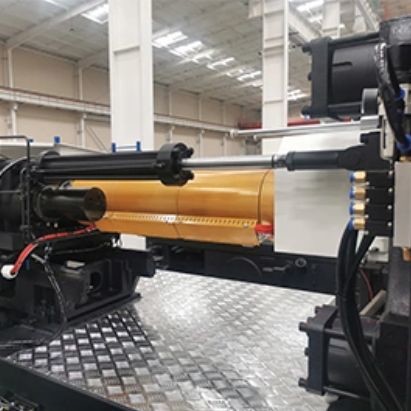

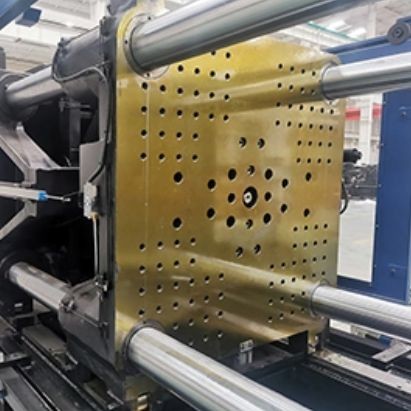

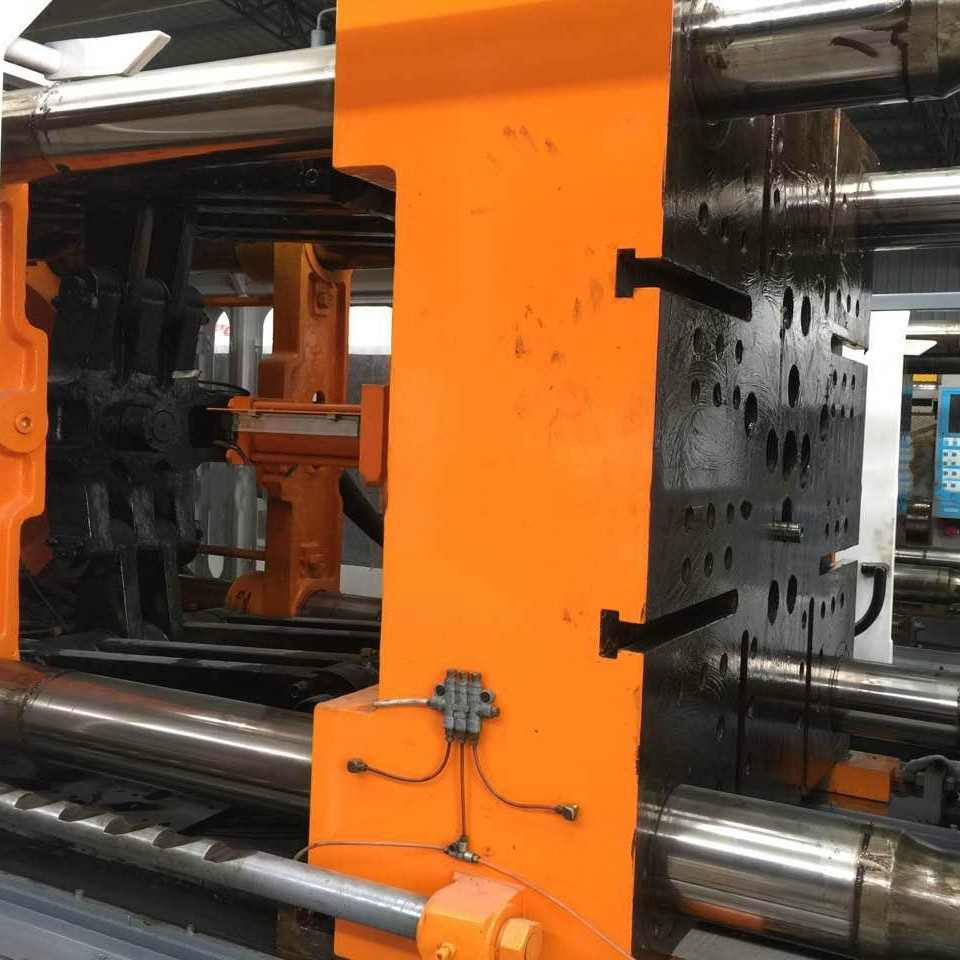

Detailed Pictures
