| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-PVC-400T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | PVC Mass-production Injection Molding Machine With Special Technical Solutions | Plastic Processed: | PP,PC,PVC |
|---|---|---|---|
| Applicable: | Manufacturing Plant,Food&Beverage | Type: | Automation |
| Warranty: | 1 Year | Machinery: | Provided |
| Place Of Origin: | Wuxi,China | Selling Points: | Competitive Price |
| Video Outgoing-inspection: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time: | About 50 Days |
| High Light: | PVC automatic injection moulding machines,75mm automatic injection moulding machines,160rpm energy saving injection molding machine |
||
Product Details
1. PVC material with special screw + barrel design and added fan for cooling barrel to avoid material overheating and coking;
2. Add a larger grade of oil motor to facilitate the plasticization and molding of PVC material;
3. Extended security door width for better installation of PVC parts molds, suitable for easy installation of PVC parts molds (core extraction barrels);
4. Provide special technical solutions for PVC injection molding, not only for the modification of screw and barrel, but also for the complete hydraulic system and special solutions for injection device.
Technical Parameter
| TECHNICAL PARAMETER TABLE | ||
| Injection Unit | ||
| Screw diameter | mm | 75 |
| Screw L/D ratio | L/D | 20 |
| Injection capacity in theory | cm³ | 1634 |
| Injection weight(PVC) | g | 1961 |
| Injection pressure | MPa | 173 |
| Injection rate | g/s | 474 |
| Plasticizing capacity | g/s | 78 |
| Screw speed | rpm | 160 |
| Clamping Unit | ||
| Clamping force | KN | 4700 |
| Moving mould-plate stroke | mm | 780 |
| Max.Mould height | mm | 820 |
| Min.Mould height | mm | 300 |
| Space between tie-bars | mm | 820x770 |
| Hydraulic ejector force | KN | 120 |
| Hydraulic ejector stroke | mm | 200 |
| Ejector number | n | 13 |
| Other | ||
| Pump pressure | MPa | 16 |
| Motor/Driving power | KW | 30+23 |
| Heating capacity | KW | 23.15 |
| Machine dimension | m | 7.85x2.5x2.4 |
| Machine weight | t | 16.4 |
| Oil tank capacity | L | 687 |

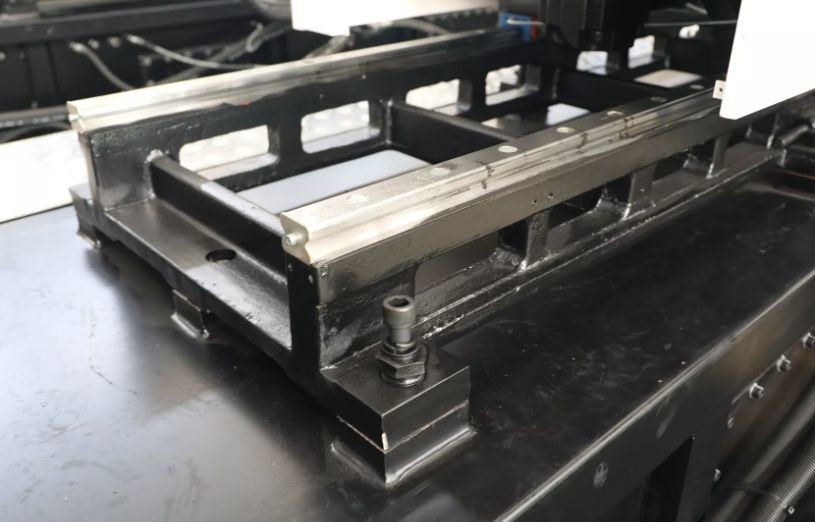

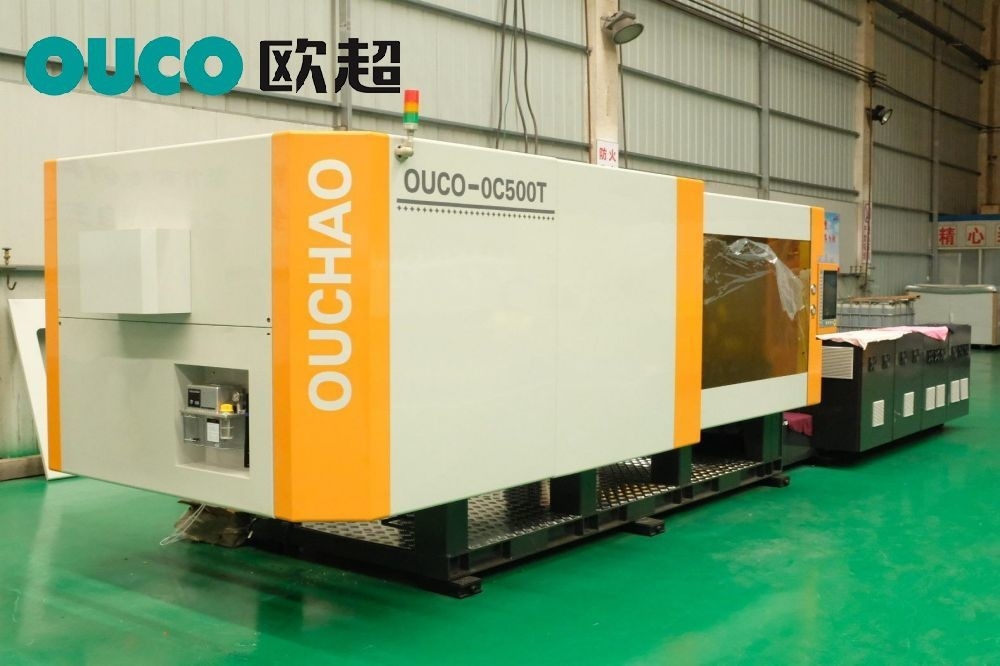

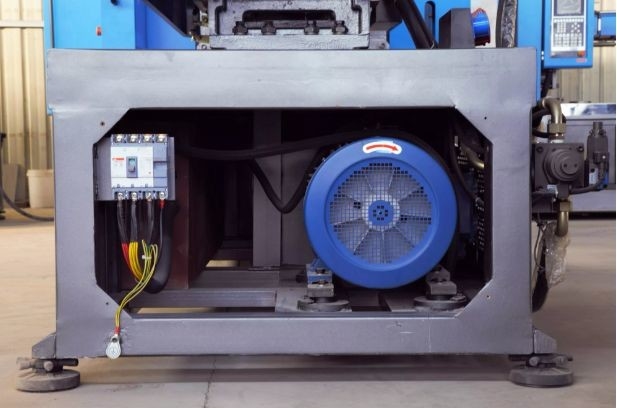

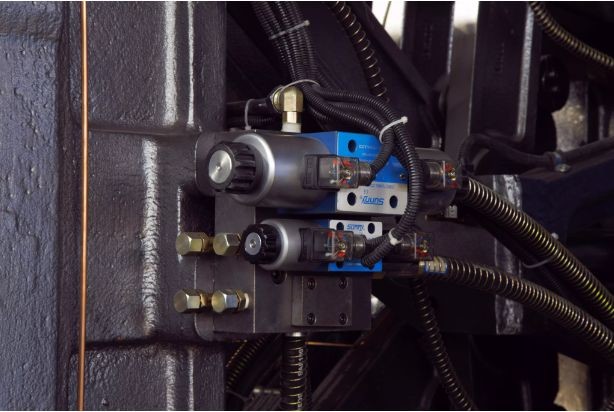

Detail Pictures
