| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-PV1100T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | PVC Injection Molding Machine For Fruit Packing And Shopping Basket Foldable Crates | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 1100T PVC Injection Molding Machine,120mm PVC Injection Molding Machine,injection plastic molding machine SGS |
||
Product Details

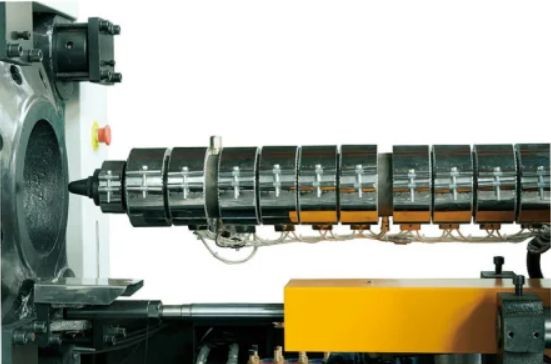

1. PVC material with special screw + barrel design and added fan for cooling barrel to avoid material overheating and coking;
2. Add a larger grade of oil motor to facilitate the plasticization and molding of PVC material;
3. Extended security door width for better installation of PVC parts molds, suitable for easy installation of PVC parts molds (core extraction barrels);
4. Provide special technical solutions for PVC injection molding, not only for the modification of screw and barrel, but also for the complete hydraulic system and special solutions for injection device.
| TECHNICAL PARAMETER TABLE | ||
| Injection Unit | ||
| Screw diameter | mm | 120 |
| Screw L/D ratio | L/D | 20.2 |
| Injection capacity in theory | cm³ | 6333 |
| Injection weight(PVC) | g | 7600 |
| Injection pressure | MPa | 150 |
| Injection rate | g/s | 1123 |
| Plasticizing capacity | g/s | 134 |
| Screw speed | rpm | 110 |
| Clamping Unit | ||
| Clamping force | KN | 11000 |
| Moving mould-plate stroke | mm | 1220 |
| Max.Mould height | mm | 1170 |
| Min.Mould height | mm | 450 |
| Space between tie-bars | mm | 1160x1160 |
| Hydraulic ejector force | KN | 245 |
| Hydraulic ejector stroke | mm | 320 |
| Ejector number | n | 21 |
| Other | ||
| Pump pressure | MPa | 16 |
| Motor/Driving power | KW | 30x3 |
| Heating capacity | KW | 68.85 |
| Machine dimension | m | 12.55x3.25x3.5 |
| Machine weight | t | 56.3 |
| Oil tank capacity | L | 2000 |

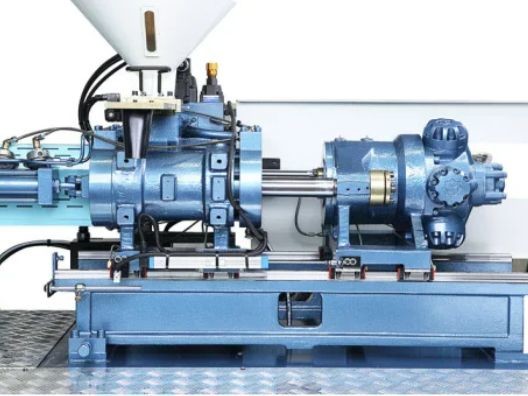

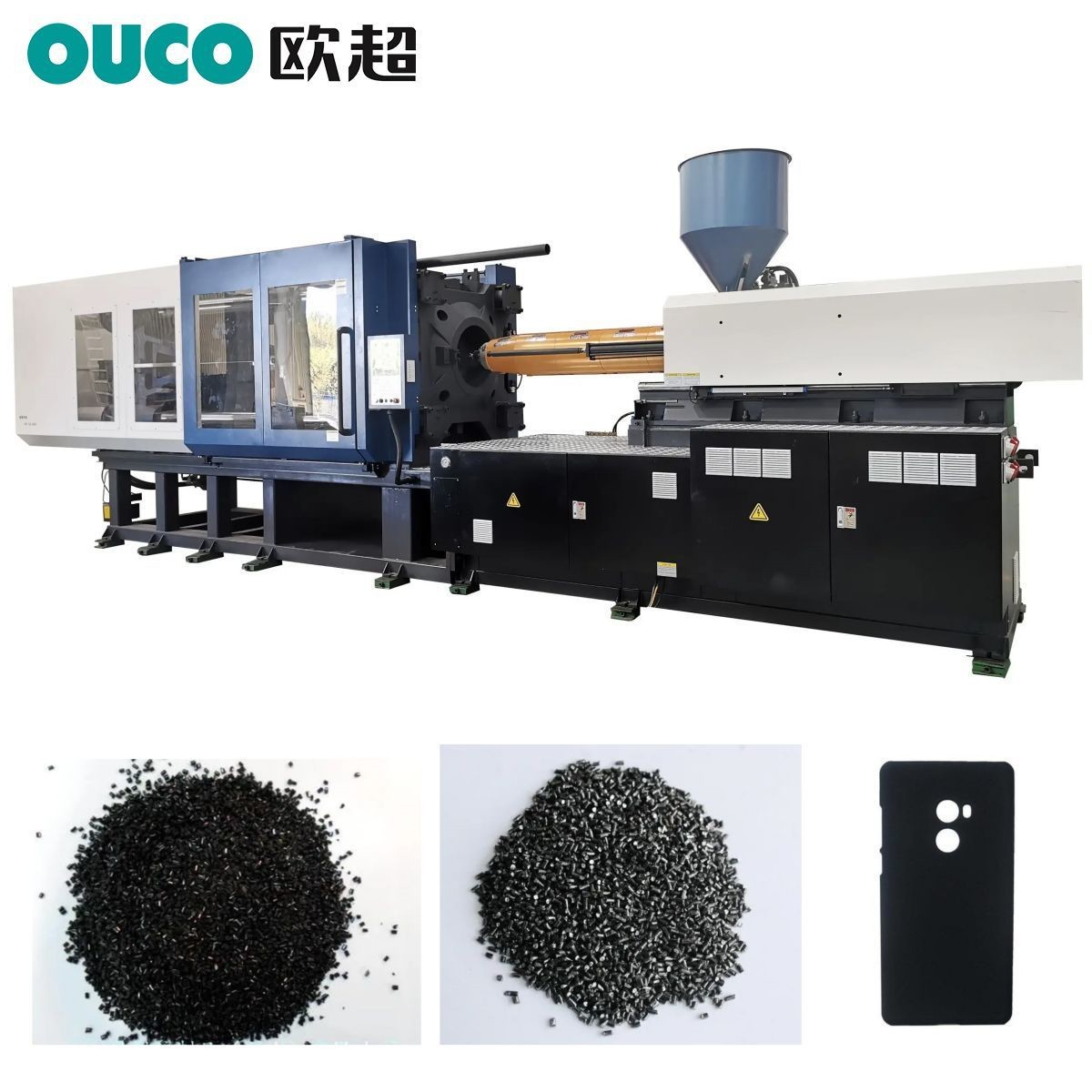

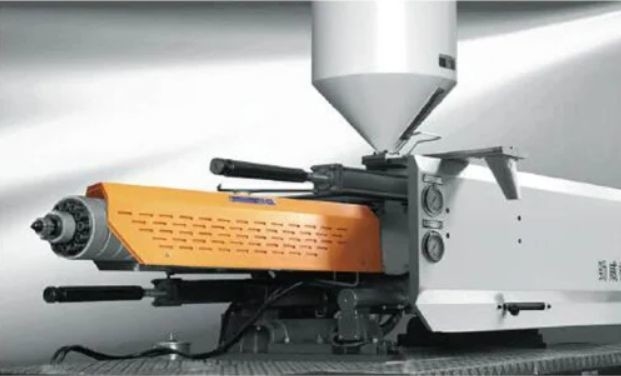

Detail Pictures
